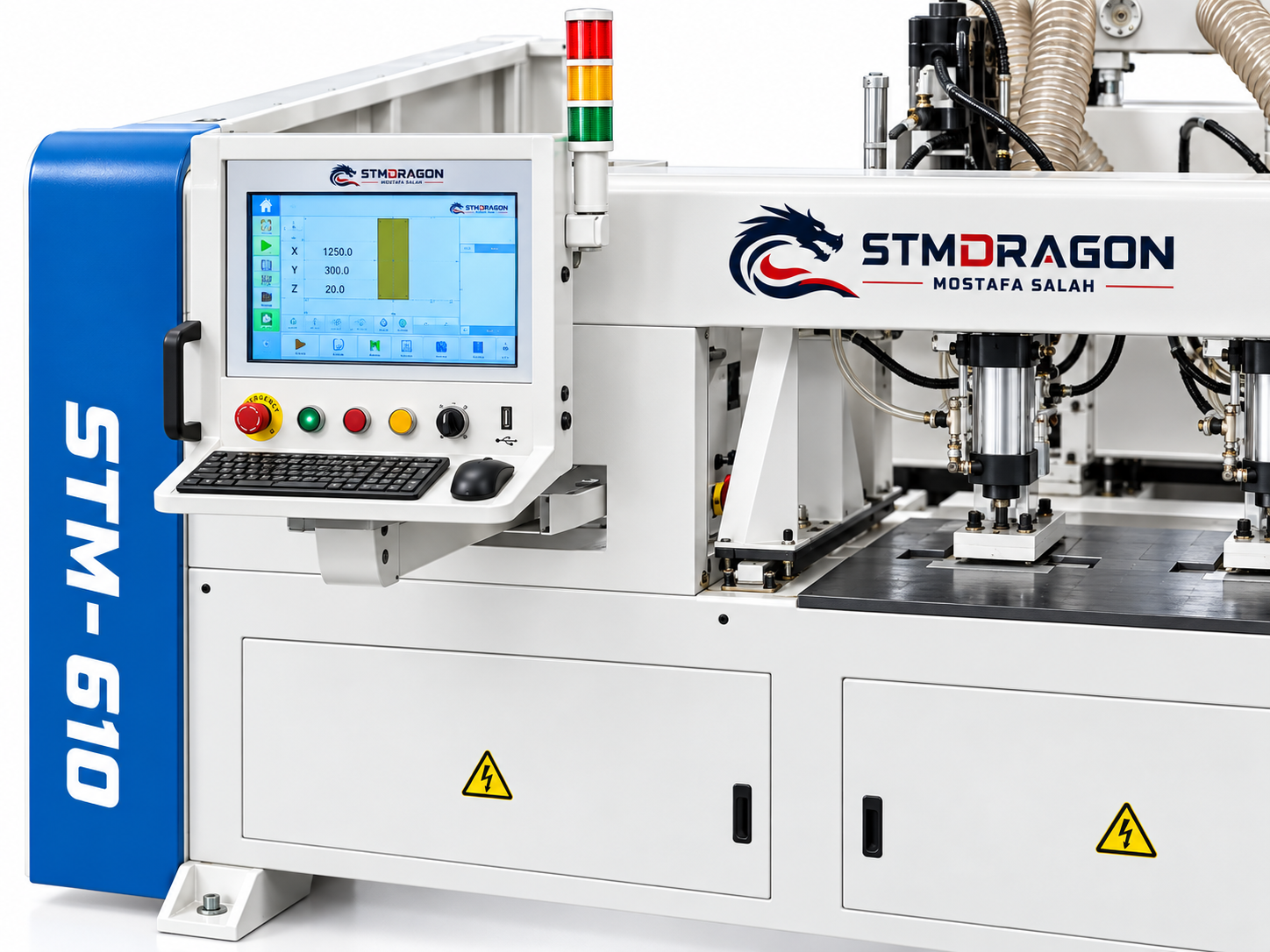

الSTMDRAGON STM-610 Door Wall Cabinet CNC Processing Center is an industrial CNC solution for processing door panels, wardrobe doors, wall panels, and cabinet-related components. It supports multiple operations including hinge-hole processing, mounting notches, drilling, milling, Lamello processing, laminating, and 45° bevel processing.
The machine is equipped with a 5.5 kW Changchuan ISO ATC spindle with an 8-tool magazine, supported by dedicated horizontal and bevel-processing spindles for different production requirements. Its customized control system can work with automatic data collection through a QR code scanner, supporting XML, MPR, and other production data formats.
Main Technical Features
- النموذج: STM-610
- نوع الماكينة: Door Wall & Cabinet Integrated CNC Processing Center
- Processing Length: 250–3050 mm
- Maximum Processing Width: 180 mm
- Minimum Processing Width: 50 mm (for boards up to 25 mm thickness)
- Processing Thickness: 10–60 mm
- نظام التحكم: Blue Elephant Customized Control System
- ATC Spindle: 5.5 kW Changchuan ISO ATC spindle
- مجلة الأدوات: 8 tools
- Side Horizontal Spindle: 2 × 4.5 kW Jester air-cooled spindles
- 45° Bevel Lamello Spindle: 2.2 kW Changchuan right-angle spindle
- 45° Bevel Lamello Pilot Hole Spindle: 800 W Jester round air-cooled spindle
- Bevel Cutting Spindle: 4.5 kW Jester air-cooled spindle
- محرك سيرفو: 850 W Delta servo motor
- دليل السكة: Taiwan SHAC, Y-axis 30#, X/Z-axis 25#
- رف: Taiwan JT M2
- Screw: Z-axis 3505, X-axis 2510
- المخفض: Japan SHIMPO 1:8
- العاكس: Fuling 7.5 kW + 2.2 kW
- Machine Power: Approximately 12 kW
- Floor Space: 5850 × 3000 mm
- وزن الماكينة: Approximately 2000 kg
Processing Functions
The STM-610 is designed for multiple door, wall panel, wardrobe, and cabinet processing operations, including:
- Hinge-hole processing
- Mounting notch processing
- Drilling
- Milling
- Lamello processing
- 45° bevel Lamello processing
- Bevel cutting
- Laminating-related processing
- Multi-process profile machining
- تغيير الأدوات تلقائيًا
- Automatic board thickness measurement
- Automatic crossbeam adjustment
- QR-code-based production data collection

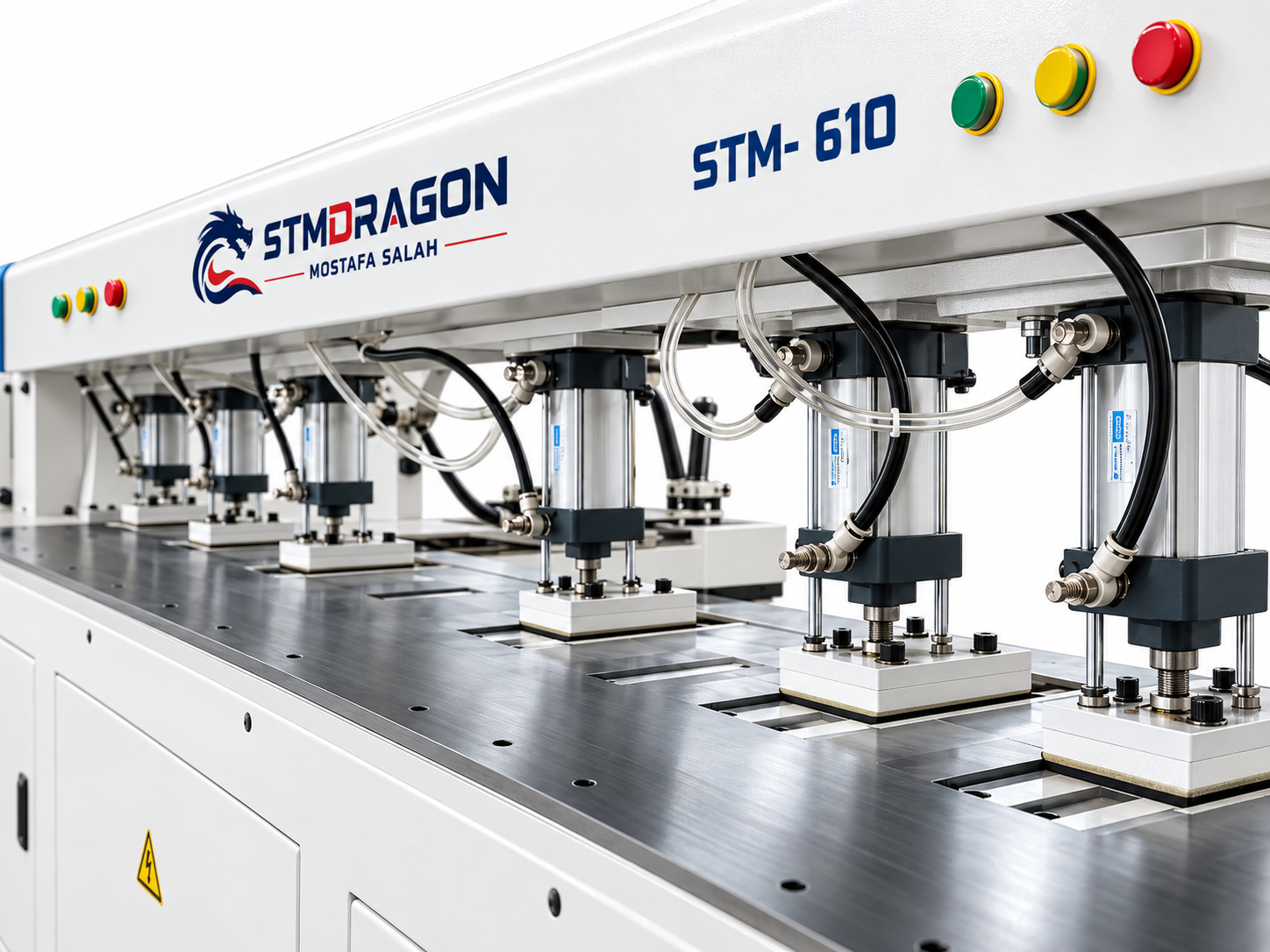

The machine includes eight pressing cylinders with anti-slip plates and ten narrow-board pressing units, allowing stable processing of narrow boards down to approximately 50 مم wide.
Automation & Accuracy
The horizontal and vertical tool-setting systems help improve setup efficiency and machining precision. The automatic board thickness measurement system adjusts the tooling according to the detected thickness, with supplied accuracy information of less than 0.1 mm.
The machine also supports dual-position cycling for smaller panels and single-position processing for larger panels, helping improve production flexibility.
الضمان والدعم
- الضمان: 1 Year Limited Warranty
- الدعم الفني: Free Lifetime Online Technical Support
- الخدمة الخارجية: Available according to supplier support terms
