DerSTMDRAGON STM-2128 ATC Nesting CNC Machine is designed for high-volume panel cutting, nesting, drilling, routing, and furniture component processing. Its automatic loading and unloading system helps reduce manual handling and supports continuous production for cabinet, wardrobe, and whole-house customized furniture manufacturing.
The machine uses a 2070 × 2800 × 200 mm axis travel with a full-sheet 8-zone vacuum table for stable panel positioning. A 9kW HQD ATC air-cooled spindle operating at up to 18,000 RPM provides high-speed machining, while the linear tool magazine under the gantry enables automatic tool changes.
Key Technical Features:
- Modell: STM-2128 ATC
- Maschinentyp: ATC Nesting CNC Machine
- Table Size: 2070 × 2800 mm
- Axis Travel: 2070 × 2800 × 200 mm
- Worktable: Full-sheet vacuum table, 8 zones
- Spindle: 9kW HQD ATC air-cooled spindle
- Spindle Speed: 18,000 RPM
- Steuerungssystem: Syntec 60CB
- Inverter: Fuling H1 Series, 11kW
- Motor & Driver: Leadshine 1.5kW servo motor
- Guide Rails: Taiwan guide rail, Y#30 / X#25 / Z#25
- Rack: JT 2M

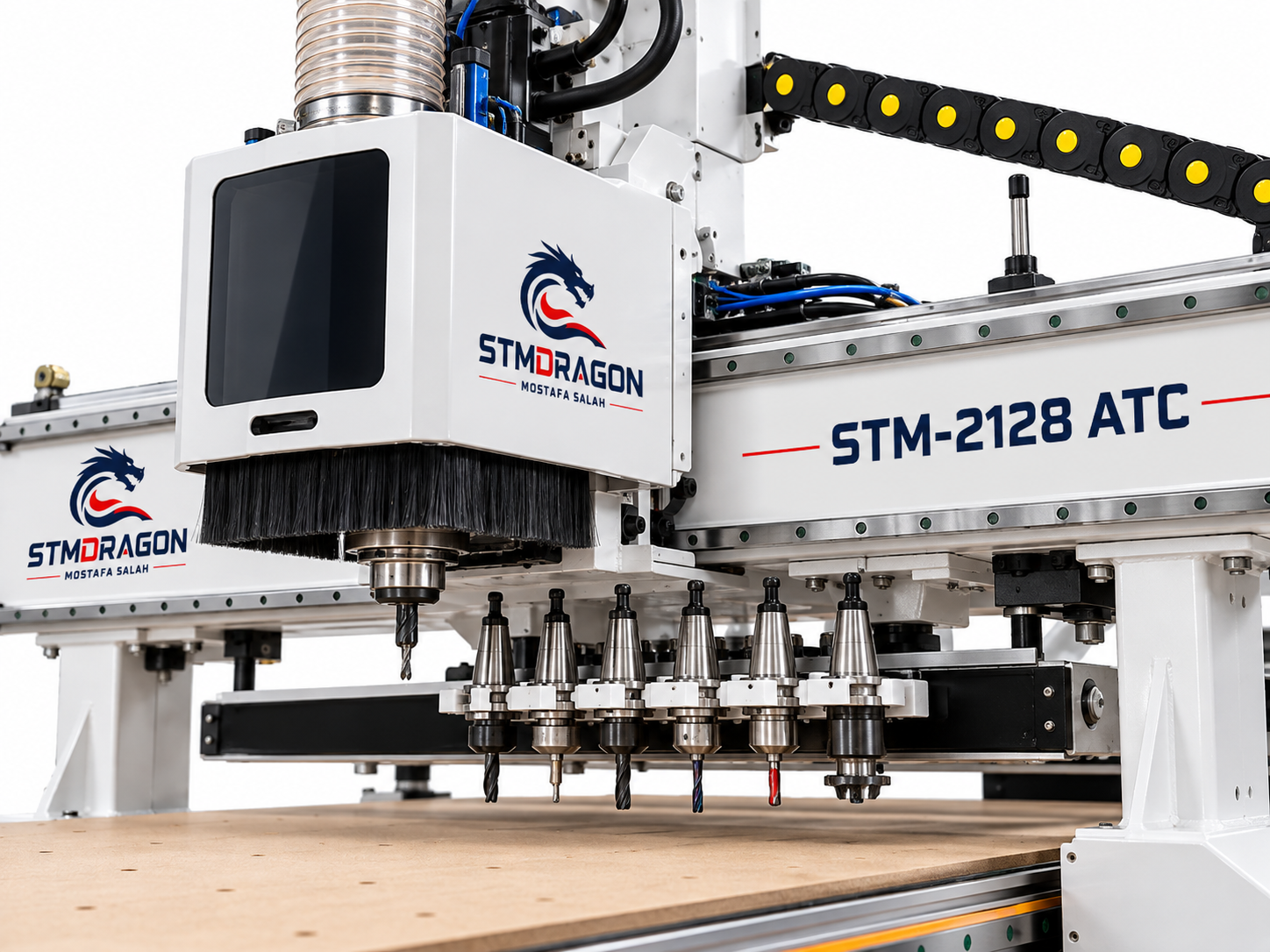

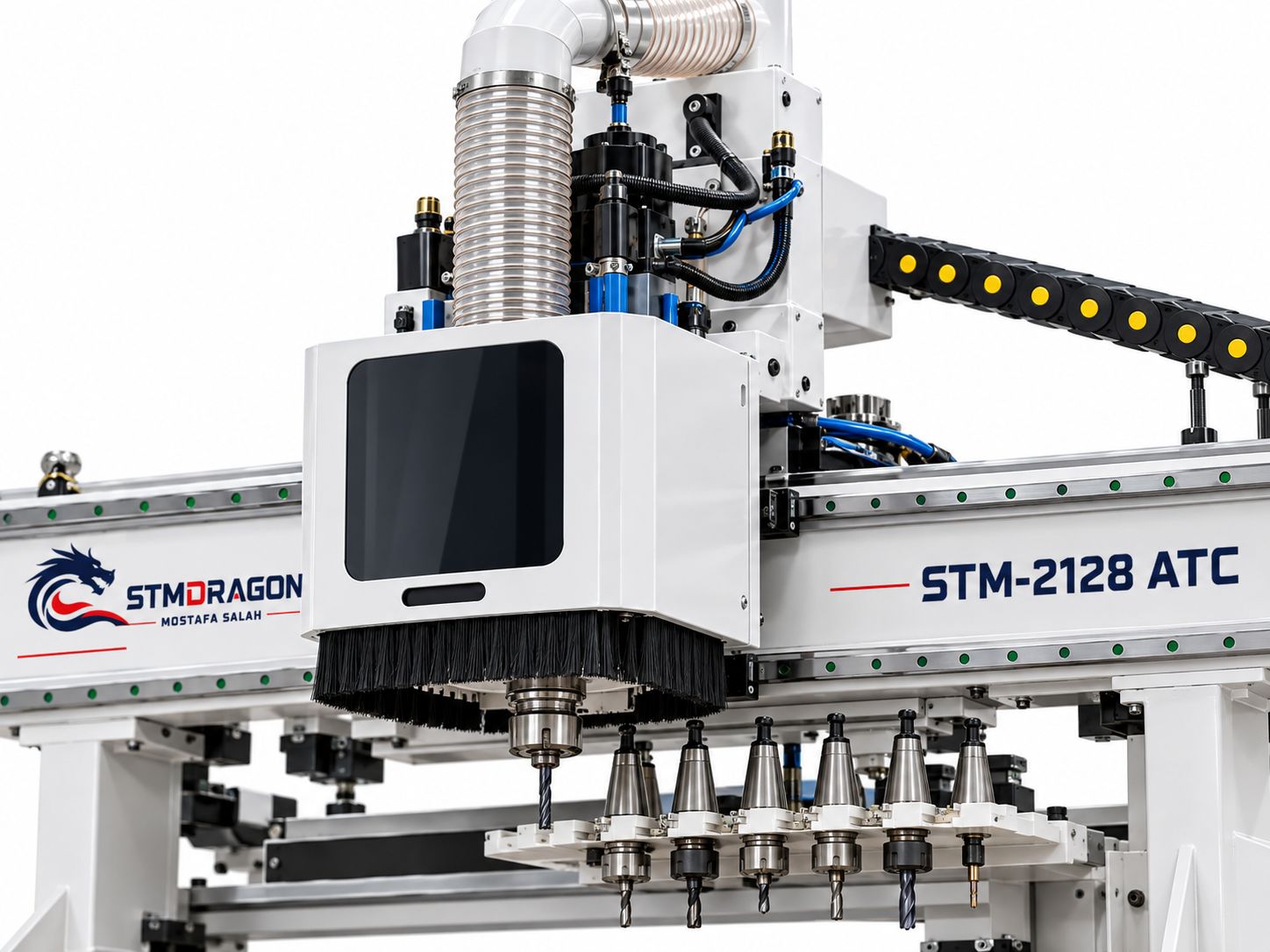

- Tool Magazine: Linear tool changer under gantry
- Vacuum System: 2 × 4kW Becker KVT3.140 vacuum pumps in parallel
- Dust Collector: 5.5kW dual-bag dust collector
- Limit Switch: Omron
- Reducer: Shimpo
- Positioning Cylinders: X: 3 / Y: 4
- Lubrication: 1.5L automatic lubrication system
- Electrical: 380V, 3 Phase, 50Hz
- Machine Structure: Fully welded heavy-duty structure
The automatic loading, machining, and unloading workflow is suitable for continuous production where consistent positioning, reduced manual intervention, and high processing efficiency are important.
Suitable Applications:
Cabinet manufacturing, kitchen furniture, wardrobes, customized furniture, panel cutting, furniture component production, whole-house furniture, and other wood-based panel processing applications.
Garantie: 1 Year Limited Warranty for the entire machine.
Versand:7–30 Tage gemäß den bereitgestellten Informationen.
