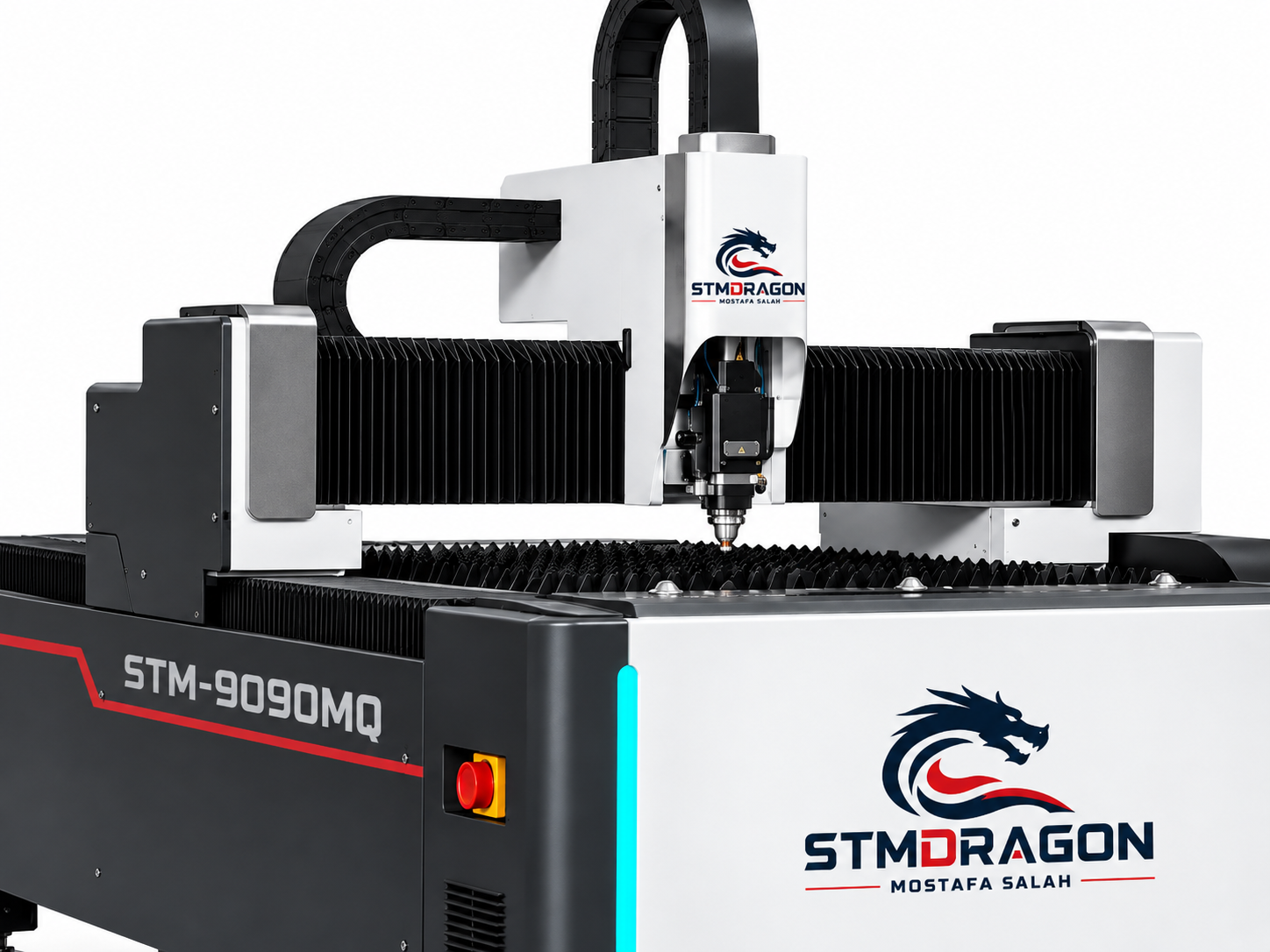

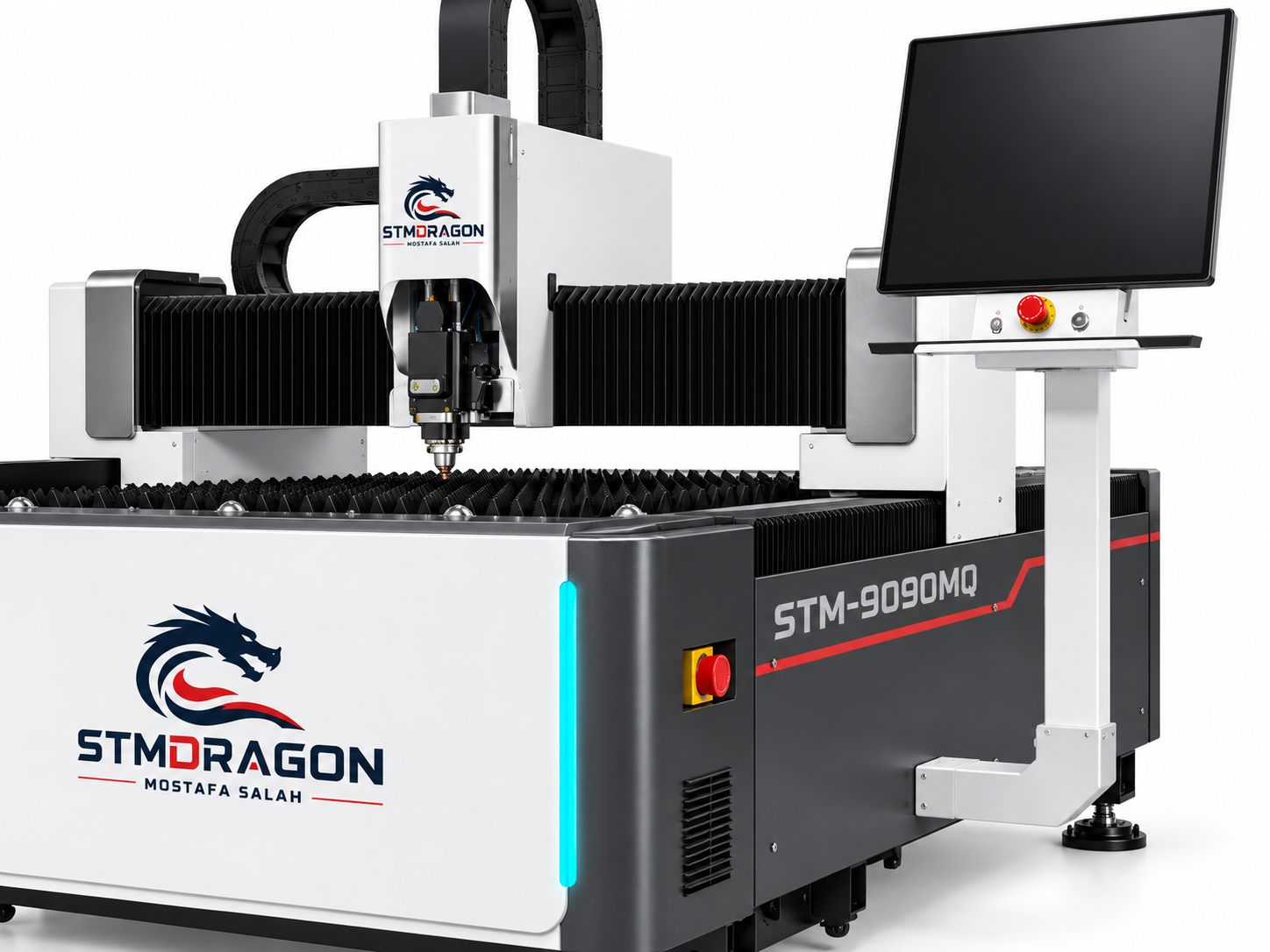

ElSTMDRAGON STM-9090MQ is a compact fiber laser cutting machine for sheet metal and small-scale metal fabrication. With a 905 × 905 mm working area and 1–3 kW laser options, it is suitable for cutting metal parts, tools, decorative components, and other small-format fabrication applications.
The machine uses a rigid structure designed to reduce vibration and thermal deformation, supporting stable cutting performance with ±0.03 mm positioning accuracy and ±0.02 mm repositioning accuracy. The available laser source options include Raycus and MAX, while the auto-focus laser head supports edge tracking and obstacle avoidance.
Detalles clave del producto
- Model / SKU: STM-9090MQ
- Tipo de máquina: Fiber Laser Cutting Machine
- Área de trabajo: 905 × 905 mm
- Worktable Load Capacity: 140 kg
- Laser Power: 1–3 kW
- Laser Source: Raycus / MAX
- Precisión de posicionamiento:±0,03 mm
- Repositioning Accuracy: ±0.02 mm
- Maximum Acceleration: 1.2G
- Maximum Linkage Speed: 140 m/min
- Estructura de la máquina: Rigid compact open-frame design
- Laser Head: Auto-focus with edge tracking and obstacle avoidance
- Standard:CE, ISO9001
- Brand: STMDRAGON
- Suitable Applications: Sheet metal cutting, metal parts, small-scale fabrication, metal tools, decorative metal work and similar applications
Main Benefits
- Compact design for limited production spaces
- Suitable for small-format metal fabrication
- High-speed movement up to 140 m/min
- Precise positioning and repeatability
- Rigid structure for reduced vibration and thermal deformation
- Auto-focus laser head for convenient operation
- Supports 1–3 kW laser configurations
- Lower transportation requirements compared with larger-format machines
- Free lifetime online technical support and overseas service available according to supplier terms
Electrical & Configuration
The final electrical configuration, laser power, laser source and other machine configuration details should be confirmed according to the customer’s order requirements before production.
Total installed electrical power: To Be Confirmed.
Garantía y Envío
- Garantía:1 Año
- Envío:7–30 Días según la información suministrada
- Producción/Manejo: To Be Confirmed for the exact STM-9090MQ configuration
- Soporte Técnico: Free lifetime online technical support; overseas service available according to supplier terms
