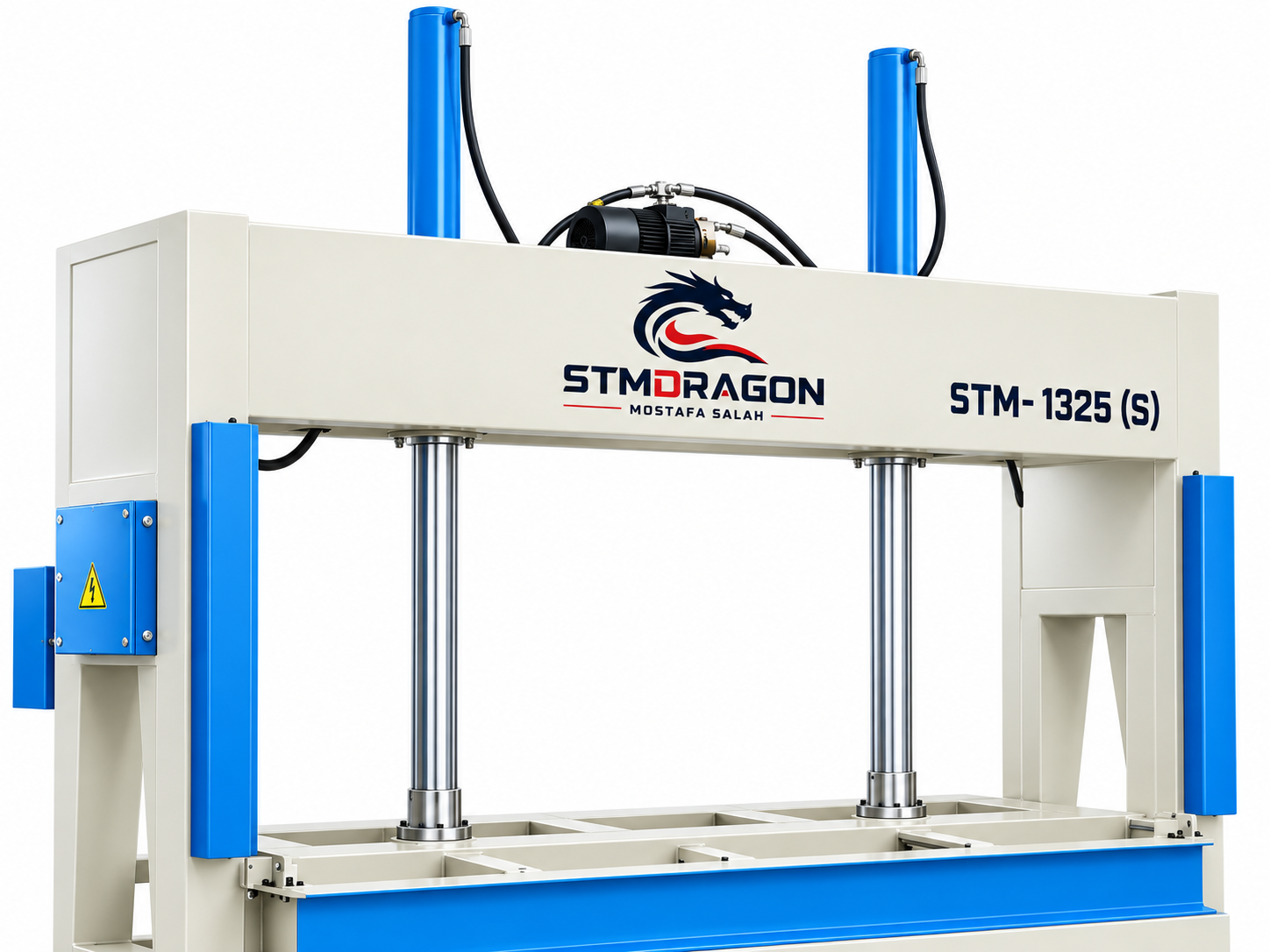

The STMDRAGON STM-1325(S) Hydraulic Cold Press Machine is an industrial woodworking machine designed for cold pressing and bonding furniture panels, wooden doors, decorative boards, and other panel materials. It provides stable hydraulic pressure for panel leveling, shaping, and bonding applications in furniture and door manufacturing.
Key Product Details:
- Model / SKU: STM-1325(S)
- Machine Type: Hydraulic Cold Press Machine
- Working Table: 2500 × 1250 mm
- Maximum Working Pressure: 50 tons, adjustable from 0–50 tons
- Maximum Working Stroke: 1300 mm, customizable
- Motor: 4 kW, 3-phase, 380V, 50Hz
- Hydraulic Cylinders: 2 × 140 × 90 mm
- Feeding: Horizontal feeding and discharging
- Machine Size: 2500 × 1250 × 1300 mm
- Packing Size: 3000 × 1250 × 2500 mm
- Control: Timing control with automatic pressing-plate return
- Safety: Emergency stop and electrical protection system
- Standards: CE / ISO9001
The hydraulic system provides fast lifting, uniform pressure, and efficient operation. The machine is suitable for furniture manufacturers, wooden door manufacturers, decorative panel production, and other woodworking panel-processing industries.
The upper and lower working tables are precision processed, while the hydraulic pressing system provides strong and stable pressure. Adjustable pressing time allows operators to set the cycle according to the production process.
Electrical Protection: The supplied configuration includes protection against overload, short circuit, voltage loss, and undervoltage. Rated electrical supply is AC 380V, 50Hz.
वारंटी:1 वर्ष
शिपिंग:प्रदान की गई जानकारी के अनुसार 7–30 दिन।
