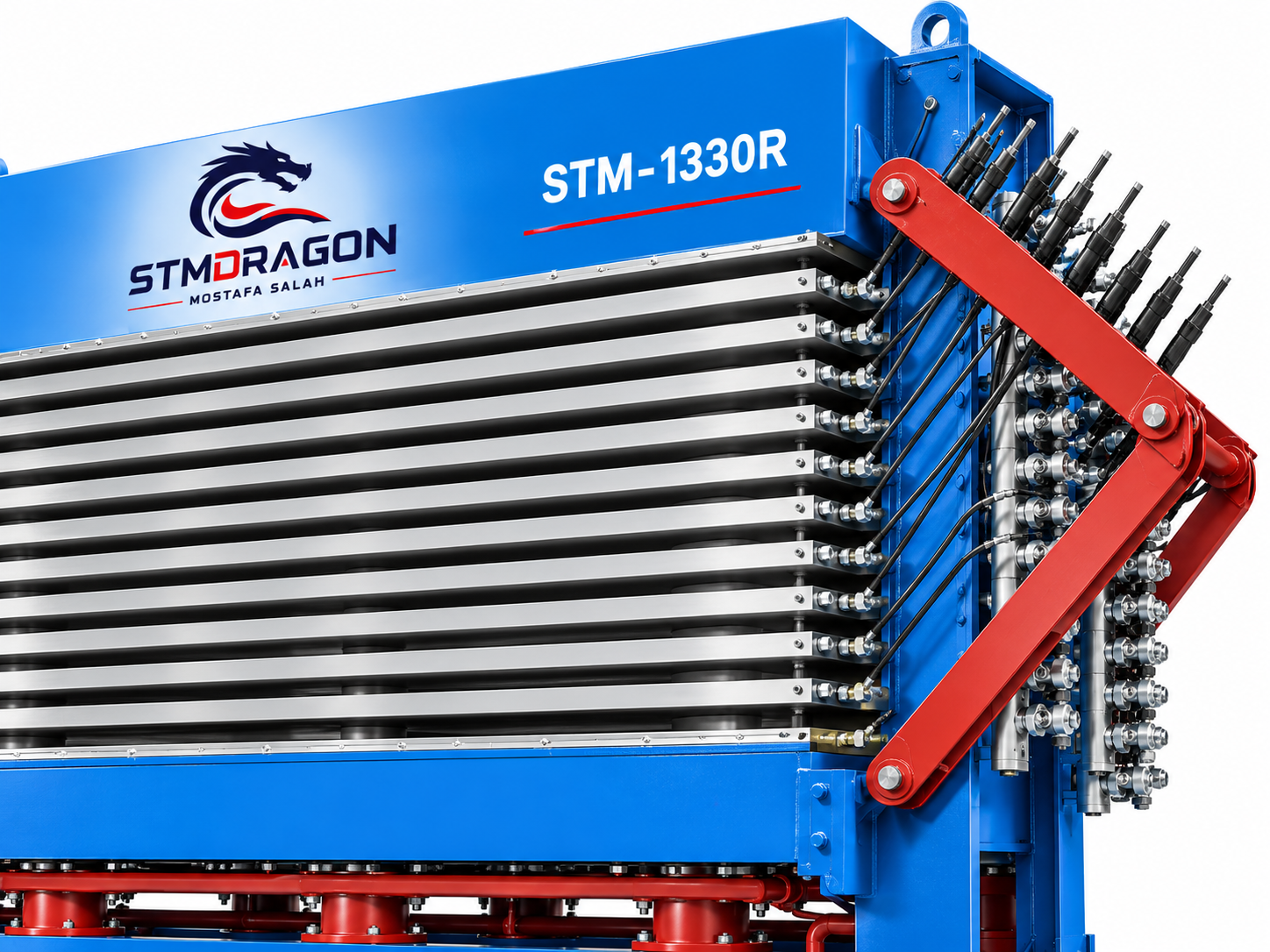

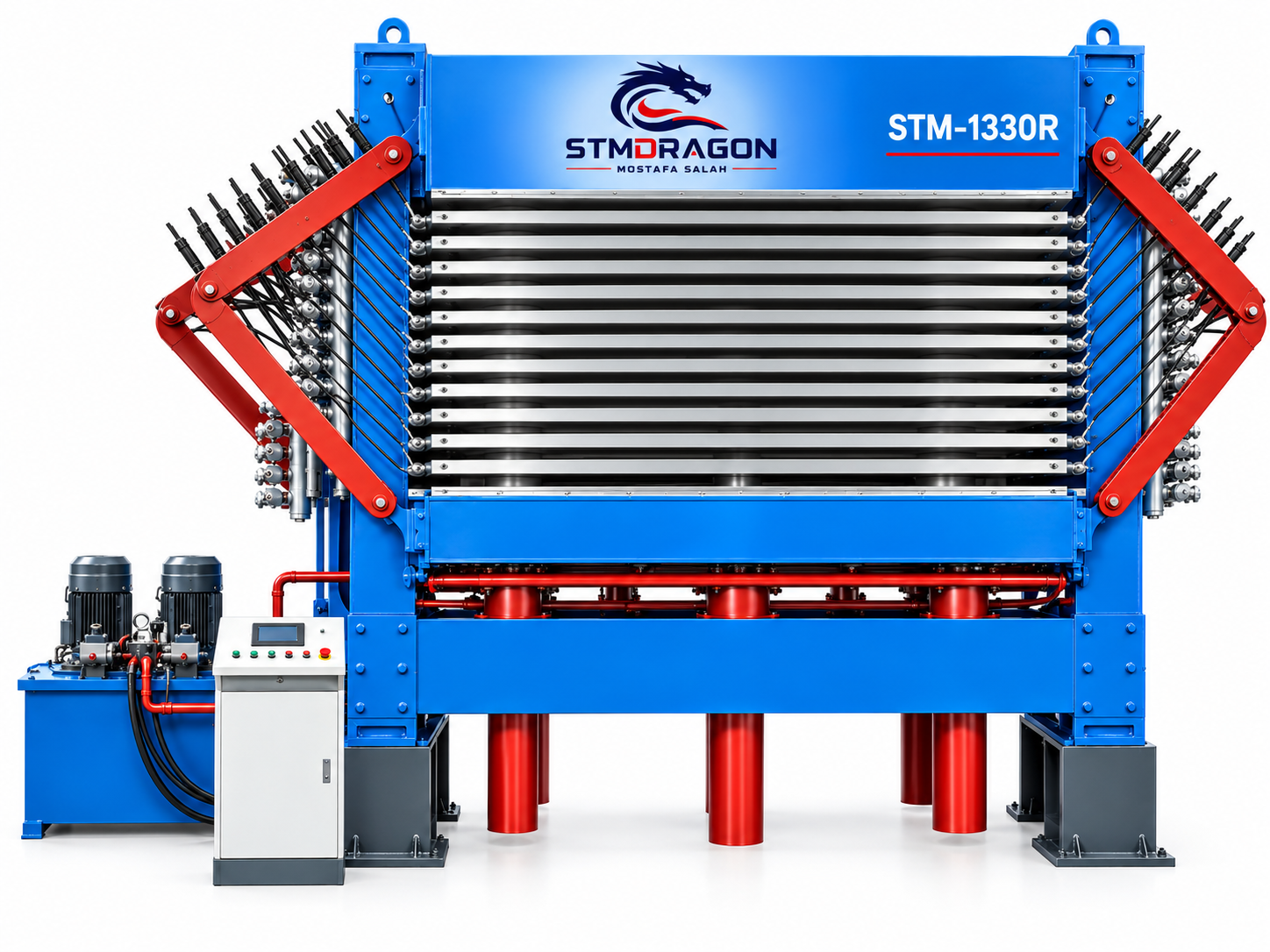

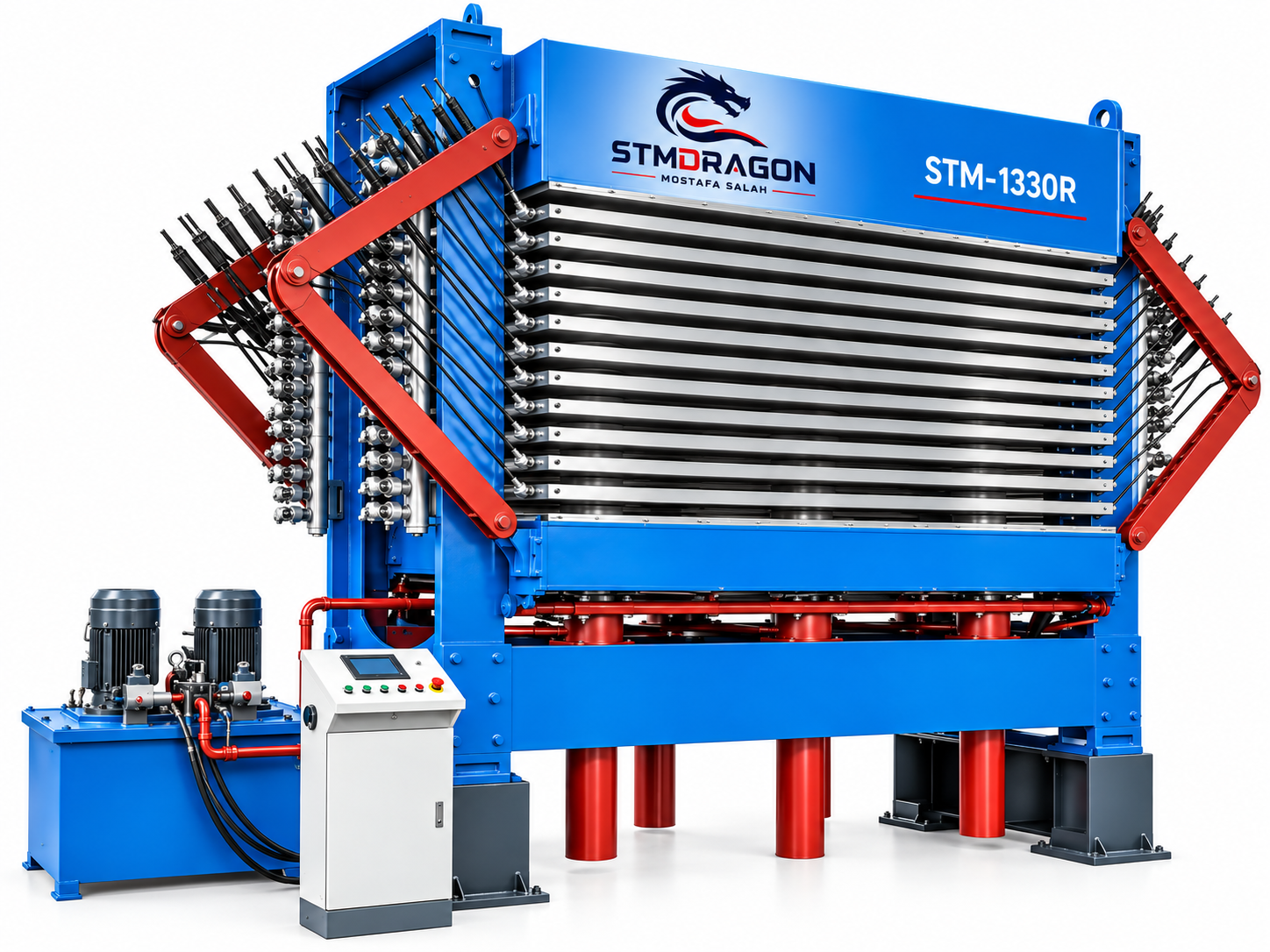

The STMDRAGON STM-1330R Solid Hot Press Dryer is designed for efficient drying of wood core veneers after peeling, helping reduce excess moisture before further processing. The machine uses heated Q235 steel platens with diamond grooves and a heavy-duty steel frame for stable pressing and drying performance.
The machine is available in 15-layer and 12-layer configurations, both using a 60-ton normal pressure capacity and 4×8FT-class hot platens.
Key Product Details:
- Model: STM-1330R
- Machine Type: Solid Hot Press Dryer / Veneer Dryer
- Application: Core veneer drying and moisture reduction
- Normal Pressure: 60 Tons
- Hot Platen Size: 2800 × 1370 × 42 mm
- Platen Material: Q235 steel with groove
- Groove: Diamond pattern, 40 × 40 mm spacing, approximately 1 mm depth and 1.5 mm width
- Layer Spacing: 70 mm
- Total Power: 15 kW
- Electrical: 380V, 50Hz
- Control: PLC control with touch screen
- Closing Time: Approximately 15 seconds for 15-layer version / 12 seconds for 12-layer version
- Main Frame Steel Thickness: 25 mm
- Column Width: 350 mm
- Upper & Bottom Beam: 400 mm / 400 mm
- Walking Beam: 300 mm detachable frame
Available Configurations:
15-Layer Version
- 15 openings
- 16 hot platens
- Oil cylinders: Ø100 × 1050 mm × 4 pcs
- Overall size: 3550 × 1370 × 3300 mm
- Approx. weight: 28 tons
12-Layer Version
- 12 openings
- 13 hot platens
- Oil cylinders: Ø100 × 840 mm × 4 pcs
- Overall size: 3550 × 1370 × 3000 mm
- Approx. weight: 23.5 tons
The STM-1330R is suitable for wood veneer drying applications and can be used with different wood species and veneer thicknesses, subject to the final machine configuration and processing requirements.
वारंटी:1 वर्ष
शिपिंग:प्रदान की गई जानकारी के अनुसार 7–30 दिन।
उत्पादन/प्रबंधन: To Be Confirmed for the exact STM-1330R configuration.
