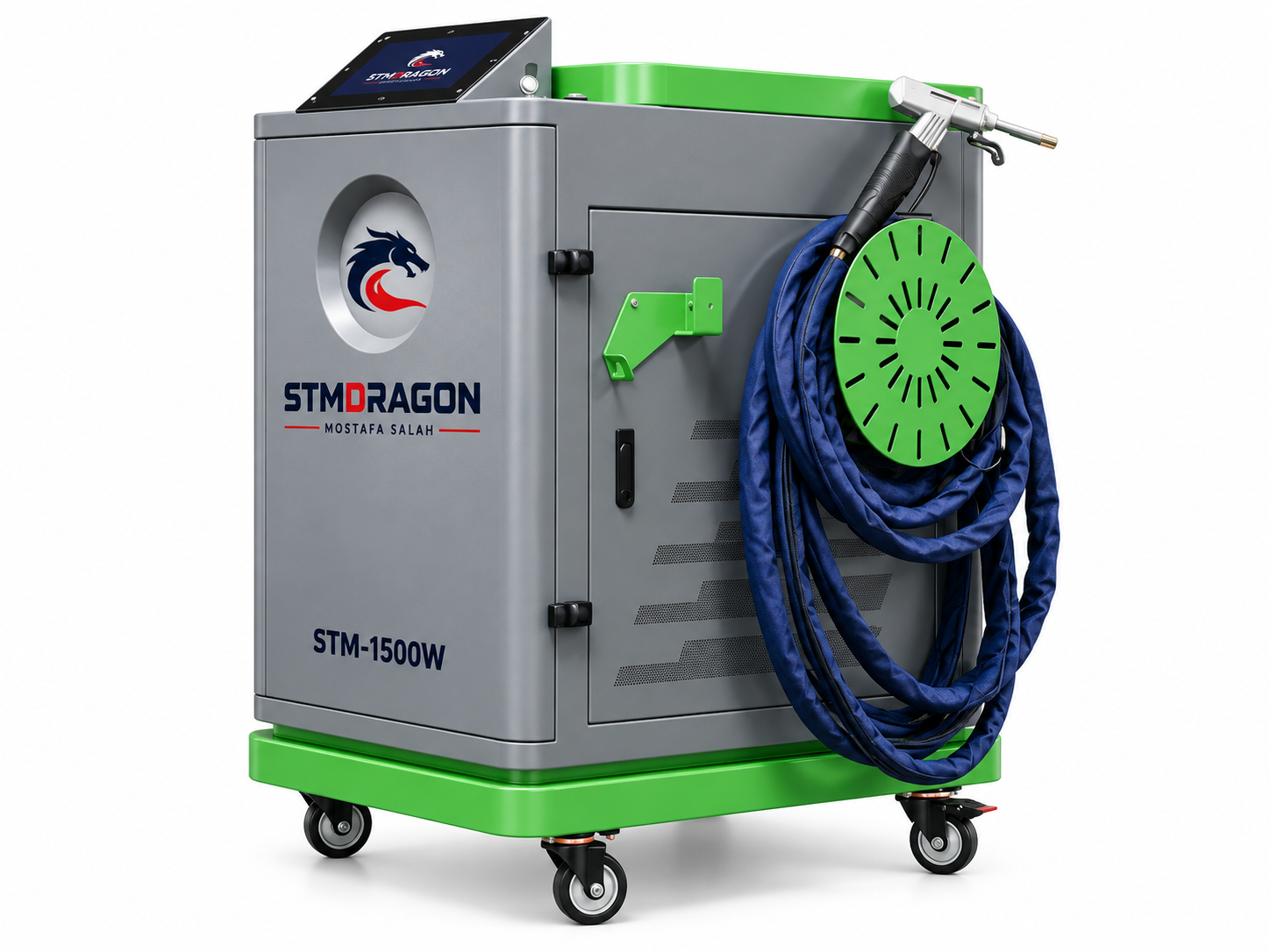

The STMDRAGON STM-1500W 1500W 4-in-1 Portable Laser Welding Machine is a handheld fiber laser system designed for professional metal fabrication, repair, customization and industrial production. Its continuous fiber laser source provides fast, precise and consistent welding with low deformation and reduced post-processing requirements.
The machine supports spot, seam, stitch and overlap welding, making it suitable for irregular shapes, corners, difficult-to-reach areas and both small-batch and industrial metalwork. It is designed for applications involving carbon steel, stainless steel, galvanized steel, aluminum and similar metals, subject to the final configuration and processing requirements.
Key Product Details
- Model: STM-1500W
- Laser Power: 1500W
- Laser Type: Continuous Fiber Laser
- Laser Source: Raycus / Reci / IPG / MAX options
- Laser Welding Speed: Up to 20 m/min
- Cooling: Water Cooling
- Welding Thickness: 0.3–8 mm, depending on material and application
- Fiber Diameter: 25–100 μm optional
- Aiming & Positioning: Red Light Indication
- Table Size: 700 × 750 mm
- Welding Materials: Carbon steel, stainless steel, galvanized steel, aluminum, etc.
- Control System: BCAM proprietary welding control system
- Laser Head: RayTools / Super options
- Cooling System: Wuhan Hanli industrial water chiller; Hanyu optional
- Consumables: Copper nozzles and protective lenses
- Operating Temperature: 10°C–40°C
- वारंटी:1 वर्ष
- शिपिंग: 7–30 Days
The STM-1500W is designed for metal fabrication, custom component production, workshop manufacturing, repair work and other applications where flexible handheld laser welding is required. Compared with traditional welding methods, laser welding can provide higher processing speed, reduced heat deformation and cleaner weld results when correctly configured and operated.
