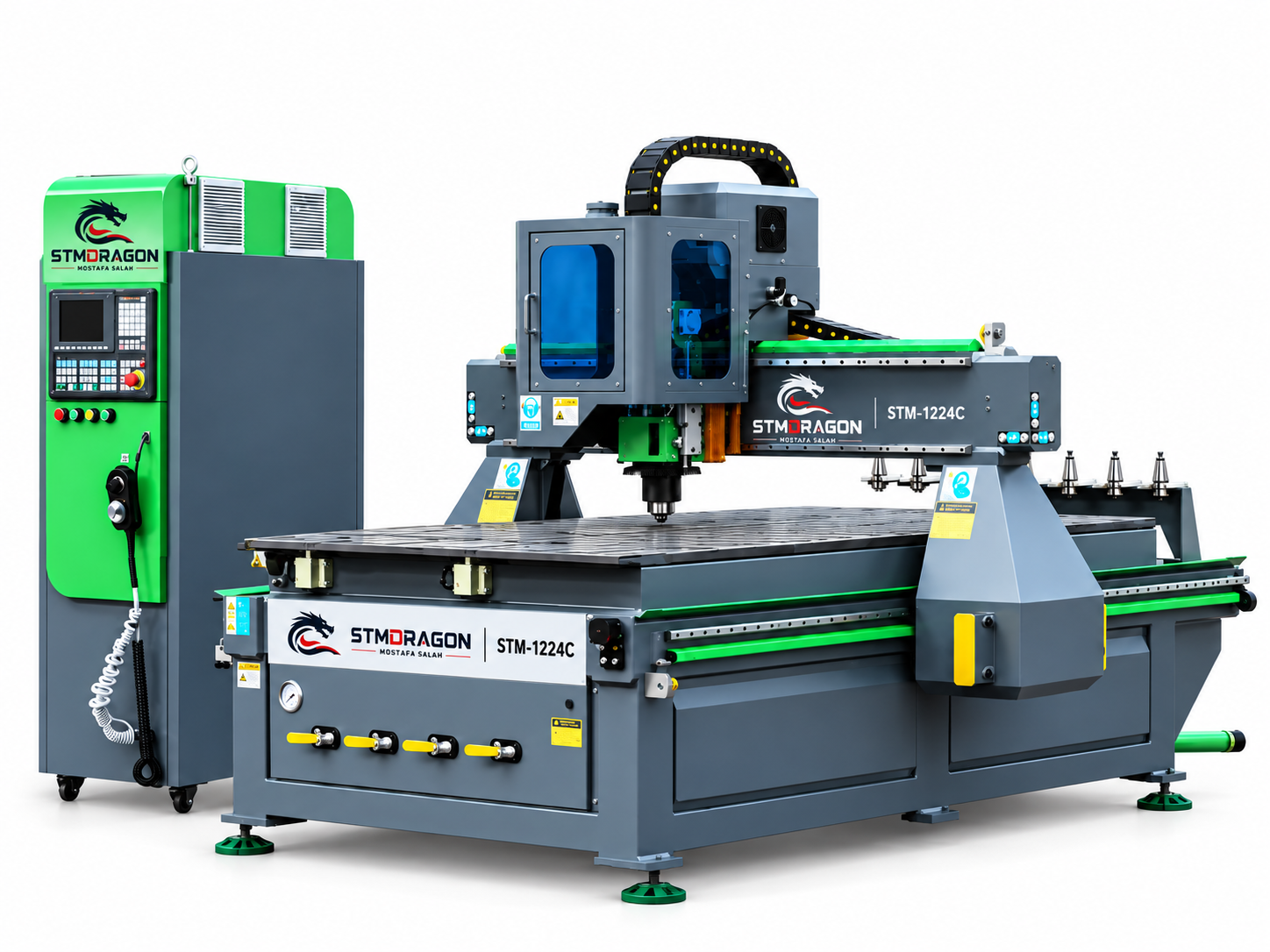

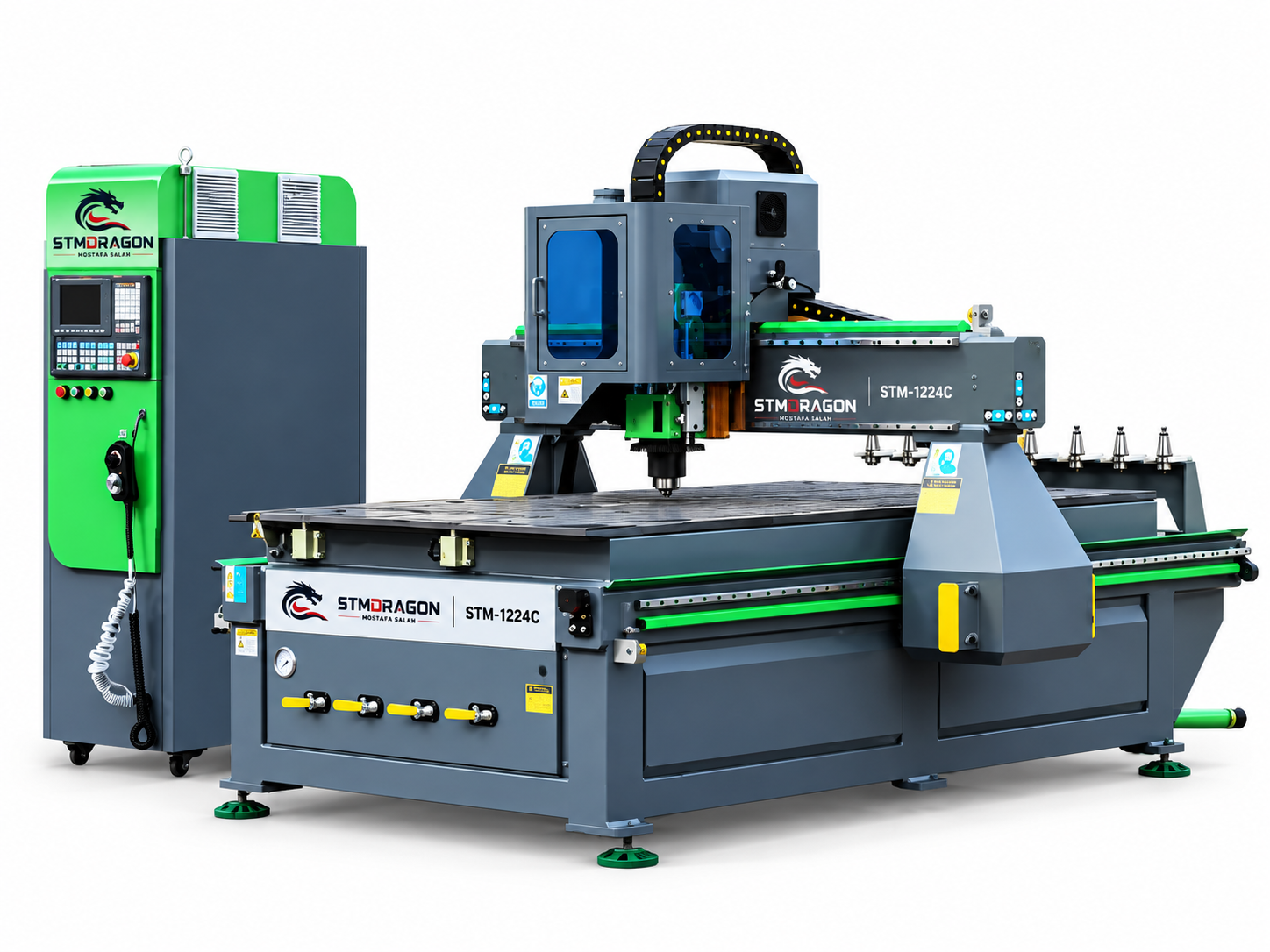

The STMDRAGON STM-1224C is a high-productivity 3-axis ATC CNC wood router machine designed for professional woodworking, MDF processing, cabinet production, panel furniture, signage, cutting, drilling, engraving, and other CNC machining applications. Its 1200 × 2400 × 200 mm working area is suitable for standard 4 × 8 ft sheet processing.

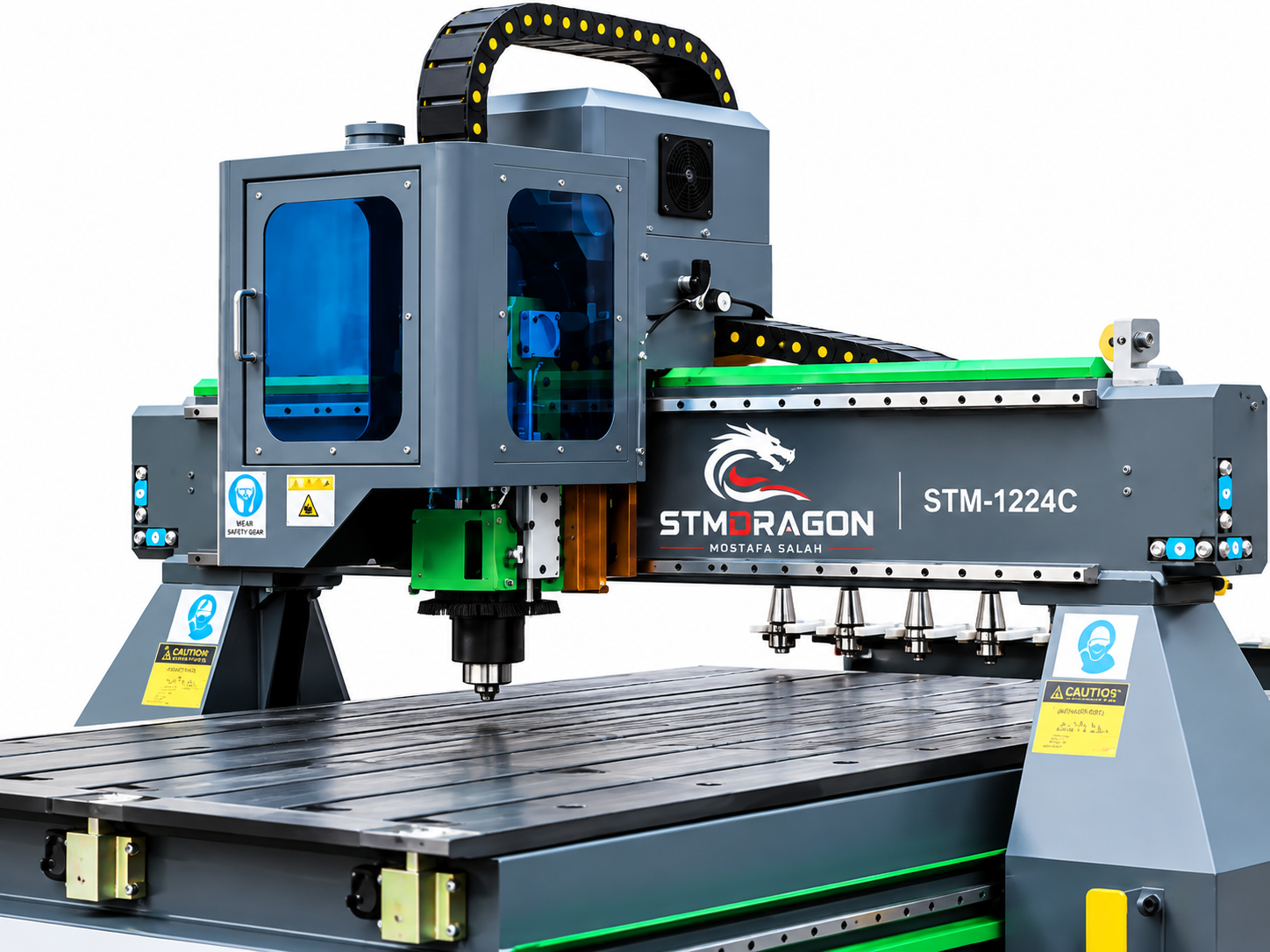

The machine is equipped with a 9kW Italian Hiteco air-cooled spindle with a spindle speed of 6,000–24,000 RPM and an 8-position linear automatic tool changer (ATC). The ATC system allows multiple machining operations such as drilling, cutting, engraving, and milling to be completed with reduced manual tool changes and downtime.
Main Technical Features:
- Model: STM-1224C
- Machine Type: 3-Axis ATC CNC Router
- Working Area: 1200 × 2400 × 200 mm
- Spindle: 9kW Italian Hiteco air-cooled spindle
- Spindle Speed: 6,000–24,000 RPM
- ATC: 8-position linear automatic tool changer
- Positioning Accuracy: ±0.03/2000 mm
- Maximum Rapid Travel: 80 m/min
- Maximum Working Speed: 60 m/min
- Table: Vacuum table + integrated T-slot clamping system
- X/Y Transmission: Gear transmission
- Z-Axis: Taiwan TBI ball screw
- Linear Guide: Taiwan TBI 25mm
- Drive System: Taiwan Syntec servo drive system
- Control System: Taiwan Syntec CNC control
- Command Language: G-Code
- Interface: USB
- Body: Heavy-duty welded steel construction
- Voltage: AC 110V/220V/240V/380V/400V
- Power Supply: 1-phase/3-phase, 50Hz/60Hz
- Software Compatibility: VCarve, VCarve Pro, ArtCAM, UCANCAM and other compatible software
- Dust Collection: 3.0kW dual-bag dust collector
- Safety: Active safety system and solid-state limit switches
- Lubrication: Automatic lubrication system
Suitable Materials & Applications:
Suitable materials include MDF, wood, plywood, acrylic, composite materials, and selected aluminum applications. The machine can be used for cabinet making, panel furniture, wood cutting, engraving, sign production, drilling, grooving, milling, and general woodworking production.
Aluminum machining capability should be confirmed according to the final tooling, spindle configuration, material thickness, workpiece type, and required cutting conditions.
Electrical & Installation:
The machine supports multiple voltage configurations, including 110V, 220V, 240V, 380V, and 400V, with 1-phase or 3-phase, 50Hz/60Hz options. The final electrical configuration and total installed electrical power must be confirmed before ordering.
Warranty & Support:
- Warranty: 1 Year
- Shipping: 7–30 Days
- Handling: 1–2 Days according to supplied information
- Technical Support: Free lifetime technical support for end-users and dealers
- Money-Back Guarantee: 30 days according to supplied information
- CE: Supplied information states compliance with CE quality and safety standards
