Sanding & Surface Finishing

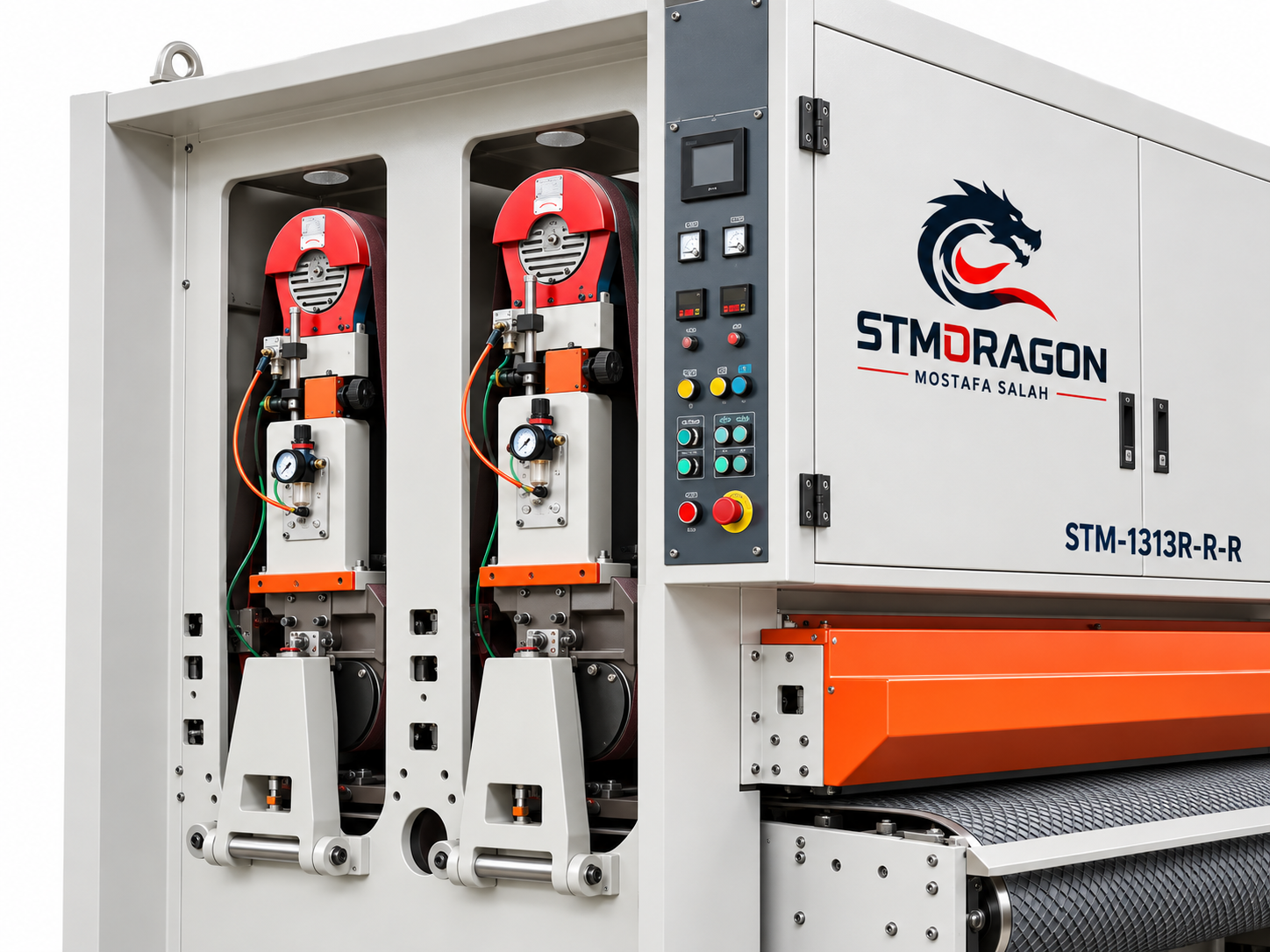

STMDRAGON STM-1313R-R-R Single Side Calibrating Sander

STMDRAGON STM-1313R-R-R is an industrial single-side calibrating sander designed for thickness calibration and surface sanding of wood and other suitable board materials. It offers a 40–1300 mm working width, 2.5–110 mm working thickness, automatic feeding, high-capacity dust collection, and up to 150 kW total power for demanding industrial sanding applications.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-1313R-R-R Single Side Calibrating Sander

ModelSTM-1313R-R-R
Machine TypeSingle Side Calibrating Sander
Working Width40–1300 mm
Working Thickness2.5–110 mm
Working Length≥780 mm
Working Precision±0.08 mm
Abrasive Belt Speed20 / 20 / 24 m/s
Abrasive Belt Size2620 × 1330 mm
Automatic Feeding Speed15–50 m/min, adjustable
3M Non-Woven Roller Motor4 kW, optional
Abrasive Belt Motors55 kW + 45 kW + 37 kW, optional configuration
Total Power150 kW
Working Air Pressure0.55 MPa
Air Consumption1.2 m³/min
Dust Collection Speed6–45 m/s
Dust Collection Volume22,000 m³/h
Overall Machine DimensionApprox. 3140 × 2770 × 2440 mm
Net Weight9,800 kg
Warranty1 Year
Shipping7–30 Days according to the supplied information.
Applications

Applications: STMDRAGON STM-1313R-R-R Single Side Calibrating Sander

The STMDRAGON STM-1313R-R-R Single Side Calibrating Sander is designed for industrial thickness calibration and surface sanding, helping achieve a more consistent material thickness and smoother surface finish. It is suitable for woodworking and other compatible plate-processing applications.

Key Product Details:

  1. Model: STM-1313R-R-R
  2. Machine Type: Single Side Calibrating Sander
  3. Working Width: 40–1300 mm
  4. Working Thickness: 2.5–110 mm
  5. Working Length: ≥780 mm
  6. Working Precision: ±0.08 mm
  7. Abrasive Belt Speed: 20 / 20 / 24 m/s
  8. Abrasive Belt Size: 2620 × 1330 mm
  9. Automatic Feeding Speed: 15–50 m/min, adjustable
  10. 3M Non-Woven Roller Motor: 4 kW, optional
  11. Abrasive Belt Motors: 55 kW + 45 kW + 37 kW, optional configuration
  12. Total Power: 150 kW
  13. Working Air Pressure: 0.55 MPa
  14. Air Consumption: 1.2 m³/min
  15. Dust Collection Speed: 6–45 m/s
  16. Dust Collection Volume: 22,000 m³/h
  17. Overall Machine Dimension: Approx. 3140 × 2770 × 2440 mm
  18. Net Weight: 9,800 kg

Main Function & Application

The machine performs single-side thickness sanding and calibration to improve dimensional consistency and surface smoothness. It is intended for industrial processing of wood and other suitable plate materials where controlled thickness and surface finishing are required.

Dust Collection

The high-capacity dust-collection system is designed to support continuous industrial sanding operations, with a supplied dust-collection volume of up to 22,000 m³/h.

Warranty: 1 Year

Shipping: 7–30 Days according to the supplied information.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 23810 kg
Dimensions 124 × 109 × 96 cm
Model

STM-1313R-R-R

Machine Type

Single Side Calibrating Sander

Working Width

40–1300 mm

Working Thickness

2.5–110 mm

Working Length

≥780 mm

Working Precision

±0.08 mm

Abrasive Belt Speed

20 / 20 / 24 m/s

Abrasive Belt Size

2620 × 1330 mm

Automatic Feeding Speed

15–50 m/min, adjustable

3M Non-Woven Roller Motor

4 kW, optional

Abrasive Belt Motors

55 kW + 45 kW + 37 kW, optional configuration

Total Power

150 kW

Working Air Pressure

0.55 MPa

Air Consumption

1.2 m³/min

Dust Collection Speed

6–45 m/s

Dust Collection Volume

22,000 m³/h

Overall Machine Dimension

Approx. 3140 × 2770 × 2440 mm

Net Weight

9,800 kg

Warranty

1 Year

Shipping

7–30 Days according to the supplied information.

Request a quote

Request a quote for STMDRAGON STM-1313R-R-R Single Side Calibrating Sander.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-1313R-R-R Single Side Calibrating Sander

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-1313R-R-R Single Side Calibrating Sander?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.

Ready to discuss your production project?

Send your requirements. Our machinery team in China will reply with the suitable solution.
