STMDRAGON STM-1325 4 Axis CNC Router Machine for Woodworking & Furniture

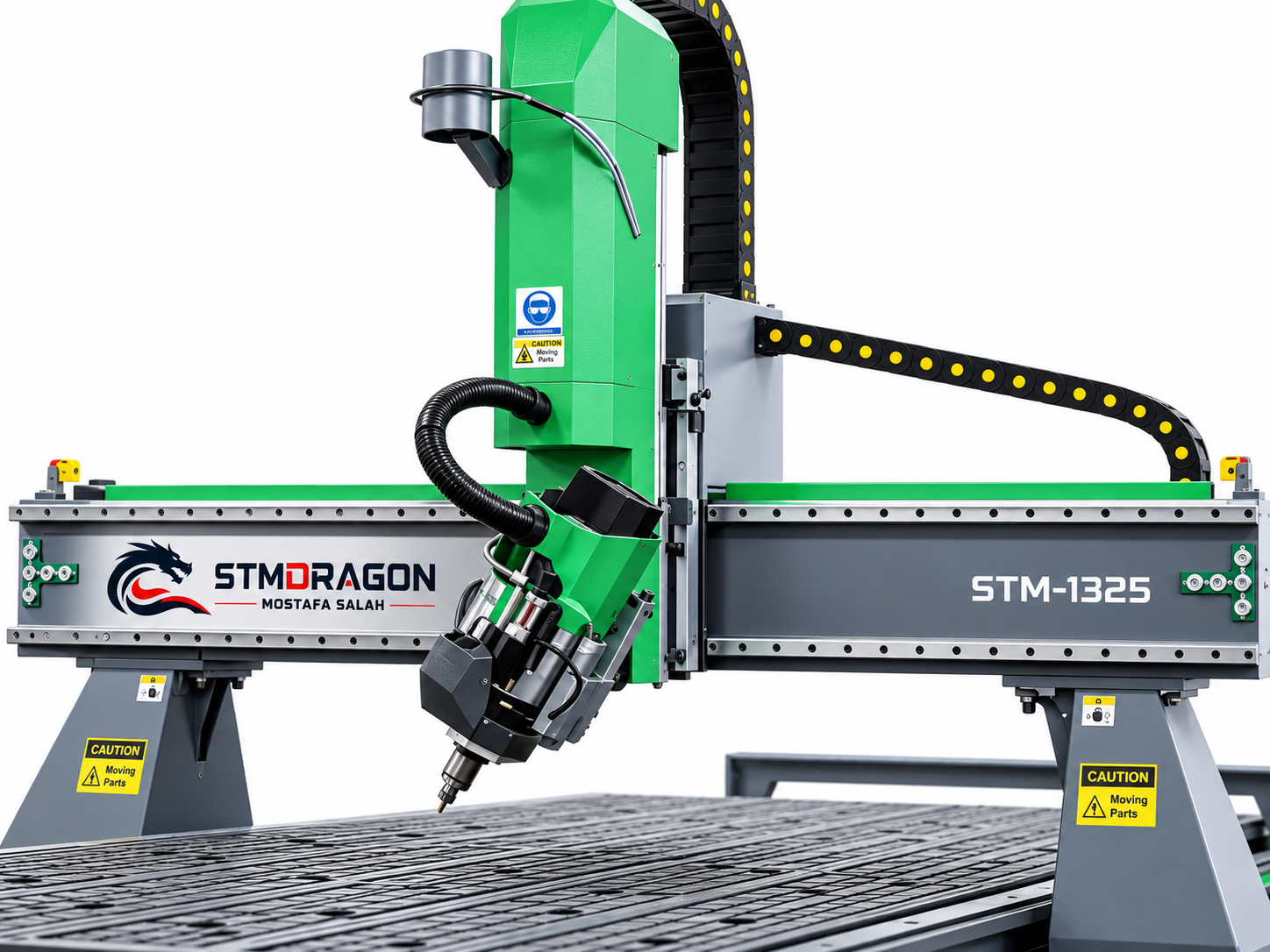

STMDRAGON STM-1325 4 Axis CNC Router Machine for Woodworking & Furniture - Image 2

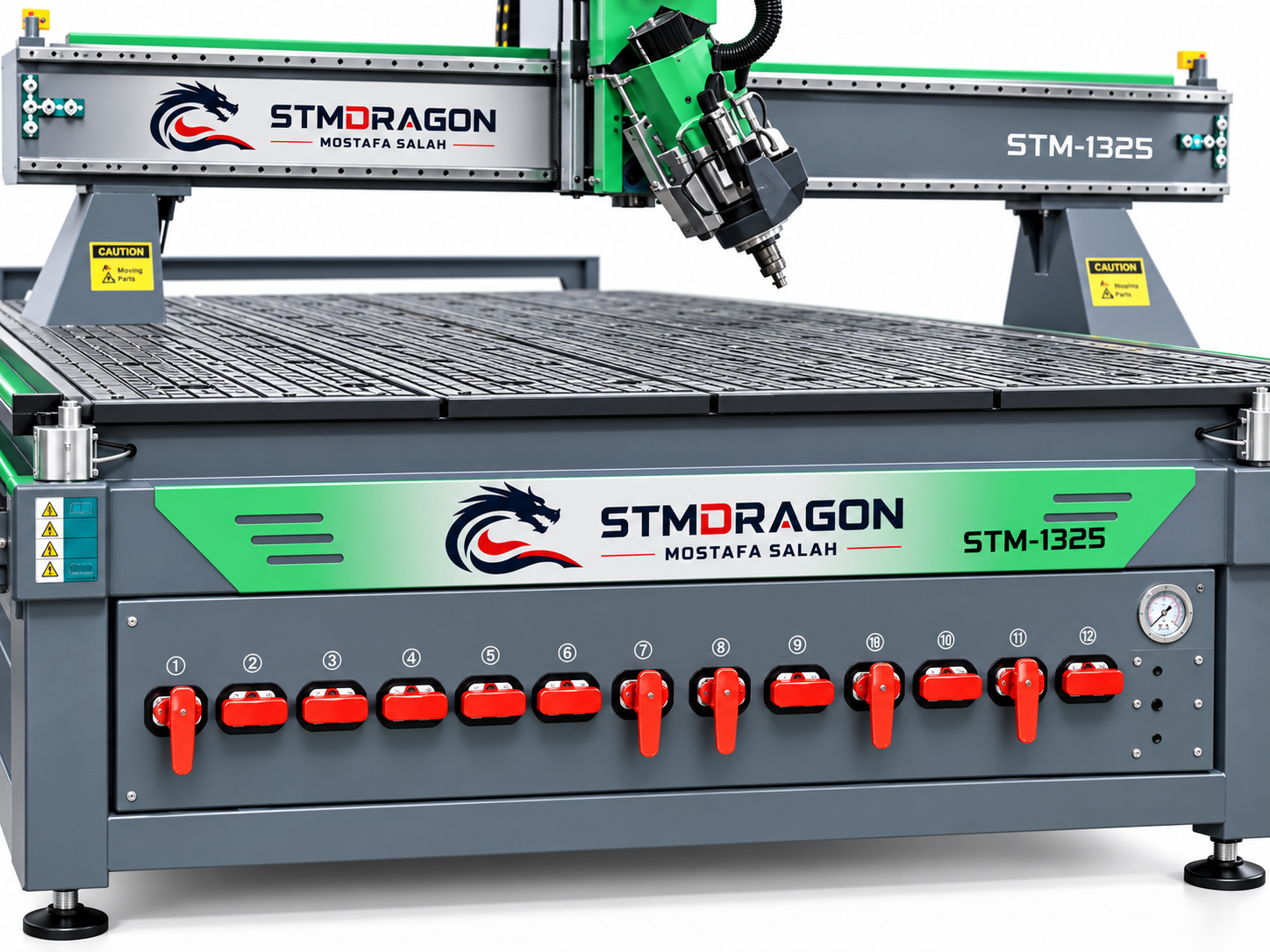

STMDRAGON STM-1325 4 Axis CNC Router Machine for Woodworking & Furniture - Image 3
CNC Routers & Machining Centers

STMDRAGON STM-1325 4 Axis CNC Router Machine for Woodworking & Furniture

STMDRAGON STM-1325 is a heavy-duty 4-axis CNC router designed for woodworking, furniture, cabinet making, 3D carving, cutting, drilling and shaping. It features a 1300 × 2500 × 600 mm working area, 9 kW HQD air-cooled spindle, 8-position ATC, vacuum table with T-slots, Yaskawa servo drive and Taiwan Syntec 60WE control system.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-1325 4 Axis CNC Router Machine for Woodworking & Furniture

ModelSTM-1325
Machine Type4 Axis CNC Router
Working Area1300 × 2500 × 600 mm
Spindle9 kW HQD air-cooled spindle, ±90°
Spindle Speed6000–24,000 RPM
Tool Changer8-position automatic tool changer, ISO30
TableVacuum table + integrated T-slot clamping system
Drive SystemJapanese Yaskawa servo drive system
X/Y TransmissionGear transmission with helical rack and pinion
Z TransmissionTaiwan TBI ball screw
Linear Bearings25 mm heavy-duty linear bearings
ControllerTaiwan Syntec 60WE
Command LanguageG Code
InterfaceUSB
Rapid Travel RateUp to 80 m/min
Working SpeedUp to 60 m/min
Positioning Accuracy±0.03/2000 mm
Vacuum PumpOil-free pump, 5.5 kW
Air Pump5.5 kW
Machine StructureHeavy-duty 10 mm steel body and reinforced gantry
Working VoltageAC 110/220/240/380/400V, 1P/3P, 50/60Hz
Software CompatibilityVCarve, VCarve Pro, ArtCAM, UCanCAM and other compatible CAM software
CertificationCE standard
Warranty1 Year
Shipping7–30 Days
Production/Handling1–2 Days according to the supplied information.
Applications

Applications: STMDRAGON STM-1325 4 Axis CNC Router Machine for Woodworking & Furniture

The STMDRAGON STM-1325 4 Axis CNC Router is an industrial CNC machining solution for furniture production, cabinet making, woodworking, decorative panels, 3D carving and other precision routing applications. Its 1300 × 2500 × 600 mm working area provides a large 4×8 ft-class processing platform for production work.

The machine uses a 9 kW HQD air-cooled spindle with ±90° 4-axis capability and an 8-position automatic tool changer, allowing multi-surface machining, angled cutting, grooving, drilling, carving and complex 3D work with reduced manual tool changes.

Main Features & Specifications

  1. Model: STM-1325
  2. Machine Type: 4 Axis CNC Router
  3. Working Area: 1300 × 2500 × 600 mm
  4. Spindle: 9 kW HQD air-cooled spindle, ±90°
  5. Spindle Speed: 6000–24,000 RPM
  6. Tool Changer: 8-position automatic tool changer, ISO30
  7. Table: Vacuum table + integrated T-slot clamping system
  8. Drive System: Japanese Yaskawa servo drive system
  9. X/Y Transmission: Gear transmission with helical rack and pinion
  10. Z Transmission: Taiwan TBI ball screw
  11. Linear Bearings: 25 mm heavy-duty linear bearings
  12. Controller: Taiwan Syntec 60WE
  13. Command Language: G Code
  14. Interface: USB
  15. Rapid Travel Rate: Up to 80 m/min
  16. Working Speed: Up to 60 m/min
  17. Positioning Accuracy: ±0.03/2000 mm
  18. Vacuum Pump: Oil-free pump, 5.5 kW
  19. Air Pump: 5.5 kW
  20. Machine Structure: Heavy-duty 10 mm steel body and reinforced gantry
  21. Working Voltage: AC 110/220/240/380/400V, 1P/3P, 50/60Hz
  22. Software Compatibility: VCarve, VCarve Pro, ArtCAM, UCanCAM and other compatible CAM software
  23. Certification: CE standard

Suitable Materials & Applications

The STM-1325 is suitable for wood, MDF, plywood, acrylic, composites and aluminum/soft-metal applications, subject to the selected tooling, spindle configuration and cutting requirements.

Typical applications include:

  1. Cabinet and furniture manufacturing
  2. Door and panel production
  3. European-style furniture
  4. Crown molding and decorative components
  5. Stair parts and columns
  6. 3D wood carving
  7. Sculptures and decorative panels
  8. Automotive interior components
  9. Drilling, cutting, routing and grooving
  10. Complex angled and multi-surface machining

Warranty: 1 Year

Shipping: 7–30 Days

Production/Handling: 1–2 Days according to the supplied information.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 5500 kg
Dimensions 135 × 80 × 90 cm
Model

STM-1325
Machine Type

4 Axis CNC Router
Working Area

1300 × 2500 × 600 mm
Spindle

9 kW HQD air-cooled spindle, ±90°
Spindle Speed

6000–24,000 RPM
Tool Changer

8-position automatic tool changer, ISO30
Table

Vacuum table + integrated T-slot clamping system
Drive System

Japanese Yaskawa servo drive system
X/Y Transmission

Gear transmission with helical rack and pinion
Z Transmission

Taiwan TBI ball screw
Linear Bearings

25 mm heavy-duty linear bearings
Controller

Taiwan Syntec 60WE
Command Language

G Code
Interface

USB
Rapid Travel Rate

Up to 80 m/min
Working Speed

Up to 60 m/min
Positioning Accuracy

±0.03/2000 mm
Vacuum Pump

Oil-free pump, 5.5 kW
Air Pump

5.5 kW
Machine Structure

Heavy-duty 10 mm steel body and reinforced gantry
Working Voltage

AC 110/220/240/380/400V, 1P/3P, 50/60Hz
Software Compatibility

VCarve, VCarve Pro, ArtCAM, UCanCAM and other compatible CAM software
Certification

CE standard
Warranty

1 Year
Shipping

7–30 Days
Production/Handling

1–2 Days according to the supplied information.
Request a quote

Request a quote for STMDRAGON STM-1325 4 Axis CNC Router Machine for Woodworking & Furniture.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-1325 4 Axis CNC Router Machine for Woodworking & Furniture

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-1325 4 Axis CNC Router Machine for Woodworking & Furniture?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
