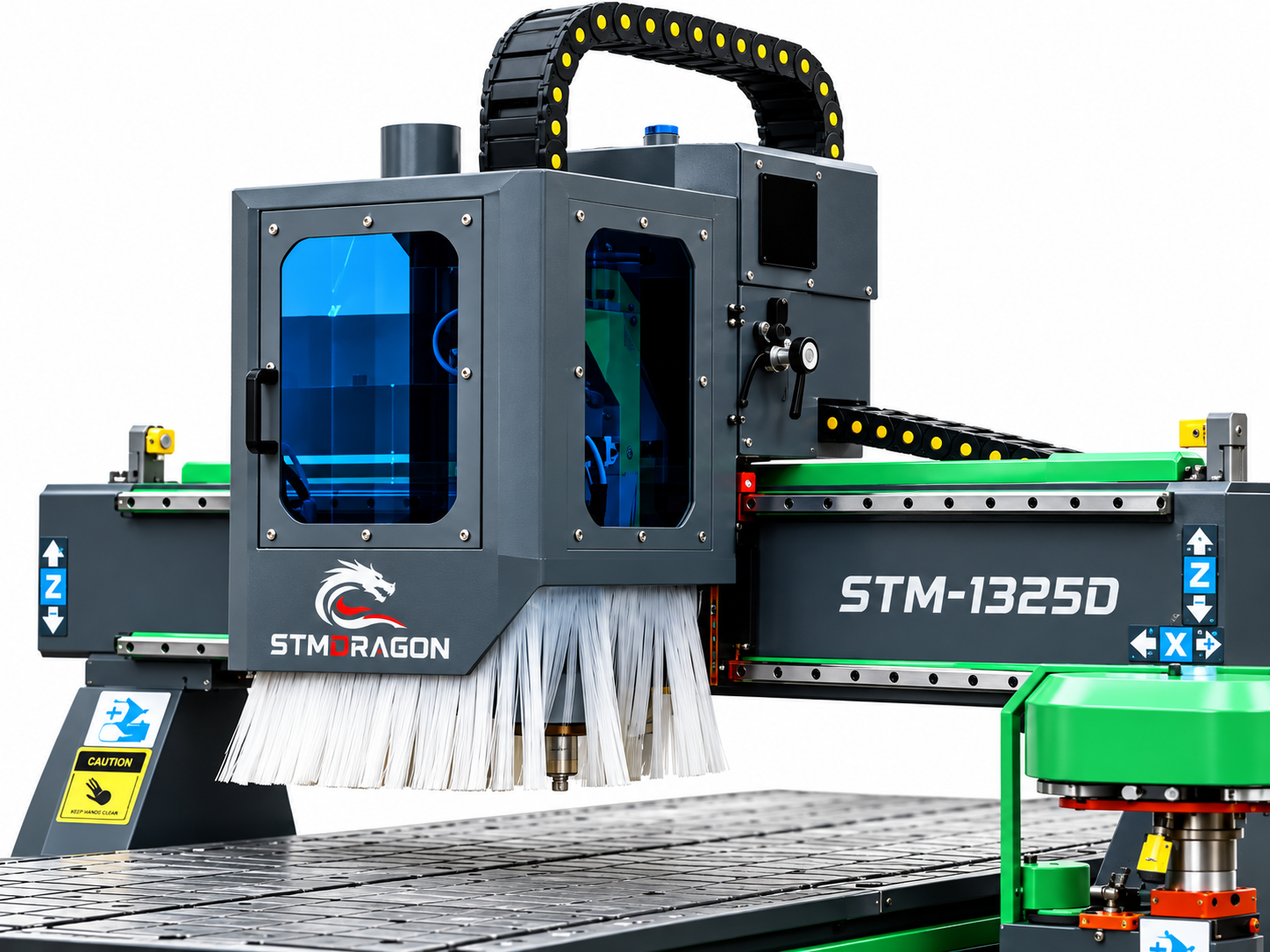

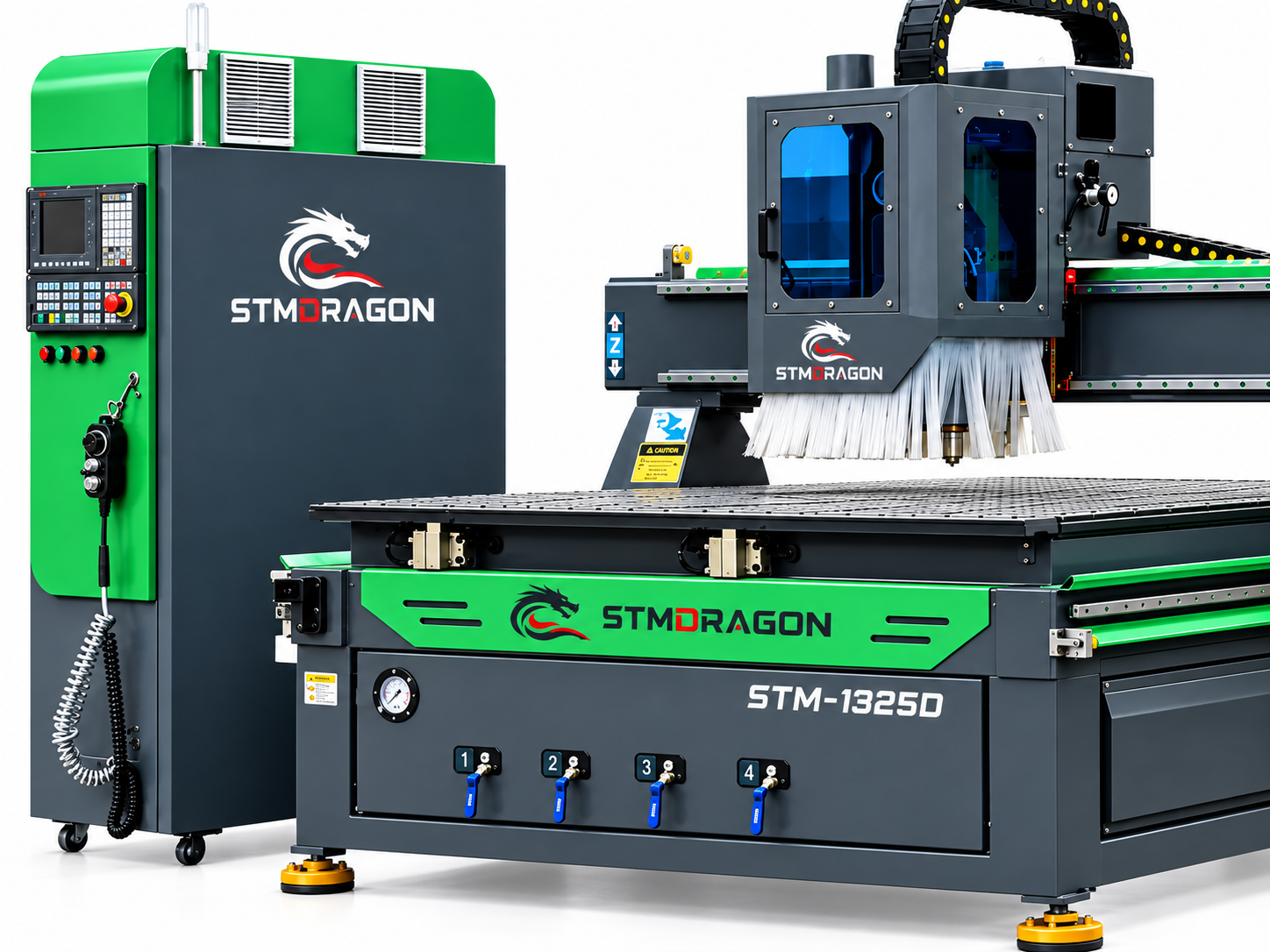

The STMDRAGON STM-1325D ATC CNC Wood Router Machine is a heavy-duty 3-axis CNC routing solution designed for efficient cabinet, furniture, door, sign, and woodworking production. Its 1300 × 2500 × 200 mm (4×8 ft) working area provides a large platform for sheet-based production and detailed CNC machining.
The machine is equipped with a 9kW Italian HSD air-cooled spindle with a 12-position automatic tool changer, allowing automatic switching between cutting, drilling, engraving, and other tooling operations without frequent manual tool changes. The spindle operates from 6,000–24,000 RPM.
Key Product Details
- Model: STM-1325D
- Working Area: 1300 × 2500 × 200 mm / 4×8 ft
- Spindle: 9kW Italian HSD air-cooled spindle
- Automatic Tool Changer: 12-position carousel ATC
- Table: Vacuum table + T-slot table
- Control System: Taiwan Syntec 60W-E
- Drive System: Japanese Yaskawa servo motors and drivers
- X/Y Transmission: Gear transmission with helical rack and pinion
- Z Transmission: Taiwan TBI ball screw
- Linear Guide: Heavy-duty Hiwin HG Series linear bearing
- Maximum Rapid Travel: 90 m/min
- Maximum Working Speed: 70 m/min
- Spindle Speed: 6,000–24,000 RPM
- Positioning Accuracy: ±0.02/2000 mm
- Command Language: G-Code
- Interface: USB
- Voltage Options: AC 110V / 220V / 240V / 380V / 400V
- Electrical: 1-phase / 3-phase, 50Hz / 60Hz
- Body: Heavy-duty industrial construction
- Software Compatibility: BCAMPro, VCarve, VCarve Pro, ArtCAM, UCANCAM and other compatible software
- Certification: CE standard
- Warranty: 1 Year
- Shipping: 7–30 Days
Suitable Applications
The STM-1325D is suitable for cabinet manufacturing, furniture production, wooden doors, decorative panels, signs, speaker enclosures, woodworking, engraving, drilling, profiling, and general CNC cutting applications.
The ATC system helps reduce manual tool-changing time and allows multiple machining operations to be completed in a single CNC setup, improving production efficiency for professional workshops and manufacturing facilities.
