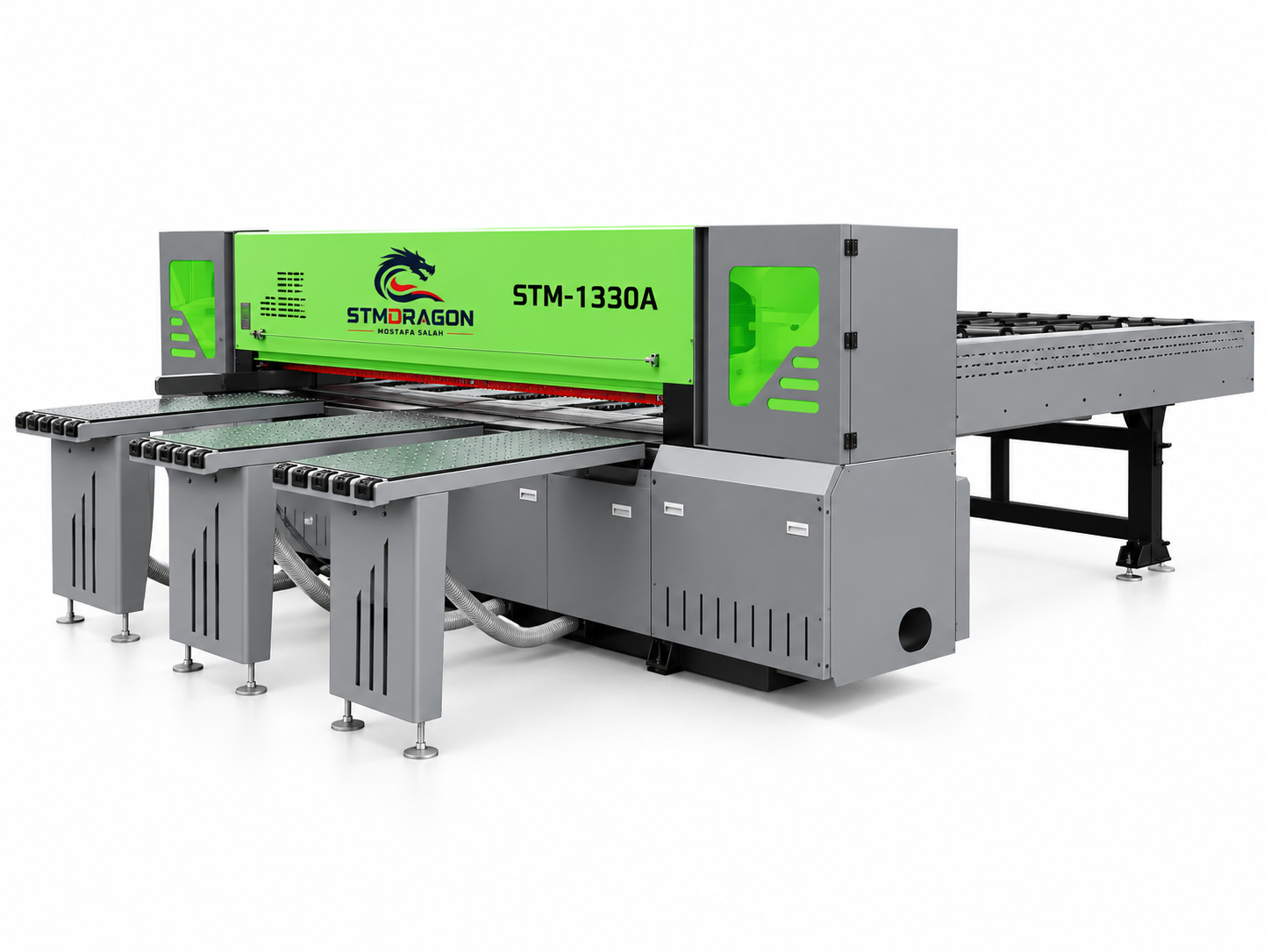

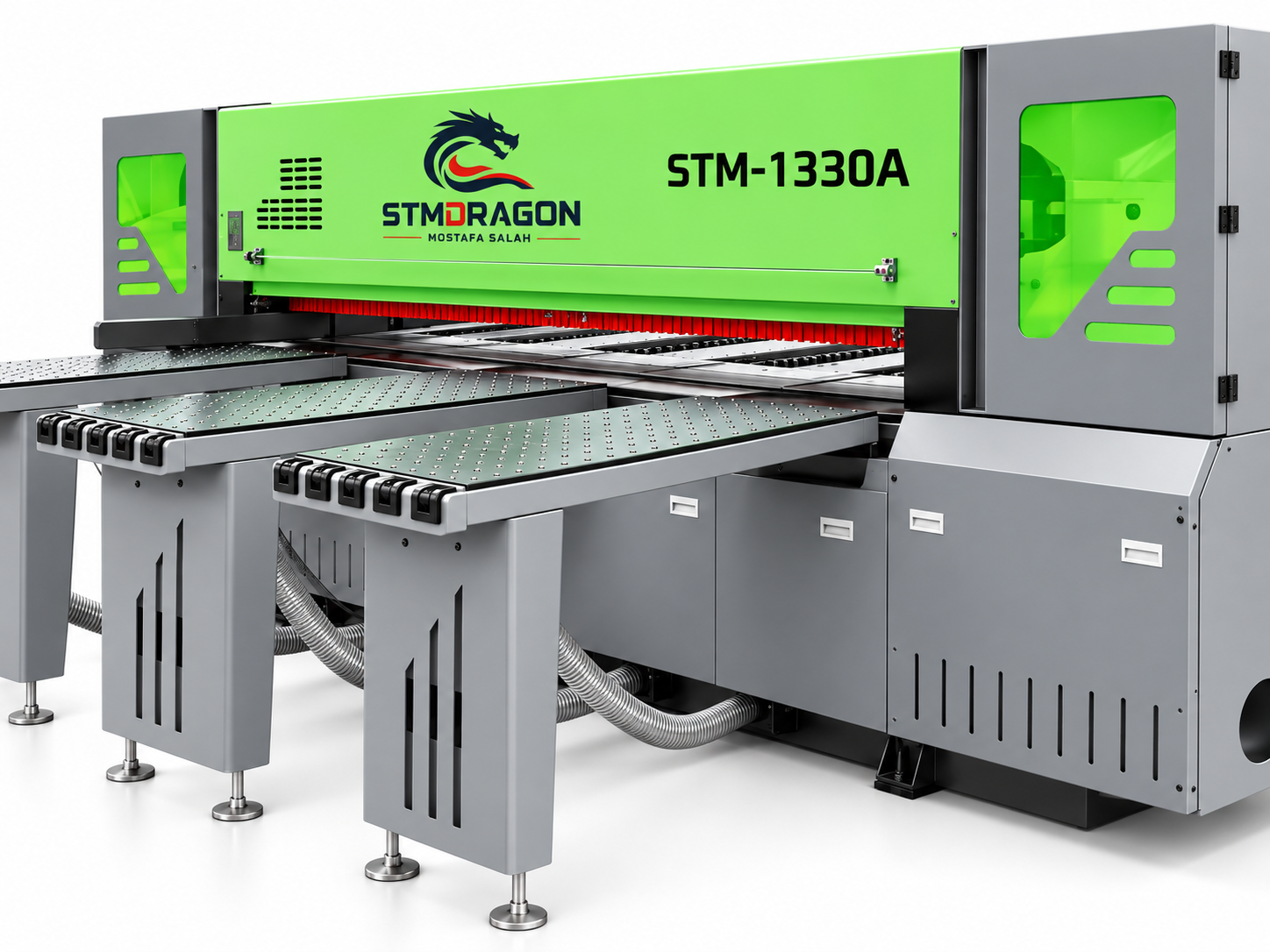

The STMDRAGON STM-1330A Smart Automatic CNC Beam Saw Machine is designed for precise and efficient straight-line cutting of furniture panels, MDF, particle board, plywood, melamine boards and other sheet materials. Its automated feeding and positioning system makes it suitable for both customized woodworking and continuous production environments.
The machine uses a 15 kW main saw motor, with a 1 kW feed motor, 355 mm main saw blade, 180 mm grooving saw blade and maximum machining thickness of 80 mm. The maximum processing width is 3200 mm, while the adjustable sawing speed is 0–120 m/min.
The CNC feeding system uses a Delta 1 kW servo motor, Taiwan linear guideways, gear-and-rack transmission and automatic positioning with an accuracy of approximately ±0.2 mm. The feeding table includes pneumatic/cylinder clamping and an automatic oiling system for the guide rails.
The machine is equipped with a 45 mm diameter round-bar guide rail, high-precision rack-and-pinion transmission, Taiwan TBI ball screw for the Z axis and major electrical components from Siemens and OMRON. The control system uses a Sanling PLC with a 10.2-inch touchscreen interface.
Key Specifications:
- Model: STM-1330A
- Machine Type: Automatic CNC Beam Saw
- Overall Machine Size: 5750 × 5500 × 1700 mm
- Table Height: 850 mm
- Maximum Processing Width: 3200 mm
- Maximum Processing Length: 3200 mm
- Maximum Cutting Thickness: 80 mm
- Main Saw Speed: 5600 rpm
- Grooving Saw Speed: 6100 rpm
- Sawing Speed: 0–120 m/min
- Maximum Rapid Travel Rate: 90 m/min
- Main Saw Power: 15 kW
- Feed Motor: 1 kW Delta Servo
- Travelling Motor: 1.5 kW
- Side Motor: 0.4 kW Delta Servo
- Blower Power: 2.2 kW
- Main Saw Blade Diameter: 355 mm
- Grooving Saw Blade Diameter: 180 mm
- Main Saw Shaft Diameter: 60 mm
- Grooving Shaft Diameter: 30 mm
- Positioning Accuracy: ±0.2 mm
- Control: Sanling PLC, 10.2-inch touchscreen
- Guide System: Taiwan linear guideway and 45 mm round-bar guide
- Transmission: Gear and rack-and-pinion
- Z-Axis: Taiwan TBI ball screw
- Main Electrical Components: Siemens and OMRON
- Machine Weight: 5200 kg
- Total Installed Power: 21 kW
- Operating Temperature: -20°C to 45°C
- Relative Humidity: 5%–75%
Suitable Materials & Applications
The STM-1330A is suitable for cutting MDF, particle board, plywood, melamine and similar wood-based sheet materials. It is designed for furniture factories, cabinet production, wardrobe manufacturing, door production, panel processing, customized furniture workshops and high-volume woodworking operations.
Warranty & Support
- Warranty: 1 Year
- Technical Support: Free lifetime technical support for end-users and dealers
- Handling Time: 1–2 Days
- Shipping: 7–30 Days according to supplied information
- Money-Back Guarantee: 30 Days according to supplied supplier information
