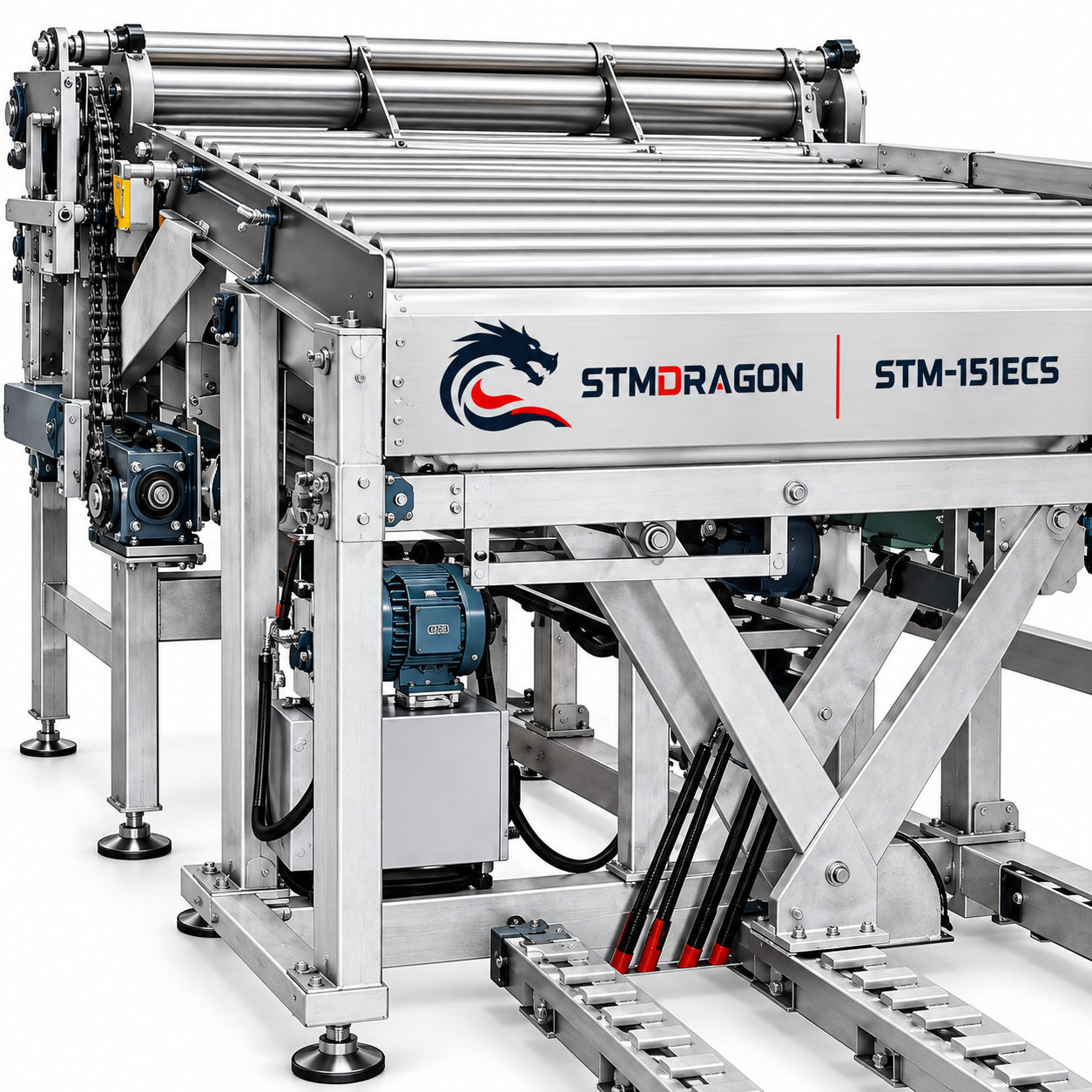

STMDRAGON STM-151ECS Automatic Four-Edge Plywood Edge Cutting Saw Machine

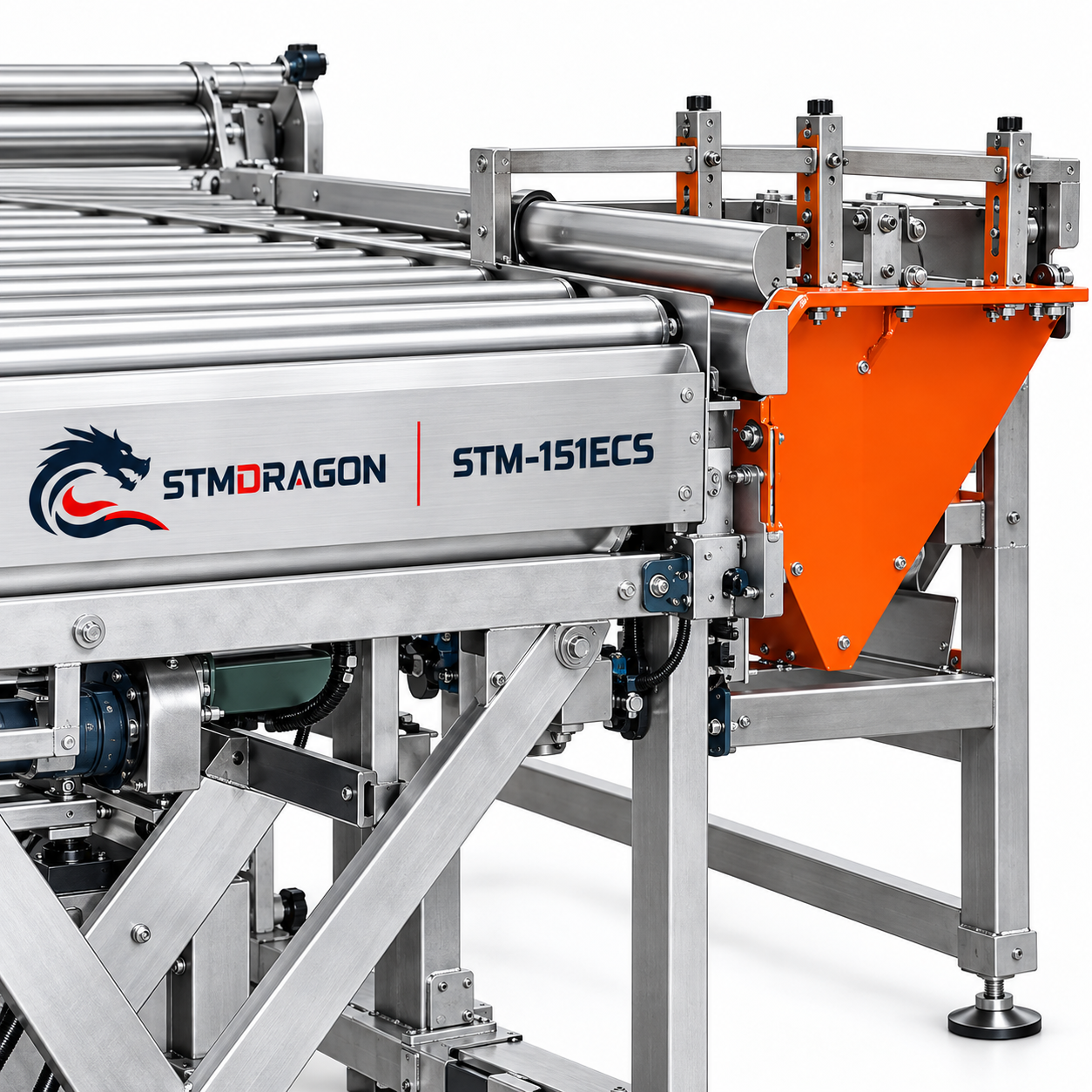

STMDRAGON STM-151ECS Automatic Four-Edge Plywood Edge Cutting Saw Machine - Image 2
STMDRAGON STM-151ECS Automatic Four-Edge Plywood Edge Cutting Saw Machine - Image 3
Plywood & Panel Lines

STMDRAGON STM-151ECS Automatic Four-Edge Plywood Edge Cutting Saw Machine

STMDRAGON STM-151ECS is an automatic four-edge plywood trimming and cutting saw designed for plywood production lines. With PLC control, automatic plate arrangement and stacking, adjustable sawing speed up to 30 m/min, and a 44.5 kW power configuration, it is designed for efficient and precise processing of 4 × 8 ft plywood panels up to 60 mm thick.

ConfigurationCustom
Working sizeOn request
ControlPLC automatic control
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-151ECS Automatic Four-Edge Plywood Edge Cutting Saw Machine

Machine TypeAutomatic Four-Edge Plywood Edge Cutting Saw
Main ApplicationPlywood production and panel edge trimming
Finished Product4 × 8 ft plywood
Maximum Board Thickness60 mm
Panel Length / Beveled Edge250 mm
Sawing Speed0–30 m/min
ControlPLC automatic control
Working MethodCNC Automatic
Main Power44.5 kW
Voltage380V
Machine Weight1,200 kg / approx. 2,646 lbs
CertificationCE, ISO9001
After-Sales ServiceOnline Support
Warranty1 Year
Sawboard Diagonal ErrorLess than 1 mm
Saw Plate Straightness ErrorLess than 1 mm
First Saw Guide Rail30 mm six-edge guide rail
Second Saw Guide RailØ30 mm cylindrical guide rail
Power44.5 kW
FrequencyTo Be Confirmed
PhaseTo Be Confirmed
Final Electrical ConfigurationConfirm before ordering
Source Dimension1220 × 2440 mm
Converted SizeApprox. 48.0 × 96.1 in
Machine Net WeightApprox. 2,646 lbs
Estimated Shipping DimensionsApprox. 150 × 110 × 90 in
Estimated Gross Shipping WeightApprox. 3,000–3,300 lbs
Shipping7–30 Days according to the supplied information
Production/HandlingTo Be Confirmed for the exact STM-151ECS configuration
NoteShipping dimensions and gross weight are estimated for freight-planning purposes only. Final packing dimensions and gross shipping weight must be confirmed by the manufacturer before freight calculation and ordering.
Applications

Applications: STMDRAGON STM-151ECS Automatic Four-Edge Plywood Edge Cutting Saw Machine

The STMDRAGON STM-151ECS Automatic Four-Edge Plywood Edge Cutting Saw Machine is designed for automatic edge trimming and cutting of plywood panels in industrial plywood production lines. The machine uses PLC automatic control and is designed to improve cutting accuracy, production efficiency, and labor productivity compared with conventional manual sawing.

Key Product Details

  1. Machine Type: Automatic Four-Edge Plywood Edge Cutting Saw
  2. Main Application: Plywood production and panel edge trimming
  3. Finished Product: 4 × 8 ft plywood
  4. Maximum Board Thickness: 60 mm
  5. Panel Length / Beveled Edge: 250 mm
  6. Sawing Speed: 0–30 m/min
  7. Control: PLC automatic control
  8. Working Method: CNC Automatic
  9. Main Power: 44.5 kW
  10. Voltage: 380V
  11. Machine Weight: 1,200 kg / approx. 2,646 lbs
  12. Certification: CE, ISO9001
  13. After-Sales Service: Online Support
  14. Warranty: 1 Year

Cutting Accuracy & Guide System

The machine is designed for accurate plywood edge processing, with the supplied specifications indicating:

  1. Sawboard Diagonal Error: Less than 1 mm
  2. Saw Plate Straightness Error: Less than 1 mm
  3. First Saw Guide Rail: 30 mm six-edge guide rail
  4. Second Saw Guide Rail: Ø30 mm cylindrical guide rail

Automatic Production Features

The STM-151ECS includes an automatic fence-type plate arrangement and stacking system. Its automatic operation is designed to reduce manual handling and can operate with approximately 2 workers, depending on the production setup and workflow.

Electrical & Configuration Information

  1. Voltage: 380V
  2. Power: 44.5 kW
  3. Frequency: To Be Confirmed
  4. Phase: To Be Confirmed
  5. Final Electrical Configuration: Confirm before ordering

Machine Dimensions & Shipping

  1. Source Dimension: 1220 × 2440 mm
  2. Converted Size: Approx. 48.0 × 96.1 in
  3. Machine Net Weight: Approx. 2,646 lbs
  4. Estimated Shipping Dimensions: Approx. 150 × 110 × 90 in
  5. Estimated Gross Shipping Weight: Approx. 3,000–3,300 lbs

Note: Shipping dimensions and gross weight are estimated for freight-planning purposes only. Final packing dimensions and gross shipping weight must be confirmed by the manufacturer before freight calculation and ordering.

Warranty & Shipping

  1. Warranty: 1 Year
  2. Shipping: 7–30 Days according to the supplied information
  3. Production/Handling: To Be Confirmed for the exact STM-151ECS configuration

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Machine Type

Automatic Four-Edge Plywood Edge Cutting Saw
Main Application

Plywood production and panel edge trimming
Finished Product

4 × 8 ft plywood
Maximum Board Thickness

60 mm
Panel Length / Beveled Edge

250 mm
Sawing Speed

0–30 m/min
Control

PLC automatic control
Working Method

CNC Automatic
Main Power

44.5 kW
Voltage

380V
Machine Weight

1,200 kg / approx. 2,646 lbs
Certification

CE, ISO9001
After-Sales Service

Online Support
Warranty

1 Year
Sawboard Diagonal Error

Less than 1 mm
Saw Plate Straightness Error

Less than 1 mm
First Saw Guide Rail

30 mm six-edge guide rail
Second Saw Guide Rail

Ø30 mm cylindrical guide rail
Power

44.5 kW
Frequency

To Be Confirmed
Phase

To Be Confirmed
Final Electrical Configuration

Confirm before ordering
Source Dimension

1220 × 2440 mm
Converted Size

Approx. 48.0 × 96.1 in
Machine Net Weight

Approx. 2,646 lbs
Estimated Shipping Dimensions

Approx. 150 × 110 × 90 in
Estimated Gross Shipping Weight

Approx. 3,000–3,300 lbs
Shipping

7–30 Days according to the supplied information
Production/Handling

To Be Confirmed for the exact STM-151ECS configuration
Note

Shipping dimensions and gross weight are estimated for freight-planning purposes only. Final packing dimensions and gross shipping weight must be confirmed by the manufacturer before freight calculation and ordering.
Request a quote

Request a quote for STMDRAGON STM-151ECS Automatic Four-Edge Plywood Edge Cutting Saw Machine.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-151ECS Automatic Four-Edge Plywood Edge Cutting Saw Machine

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-151ECS Automatic Four-Edge Plywood Edge Cutting Saw Machine?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
