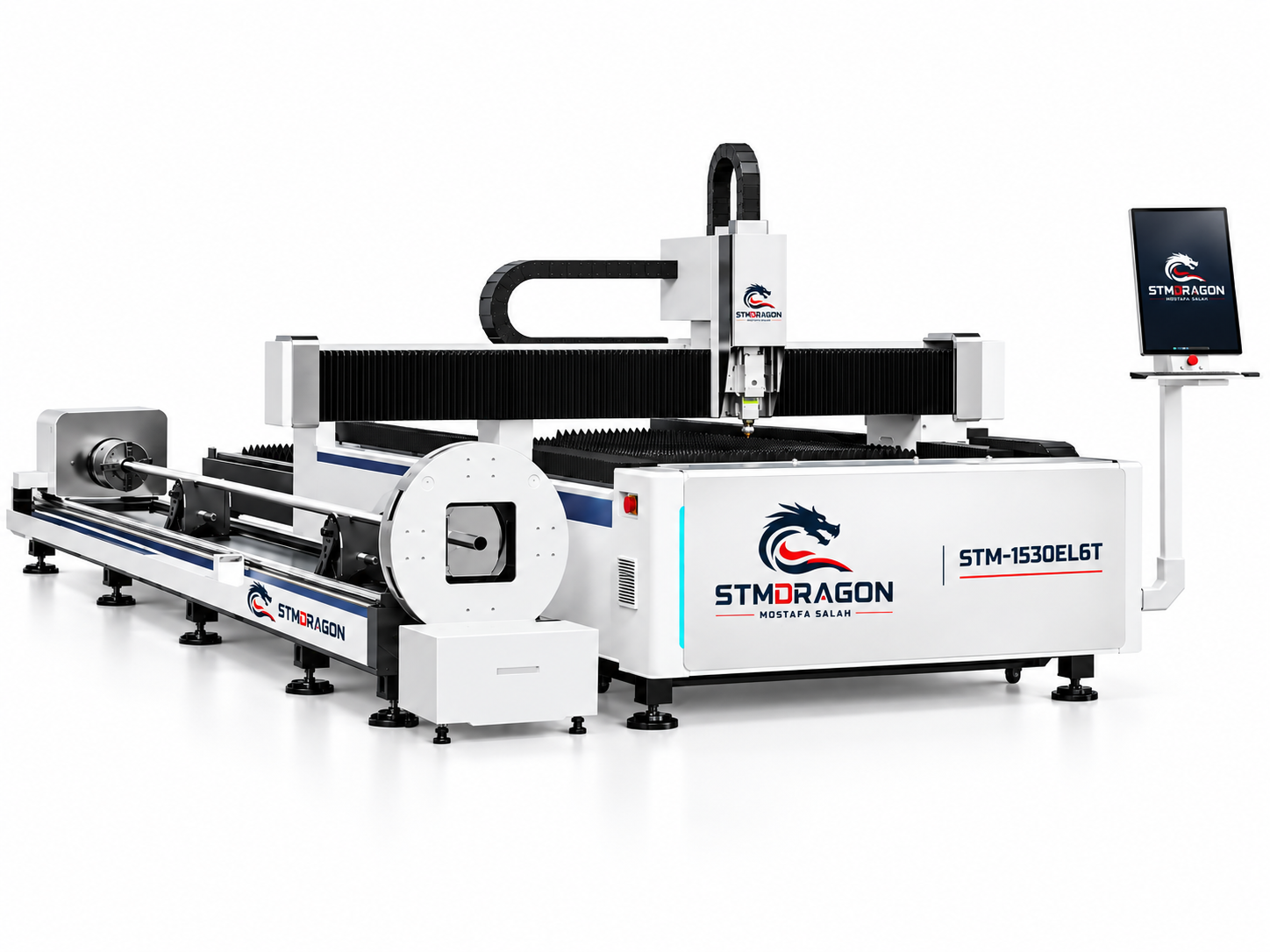

The STMDRAGON STM-1530EL6T Tube and Sheet Fiber Laser Cutting Machine combines sheet metal and tube cutting in one industrial CNC laser system, helping manufacturers save machine space and reduce equipment investment. It is suitable for professional metal fabrication and industrial processing applications requiring accurate and efficient cutting.
The machine supports 1kW–6kW laser power options and can process round, square, and rectangular tubes with available tube lengths of 3m or 6m. Its working area is approximately 1515 × 3030 mm, with a worktable bearing capacity of up to 800 kg for the listed 1530 configuration.
Key Technical Features:
- Model: STM-1530EL6T
- Machine Type: Tube & Sheet Fiber Laser Cutting Machine
- Laser Power: 1kW–6kW

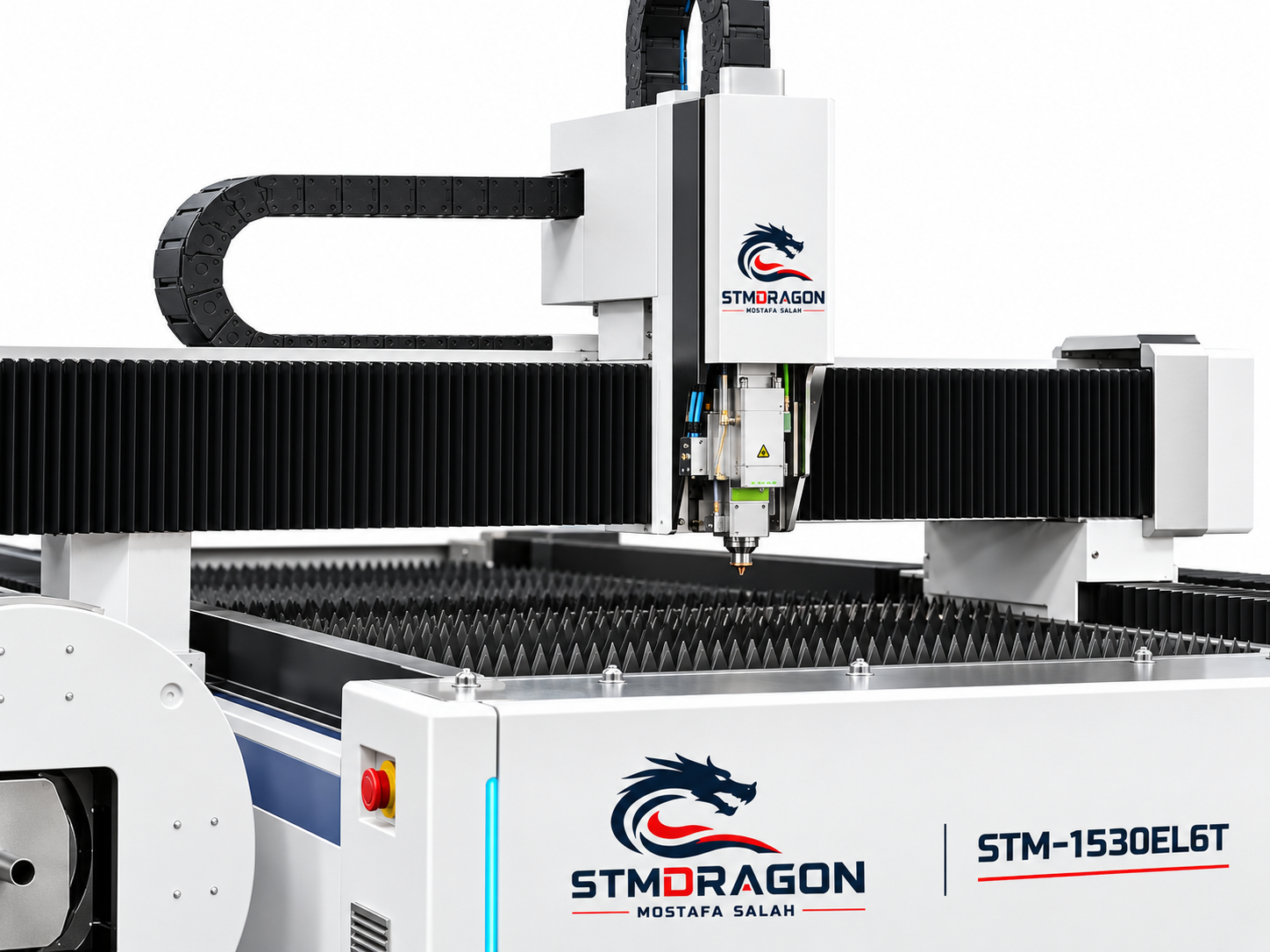

- Working Area: 1515 × 3030 mm
- Maximum Running Speed: 140 m/min
- Maximum Acceleration: 1.5G
- Positioning Accuracy: ±0.03 mm
- Repositioning Accuracy: ±0.02 mm

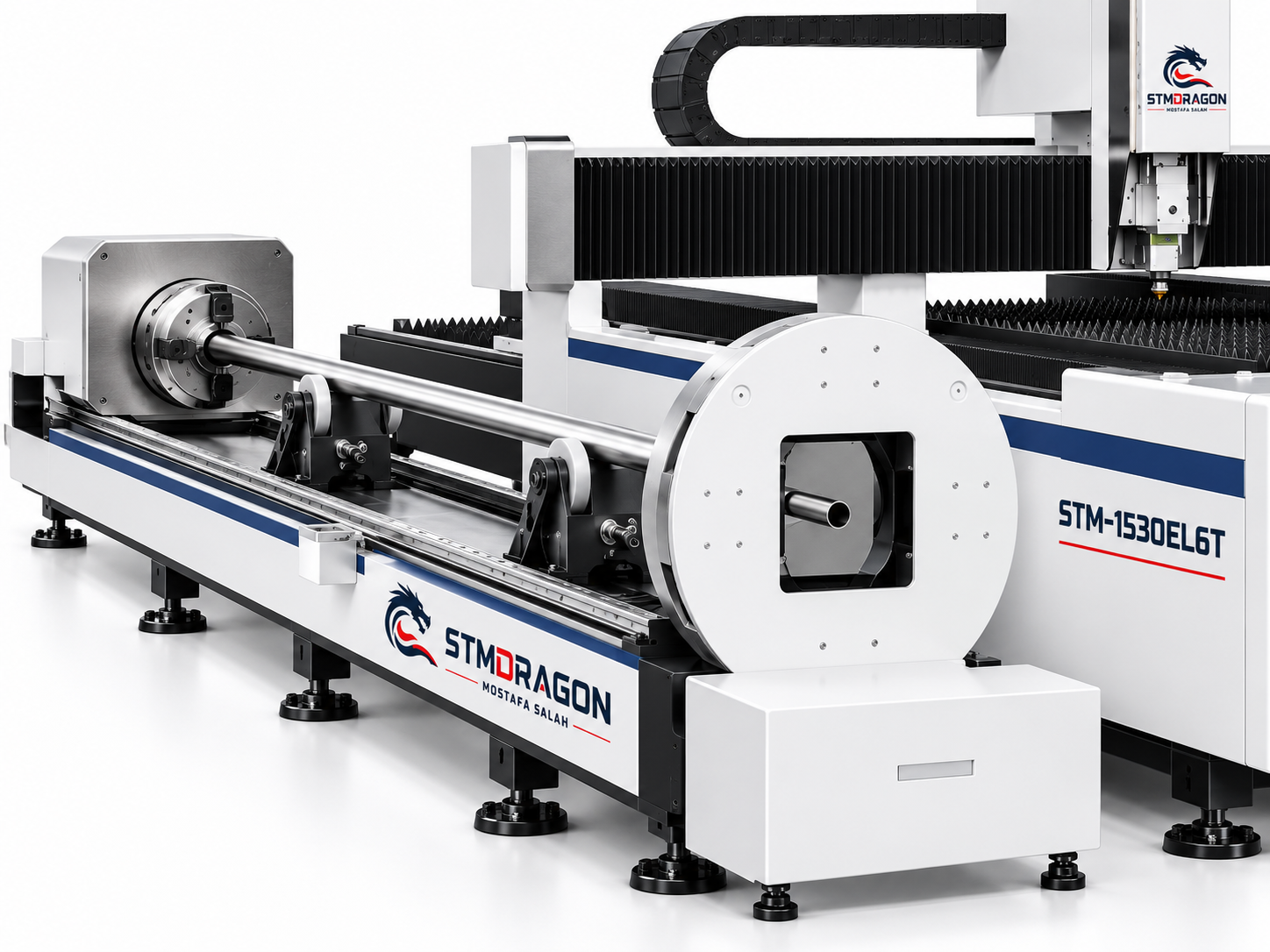

- Tube Shapes: Round, Square & Rectangular
- Maximum Tube Length: 3m / 6m
- Worktable Bearing Capacity: 800 kg
- Standard: CE, ISO9001
- Machine Structure: Heavy-duty cast iron bed with aviation aluminum beam
- Transmission: Imported high-precision transmission components
- Chuck: Automatic dual-start chuck
- Dust Removal: Integrated high-capacity dust removal system
- Laser: Multiple laser source options available
- Warranty: 1 Year
- Shipping: 7–30 Days
The heavy-duty cast iron bed is designed for long-term stability and resistance to deformation, while the aviation aluminum beam supports stable high-speed operation. Premium guide rails, racks, and imported transmission components help maintain cutting accuracy and consistent machine performance.
