STMDRAGON STM-2480H-2 Vacuum Laminating Machine

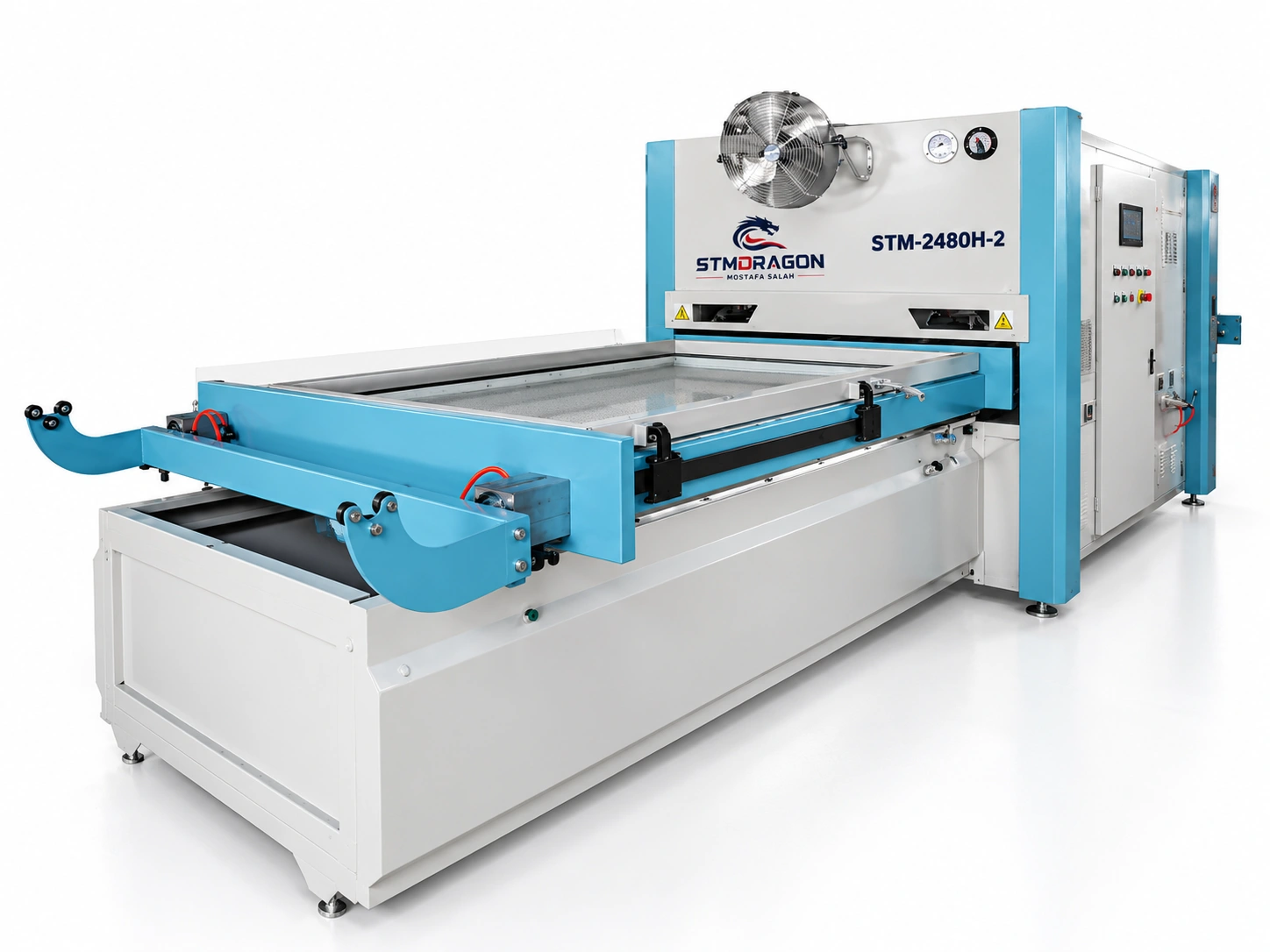

STMDRAGON STM-2480H-2 is an industrial vacuum laminating machine designed for efficient PVC film and surface laminating applications. It features a dual working table, automatic vacuum laminating, MCGS PLC touch-screen control, 140 CBM/h vacuum pump, and multi-point aluminum heating technology. The machine supports up to 60 mm processing height and uses a 380V three-phase electrical configuration.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-2480H-2 Vacuum Laminating Machine

ModelSTM-2480H-2
Working TableDual-side table with round guide rail movement
Processing HeightUp to 60 mm
Vacuum Pressure≥ -0.1 MPa
Vacuum PumpShanghai vacuum pump
Vacuum Speed140 CBM/h
Heating SystemFive-sided aluminum heating with auxiliary side and under-table heating
Control SystemMCGS PLC touch-screen control panel
Data StorageUp to 16 processing programs

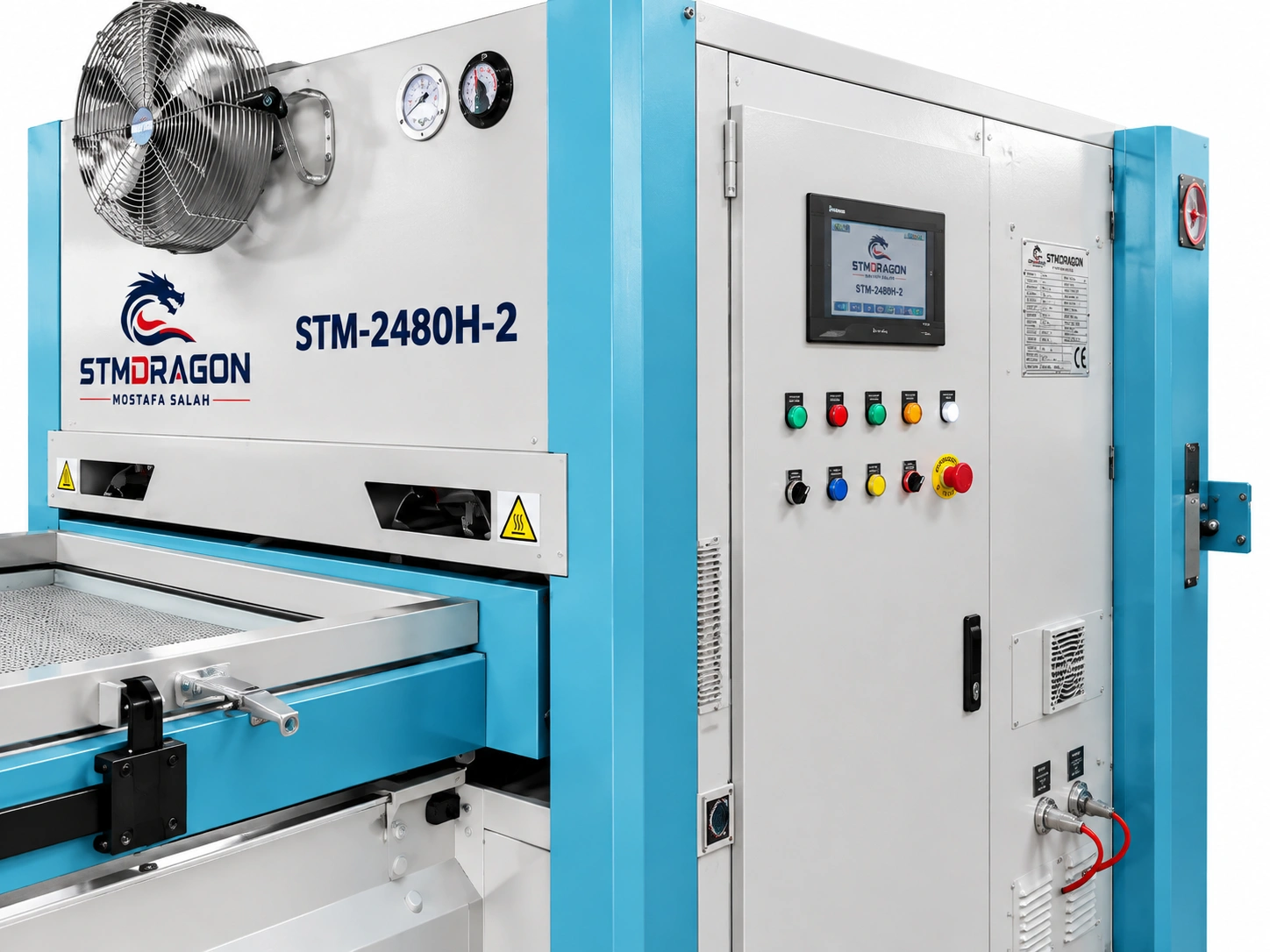

PVC FilmAutomatic PVC film locking device
Electrical ComponentsSchneider
Installed Power45 kW
Real Power ConsumptionApproximately 8–9 kW/h according to supplied information
Electrical Supply380V, 3 Phase, 4 Wire, 50Hz
Total Weight3000 kg
Overall Machine Size9800 × 2200 × 1800 mm
Warranty1 Year
Shipping7–30 Days according to the supplied information
Production/HandlingTo Be Confirmed for the exact STM-2480H-2 configuration
Applications

Applications: STMDRAGON STM-2480H-2 Vacuum Laminating Machine

The STMDRAGON STM-2480H-2 Vacuum Laminating Machine is designed for efficient vacuum membrane laminating of doors, cabinet panels, furniture components, and other suitable flat workpieces. Its automatic operating system combines heating, vacuum forming, and working-table movement for consistent production.

Main Features

  1. Model: STM-2480H-2
  2. Working Table: 2500 × 1300 mm + 2500 × 1100 mm
  3. Processing Height: Up to 60 mm
  4. Vacuum Pressure: ≥ -0.1 MPa
  5. Vacuum Pump: Shanghai vacuum pump
  6. Vacuum Speed: 140 CBM/h
  7. Heating System: Five-sided aluminum heating with auxiliary side and under-table heating
  8. Control System: MCGS PLC touch-screen control panel
  9. Data Storage: Up to 16 processing programs
  10. Working Table: Dual-side table with round guide rail movement
  11. PVC Film: Automatic PVC film locking device
  12. Electrical Components: Schneider
  13. Installed Power: 45 kW
  14. Real Power Consumption: Approximately 8–9 kW/h according to supplied information
  15. Electrical Supply: 380V, 3 Phase, 4 Wire, 50Hz
  16. Total Weight: 3000 kg
  17. Overall Machine Size: 9800 × 2200 × 1800 mm

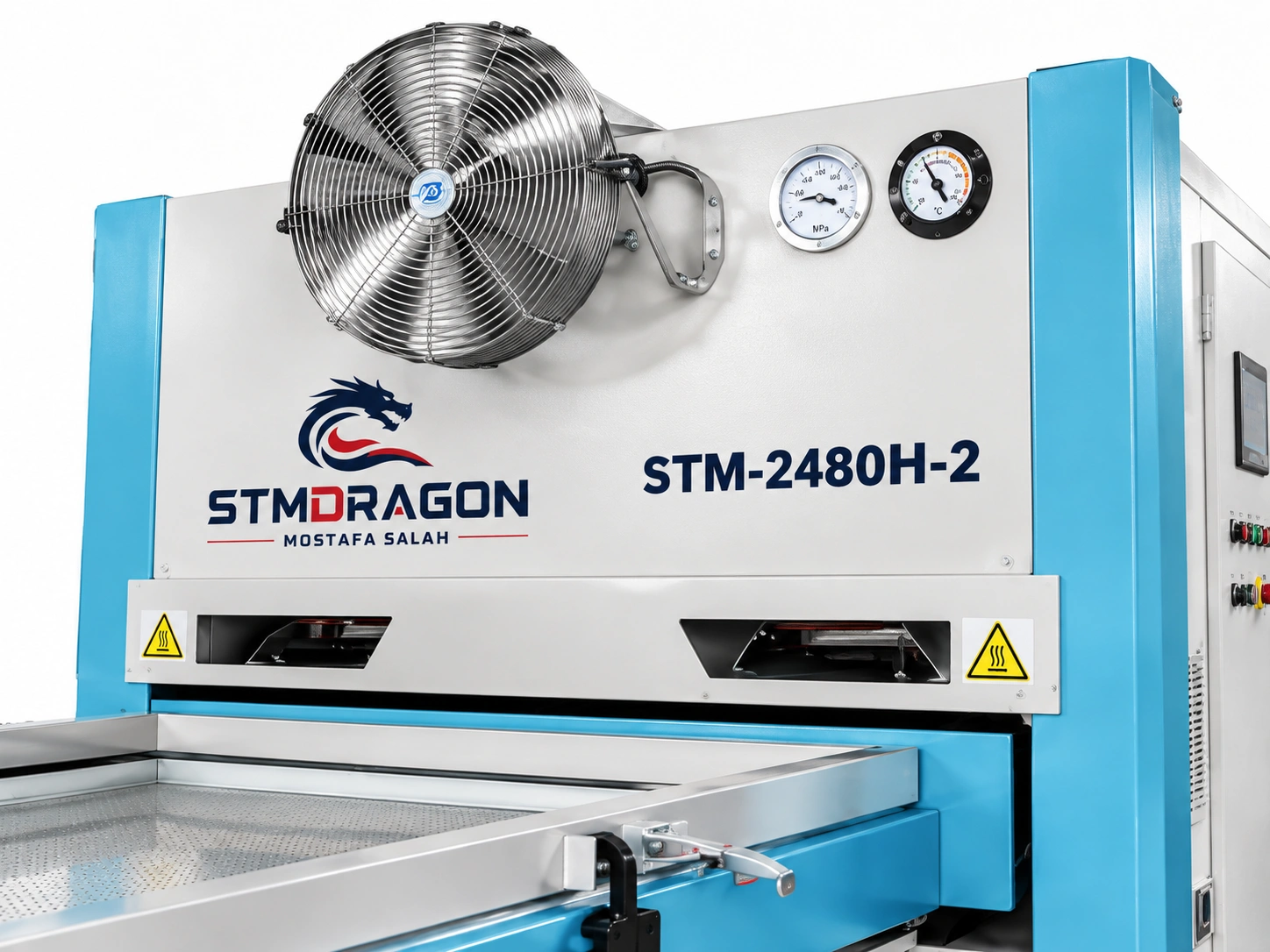

The PLC touch-screen control allows operators to store different processing parameters and automate the main laminating cycle, including working-table entry and exit, heating, and vacuum forming. The 140 CBM/h vacuum system is designed for fast vacuum generation, while the multi-point aluminum heating arrangement helps provide more uniform heating across the work area.

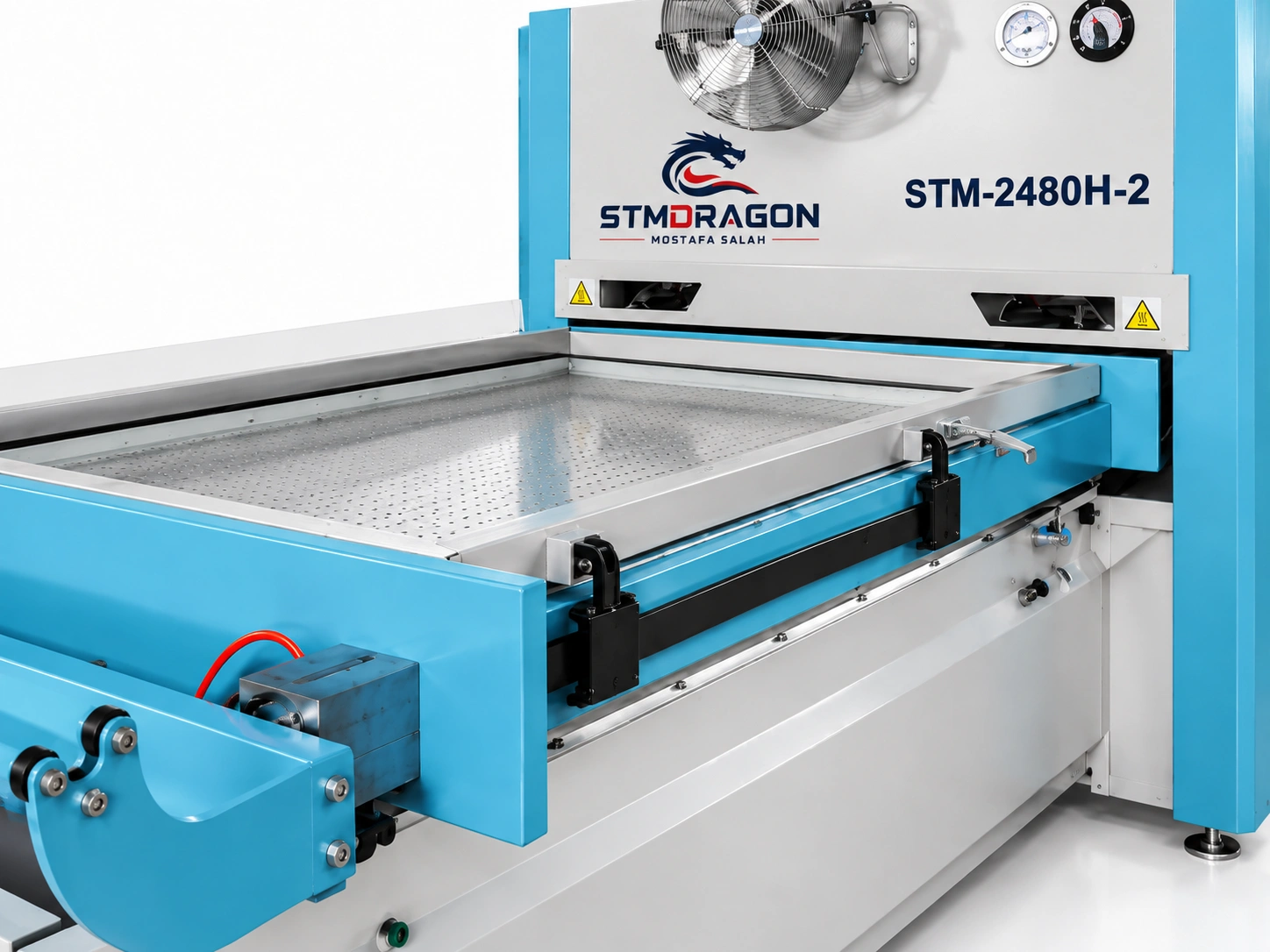

The dual working-table design allows smooth movement on round guide rails and supports continuous production workflows. The automatic PVC film locking system further improves operating efficiency for suitable laminating applications.

Applications

Suitable for industrial laminating applications involving PVC film and suitable furniture or woodworking panels, including:

  1. Door panels
  2. Cabinet doors
  3. Furniture components
  4. Decorative panels
  5. Wood-based panels
  6. Other suitable flat surfaces requiring vacuum membrane laminating

Warranty & Shipping

  1. Warranty: 1 Year
  2. Shipping: 7–30 Days according to the supplied information
  3. Production/Handling: To Be Confirmed for the exact STM-2480H-2 configuration

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.
