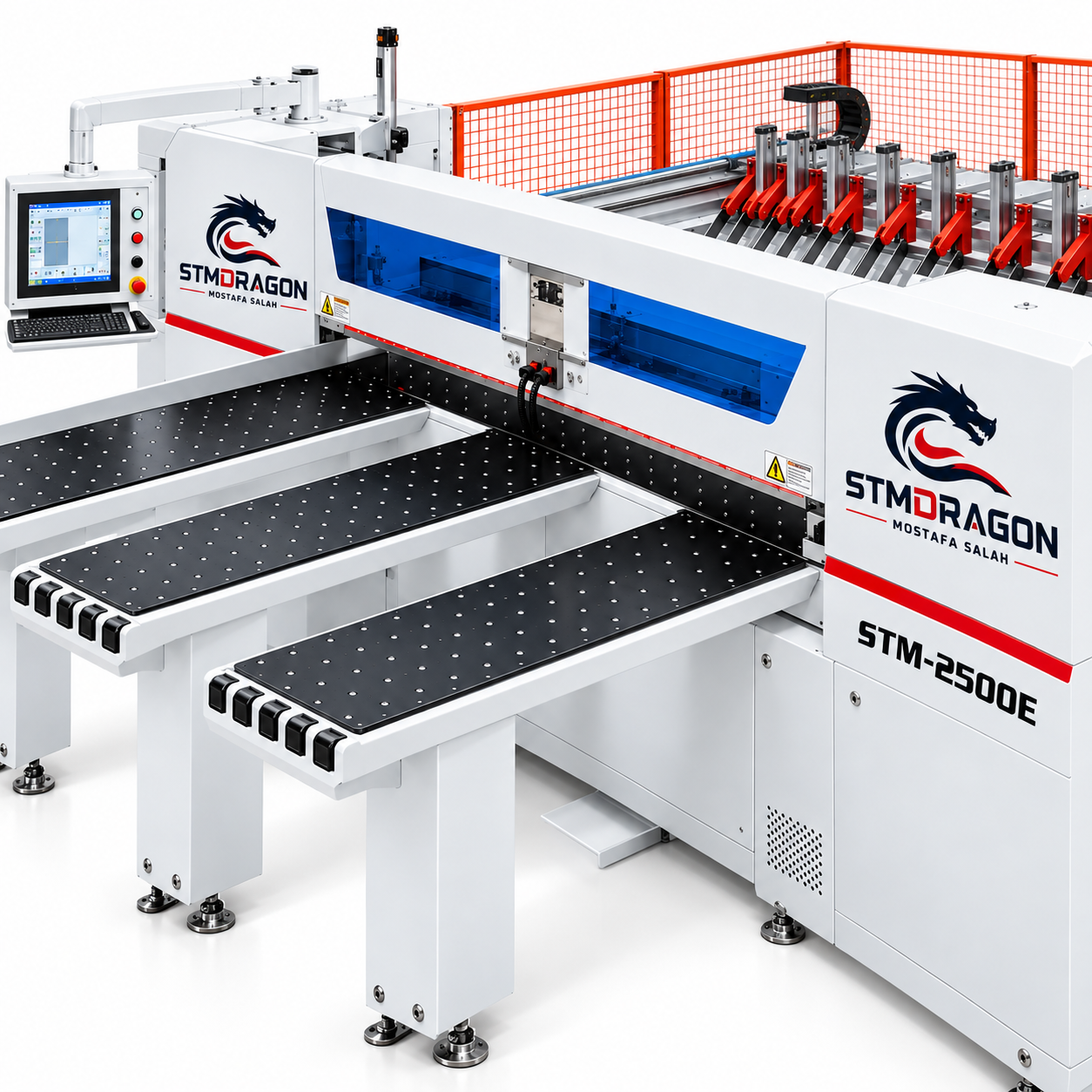

The STMDRAGON STM-2500E Compact CNC Beam Saw is designed for automated and high-volume panel sizing and cutting in furniture factories and woodworking production environments. Its PLC-controlled system helps manage cutting and feeding operations for consistent cutting accuracy and production efficiency.
The machine supports various panel materials, including wood-based panels, MDF, ABS, PVC, solid wood, plexiglass, and aluminum panels, subject to the final blade configuration and material-processing requirements.
Key Product Details:
- Model: STM-2500E
- Machine Type: Compact CNC Beam Saw
- Main Function: Automatic panel sizing and cutting
- Maximum Cutting Length: 2450 mm
- Maximum Cutting Height: 50 mm
- Machine Dimensions: 4565 × 4000 × 1650 mm
- Main Saw Motor: 7.5 kW, 380V, 3-Phase
- Scoring Saw Motor: 1.1 kW
- Clamp: 8 groups
- Control: PLC control system
- Automation: Automatic feeding and optimized sawing solution
- Suitable Materials: Wood-based panels, MDF, ABS, PVC, solid wood, plexiglass, aluminum panels and similar sheet materials, subject to configuration
- Safety: Safety doors and emergency stop system
The optimized sawing function can help reduce manual calculation work, improve material utilization, and minimize production waste. The PLC control system manages key machine movements and cutting operations to provide stable and repeatable panel sizing.
Warranty: 1 Year
Shipping: 7–30 Days according to the supplied information.
