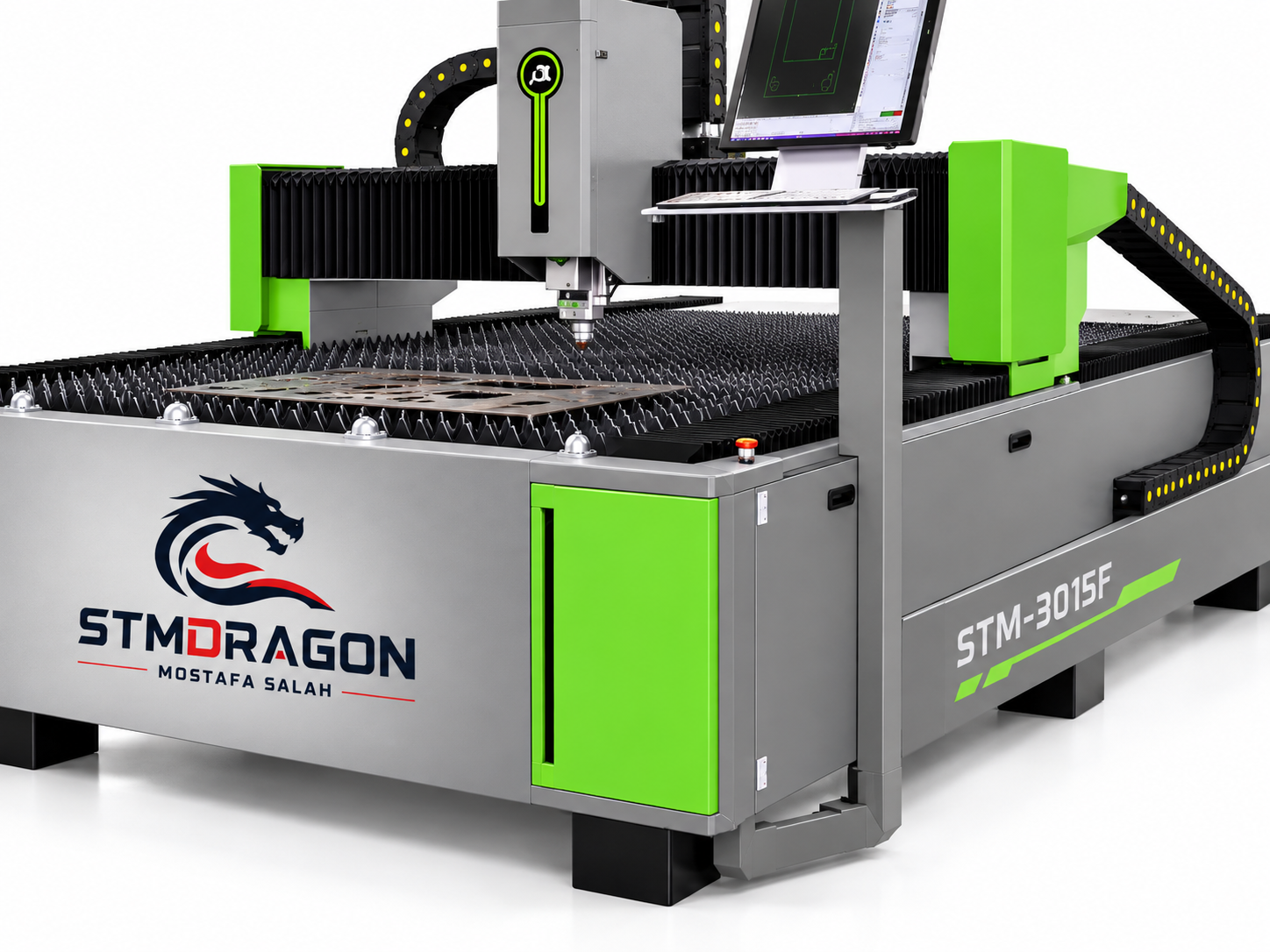

STMDRAGON STM-3015F Industrial Fiber Laser Cutting Machine 3000×1500mm

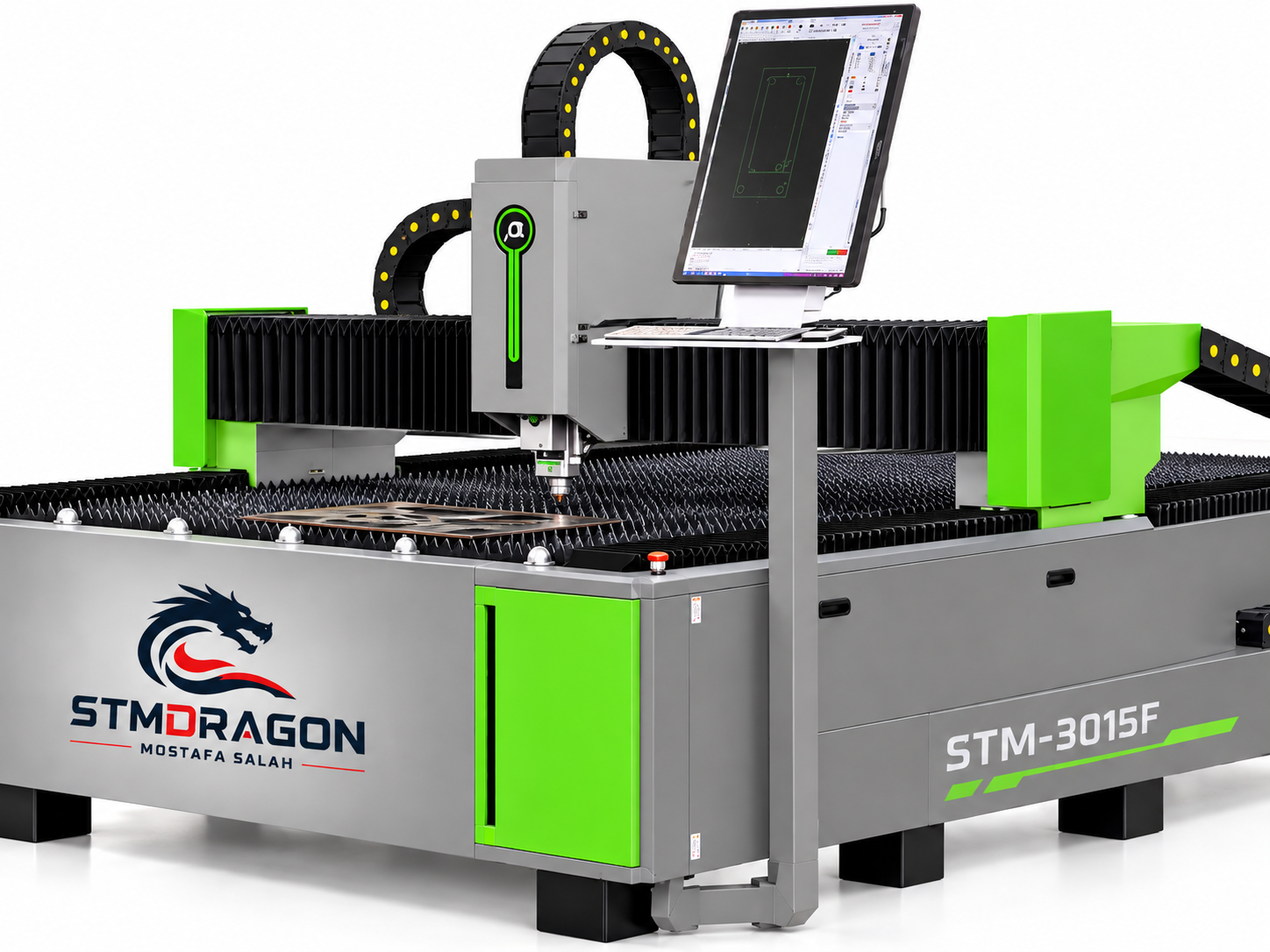

STMDRAGON STM-3015F Industrial Fiber Laser Cutting Machine 3000×1500mm - Image 2
STMDRAGON STM-3015F Industrial Fiber Laser Cutting Machine 3000×1500mm - Image 3
Fiber Laser Cutting

STMDRAGON STM-3015F Industrial Fiber Laser Cutting Machine 3000×1500mm

The STMDRAGON STM-3015F is an industrial CNC fiber laser cutting machine with a 3000×1500mm working area, designed for precision cutting of sheet metals including stainless steel, carbon steel, aluminum, copper, brass, and galvanized sheet. It features an FSCUT2000E CNC control system, Yaskawa servo drive system, Hiwin guide rails, Raytools autofocus head, and heavy-duty steel construction.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-3015F Industrial Fiber Laser Cutting Machine 3000×1500mm

ModelSTM-3015F
Machine TypeIndustrial CNC Fiber Laser Cutting Machine
Working Area3000×1500mm
Maximum Moving SpeedUp to 100 m/min
Repeat Positioning Accuracy0.02mm
Control SystemFSCUT2000E CNC system
Laser PowerFinal configuration to be confirmed
Working TableSerrated metal working platform
Guide RailsTaiwan Hiwin square rails
Gear SystemYYC helical gear 2M
Z-Axis Screw1610 screw
Servo Motors & DriversYaskawa
Laser HeadRaytools BM110 automatic focus
Laser GeneratorMAX / Reci / Raycus / IPG options available according to configuration
ChillerWUHANHANLI 3000W dual-temperature industrial chiller
Machine FrameHeavy-duty thick steel construction
BeamAviation aluminum beam
GearboxJapan Shimpo
LubricationAutomatic lubrication system
Electrical ComponentsSchneider Electric
Proportional ValveJapanese SMC
PositioningRed-dot positioning system
Suitable MaterialsStainless steel, carbon steel, aluminum, copper, brass, galvanized sheet, and other compatible metals
ApplicationsMetal fabrication, automotive panels, industrial equipment, sheet metal processing, machinery manufacturing, signage, and general metal cutting
Electrical ConfigurationFinal voltage, frequency, phase, and total installed electrical power must be confirmed according to the selected machine configuration.
Warranty1 Year.
Shipping7–30 Days according to the supplied information.
Applications

Applications: STMDRAGON STM-3015F Industrial Fiber Laser Cutting Machine 3000×1500mm

The STMDRAGON STM-3015F Industrial Fiber Laser Cutting Machine is designed for precision sheet metal cutting and industrial metal fabrication. Its 3000×1500mm working area provides a practical 5×10 ft cutting format for workshops, fabrication companies, automotive components, industrial equipment, and general metal-processing applications.

Key Features & Technical Details:

  1. Model: STM-3015F
  2. Machine Type: Industrial CNC Fiber Laser Cutting Machine
  3. Working Area: 3000×1500mm
  4. Maximum Moving Speed: Up to 100 m/min
  5. Repeat Positioning Accuracy: 0.02mm
  6. Control System: FSCUT2000E CNC system
  7. Laser Power: Final configuration to be confirmed
  8. Working Table: Serrated metal working platform
  9. Guide Rails: Taiwan Hiwin square rails
  10. Gear System: YYC helical gear 2M
  11. Z-Axis Screw: 1610 screw
  12. Servo Motors & Drivers: Yaskawa
  13. Laser Head: Raytools BM110 automatic focus
  14. Laser Generator: MAX / Reci / Raycus / IPG options available according to configuration
  15. Chiller: WUHANHANLI 3000W dual-temperature industrial chiller
  16. Machine Frame: Heavy-duty thick steel construction
  17. Beam: Aviation aluminum beam
  18. Gearbox: Japan Shimpo
  19. Lubrication: Automatic lubrication system
  20. Electrical Components: Schneider Electric
  21. Proportional Valve: Japanese SMC
  22. Positioning: Red-dot positioning system
  23. Suitable Materials: Stainless steel, carbon steel, aluminum, copper, brass, galvanized sheet, and other compatible metals
  24. Applications: Metal fabrication, automotive panels, industrial equipment, sheet metal processing, machinery manufacturing, signage, and general metal cutting

The STM-3015F combines high-speed CNC motion, automatic focusing, precision guide rails, servo-driven movement, and a rigid machine structure to support accurate and repeatable industrial cutting.

Electrical Configuration: Final voltage, frequency, phase, and total installed electrical power must be confirmed according to the selected machine configuration.

Warranty: 1 Year.

Shipping: 7–30 Days according to the supplied information.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 5500 kg
Dimensions 138 × 87 × 87 cm
Model

STM-3015F
Machine Type

Industrial CNC Fiber Laser Cutting Machine
Working Area

3000×1500mm
Maximum Moving Speed

Up to 100 m/min
Repeat Positioning Accuracy

0.02mm
Control System

FSCUT2000E CNC system
Laser Power

Final configuration to be confirmed
Working Table

Serrated metal working platform
Guide Rails

Taiwan Hiwin square rails
Gear System

YYC helical gear 2M
Z-Axis Screw

1610 screw
Servo Motors & Drivers

Yaskawa
Laser Head

Raytools BM110 automatic focus
Laser Generator

MAX / Reci / Raycus / IPG options available according to configuration
Chiller

WUHANHANLI 3000W dual-temperature industrial chiller
Machine Frame

Heavy-duty thick steel construction
Beam

Aviation aluminum beam
Gearbox

Japan Shimpo
Lubrication

Automatic lubrication system
Electrical Components

Schneider Electric
Proportional Valve

Japanese SMC
Positioning

Red-dot positioning system
Suitable Materials

Stainless steel, carbon steel, aluminum, copper, brass, galvanized sheet, and other compatible metals
Applications

Metal fabrication, automotive panels, industrial equipment, sheet metal processing, machinery manufacturing, signage, and general metal cutting
Electrical Configuration

Final voltage, frequency, phase, and total installed electrical power must be confirmed according to the selected machine configuration.
Warranty

1 Year.
Shipping

7–30 Days according to the supplied information.
Request a quote

Request a quote for STMDRAGON STM-3015F Industrial Fiber Laser Cutting Machine 3000×1500mm.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-3015F Industrial Fiber Laser Cutting Machine 3000×1500mm

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-3015F Industrial Fiber Laser Cutting Machine 3000×1500mm?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
