STMDRAGON STM-3015FT Fiber Laser Cutting Machine for Sheet & Tube Metal

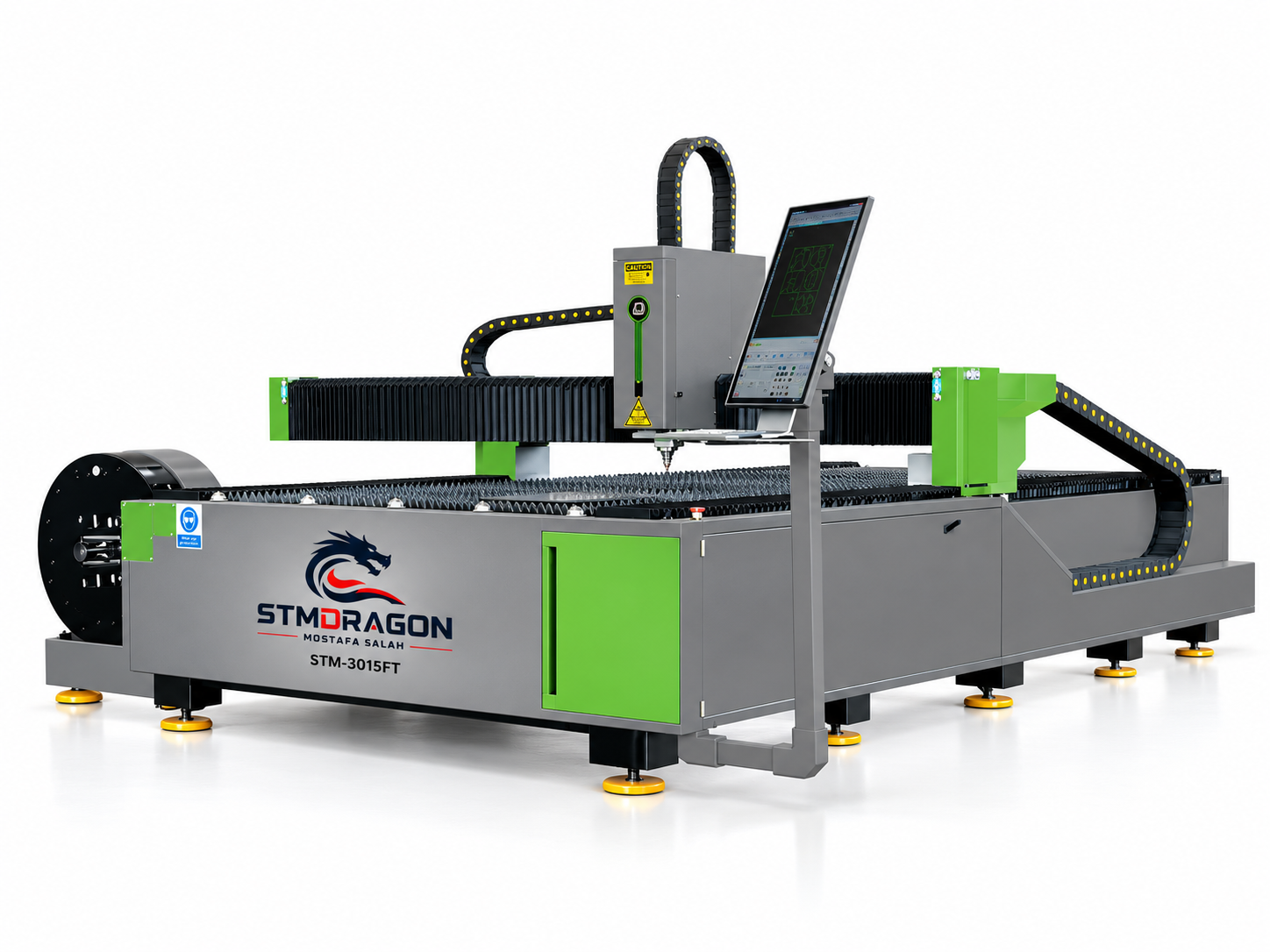

STMDRAGON STM-3015FT Fiber Laser Cutting Machine for Sheet & Tube Metal - Image 2
STMDRAGON STM-3015FT Fiber Laser Cutting Machine for Sheet & Tube Metal - Image 3

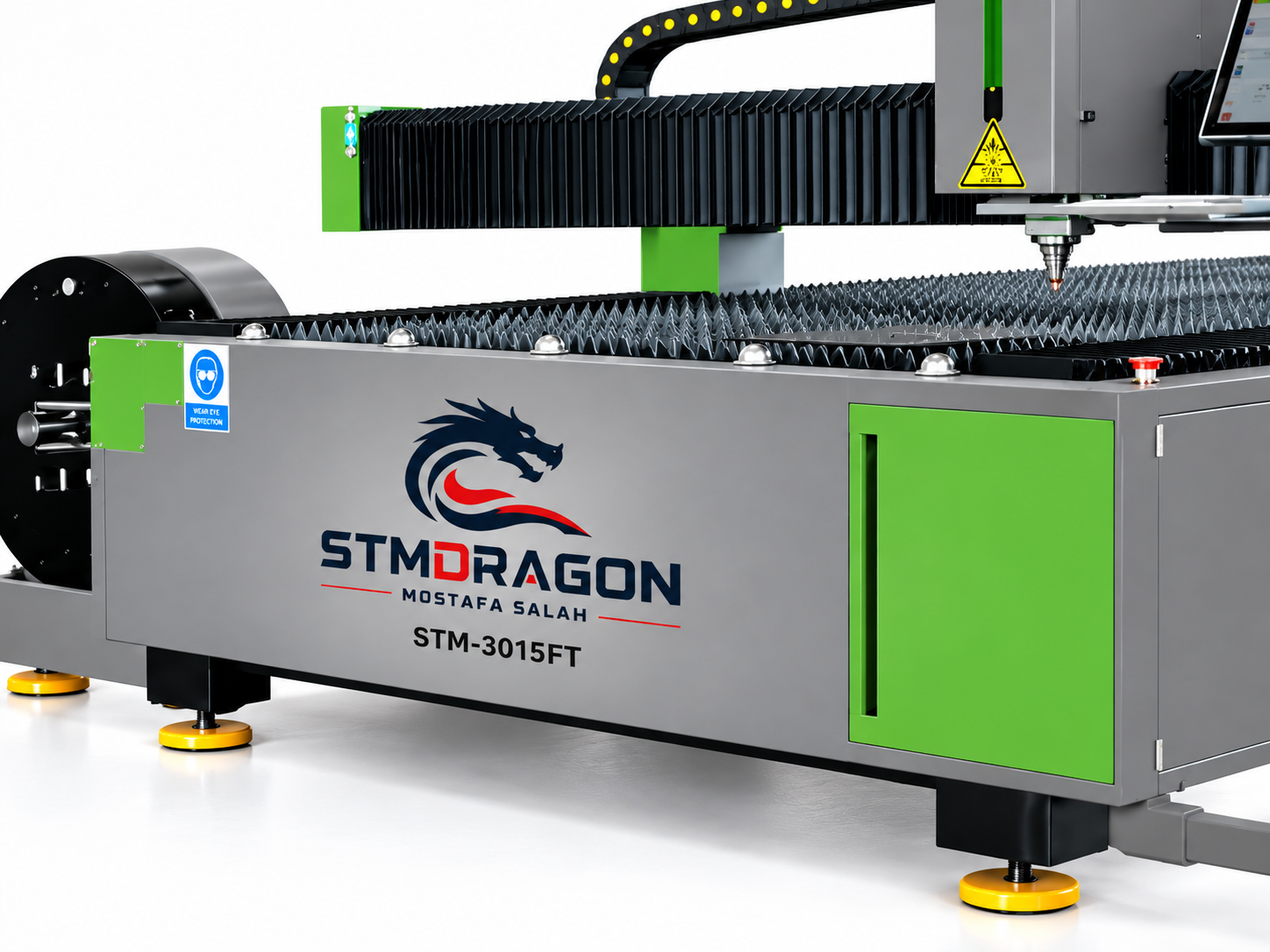

STMDRAGON STM-3015FT Fiber Laser Cutting Machine for Sheet & Tube Metal - Image 4
Fiber Laser Cutting

STMDRAGON STM-3015FT Fiber Laser Cutting Machine for Sheet & Tube Metal

The STMDRAGON STM-3015FT is an integrated fiber laser cutting machine designed for precision sheet and tube metal processing. With a 1500 × 3000 mm (5 × 10 ft) working area, rotary tube cutting capability, up to 60 kW laser power options, and a maximum cutting speed of 35 m/min, it is suitable for industrial metal fabrication and manufacturing applications.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-3015FT Fiber Laser Cutting Machine for Sheet & Tube Metal

ModelSTM-3015FT
Machine TypeSheet & Tube Integrated Fiber Laser Cutting Machine
Working Area1500 × 3000 mm / 5 × 10 ft
Optional Working Areas1300 × 900 mm, 1500 × 3000 mm, 2000 × 3000 mm, 2000 × 4000 mm, 2000 × 6000 mm
Laser Power Options1500 W–60000 W
Maximum Cutting SpeedUp to 35 m/min, depending on material and thickness
Maximum Rapid Travel Rate60 m/min
Positioning Accuracy±0.02/2000 mm
Control SystemAu3tech / Raytools / Cypcut — final configuration to be confirmed
Laser SourceRECI / MAX / Raycus / IPG — final selection to be confirmed
Laser Cutting HeadAu3tech / Raytools / Cypcut
Working TableSerrated metal working platform
Tube CuttingRotary system for round and square pipes
Tube CapacityUp to approximately 220 mm diameter and 6 m length, according to supplied specifications
Guide Rail30-square guide rail
Drive SystemLeadshine servo motors and drivers with Japan Shimpo reducer
Transmission2M helical gear; Z-axis 1610 screw
CoolingConstant-temperature industrial water chiller, Hanli 3000 W
Positioning SystemRed dot indicator
Gas ControlJapanese SMC proportional valve
StructureHeavy-duty welded machine body/frame
Control CabinetBuilt-in industrial control cabinet
CertificationCE standard
Suitable MaterialsStainless steel, carbon steel, aluminum, galvanized sheet, round tube, square tube and other compatible metal profiles
ApplicationsMetal fabrication, automotive parts, construction, furniture, machinery manufacturing, signage and general industrial metal processing
Warranty1 Year
Handling Time1–2 Days
Shipping7–30 Days according to destination and shipping method
Technical SupportFree lifetime technical support for end-users and dealers
Payment OptionsPayPal, Trade Assurance, T/T, debit and credit cards
Applications

Applications: STMDRAGON STM-3015FT Fiber Laser Cutting Machine for Sheet & Tube Metal

The STMDRAGON STM-3015FT Fiber Laser Cutting Machine is an all-in-one sheet and tube laser cutting solution designed for efficient and high-precision metal fabrication. It combines flat-sheet cutting with round and square tube processing in one machine, helping manufacturers reduce material handling and improve production efficiency.

Key Specifications & Features

  1. Model: STM-3015FT
  2. Machine Type: Sheet & Tube Integrated Fiber Laser Cutting Machine
  3. Working Area: 1500 × 3000 mm / 5 × 10 ft
  4. Optional Working Areas: 1300 × 900 mm, 1500 × 3000 mm, 2000 × 3000 mm, 2000 × 4000 mm, 2000 × 6000 mm
  5. Laser Power Options: 1500 W–60000 W
  6. Maximum Cutting Speed: Up to 35 m/min, depending on material and thickness
  7. Maximum Rapid Travel Rate: 60 m/min
  8. Positioning Accuracy: ±0.02/2000 mm
  9. Control System: Au3tech / Raytools / Cypcut — final configuration to be confirmed
  10. Laser Source: RECI / MAX / Raycus / IPG — final selection to be confirmed
  11. Laser Cutting Head: Au3tech / Raytools / Cypcut
  12. Working Table: Serrated metal working platform
  13. Tube Cutting: Rotary system for round and square pipes
  14. Tube Capacity: Up to approximately 220 mm diameter and 6 m length, according to supplied specifications
  15. Guide Rail: 30-square guide rail
  16. Drive System: Leadshine servo motors and drivers with Japan Shimpo reducer
  17. Transmission: 2M helical gear; Z-axis 1610 screw
  18. Cooling: Constant-temperature industrial water chiller, Hanli 3000 W
  19. Positioning System: Red dot indicator
  20. Gas Control: Japanese SMC proportional valve
  21. Structure: Heavy-duty welded machine body/frame
  22. Control Cabinet: Built-in industrial control cabinet
  23. Certification: CE standard
  24. Suitable Materials: Stainless steel, carbon steel, aluminum, galvanized sheet, round tube, square tube and other compatible metal profiles
  25. Applications: Metal fabrication, automotive parts, construction, furniture, machinery manufacturing, signage and general industrial metal processing

Warranty & Shipping

  1. Warranty: 1 Year
  2. Handling Time: 1–2 Days
  3. Shipping: 7–30 Days according to destination and shipping method
  4. Technical Support: Free lifetime technical support for end-users and dealers
  5. Payment Options: PayPal, Trade Assurance, T/T, debit and credit cards

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 8818 kg
Dimensions 165 × 90 × 85 cm
Model

STM-3015FT
Machine Type

Sheet & Tube Integrated Fiber Laser Cutting Machine
Working Area

1500 × 3000 mm / 5 × 10 ft
Optional Working Areas

1300 × 900 mm, 1500 × 3000 mm, 2000 × 3000 mm, 2000 × 4000 mm, 2000 × 6000 mm
Laser Power Options

1500 W–60000 W
Maximum Cutting Speed

Up to 35 m/min, depending on material and thickness
Maximum Rapid Travel Rate

60 m/min
Positioning Accuracy

±0.02/2000 mm
Control System

Au3tech / Raytools / Cypcut — final configuration to be confirmed
Laser Source

RECI / MAX / Raycus / IPG — final selection to be confirmed
Laser Cutting Head

Au3tech / Raytools / Cypcut
Working Table

Serrated metal working platform
Tube Cutting

Rotary system for round and square pipes
Tube Capacity

Up to approximately 220 mm diameter and 6 m length, according to supplied specifications
Guide Rail

30-square guide rail
Drive System

Leadshine servo motors and drivers with Japan Shimpo reducer
Transmission

2M helical gear; Z-axis 1610 screw
Cooling

Constant-temperature industrial water chiller, Hanli 3000 W
Positioning System

Red dot indicator
Gas Control

Japanese SMC proportional valve
Structure

Heavy-duty welded machine body/frame
Control Cabinet

Built-in industrial control cabinet
Certification

CE standard
Suitable Materials

Stainless steel, carbon steel, aluminum, galvanized sheet, round tube, square tube and other compatible metal profiles
Applications

Metal fabrication, automotive parts, construction, furniture, machinery manufacturing, signage and general industrial metal processing
Warranty

1 Year
Handling Time

1–2 Days
Shipping

7–30 Days according to destination and shipping method
Technical Support

Free lifetime technical support for end-users and dealers
Payment Options

PayPal, Trade Assurance, T/T, debit and credit cards
Request a quote

Request a quote for STMDRAGON STM-3015FT Fiber Laser Cutting Machine for Sheet & Tube Metal.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-3015FT Fiber Laser Cutting Machine for Sheet & Tube Metal

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-3015FT Fiber Laser Cutting Machine for Sheet & Tube Metal?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
