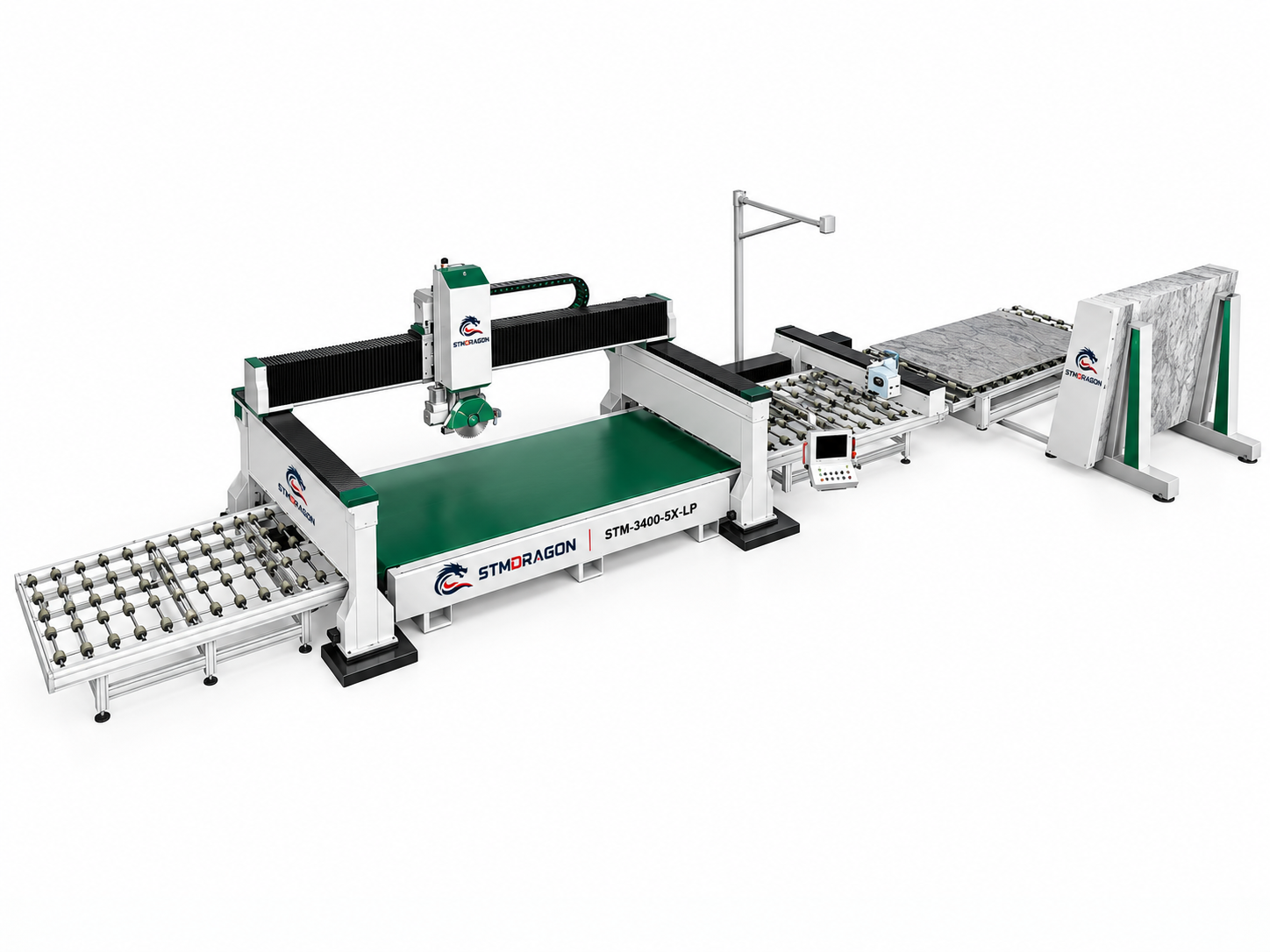

STMDRAGON STM-3400-5X-LP 5 Axis CNC Bridge Saw Marble Cutting Line

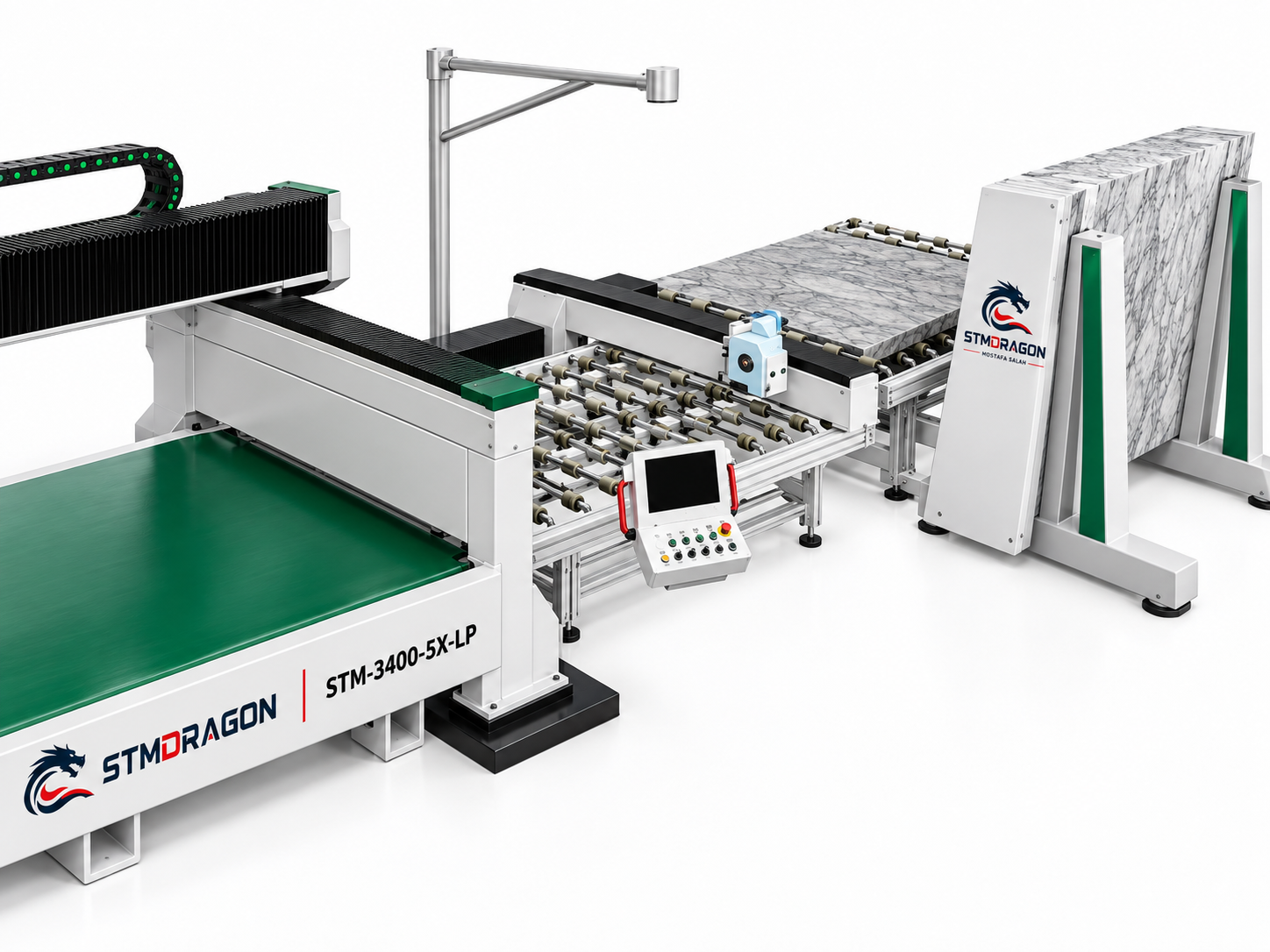

STMDRAGON STM-3400-5X-LP 5 Axis CNC Bridge Saw Marble Cutting Line - Image 2

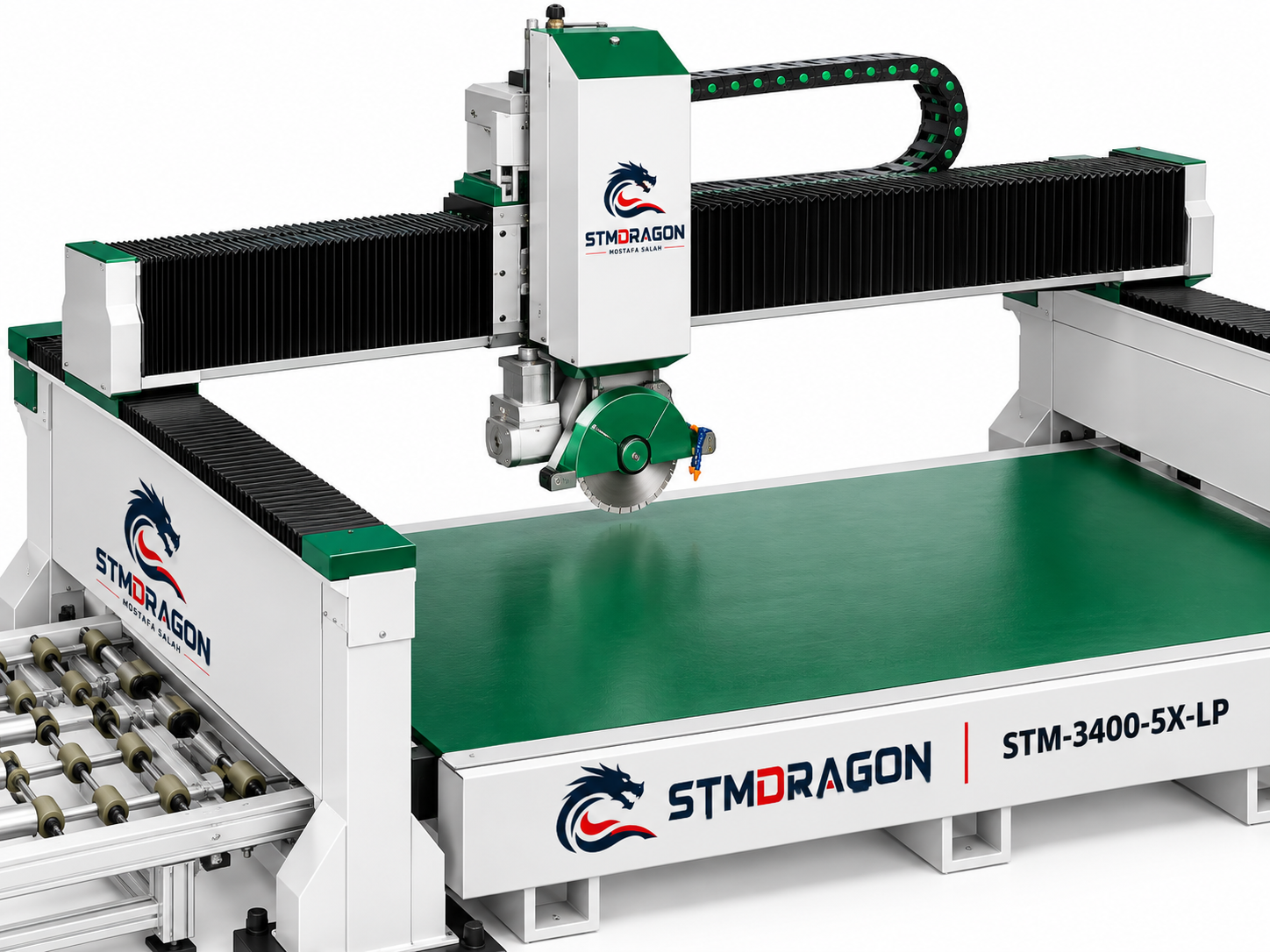

STMDRAGON STM-3400-5X-LP 5 Axis CNC Bridge Saw Marble Cutting Line - Image 3

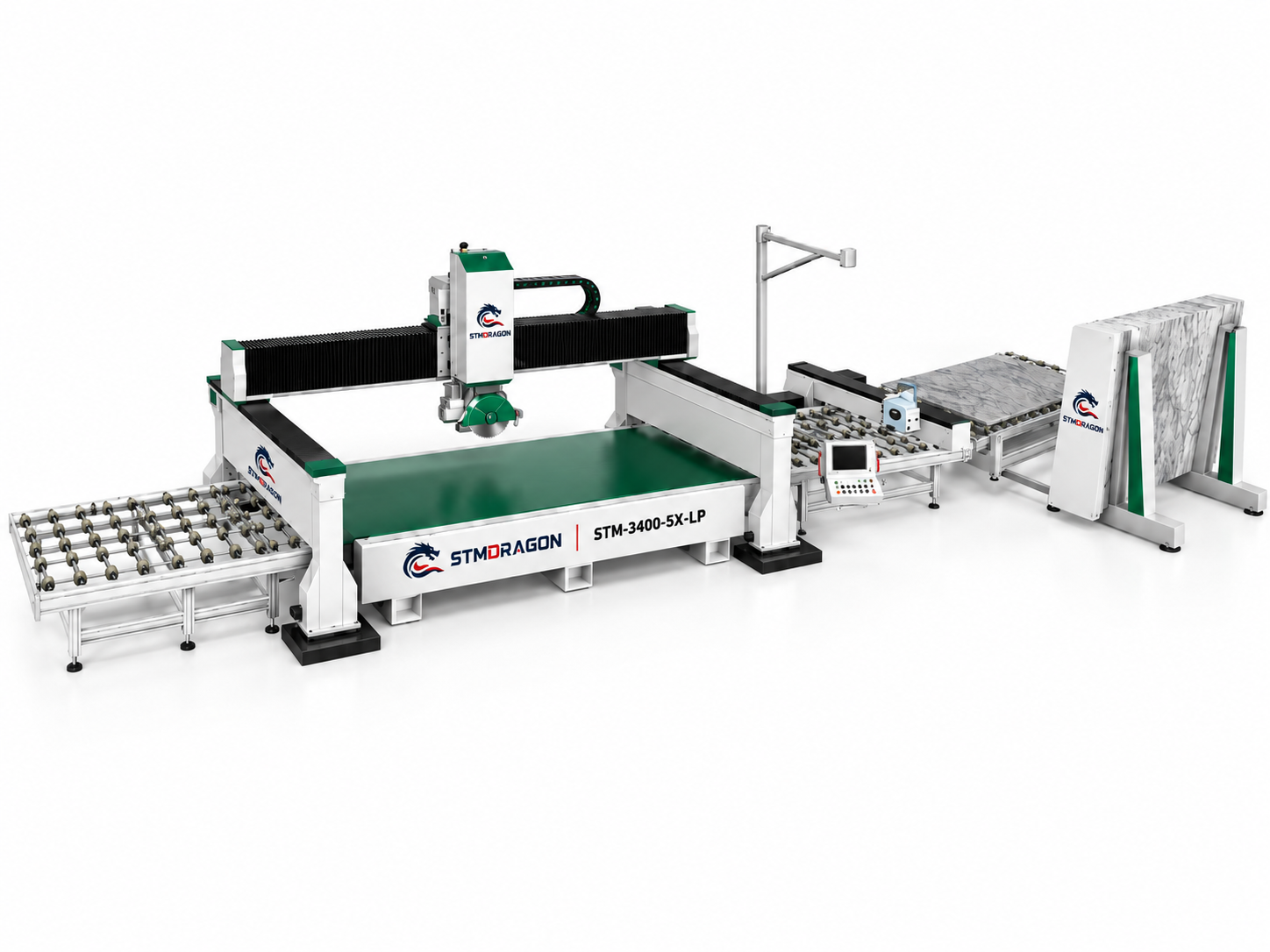

STMDRAGON STM-3400-5X-LP 5 Axis CNC Bridge Saw Marble Cutting Line - Image 4
CNC Routers & Machining Centers

STMDRAGON STM-3400-5X-LP 5 Axis CNC Bridge Saw Marble Cutting Line

STMDRAGON STM-3400-5X-LP is a 5-axis CNC bridge saw and automatic stone cutting line designed for marble, quartz, granite, and other stone processing applications. It features automatic loading and unloading, camera-based slab positioning, layout planning, and automatic cutting with a 22 kW water-cooled spindle and 450 mm saw blade.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-3400-5X-LP 5 Axis CNC Bridge Saw Marble Cutting Line

ModelSTM-3400-5X-LP
Machine Type5 Axis CNC Bridge Saw / Stone Cutting Production Line
Working Travel (X/Y/Z)3400 × 2000 × 250 mm
C Axis±365°
A Axis0–90°
Maximum Cutting Thickness80 mm
Moving SpeedUp to 25 m/min
Spindle22 kW water-cooled spindle
Spindle Speed4000 RPM
Control SystemCutCam
Servo MotorCutCam servo
ReducerJapan SHIMPO
Saw Blade Diameter450 mm
Automatic LoadingContinuous slab feeding to reduce manual loading work
Camera SystemCaptures slab position and supports layout planning
Automatic CuttingCNC code generation and automated cutting operation
Automatic UnloadingHelps sort and unload different stone shapes and sizes
Optional Worktable Feeding CapacityUp to 1500 kg
Optional Worktable Feeding SpeedUp to 10 m/min
Overall Machine SizeApproximately 18,000 × 3,500 × 3,600 mm
Warranty1 Year
Technical SupportFree lifetime online technical support
Overseas ServiceAvailable according to service terms
Shipping7–30 Days according to supplied information
Applications

Applications: STMDRAGON STM-3400-5X-LP 5 Axis CNC Bridge Saw Marble Cutting Line

The STMDRAGON STM-3400-5X-LP 5 Axis CNC Bridge Saw Marble Cutting Line is an automated stone processing solution designed for accurate cutting and efficient production of marble, quartz, granite, and similar stone slabs. The system combines slab loading, camera positioning, layout planning, CNC cutting, and automatic unloading in one production line.

Key Features & Technical Details

  1. Model: STM-3400-5X-LP
  2. Machine Type: 5 Axis CNC Bridge Saw / Stone Cutting Production Line
  3. Working Travel (X/Y/Z): 3400 × 2000 × 250 mm
  4. C Axis: ±365°
  5. A Axis: 0–90°
  6. Maximum Cutting Thickness: 80 mm
  7. Moving Speed: Up to 25 m/min
  8. Spindle: 22 kW water-cooled spindle
  9. Spindle Speed: 4000 RPM
  10. Control System: CutCam
  11. Servo Motor: CutCam servo
  12. Reducer: Japan SHIMPO
  13. Saw Blade Diameter: 450 mm
  14. Automatic Loading: Continuous slab feeding to reduce manual loading work
  15. Camera System: Captures slab position and supports layout planning
  16. Automatic Cutting: CNC code generation and automated cutting operation
  17. Automatic Unloading: Helps sort and unload different stone shapes and sizes
  18. Optional Worktable Feeding Capacity: Up to 1500 kg
  19. Optional Worktable Feeding Speed: Up to 10 m/min
  20. Overall Machine Size: Approximately 18,000 × 3,500 × 3,600 mm

Suitable Materials & Applications

Suitable for marble, quartz stone, granite, and other compatible stone slabs, subject to final tooling and cutting requirements. It is suitable for stone fabrication, architectural projects, construction, garden architecture, countertop production, and stone sculpture applications.

Warranty & Support

  1. Warranty: 1 Year
  2. Technical Support: Free lifetime online technical support
  3. Overseas Service: Available according to service terms
  4. Shipping: 7–30 Days according to supplied information

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 22046 kg
Dimensions 709 × 138 × 142 cm
Model

STM-3400-5X-LP
Machine Type

5 Axis CNC Bridge Saw / Stone Cutting Production Line
Working Travel (X/Y/Z)

3400 × 2000 × 250 mm
C Axis

±365°
A Axis

0–90°
Maximum Cutting Thickness

80 mm
Moving Speed

Up to 25 m/min
Spindle

22 kW water-cooled spindle
Spindle Speed

4000 RPM
Control System

CutCam
Servo Motor

CutCam servo
Reducer

Japan SHIMPO
Saw Blade Diameter

450 mm
Automatic Loading

Continuous slab feeding to reduce manual loading work
Camera System

Captures slab position and supports layout planning
Automatic Cutting

CNC code generation and automated cutting operation
Automatic Unloading

Helps sort and unload different stone shapes and sizes
Optional Worktable Feeding Capacity

Up to 1500 kg
Optional Worktable Feeding Speed

Up to 10 m/min
Overall Machine Size

Approximately 18,000 × 3,500 × 3,600 mm
Warranty

1 Year
Technical Support

Free lifetime online technical support
Overseas Service

Available according to service terms
Shipping

7–30 Days according to supplied information
Request a quote

Request a quote for STMDRAGON STM-3400-5X-LP 5 Axis CNC Bridge Saw Marble Cutting Line.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-3400-5X-LP 5 Axis CNC Bridge Saw Marble Cutting Line

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-3400-5X-LP 5 Axis CNC Bridge Saw Marble Cutting Line?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
