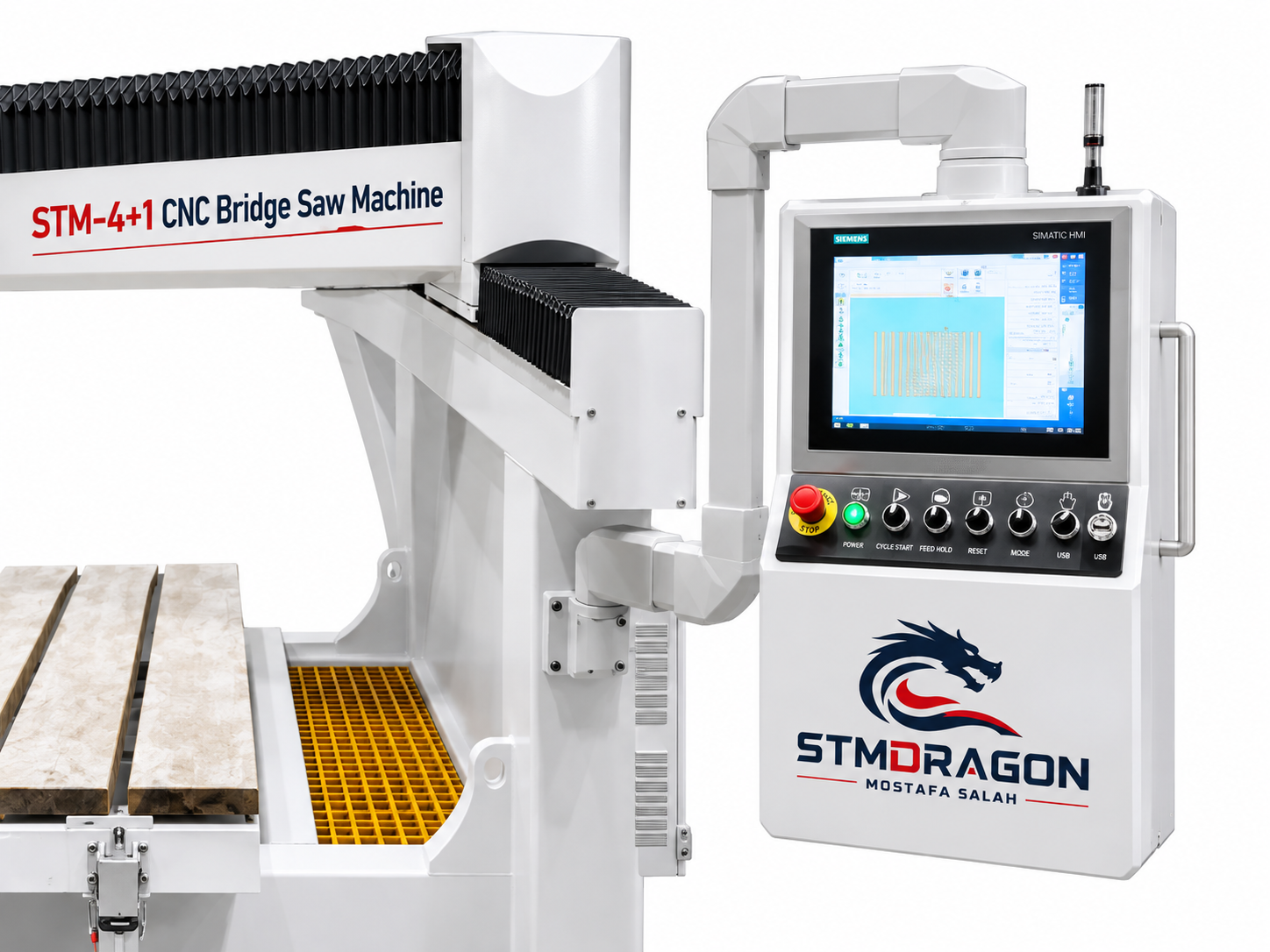

STMDRAGON STM-4+1 CNC Bridge Saw Machine with 5.5kW Spindle

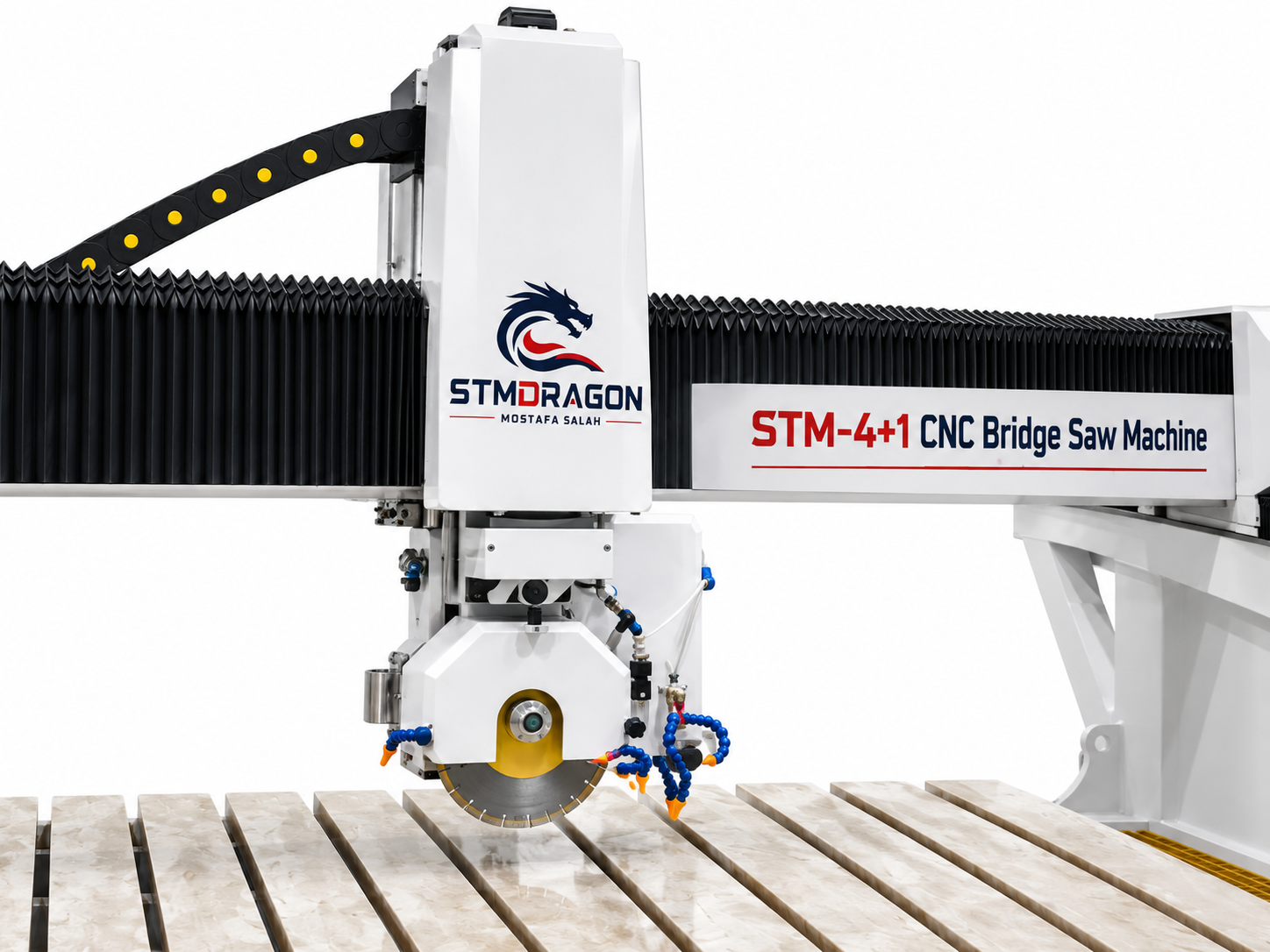

STMDRAGON STM-4+1 CNC Bridge Saw Machine with 5.5kW Spindle - Image 2

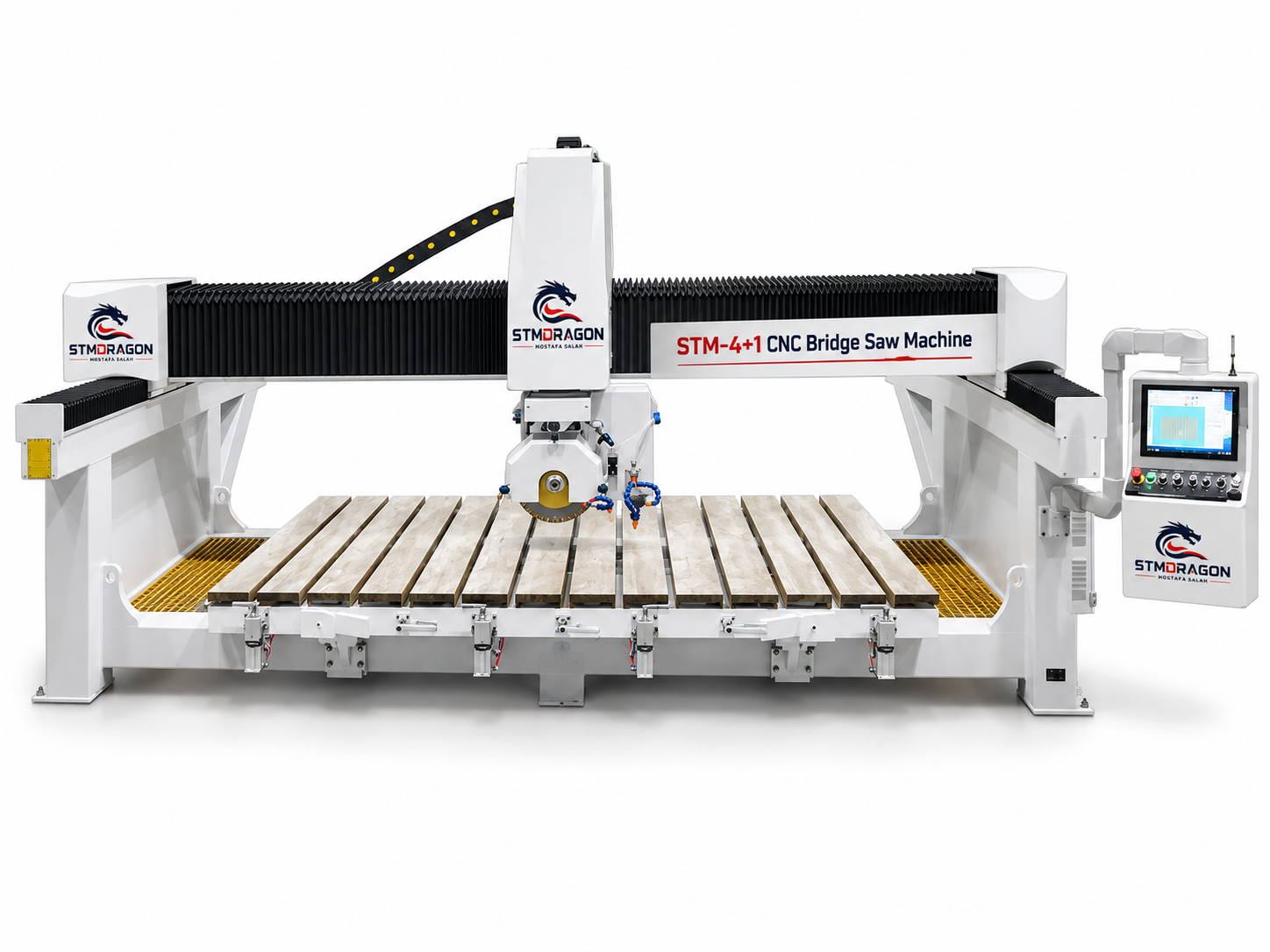

STMDRAGON STM-4+1 CNC Bridge Saw Machine with 5.5kW Spindle - Image 3

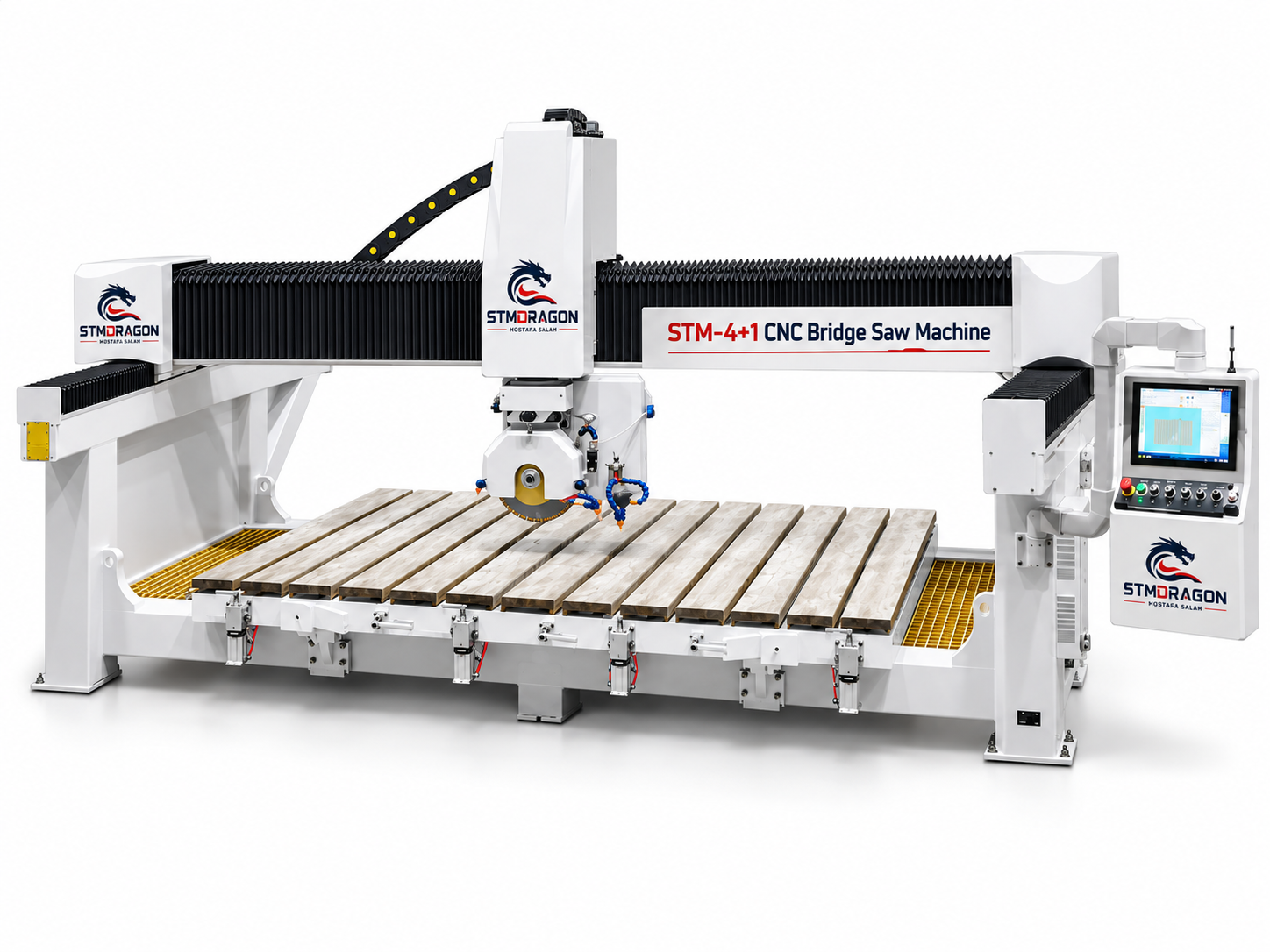

STMDRAGON STM-4+1 CNC Bridge Saw Machine with 5.5kW Spindle - Image 4
Woodworking Machinery

STMDRAGON STM-4+1 CNC Bridge Saw Machine with 5.5kW Spindle

STMDRAGON STM-4+1 is a 4+1 axis CNC bridge saw designed for precision cutting and shaping of marble, granite, quartz and other stone materials. It features a 350mm saw blade, 5.5kW water-cooled spindle, 3200 × 2000 × 400mm 3-axis travel, and a 0–85° tilting table for versatile stone processing.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-4+1 CNC Bridge Saw Machine with 5.5kW Spindle

ModelSTM-4+1
Machine Type4+1 Axis CNC Bridge Saw
3-Axis Travel3200 × 2000 × 400mm
C Axis±360°
A Axis0–45°
Saw Blade Diameter350mm
Maximum Cutting ThicknessUp to 80mm
Additional Spindle5.5kW water-cooled
Spindle Speed24,000 RPM
Saw Motor Power15kW
Saw Motor Speed3,300 RPM
Turning Table3200 × 2000mm
Table Flip Angle0–85°
Control SystemBlue Elephant Customized Control System
Motor & DriveServo motor and drive
Electrical Supply380V, 3 Phase, 50/60Hz
Machine DimensionsApprox. 5.36 × 3.3 × 2.41m
Warranty1 Year
Shipping7–30 Days according to the supplied information.
After-Sales SupportFree lifetime online technical support; overseas service is available.
Applications

Applications: STMDRAGON STM-4+1 CNC Bridge Saw Machine with 5.5kW Spindle

STMDRAGON STM-4+1 CNC Bridge Saw Machine is an economical 4+1 axis stone cutting solution designed for professional processing of marble, granite, quartz and similar materials. The machine combines a 350mm saw blade with an additional 5.5kW water-cooled spindle, allowing the saw blade and spindle to work alternately for more efficient processing.

Main Functions

The machine can perform cross cutting, vertical cutting, bevel cutting, rhombus cutting, circle cutting, oval cutting, 45° chamfering, under-counter basin cutting and in-counter basin cutting. Edge grinding and polishing are not supported.

Key Technical Details

  1. Model: STM-4+1
  2. Machine Type: 4+1 Axis CNC Bridge Saw
  3. 3-Axis Travel: 3200 × 2000 × 400mm
  4. C Axis: ±360°
  5. A Axis: 0–45°
  6. Saw Blade Diameter: 350mm
  7. Maximum Cutting Thickness: Up to 80mm
  8. Additional Spindle: 5.5kW water-cooled
  9. Spindle Speed: 24,000 RPM
  10. Saw Motor Power: 15kW
  11. Saw Motor Speed: 3,300 RPM
  12. Turning Table: 3200 × 2000mm
  13. Table Flip Angle: 0–85°
  14. Control System: Blue Elephant Customized Control System
  15. Motor & Drive: Servo motor and drive
  16. Electrical Supply: 380V, 3 Phase, 50/60Hz
  17. Machine Dimensions: Approx. 5.36 × 3.3 × 2.41m

Suitable Applications

Suitable for professional stone fabrication and cutting applications involving marble, granite, quartz and other compatible stone materials. It can be used for countertop fabrication, architectural stone processing, sink/countertop openings, bevel cutting and decorative stone cutting.

Important Buyer Information

The machine includes a customized CNC control system and imported components for stable operation and precision processing. The 5.5kW spindle provides additional machining capability alongside the main saw blade.

Warranty: 1 Year

Shipping: 7–30 Days according to the supplied information.

After-Sales Support: Free lifetime online technical support; overseas service is available.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 11500 kg
Dimensions 220 × 140 × 105 cm
Model

STM-4+1
Machine Type

4+1 Axis CNC Bridge Saw
3-Axis Travel

3200 × 2000 × 400mm
C Axis

±360°
A Axis

0–45°
Saw Blade Diameter

350mm
Maximum Cutting Thickness

Up to 80mm
Additional Spindle

5.5kW water-cooled
Spindle Speed

24,000 RPM
Saw Motor Power

15kW
Saw Motor Speed

3,300 RPM
Turning Table

3200 × 2000mm
Table Flip Angle

0–85°
Control System

Blue Elephant Customized Control System
Motor & Drive

Servo motor and drive
Electrical Supply

380V, 3 Phase, 50/60Hz
Machine Dimensions

Approx. 5.36 × 3.3 × 2.41m
Warranty

1 Year
Shipping

7–30 Days according to the supplied information.
After-Sales Support

Free lifetime online technical support; overseas service is available.
Request a quote

Request a quote for STMDRAGON STM-4+1 CNC Bridge Saw Machine with 5.5kW Spindle.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-4+1 CNC Bridge Saw Machine with 5.5kW Spindle

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-4+1 CNC Bridge Saw Machine with 5.5kW Spindle?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
