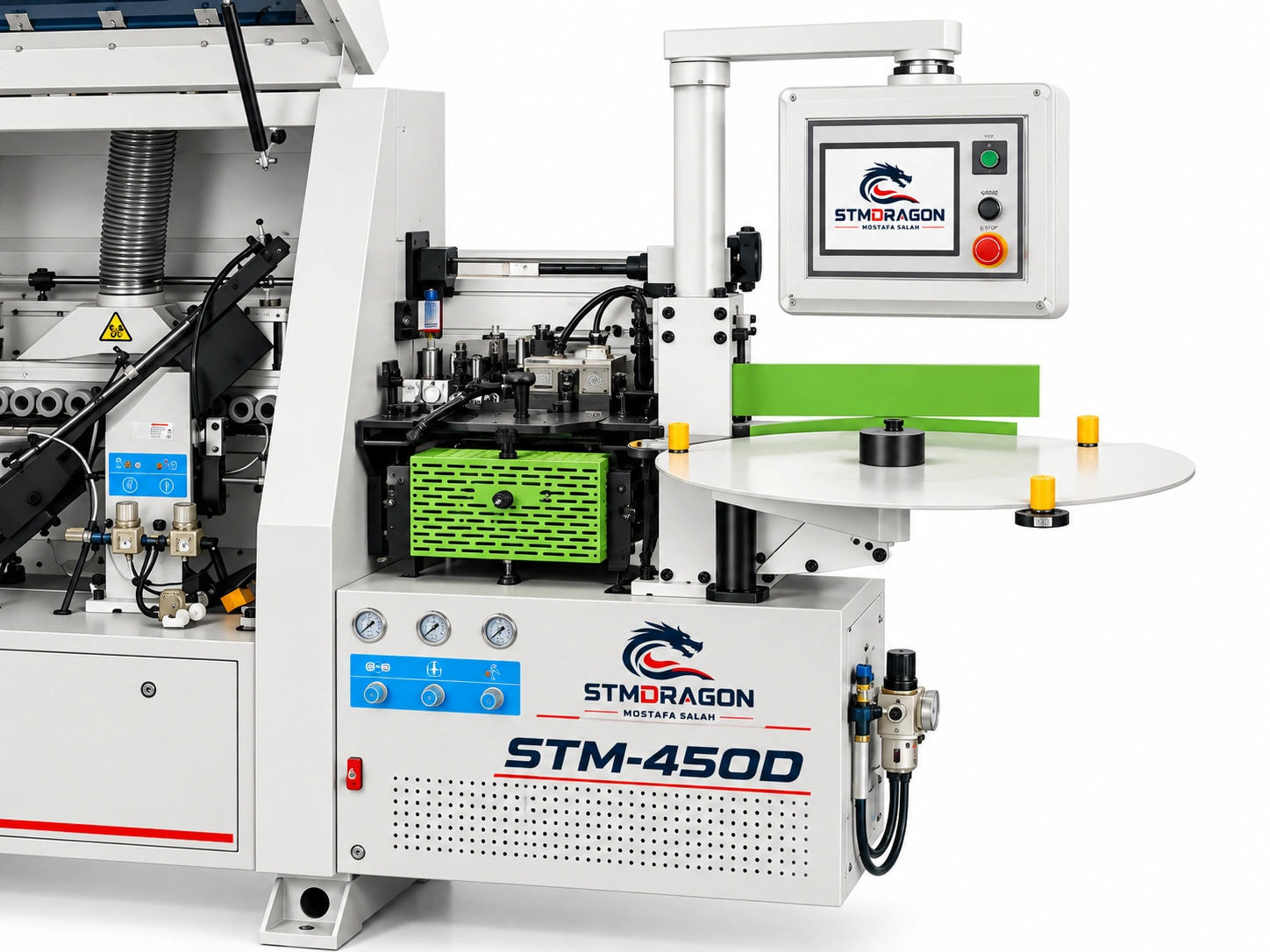

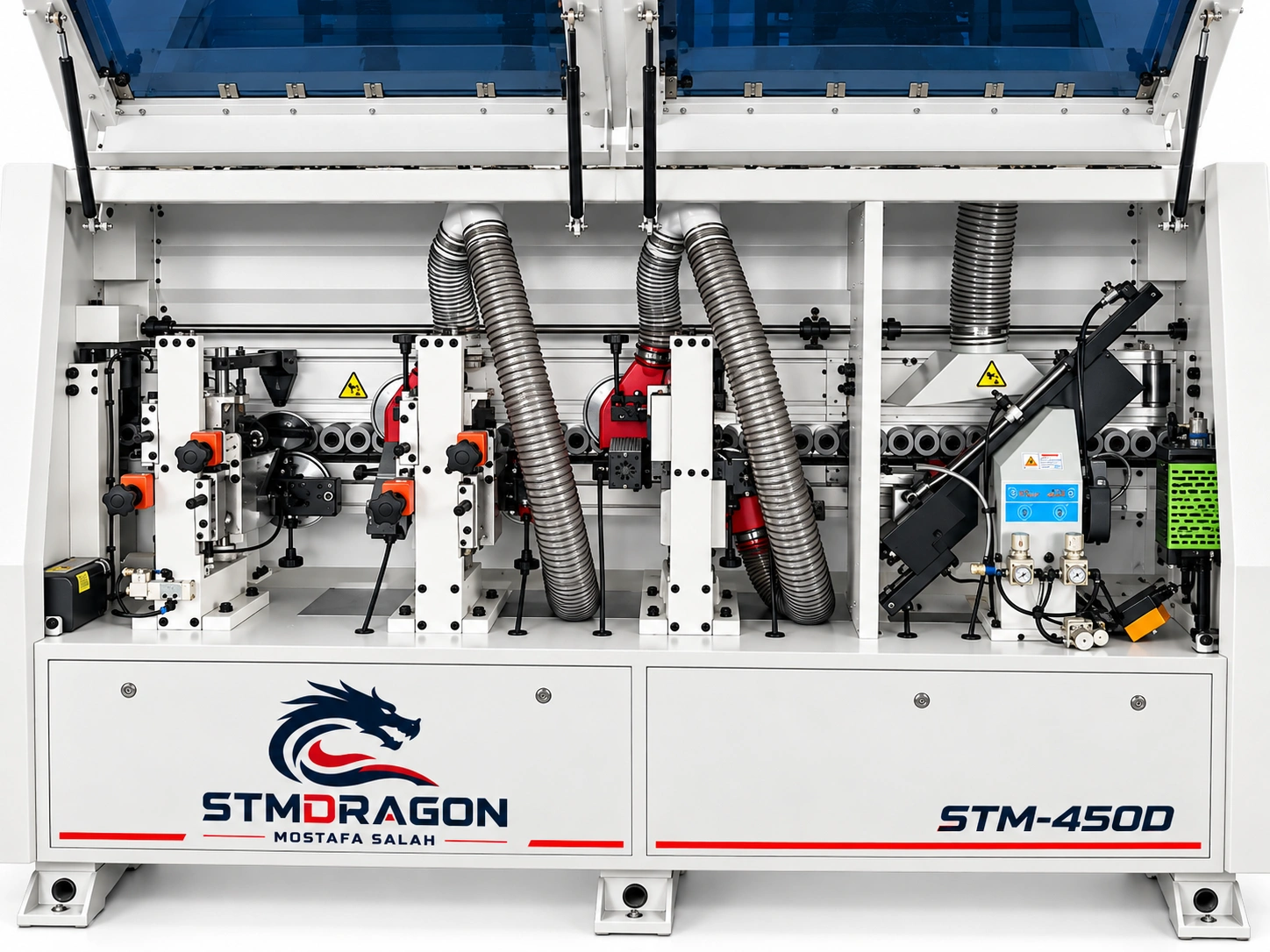

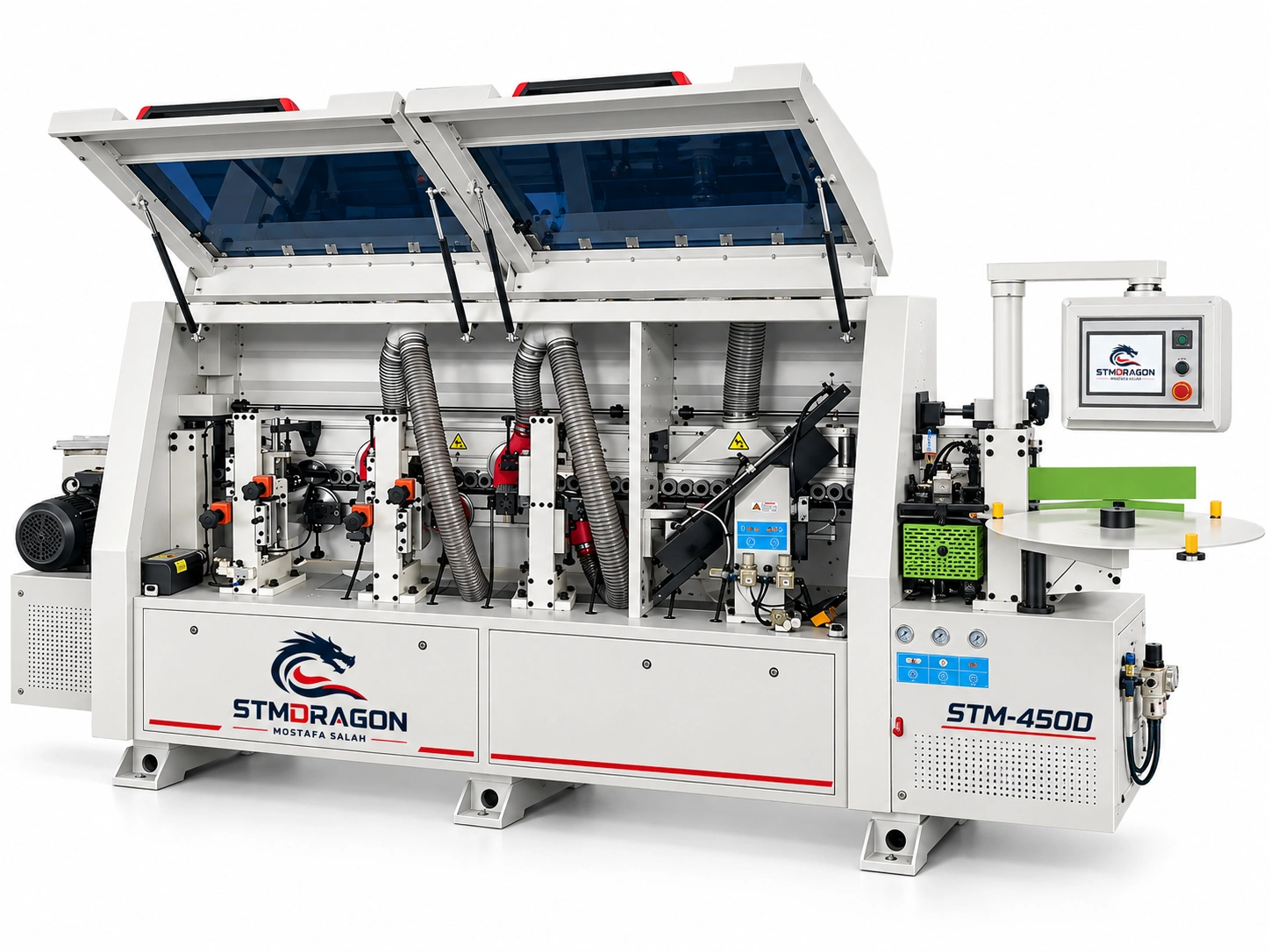

STMDRAGON STM-450D PVC Edge Banding Machine – 8kW Automatic Edge Bander
STMDRAGON STM-450D PVC Edge Banding Machine – 8kW Automatic Edge Bander - Image 2
STMDRAGON STM-450D PVC Edge Banding Machine – 8kW Automatic Edge Bander - Image 3
STMDRAGON STM-450D PVC Edge Banding Machine – 8kW Automatic Edge Bander - Image 4
Edge Banding Machines

STMDRAGON STM-450D PVC Edge Banding Machine – 8kW Automatic Edge Bander

STMDRAGON STM-450D PVC Edge Banding Machine is an industrial edge bander designed for efficient panel edge processing and furniture production. It supports 10–60 mm panel thickness, 0.4–3 mm edge band thickness, and feeding speeds of 12–23 m/min with 8kW total power.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-450D PVC Edge Banding Machine – 8kW Automatic Edge Bander

ModelSTM-450D
Machine TypePVC Edge Banding Machine
Total Power8 kW
Working Pressure0.6 MPa
Feeding Speed12–23 m/min
Panel Thickness10–60 mm
Minimum Panel Length150 mm
Minimum Panel Width60 mm
Edge Band Thickness0.4–3 mm
Electric Lifting0.37 kW/pc
Overall Machine Size4500 × 900 × 1590 mm
Functions6-function edge banding configuration
CustomizationOEM & ODM available
Warranty1 Year
Shipping7–30 Days according to the supplied information.
Applications

Applications: STMDRAGON STM-450D PVC Edge Banding Machine – 8kW Automatic Edge Bander

The STMDRAGON STM-450D PVC Edge Banding Machine is designed for professional woodworking, furniture, cabinet, and panel-processing applications. The machine uses a 6-function edge-banding configuration for consistent panel edge finishing and efficient production.

Key Specifications & Features:

  1. Model: STM-450D
  2. Machine Type: PVC Edge Banding Machine
  3. Total Power: 8 kW
  4. Working Pressure: 0.6 MPa
  5. Feeding Speed: 12–23 m/min
  6. Panel Thickness: 10–60 mm
  7. Minimum Panel Length: 150 mm
  8. Minimum Panel Width: 60 mm
  9. Edge Band Thickness: 0.4–3 mm
  10. Electric Lifting: 0.37 kW/pc
  11. Overall Machine Size: 4500 × 900 × 1590 mm
  12. Functions: 6-function edge banding configuration
  13. Customization: OEM & ODM available

The machine features a non-stick glue pot for easier cleaning and a panel preheating section to support better adhesive bonding. The trimming system uses automatic tracking with a high-frequency motor for smooth and accurate edge finishing. A dust-collection connection helps remove trimming dust and maintain a cleaner working environment.

Suitable Applications:

Furniture manufacturing, cabinet production, woodworking workshops, panel processing, interior fitting, and other applications requiring PVC edge banding on wood-based panels.

Warranty: 1 Year

Shipping: 7–30 Days according to the supplied information.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 2200 kg
Dimensions 177 × 36 × 63 cm
Model

STM-450D
Machine Type

PVC Edge Banding Machine
Total Power

8 kW
Working Pressure

0.6 MPa
Feeding Speed

12–23 m/min
Panel Thickness

10–60 mm
Minimum Panel Length

150 mm
Minimum Panel Width

60 mm
Edge Band Thickness

0.4–3 mm
Electric Lifting

0.37 kW/pc
Overall Machine Size

4500 × 900 × 1590 mm
Functions

6-function edge banding configuration
Customization

OEM & ODM available
Warranty

1 Year
Shipping

7–30 Days according to the supplied information.
Request a quote

Request a quote for STMDRAGON STM-450D PVC Edge Banding Machine – 8kW Automatic Edge Bander.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-450D PVC Edge Banding Machine – 8kW Automatic Edge Bander

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-450D PVC Edge Banding Machine – 8kW Automatic Edge Bander?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
