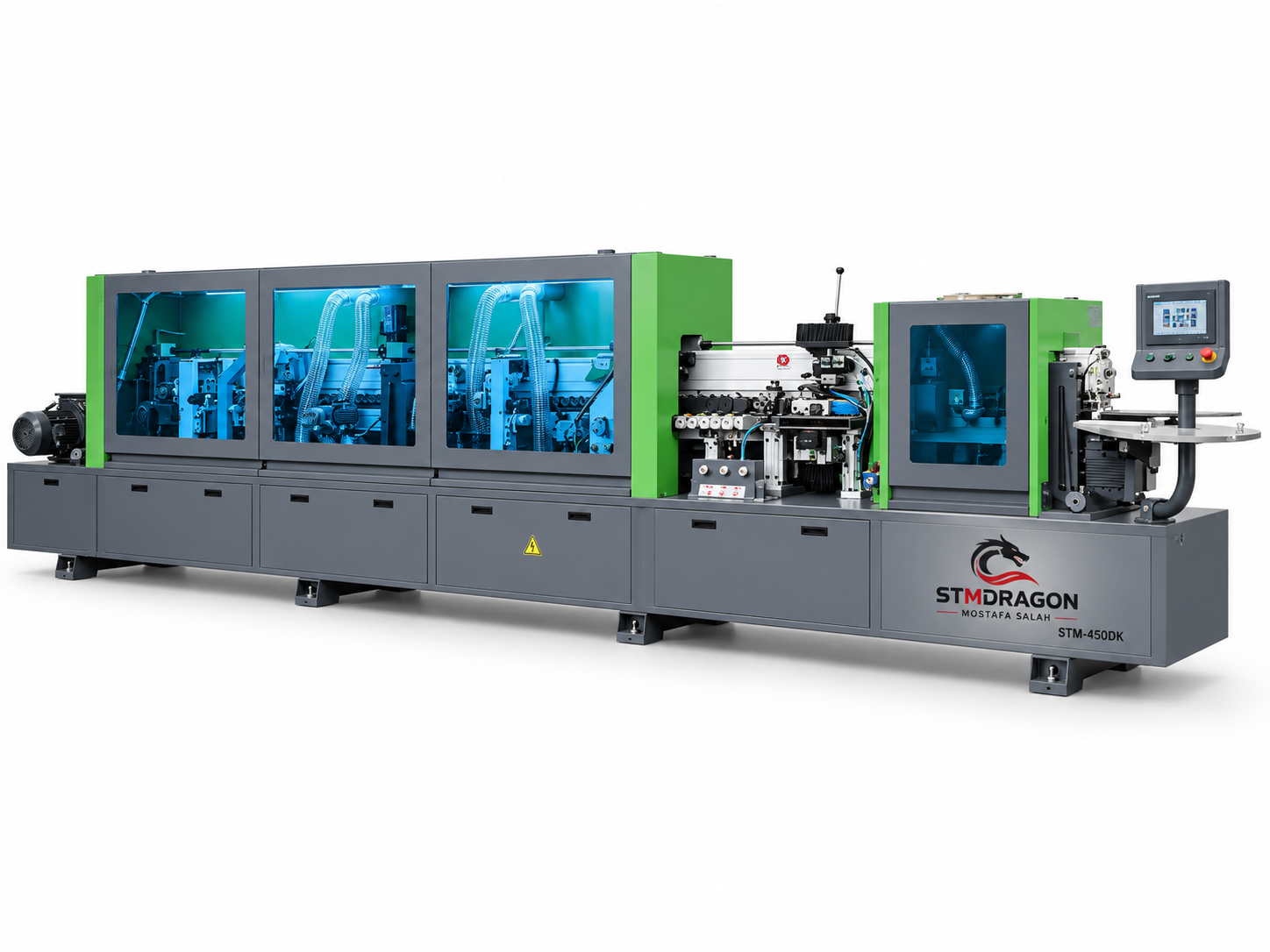

STMDRAGON STM-450DK Automatic PVC Wood Edge Banding Machine

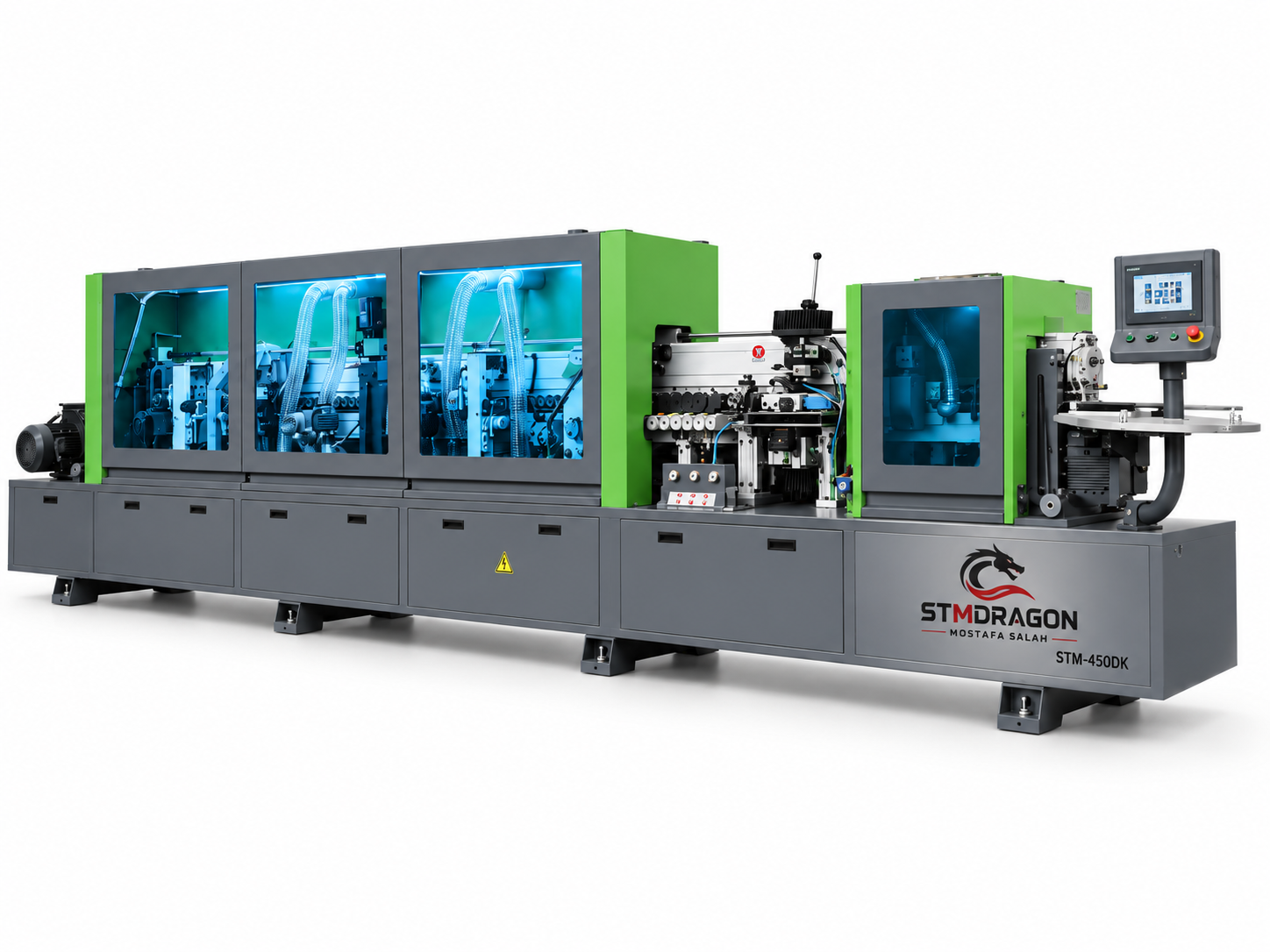

STMDRAGON STM-450DK Automatic PVC Wood Edge Banding Machine - Image 2

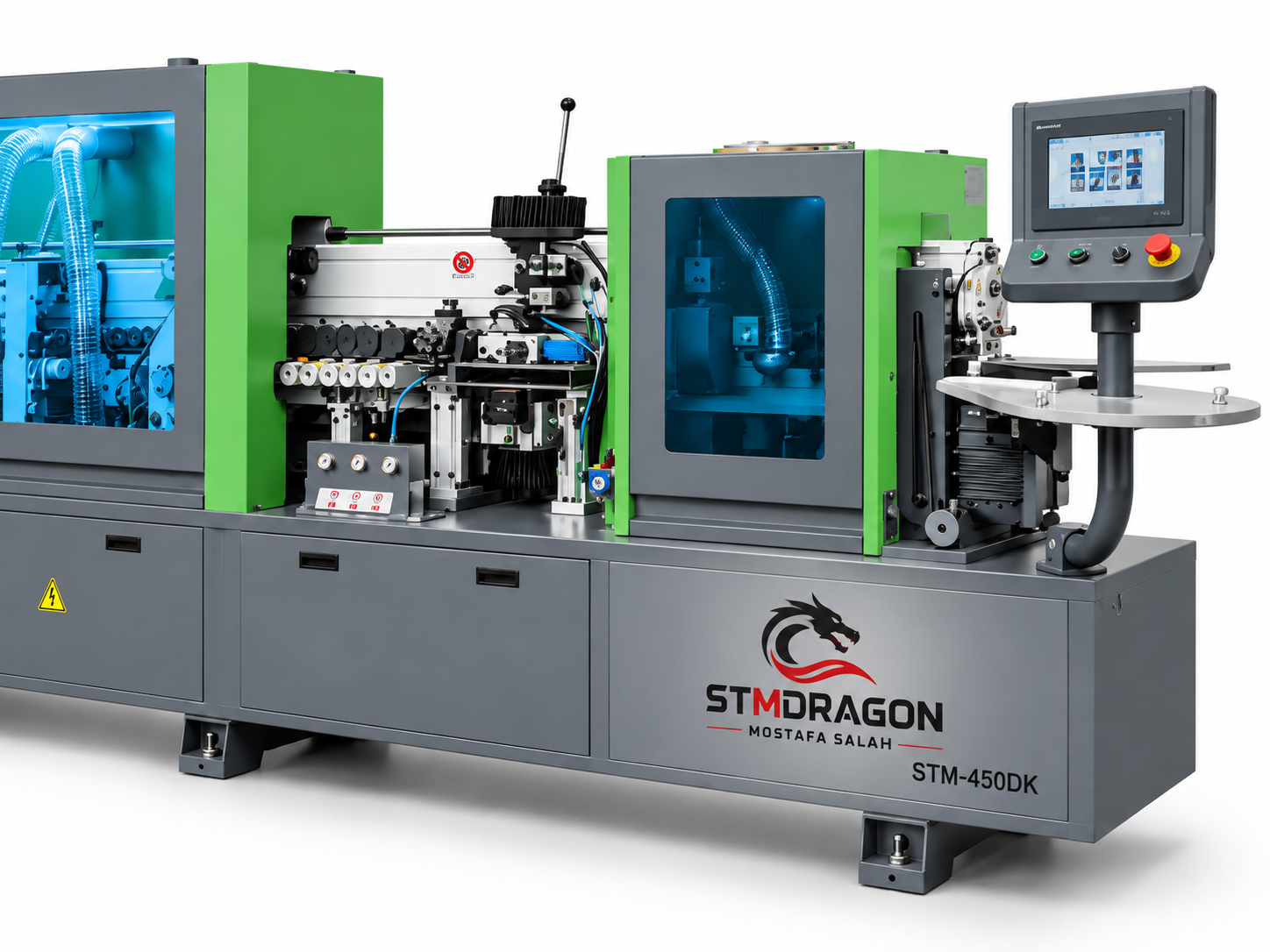

STMDRAGON STM-450DK Automatic PVC Wood Edge Banding Machine - Image 3

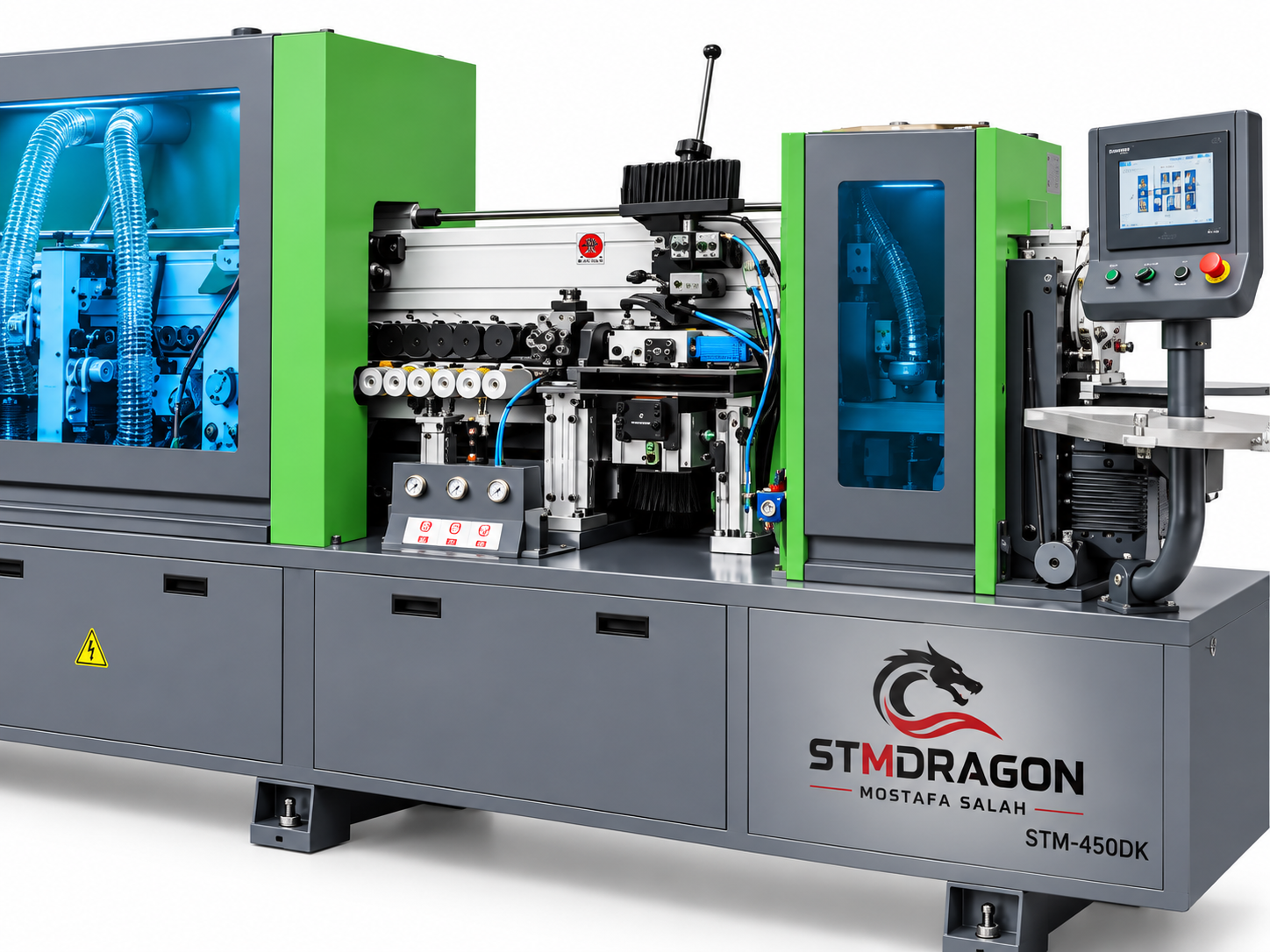

STMDRAGON STM-450DK Automatic PVC Wood Edge Banding Machine - Image 4
Edge Banding Machines

STMDRAGON STM-450DK Automatic PVC Wood Edge Banding Machine

STMDRAGON STM-450DK is an automatic 8-function edge banding machine designed for efficient processing of MDF, plywood, particleboard, laminates, PVC, ABS and wood veneer edges. It combines pre-milling, gluing, trimming, profiling, scraping and polishing in one continuous production process, with a 20 m/min feeding speed and 21.8 kW total power.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-450DK Automatic PVC Wood Edge Banding Machine

Warranty1 Year
Shipping7–30 Days according to the supplied information.
Applications

Applications: STMDRAGON STM-450DK Automatic PVC Wood Edge Banding Machine

The STMDRAGON STM-450DK Automatic Edge Banding Machine is a heavy-duty woodworking solution for furniture, cabinet, wardrobe, tabletop and panel production. Its integrated 8-function processing system helps complete multiple edge-finishing operations in a continuous workflow, improving production efficiency and edge quality.

Main Functions

  1. Pre-milling
  2. Automatic gluing
  3. End trimming
  4. Rough trimming
  5. Fine trimming
  6. Profiling
  7. Scraping
  8. Double polishing

The machine is suitable for MDF, particleboard, plywood, laminates, melamine boards, acrylic sheets, PVC, ABS and wood veneer, with panel thickness from 8–60 mm and edge band thickness from 0.4–3 mm.

Technical Highlights

  1. Model: STM-450DK
  2. Machine Type: Automatic 8-Function Edge Bander
  3. Feeding Speed: 20 m/min
  4. Panel Length: ≥80 mm
  5. Panel Thickness: 8–60 mm
  6. Edge Band Thickness: 0.4–3 mm
  7. Pneumatic Pressure: ≥0.6 MPa
  8. Total Power: 21.8 kW
  9. Machine Size: 8900 × 950 × 1700 mm
  10. Machine Weight: 2190 kg
  11. Pressure Beam: Aluminum alloy
  12. Control: Haiwell touchscreen + Delta PLC
  13. Electrical Components: Tianzheng
  14. High-Speed Motor: UFC
  15. Power Source: AC 110/220/240/380/400V, 1P/3P, 50Hz/60Hz

The heavy-duty structure and automated processing system make the STM-450DK suitable for professional woodworking factories and furniture production lines requiring consistent edge finishing and high-volume processing.

Important Size

8900 × 950 × 1700 mm

Warranty: 1 Year

Shipping: 7–30 Days according to the supplied information.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 5300 kg
Dimensions 354 × 43 × 75 cm
Warranty

1 Year
Shipping

7–30 Days according to the supplied information.
Request a quote

Request a quote for STMDRAGON STM-450DK Automatic PVC Wood Edge Banding Machine.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-450DK Automatic PVC Wood Edge Banding Machine

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-450DK Automatic PVC Wood Edge Banding Machine?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
