STMDRAGON STM-450G1P1 PUR Edge Banding Machine

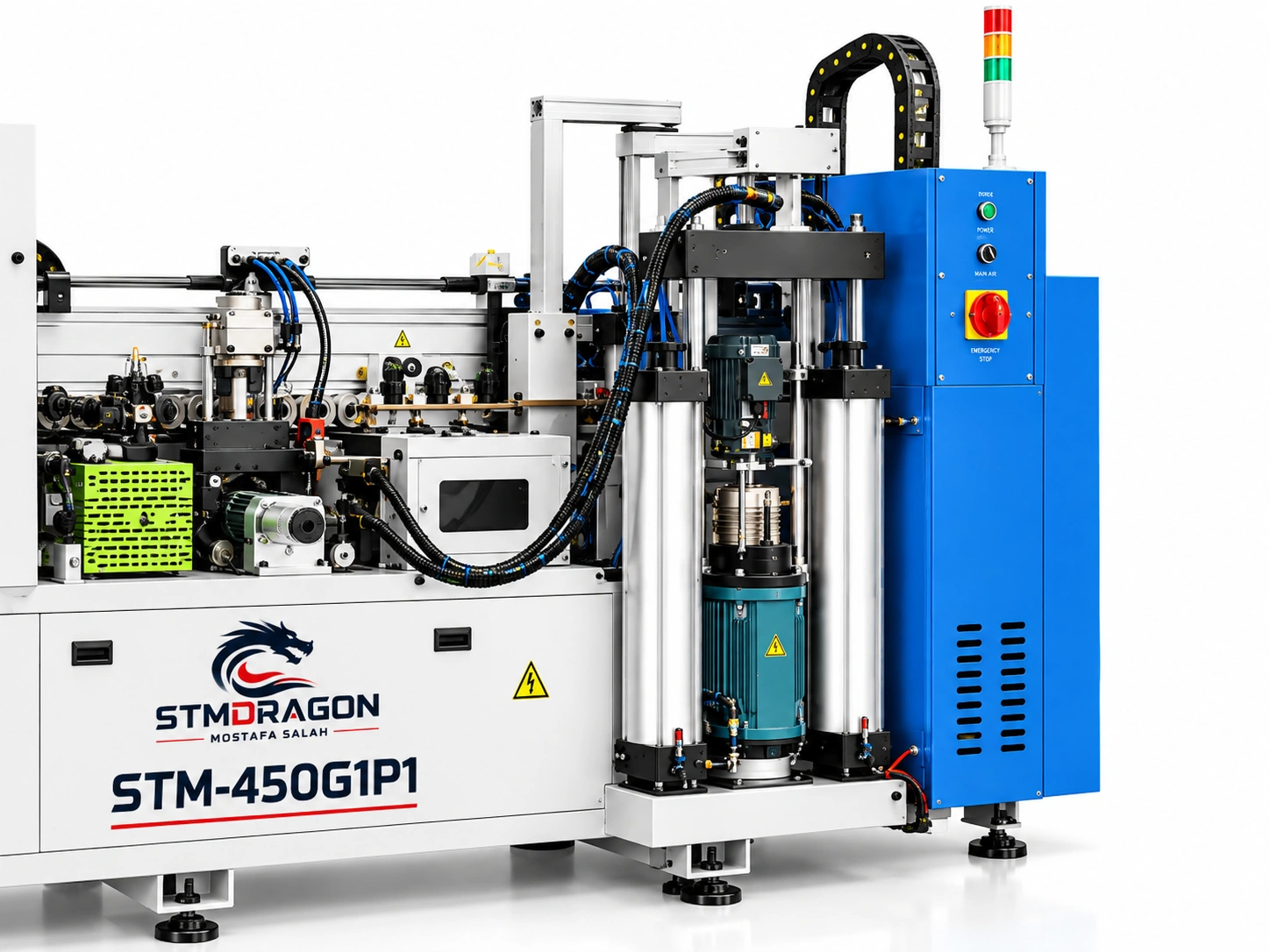

STMDRAGON STM-450G1P1 PUR Edge Banding Machine - Image 2

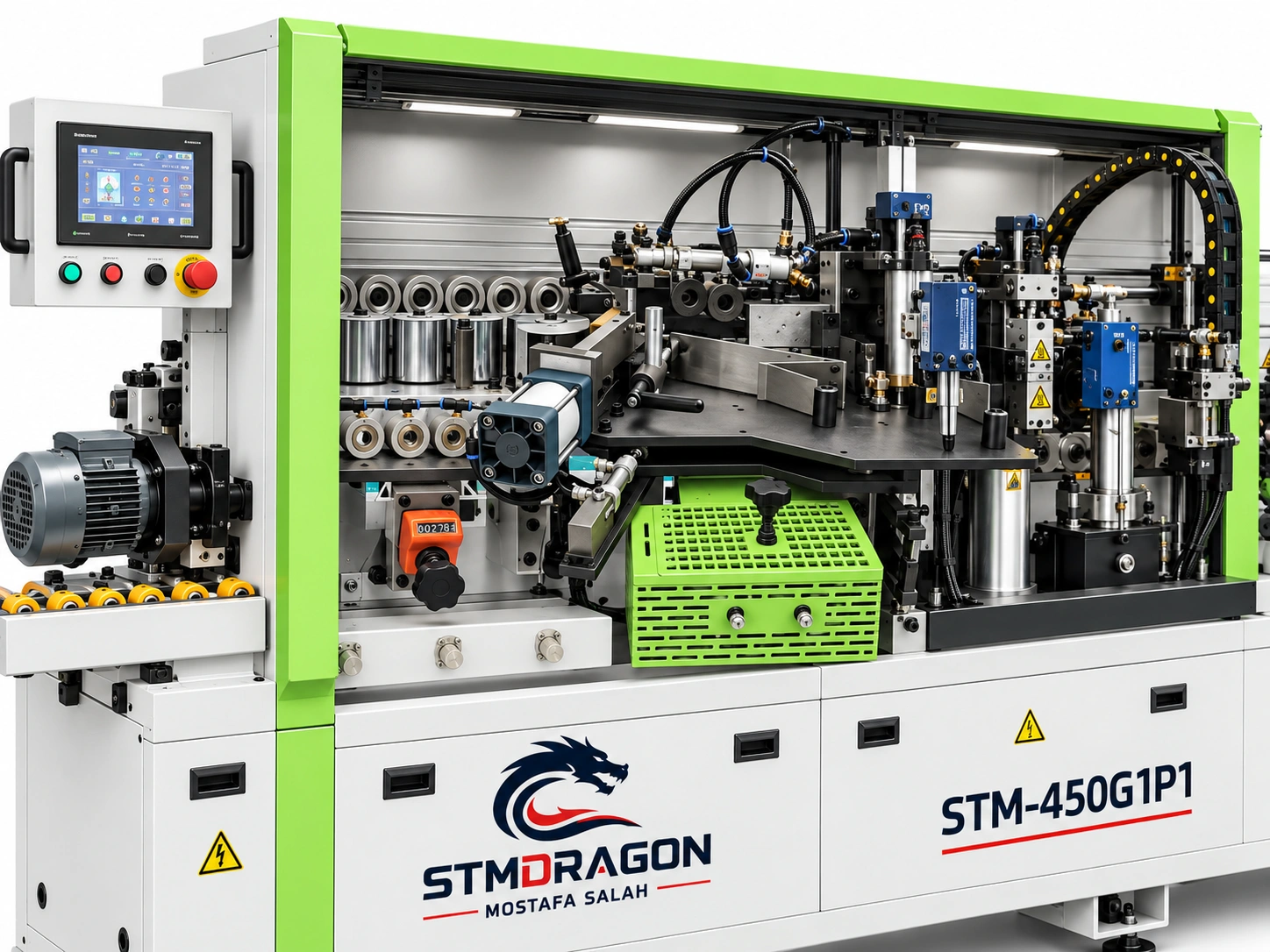

STMDRAGON STM-450G1P1 PUR Edge Banding Machine - Image 3

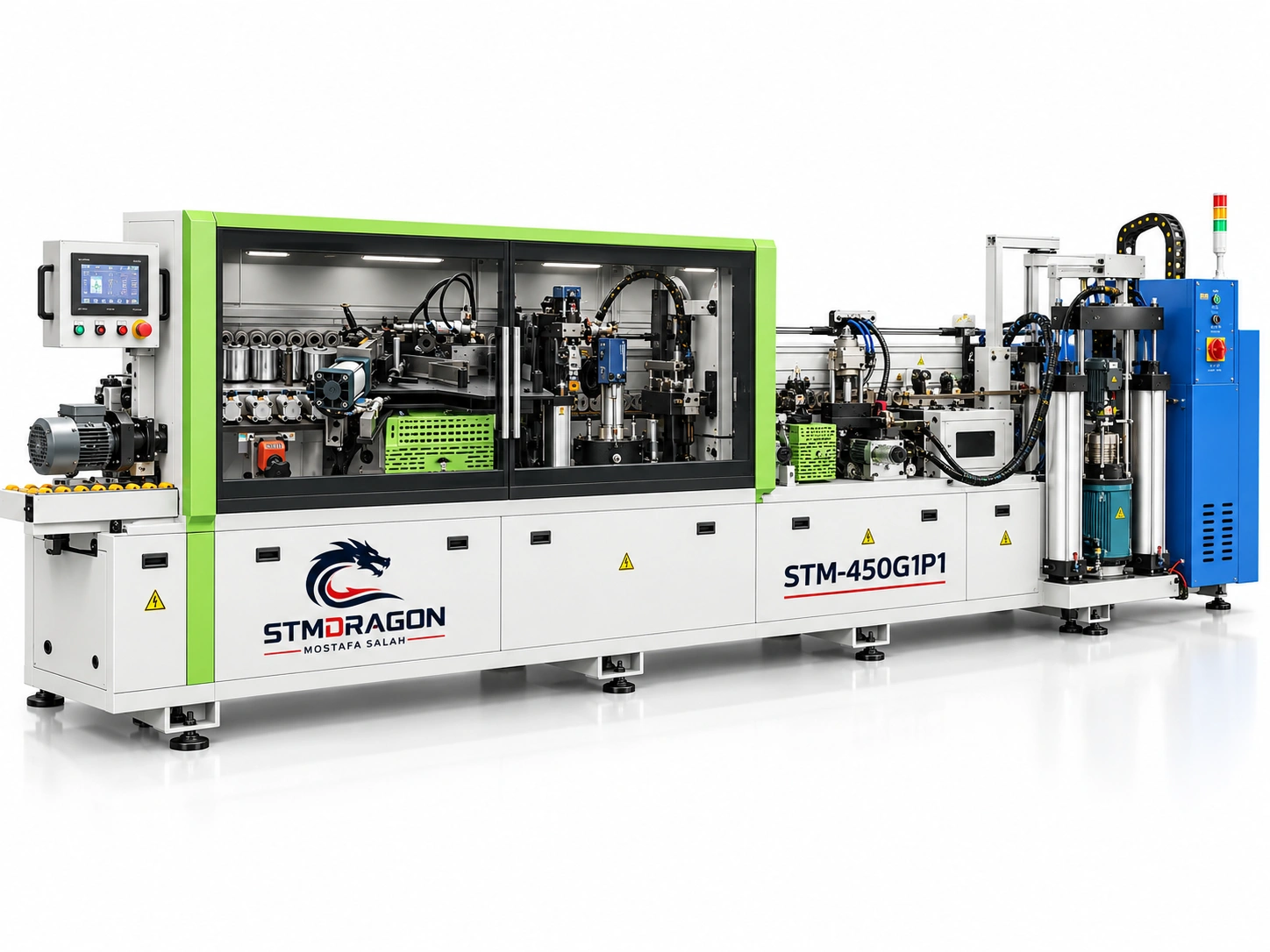

STMDRAGON STM-450G1P1 PUR Edge Banding Machine - Image 4

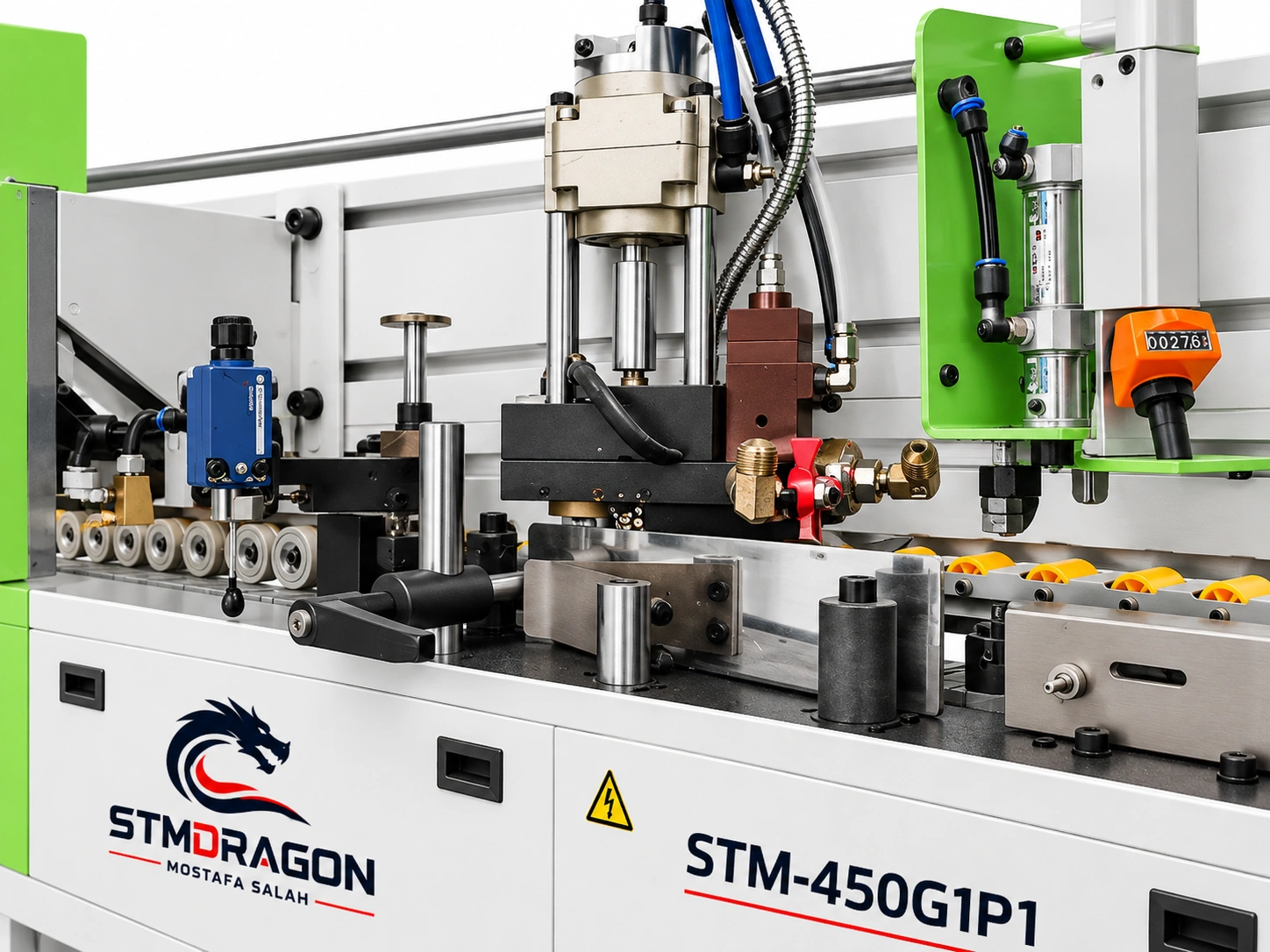

STMDRAGON STM-450G1P1 PUR Edge Banding Machine - Image 5
Edge Banding Machines

STMDRAGON STM-450G1P1 PUR Edge Banding Machine

STMDRAGON STM-450G1P1 is a high-performance PUR edge banding machine designed for professional furniture and panel processing. It supports 10–60 mm working thickness, 0.4–3 mm edge thickness, and feeding speeds of 12–20 m/min, with PUR/EVA glue systems and automatic tool adjustment.

ConfigurationCustom
Working sizeOn request
ControlPneumatic control with automatic tool adjustment
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-450G1P1 PUR Edge Banding Machine

Model / SKUSTM-450G1P1
Machine TypePUR Edge Banding Machine
Glue SystemPUR glue feeding device with PUR glue pot; EVA glue pot also supplied in the system
Working Pressure0.6–0.8 MPa
Feeding Speed12–20 m/min
Total Power16.5 kW
Electric Lifting Power0.37 kW
Working Thickness10–60 mm
Minimum Working Length≥150 mm
Minimum Working Width≥60 mm
Edge Thickness0.4–3 mm
Overall Machine Size7985 × 900 × 1590 mm
Approx. Overall Size in Inches314.4 × 35.4 × 62.6 in
ControlPneumatic control with automatic tool adjustment
Presser BeamAutomatic positioning
Warranty1 Year
Shipping7–30 Days
Applications

Applications: STMDRAGON STM-450G1P1 PUR Edge Banding Machine

The STMDRAGON STM-450G1P1 PUR Edge Banding Machine is designed for efficient and consistent edge finishing of furniture panels and woodworking boards. It combines a PUR glue feeding system with pneumatic control, automatic tool adjustment, and automatic presser beam positioning for professional panel processing.

Key Technical Details

  1. Model / SKU: STM-450G1P1
  2. Machine Type: PUR Edge Banding Machine
  3. Glue System: PUR glue feeding device with PUR glue pot; EVA glue pot also supplied in the system
  4. Working Pressure: 0.6–0.8 MPa
  5. Feeding Speed: 12–20 m/min
  6. Total Power: 16.5 kW
  7. Electric Lifting Power: 0.37 kW
  8. Working Thickness: 10–60 mm
  9. Minimum Working Length: ≥150 mm
  10. Minimum Working Width: ≥60 mm
  11. Edge Thickness: 0.4–3 mm
  12. Overall Machine Size: 7985 × 900 × 1590 mm
  13. Approx. Overall Size in Inches: 314.4 × 35.4 × 62.6 in
  14. Control: Pneumatic control with automatic tool adjustment
  15. Presser Beam: Automatic positioning
  16. Warranty: 1 Year
  17. Shipping: 7–30 Days

Main Functions & Applications

The STM-450G1P1 is suitable for professional furniture manufacturing, woodworking, cabinet production, panel processing, and edge finishing applications. Its PUR glue system helps provide strong and clean edge bonding, while automatic positioning and tool adjustment support efficient production and consistent results.

The machine is designed for panel materials that meet the stated working thickness and edge-band thickness ranges. Final material compatibility and production performance should be confirmed according to the specific board material, edge band, glue type, and required finish.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 1650 kg
Dimensions 314.4 × 35.4 × 62.6 cm
Model / SKU

STM-450G1P1
Machine Type

PUR Edge Banding Machine
Glue System

PUR glue feeding device with PUR glue pot; EVA glue pot also supplied in the system
Working Pressure

0.6–0.8 MPa
Feeding Speed

12–20 m/min
Total Power

16.5 kW
Electric Lifting Power

0.37 kW
Working Thickness

10–60 mm
Minimum Working Length

≥150 mm
Minimum Working Width

≥60 mm
Edge Thickness

0.4–3 mm
Overall Machine Size

7985 × 900 × 1590 mm
Approx. Overall Size in Inches

314.4 × 35.4 × 62.6 in
Control

Pneumatic control with automatic tool adjustment
Presser Beam

Automatic positioning
Warranty

1 Year
Shipping

7–30 Days
Request a quote

Request a quote for STMDRAGON STM-450G1P1 PUR Edge Banding Machine.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-450G1P1 PUR Edge Banding Machine

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-450G1P1 PUR Edge Banding Machine?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
