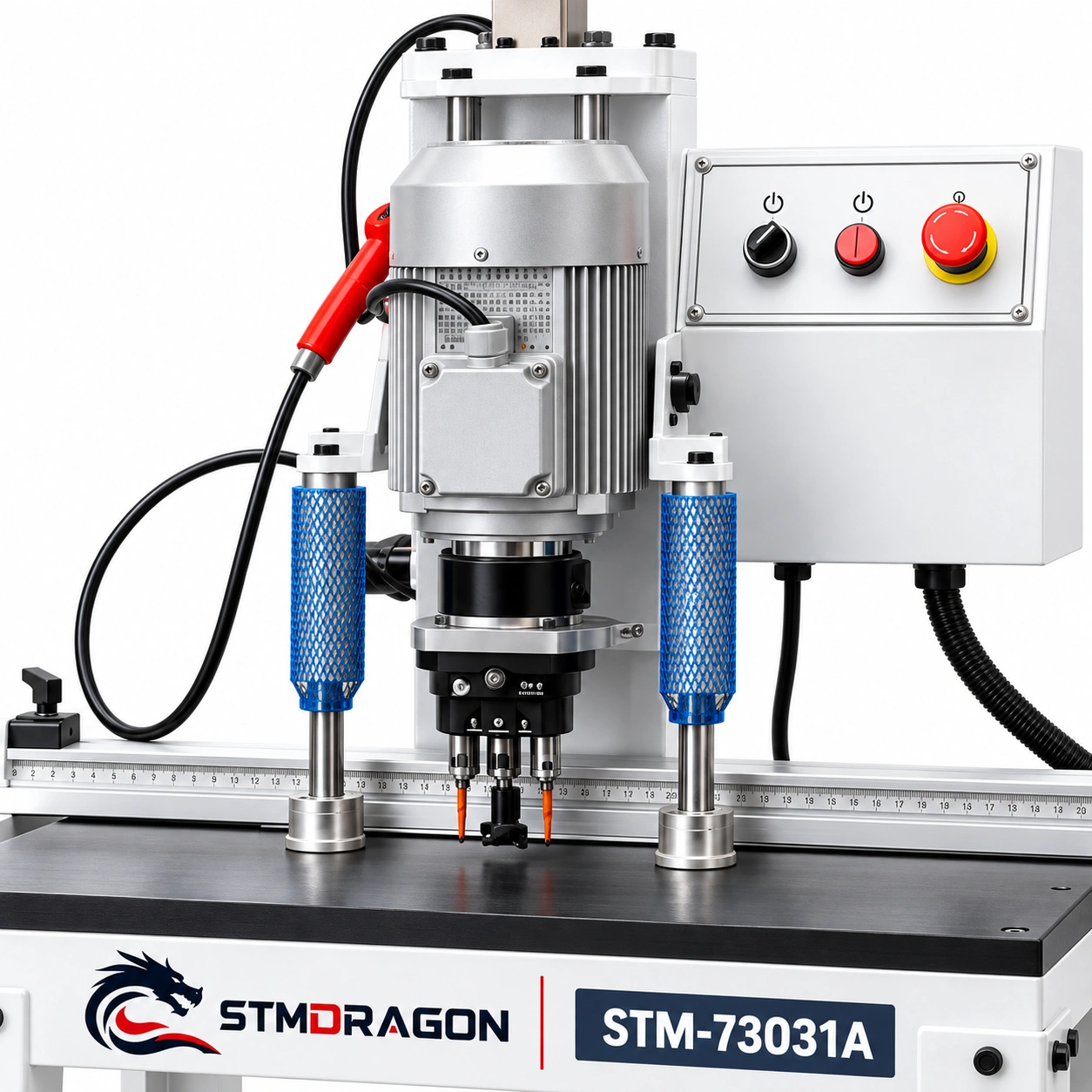

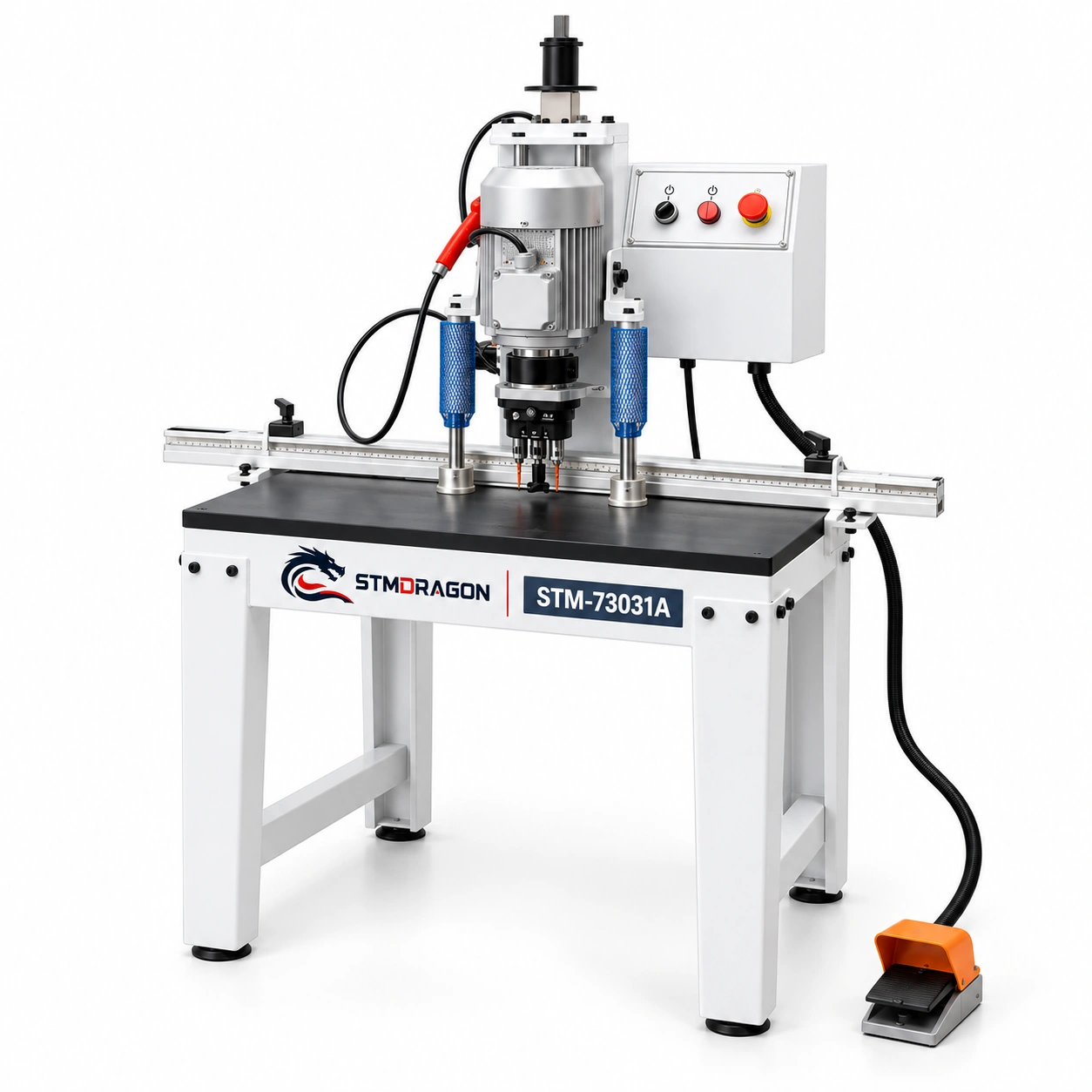

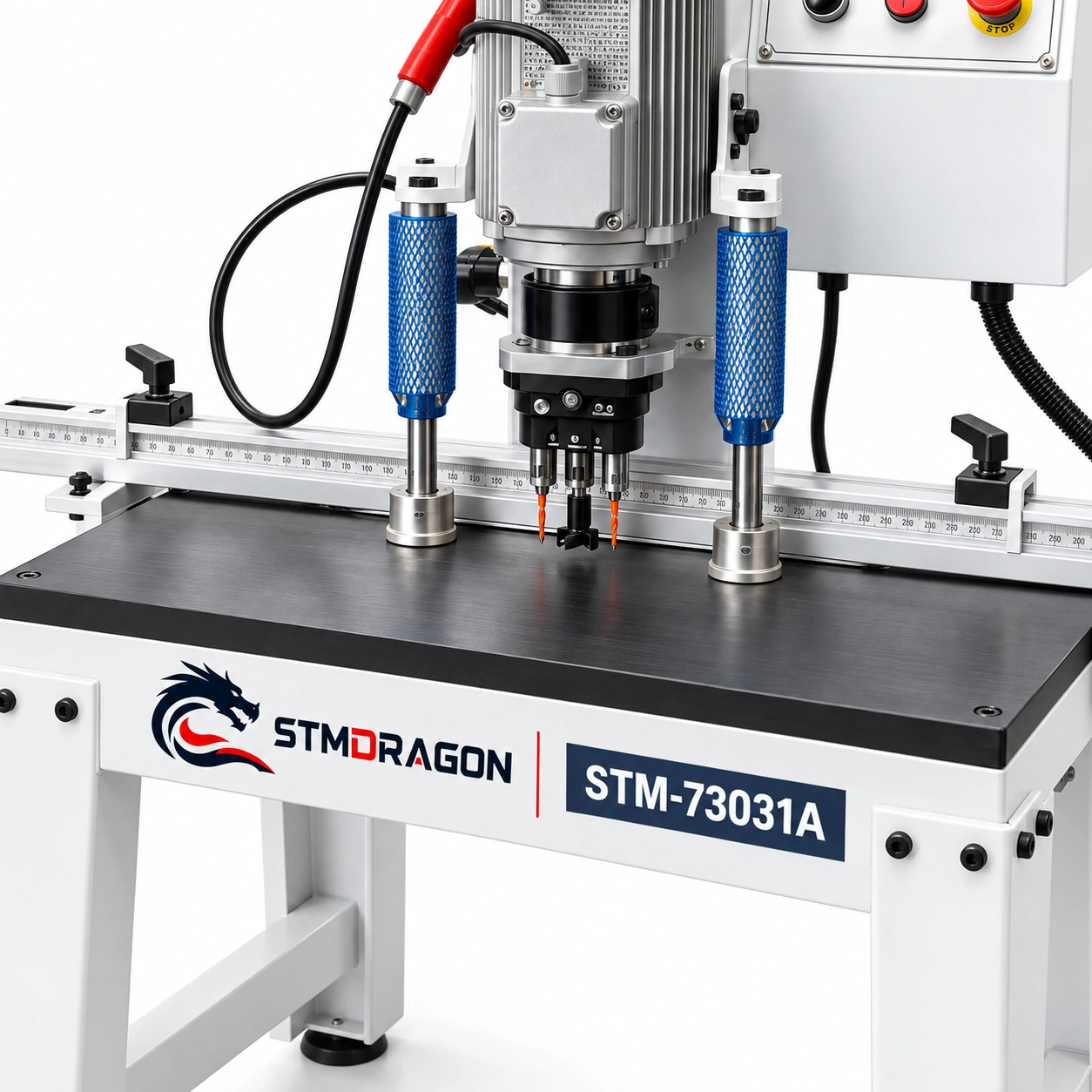

STMDRAGON STM-73031A Automatic Vertical Wood Cabinet Door Hinge Boring Machine
STMDRAGON STM-73031A Automatic Vertical Wood Cabinet Door Hinge Boring Machine - Image 2
STMDRAGON STM-73031A Automatic Vertical Wood Cabinet Door Hinge Boring Machine - Image 3
STMDRAGON STM-73031A Automatic Vertical Wood Cabinet Door Hinge Boring Machine - Image 4
STMDRAGON STM-73031A Automatic Vertical Wood Cabinet Door Hinge Boring Machine - Image 5
Drilling & Boring Machines

STMDRAGON STM-73031A Automatic Vertical Wood Cabinet Door Hinge Boring Machine

STMDRAGON 73031A is a vertical semi-automatic hinge boring machine designed for accurate drilling of hinge holes in wood cabinet doors and furniture components. It features a 1.5 kW motor, up to 50 mm drilling depth, and up to 35 mm maximum hole diameter, making it suitable for professional woodworking and cabinet production.

ConfigurationCustom
Working sizeOn request
ControlManual / Operator Controlled
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-73031A Automatic Vertical Wood Cabinet Door Hinge Boring Machine

Model73031A
Machine TypeVertical Hinge Boring / Drilling Machine
Automatic GradeSemi-Automatic
ControlManual / Operator Controlled
Motor Power1.5 kW
Motor Speed2,840 RPM
Maximum Drilling Depth50 mm
Maximum Hole Diameter35 mm
Voltage220V / 380V
Machine Weight100 kg / approx. 220.5 lbs
StructureVertical drilling configuration
CertificationCE
ConditionNew
CustomizationAvailable
After-Sales Service1 Year
Warranty1 Year
Transport PackagePlastic or Wooden Box
Production CapacityUp to 1,000 units/month according to supplied manufacturer information
HS Code84659900
Applications

Applications: STMDRAGON STM-73031A Automatic Vertical Wood Cabinet Door Hinge Boring Machine

The STMDRAGON 73031A Automatic Vertical Wood Cabinet Door Hinge Boring Machine is a compact vertical drilling solution for cabinet door, furniture, and woodworking applications. Its semi-automatic design helps improve drilling consistency and production efficiency compared with manual drilling.

Key Specifications & Features:

  1. Model: 73031A
  2. Machine Type: Vertical Hinge Boring / Drilling Machine
  3. Automatic Grade: Semi-Automatic
  4. Control: Manual / Operator Controlled
  5. Motor Power: 1.5 kW
  6. Motor Speed: 2,840 RPM
  7. Maximum Drilling Depth: 50 mm
  8. Maximum Hole Diameter: 35 mm
  9. Voltage: 220V / 380V
  10. Machine Weight: 100 kg / approx. 220.5 lbs
  11. Structure: Vertical drilling configuration
  12. Certification: CE
  13. Condition: New
  14. Customization: Available
  15. After-Sales Service: 1 Year
  16. Warranty: 1 Year
  17. Transport Package: Plastic or Wooden Box
  18. Production Capacity: Up to 1,000 units/month according to supplied manufacturer information
  19. HS Code: 84659900

Applications:

Suitable for drilling hinge holes in wooden cabinet doors, furniture panels, cupboards, wardrobes, and other woodworking components where controlled hinge boring is required.

Electrical & Ordering Information:

The supplied specification lists 220V/380V, but the final electrical configuration, including applicable voltage, frequency, and phase, should be confirmed before ordering.

Shipping:

Shipping is estimated at 7–30 days according to the supplied information.

Before Ordering:

Please confirm the final machine configuration, electrical requirements, drilling tooling, machine dimensions, packing dimensions, gross shipping weight, and exact production/handling time before placing the order.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.
