STMDRAGON STM-812MZ Automatic Loading & Unloading CNC Router Machine

STMDRAGON STM-812MZ is an industrial CNC router with automatic loading and unloading, a 9KW ATC spindle, 12-tool linear tool magazine, and Taiwan Baoyuan control system. It features a 1300 × 2800mm working area, 80m/min maximum X/Y speed, automatic lift table, vacuum system, and conveyor for efficient board processing.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-812MZ Automatic Loading & Unloading CNC Router Machine

ModelSTM-812MZ
Working Area1300 × 2800mm
Machine Size3701 × 3340 × 2816mm

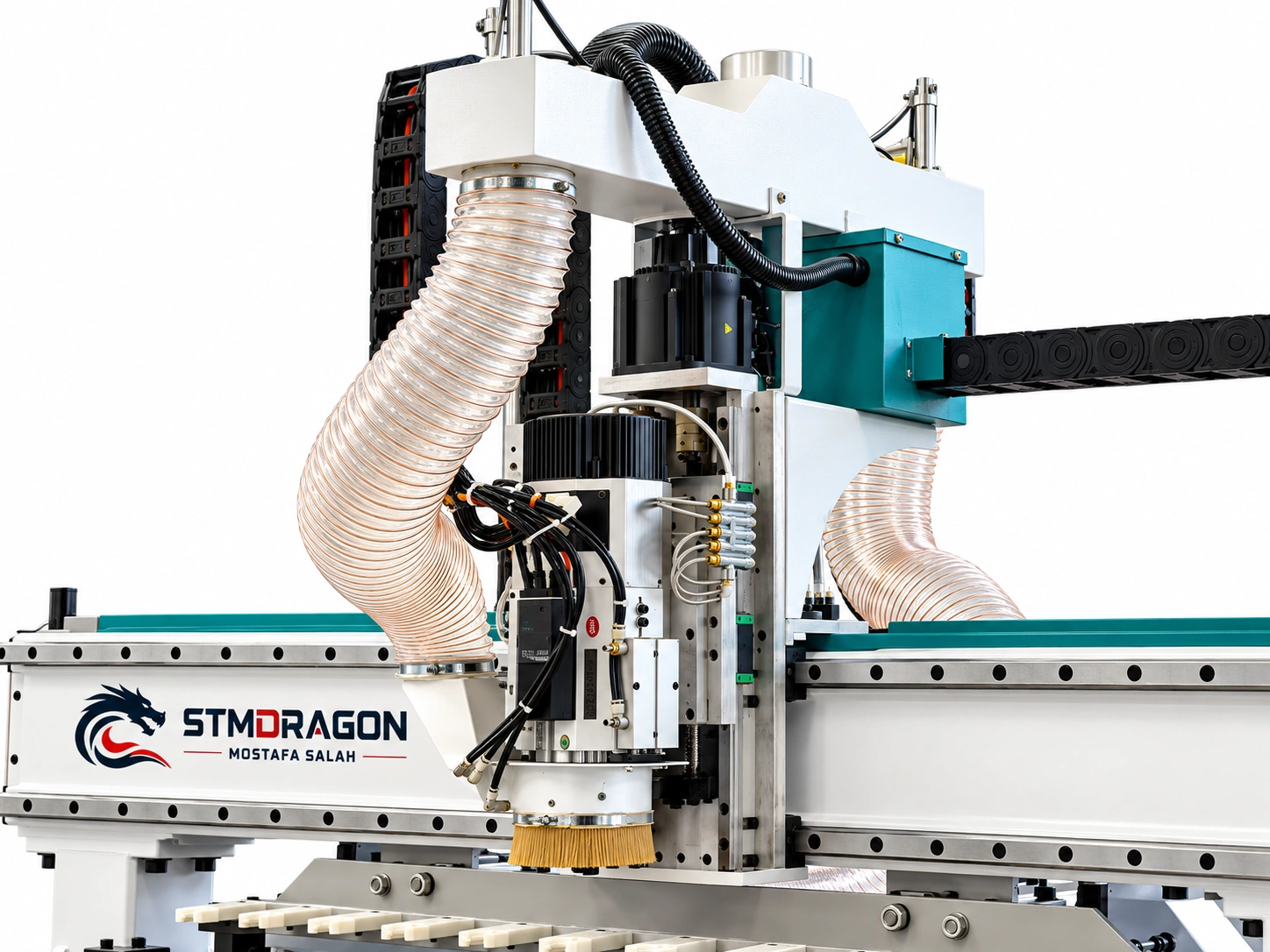

Spindle9KW ATC spindle, 24,000 RPM
Spindle Quantity1

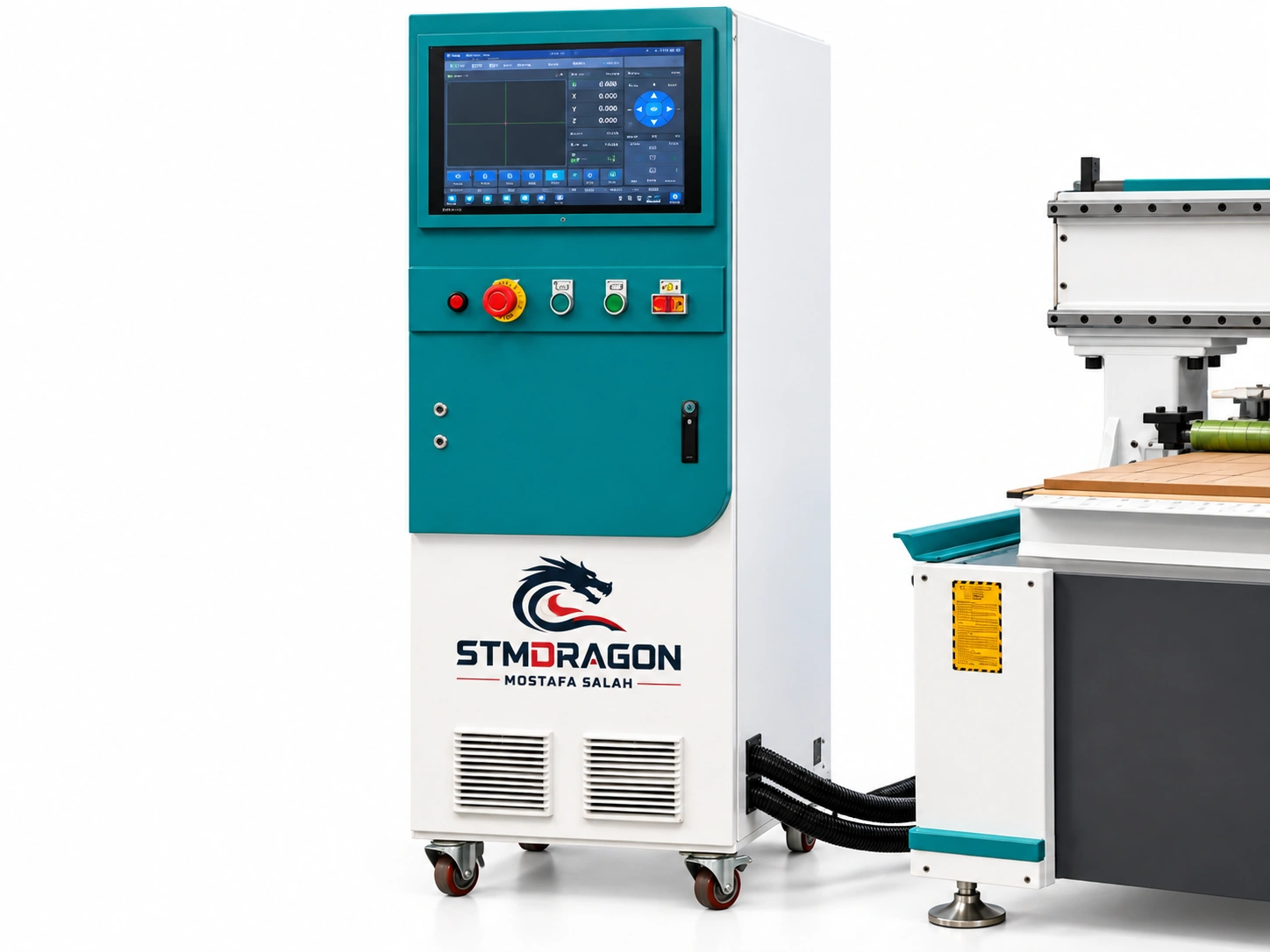

Control SystemTaiwan Baoyuan

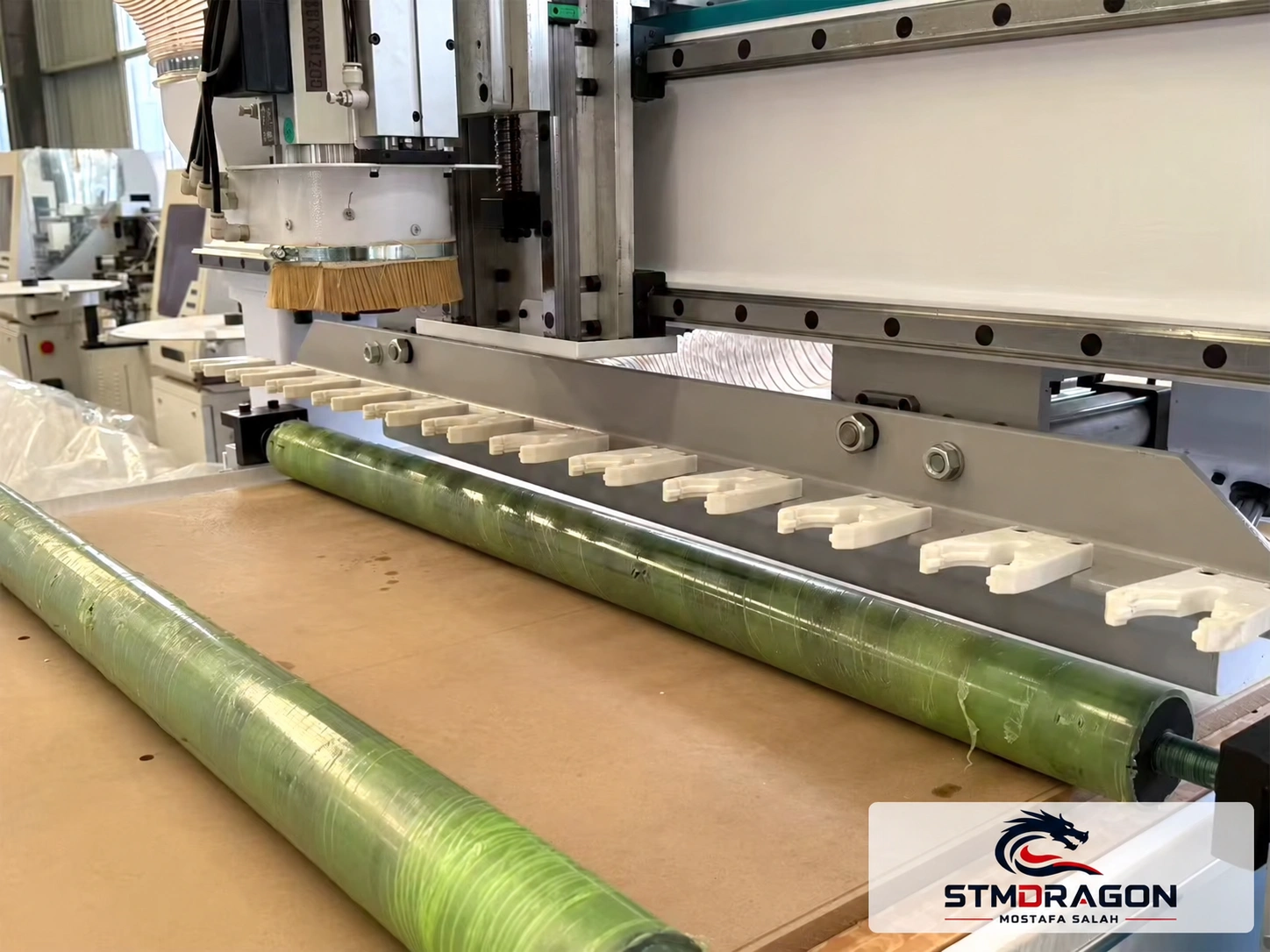

Tool Magazine12-tool linear type
Tool InterfaceISO30 with ER32 collet
Vacuum Areas7
Vacuum Power7.5KW
Vacuum Air Volume250m³/h
Maximum X/Y Moving Speed80m/min
Maximum Z Moving Speed20m/min

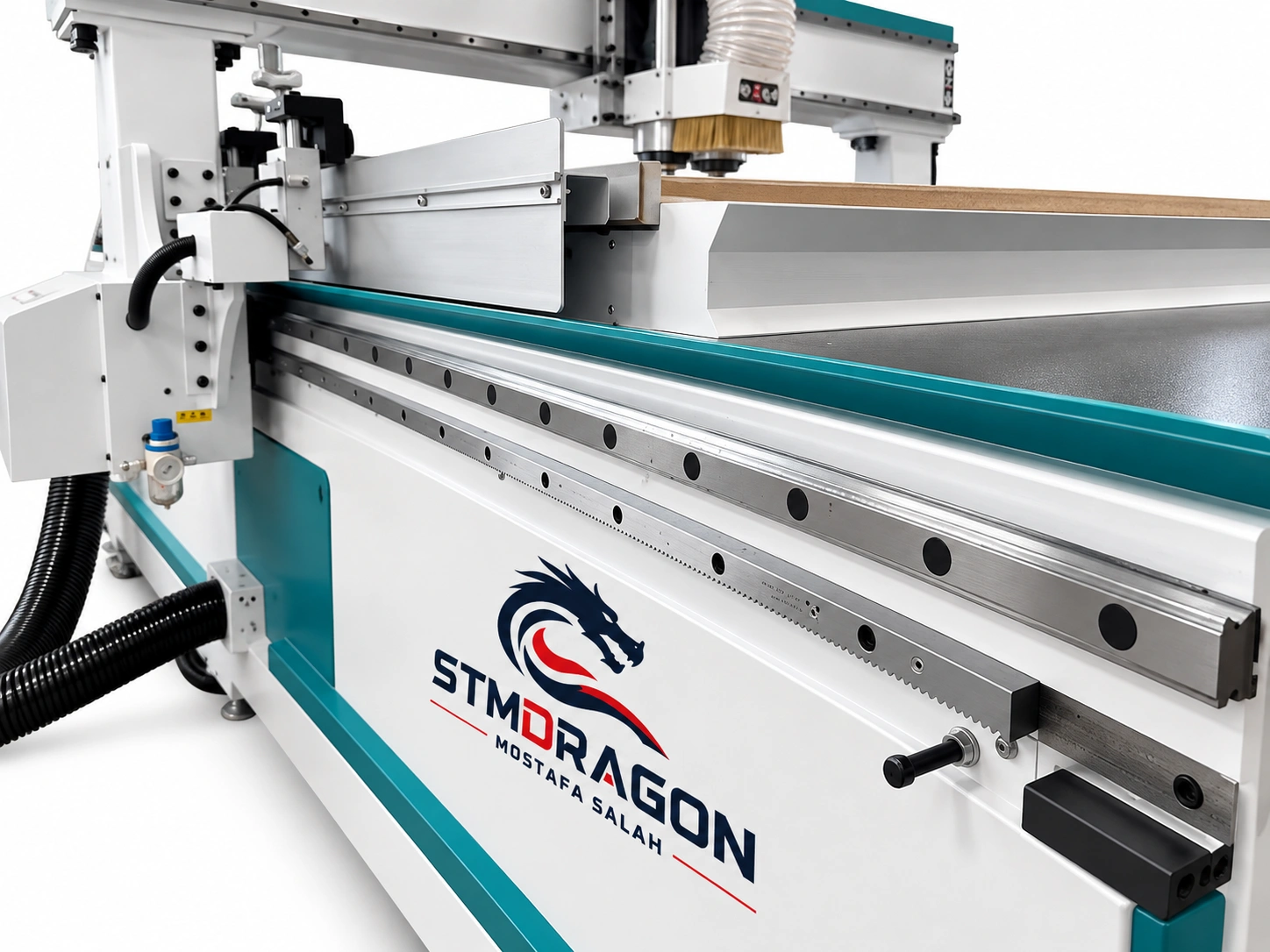

Guide RailImported precision-ground 30mm linear guide rail
Drive SystemHigh-performance servo motor and reducer
Tool SensorAutomatic Z-axis tool height measurement
Loading SystemAutomatic lift table, maximum loading capacity 3000kg

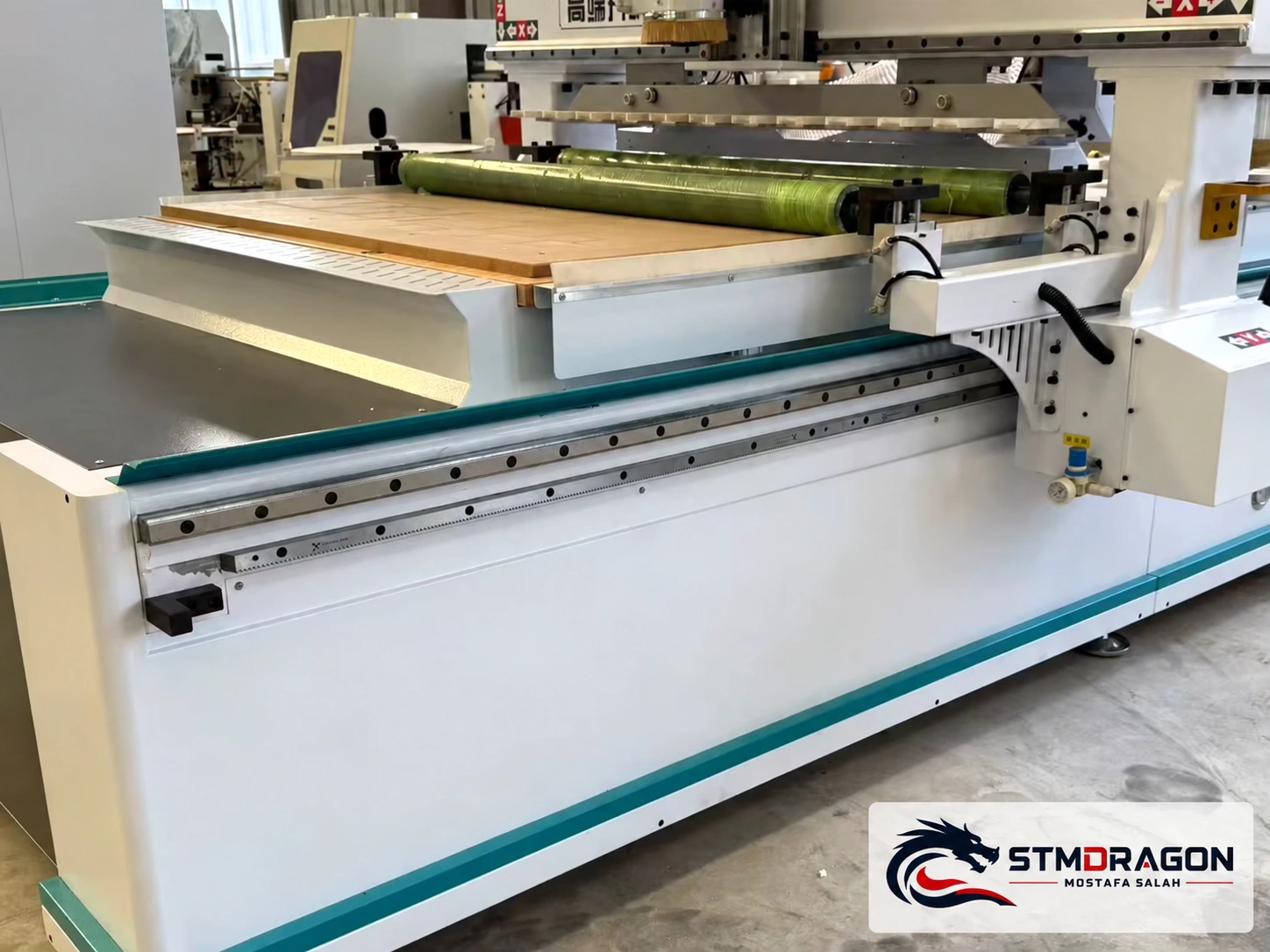

Unloading SystemAutomatic conveyor belt
Total Power23.5kW
Gross Weight1800kg
CertificationCE / ISO
Warranty1 Year
Shipping7–30 Days according to supplied information
Before OrderingConfirm the final machine configuration, applicable materials and cutting requirements, electrical requirements, packing dimensions, and exact production/handling time before purchase and freight calculation.
Applications

Applications: STMDRAGON STM-812MZ Automatic Loading & Unloading CNC Router Machine

The STMDRAGON STM-812MZ is an industrial automatic loading and unloading CNC router designed for efficient board cutting, routing, milling, engraving, and heavy-duty woodworking applications. It combines a 9KW automatic tool-change spindle, Taiwan Baoyuan control system, servo drive system, automatic tool sensing, vacuum table system, lift table, and conveyor for streamlined production.

Key Product Details:

  1. Model: STM-812MZ
  2. Working Area: 1300 × 2800mm
  3. Machine Size: 3701 × 3340 × 2816mm
  4. Spindle: 9KW ATC spindle, 24,000 RPM
  5. Spindle Quantity: 1
  6. Control System: Taiwan Baoyuan
  7. Tool Magazine: 12-tool linear type
  8. Tool Interface: ISO30 with ER32 collet
  9. Vacuum Areas: 7
  10. Vacuum Power: 7.5KW
  11. Vacuum Air Volume: 250m³/h
  12. Maximum X/Y Moving Speed: 80m/min
  13. Maximum Z Moving Speed: 20m/min
  14. Guide Rail: Imported precision-ground 30mm linear guide rail
  15. Drive System: High-performance servo motor and reducer
  16. Tool Sensor: Automatic Z-axis tool height measurement
  17. Loading System: Automatic lift table, maximum loading capacity 3000kg
  18. Unloading System: Automatic conveyor belt
  19. Total Power: 23.5kW
  20. Gross Weight: 1800kg
  21. Certification: CE / ISO
  22. Warranty: 1 Year
  23. Shipping: 7–30 Days according to supplied information

The automatic loading table and conveyor system help reduce manual material handling and support continuous board-processing workflows. The 9KW, 24,000 RPM ATC spindle is designed for high-speed cutting, routing, milling, and heavy-duty machining, while the 12-tool magazine allows automatic tool changes during production.

Before Ordering: Confirm the final machine configuration, applicable materials and cutting requirements, electrical requirements, packing dimensions, and exact production/handling time before purchase and freight calculation.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.
