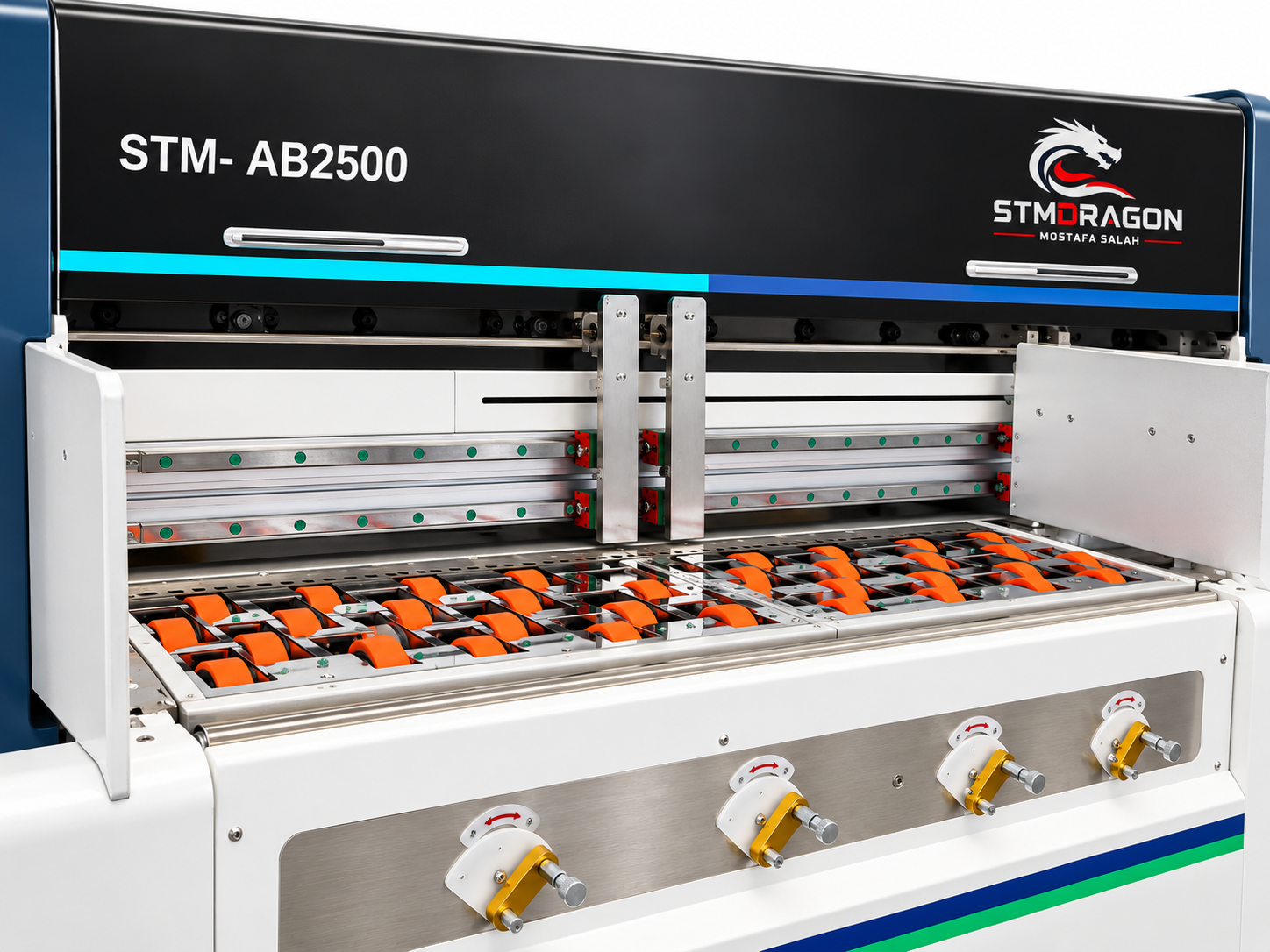

STMDRAGON STM-AB2500 Automatic Corrugated Box Making Machine

The STMDRAGON STM-AB2500 is an automatic corrugated box making machine designed for sheet-fed carton production, including slotting, cutting, creasing, punching, and optional gluing and printing. It supports cardboard thickness from 1.5–10 mm, box styles based on 100+ FEFCO codes, and a maximum board width of 2500 mm.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-AB2500 Automatic Corrugated Box Making Machine

ModelSTM-AB2500
Cardboard TypeSheet
Cardboard Thickness1.5–10 mm
Max. Board Size2500 mm (W) × Unlimited (L)
Min. Board Size200 × 650 mm
Max. Box Size1000 × 1500 mm × Unlimited (L)
Min. Box Size150 × 750 × 150 mm
Production Rate500–600 pcs/hour, depending on box type
Changeover TimeApproximately 3 seconds
Slotting Knife2 × 500 mm
Vertical Cutting Knives4
Creasing Wheels4
Horizontal Cutting Knife1
Power Supply380V, 50/60Hz
Power10 kW
Machine SizeApprox. 3500 × 2900 × 2200 mm (W × L × H)
Machine WeightApprox. 4000 kg
Warranty1 Year
Technical SupportFree lifetime online technical support
Overseas ServiceAvailable
Shipping7–30 Days according to the supplied information
Applications

Applications: STMDRAGON STM-AB2500 Automatic Corrugated Box Making Machine

The STMDRAGON STM-AB2500 Corrugated Box Making Machine is designed for efficient custom corrugated carton production with one-time sheet feeding. It can perform multiple box-making processes in a continuous operation, helping reduce manual labor and production time.

Main Functions & Processes

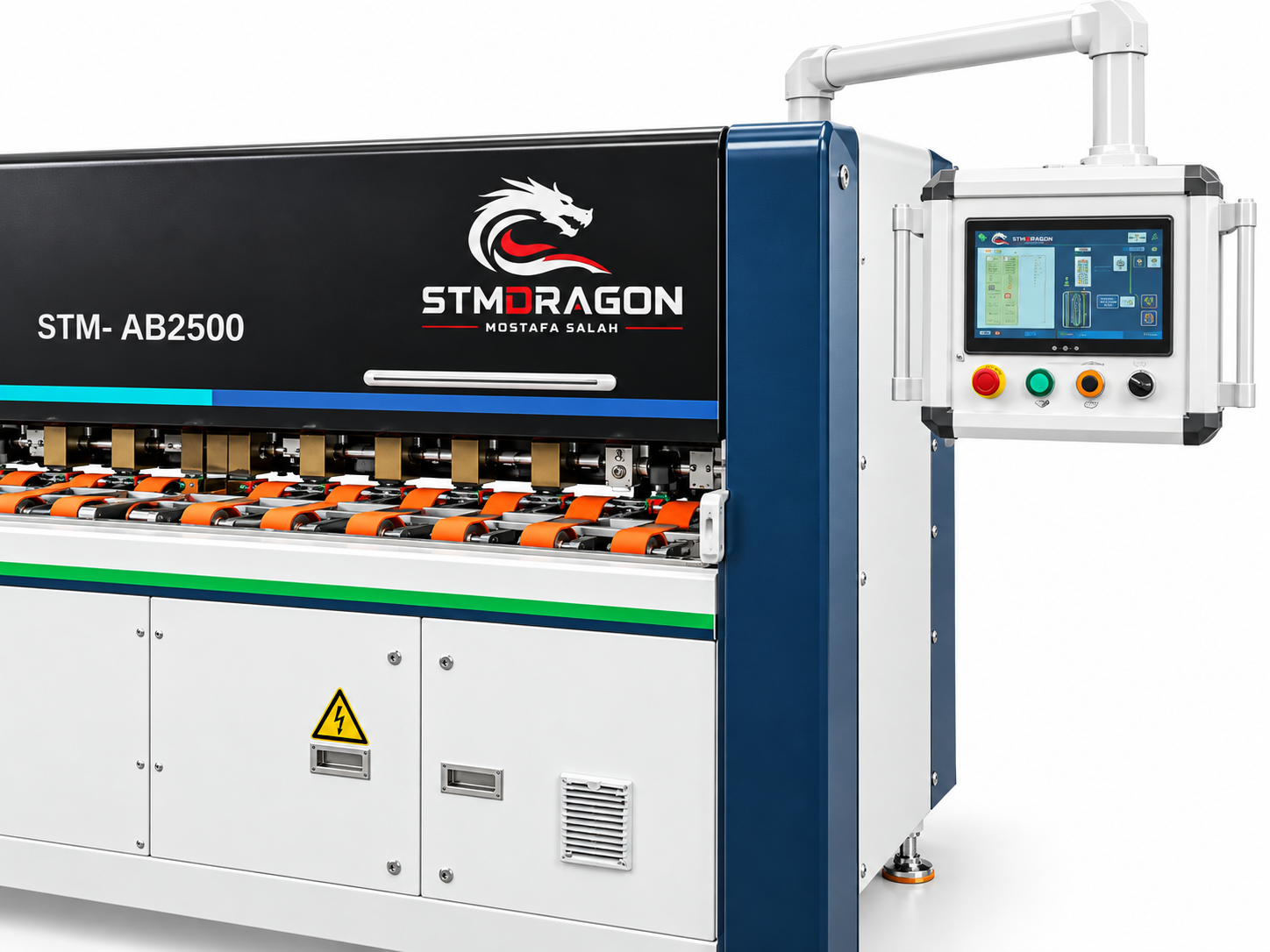

  1. Sheet feeding
  2. Slotting
  3. Paper separation
  4. Horizontal and vertical cutting
  5. Creasing
  6. Punching for hand holes and ventilation holes
  7. Optional automatic cold/hot-melt gluing
  8. Optional flexographic or digital printing
  9. Supports 100+ box styles based on FEFCO codes

Key Specifications

  1. Model: STM-AB2500
  2. Cardboard Type: Sheet
  3. Cardboard Thickness: 1.5–10 mm
  4. Max. Board Size: 2500 mm (W) × Unlimited (L)
  5. Min. Board Size: 200 × 650 mm
  6. Max. Box Size: 1000 × 1500 mm × Unlimited (L)
  7. Min. Box Size: 150 × 750 × 150 mm
  8. Production Rate: 500–600 pcs/hour, depending on box type
  9. Changeover Time: Approximately 3 seconds
  10. Slotting Knife: 2 × 500 mm
  11. Vertical Cutting Knives: 4
  12. Creasing Wheels: 4
  13. Horizontal Cutting Knife: 1
  14. Power Supply: 380V, 50/60Hz
  15. Power: 10 kW
  16. Machine Size: Approx. 3500 × 2900 × 2200 mm (W × L × H)
  17. Machine Weight: Approx. 4000 kg

The machine is suitable for custom corrugated carton production where different box sizes and styles are required. Its rotating cutting system is designed for clean cutting, while the creasing system helps produce consistent folds without damaging the cardboard.

Warranty & Support

  1. Warranty: 1 Year
  2. Technical Support: Free lifetime online technical support
  3. Overseas Service: Available
  4. Shipping: 7–30 Days according to the supplied information

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 8818 kg
Dimensions 114.17 × 137.80 × 86.61 cm
Model

STM-AB2500

Cardboard Type

Sheet

Cardboard Thickness

1.5–10 mm

Max. Board Size

2500 mm (W) × Unlimited (L)

Min. Board Size

200 × 650 mm

Max. Box Size

1000 × 1500 mm × Unlimited (L)

Min. Box Size

150 × 750 × 150 mm

Production Rate

500–600 pcs/hour, depending on box type

Changeover Time

Approximately 3 seconds

Slotting Knife

2 × 500 mm

Vertical Cutting Knives

4

Creasing Wheels

4

Horizontal Cutting Knife

1

Power Supply

380V, 50/60Hz

Power

10 kW

Machine Size

Approx. 3500 × 2900 × 2200 mm (W × L × H)

Machine Weight

Approx. 4000 kg

Warranty

1 Year

Technical Support

Free lifetime online technical support

Overseas Service

Available

Shipping

7–30 Days according to the supplied information
