STMDRAGON STM-BS1000-4A Brush Sander Machine for Wood Surface & Groove Polishing
STMDRAGON STM-BS1000-4A Brush Sander Machine for Wood Surface & Groove Polishing - Image 2
STMDRAGON STM-BS1000-4A Brush Sander Machine for Wood Surface & Groove Polishing - Image 3
STMDRAGON STM-BS1000-4A Brush Sander Machine for Wood Surface & Groove Polishing - Image 4
STMDRAGON STM-BS1000-4A Brush Sander Machine for Wood Surface & Groove Polishing - Image 5
Sanding & Surface Finishing

STMDRAGON STM-BS1000-4A Brush Sander Machine for Wood Surface & Groove Polishing

The STMDRAGON STM-BS1000-4A Brush Sander is designed for surface polishing, edge and corner sanding, longitudinal groove polishing, and finishing of irregular wood surfaces. It features rotating and oscillating sanding disc units and longitudinal brush rollers for versatile woodworking applications.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-BS1000-4A Brush Sander Machine for Wood Surface & Groove Polishing

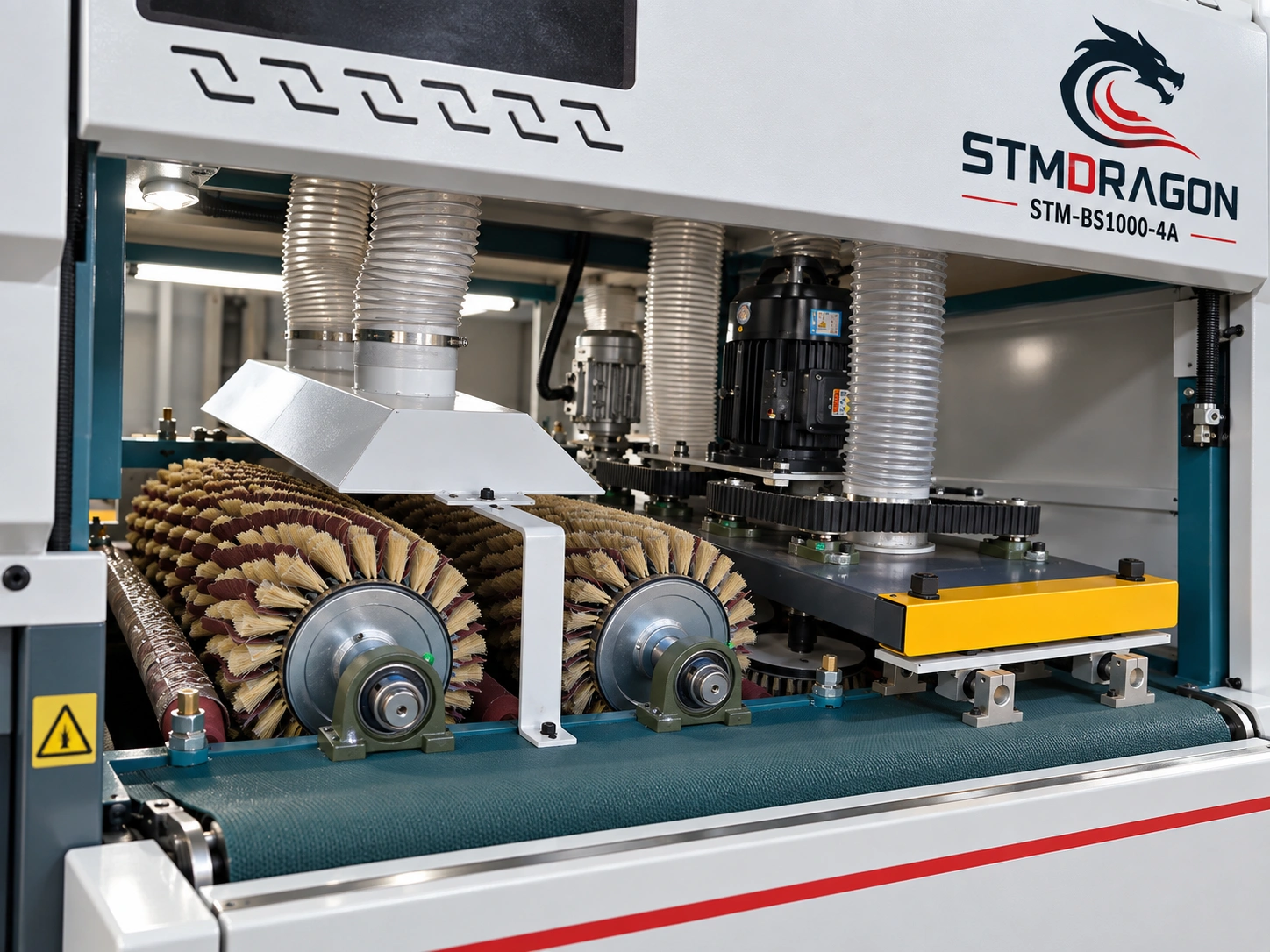

Sanding Disc UnitsRotating and oscillating disc units are designed for surface polishing and corner/edge finishing. The unit can swing independently for flexible processing.
Longitudinal Brush RollersSuitable for polishing longitudinal grooves, sags, crests, and irregular textured workpieces while helping create a more uniform straight-grain surface texture.
Feeding Speed5–30 m/min

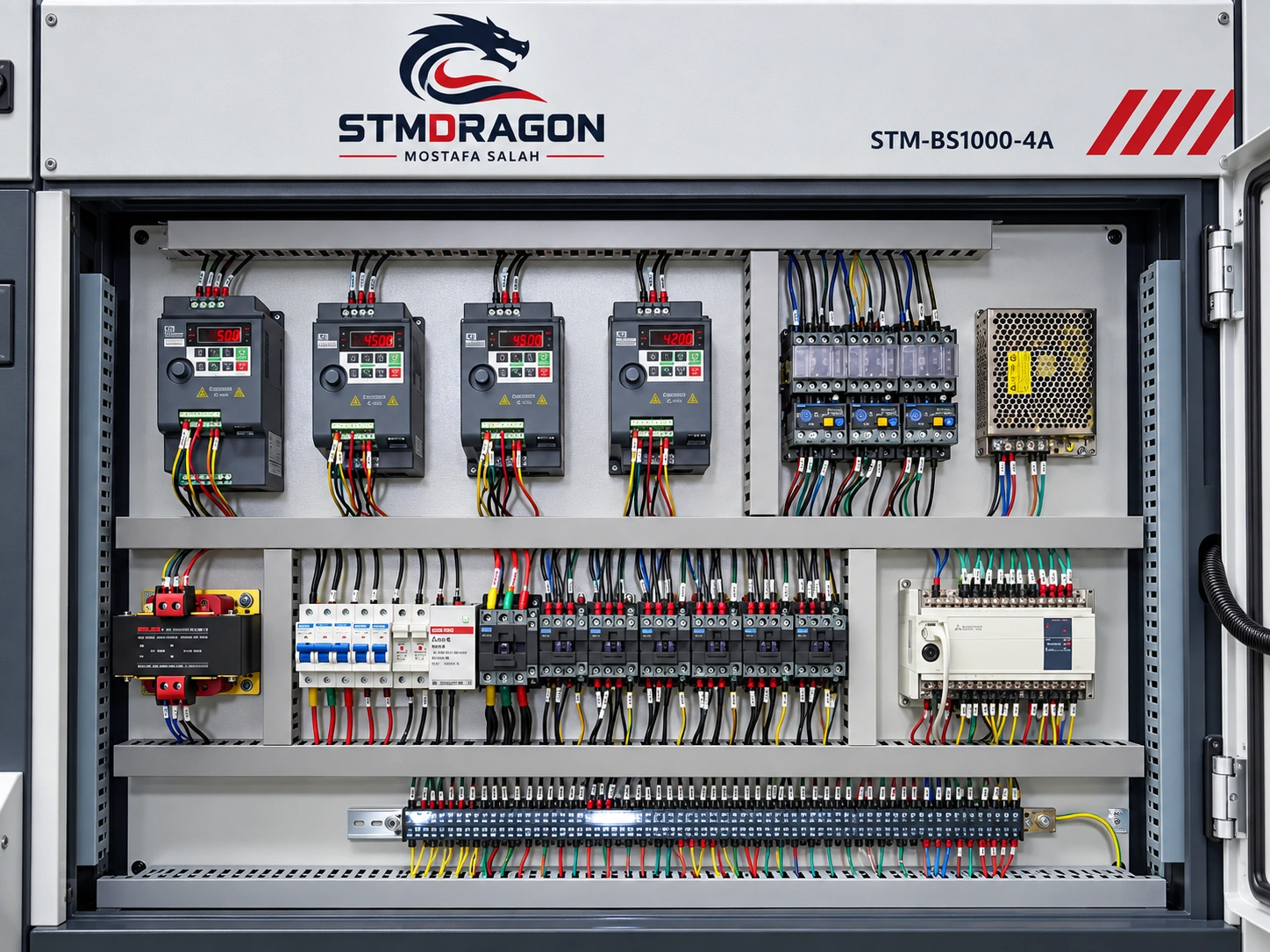

Electrical ComponentsIncludes HL module frequency converter, CHINT contactor, CHINT relay, Delixi transformer, Delixi phase sequence protector, and LED lighting.
Total Power7.57 kW
Machine StructureIndustrial configuration designed for continuous woodworking sanding and surface-finishing applications.
Model / SKUSTM-BS1000-4A
Machine TypeBrush Sander
Maximum Working Width1000 mm
Working Thickness5–100 mm
Minimum Working Length350 mm
Optional Minimum Length200 mm
Overall Dimensions2500 × 1500 × 1800 mm
Machine Weight1200 kg
Sanding SystemRotating & oscillating sanding disc units
Brush SystemLongitudinal brush rollers
Frequency ConverterHL
Contactor / RelayCHINT
TransformerDelixi
Phase Sequence ProtectorDelixi
LightingLED
Woodworking & Furniture ManufacturingSuitable for surface sanding, polishing, groove finishing, edge/corner treatment, and finishing of irregular wood-textured workpieces.
Warranty1 Year
Shipping7–30 Days according to the supplied information.
Production/HandlingTo Be Confirmed for the exact STM-BS1000-4A configuration.
Applications

Applications: STMDRAGON STM-BS1000-4A Brush Sander Machine for Wood Surface & Groove Polishing

The STMDRAGON STM-BS1000-4A Brush Sander is an industrial woodworking sanding and polishing machine designed for efficient surface finishing, groove polishing, and treatment of irregular wood textures.

The machine supports a maximum working width of 1000 mm and a working thickness of 5–100 mm, with a minimum working length of 350 mm. A 200 mm minimum working length option is available.

Main Functions & Features

  1. Sanding Disc Units: Rotating and oscillating disc units are designed for surface polishing and corner/edge finishing. The unit can swing independently for flexible processing.
  2. Longitudinal Brush Rollers: Suitable for polishing longitudinal grooves, sags, crests, and irregular textured workpieces while helping create a more uniform straight-grain surface texture.
  3. Feeding Speed: 5–30 m/min for adjustable processing according to material and finishing requirements.
  4. Electrical Components: Includes HL module frequency converter, CHINT contactor, CHINT relay, Delixi transformer, Delixi phase sequence protector, and LED lighting.
  5. Total Power: 7.57 kW.
  6. Machine Structure: Industrial configuration designed for continuous woodworking sanding and surface-finishing applications.

Technical Specifications

SpecificationDetails
Model / SKU STM-BS1000-4A
Machine Type Brush Sander
Maximum Working Width 1000 mm
Working Thickness 5–100 mm
Minimum Working Length 350 mm
Optional Minimum Length 200 mm
Total Power 7.57 kW
Feeding Speed 5–30 m/min
Overall Dimensions 2500 × 1500 × 1800 mm
Machine Weight 1200 kg
Sanding System Rotating & oscillating sanding disc units
Brush System Longitudinal brush rollers
Frequency Converter HL
Contactor / Relay CHINT
Transformer Delixi
Phase Sequence Protector Delixi
Lighting LED

Important Sector / Applications

Woodworking & Furniture Manufacturing: Suitable for surface sanding, polishing, groove finishing, edge/corner treatment, and finishing of irregular wood-textured workpieces.

Warranty & Shipping

Warranty: 1 Year

Shipping: 7–30 Days according to the supplied information.

Production/Handling: To Be Confirmed for the exact STM-BS1000-4A configuration.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 2646 kg
Dimensions 98.43 × 59.06 × 70.87 cm
Sanding Disc Units

Rotating and oscillating disc units are designed for surface polishing and corner/edge finishing. The unit can swing independently for flexible processing.
Longitudinal Brush Rollers

Suitable for polishing longitudinal grooves, sags, crests, and irregular textured workpieces while helping create a more uniform straight-grain surface texture.
Feeding Speed

5–30 m/min
Electrical Components

Includes HL module frequency converter, CHINT contactor, CHINT relay, Delixi transformer, Delixi phase sequence protector, and LED lighting.
Total Power

7.57 kW
Machine Structure

Industrial configuration designed for continuous woodworking sanding and surface-finishing applications.
Model / SKU

STM-BS1000-4A
Machine Type

Brush Sander
Maximum Working Width

1000 mm
Working Thickness

5–100 mm
Minimum Working Length

350 mm
Optional Minimum Length

200 mm
Overall Dimensions

2500 × 1500 × 1800 mm
Machine Weight

1200 kg
Sanding System

Rotating & oscillating sanding disc units
Brush System

Longitudinal brush rollers
Frequency Converter

HL
Contactor / Relay

CHINT
Transformer

Delixi
Phase Sequence Protector

Delixi
Lighting

LED
Woodworking & Furniture Manufacturing

Suitable for surface sanding, polishing, groove finishing, edge/corner treatment, and finishing of irregular wood-textured workpieces.
Warranty

1 Year
Shipping

7–30 Days according to the supplied information.
Production/Handling

To Be Confirmed for the exact STM-BS1000-4A configuration.
Request a quote

Request a quote for STMDRAGON STM-BS1000-4A Brush Sander Machine for Wood Surface & Groove Polishing.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-BS1000-4A Brush Sander Machine for Wood Surface & Groove Polishing

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-BS1000-4A Brush Sander Machine for Wood Surface & Groove Polishing?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
