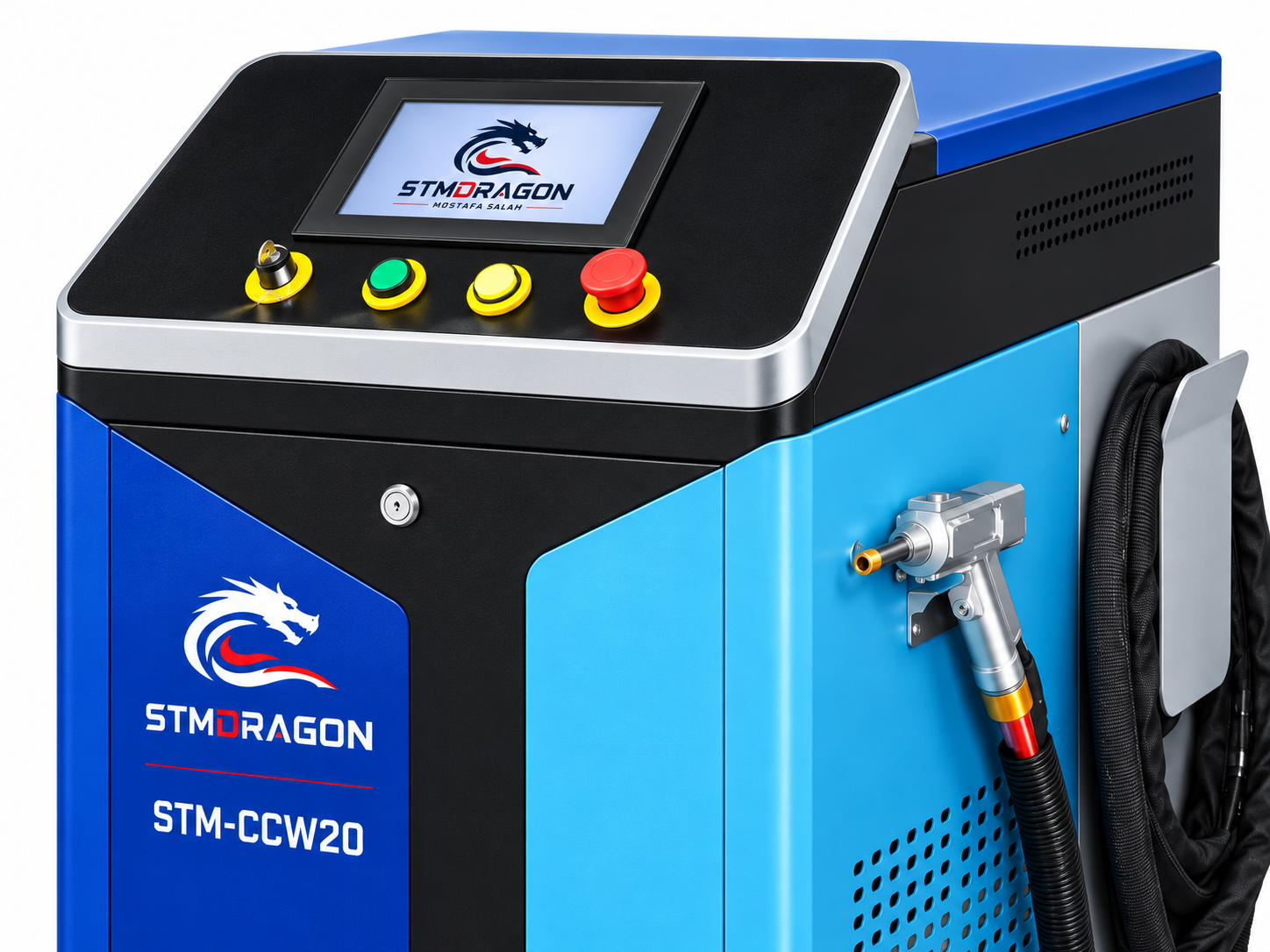

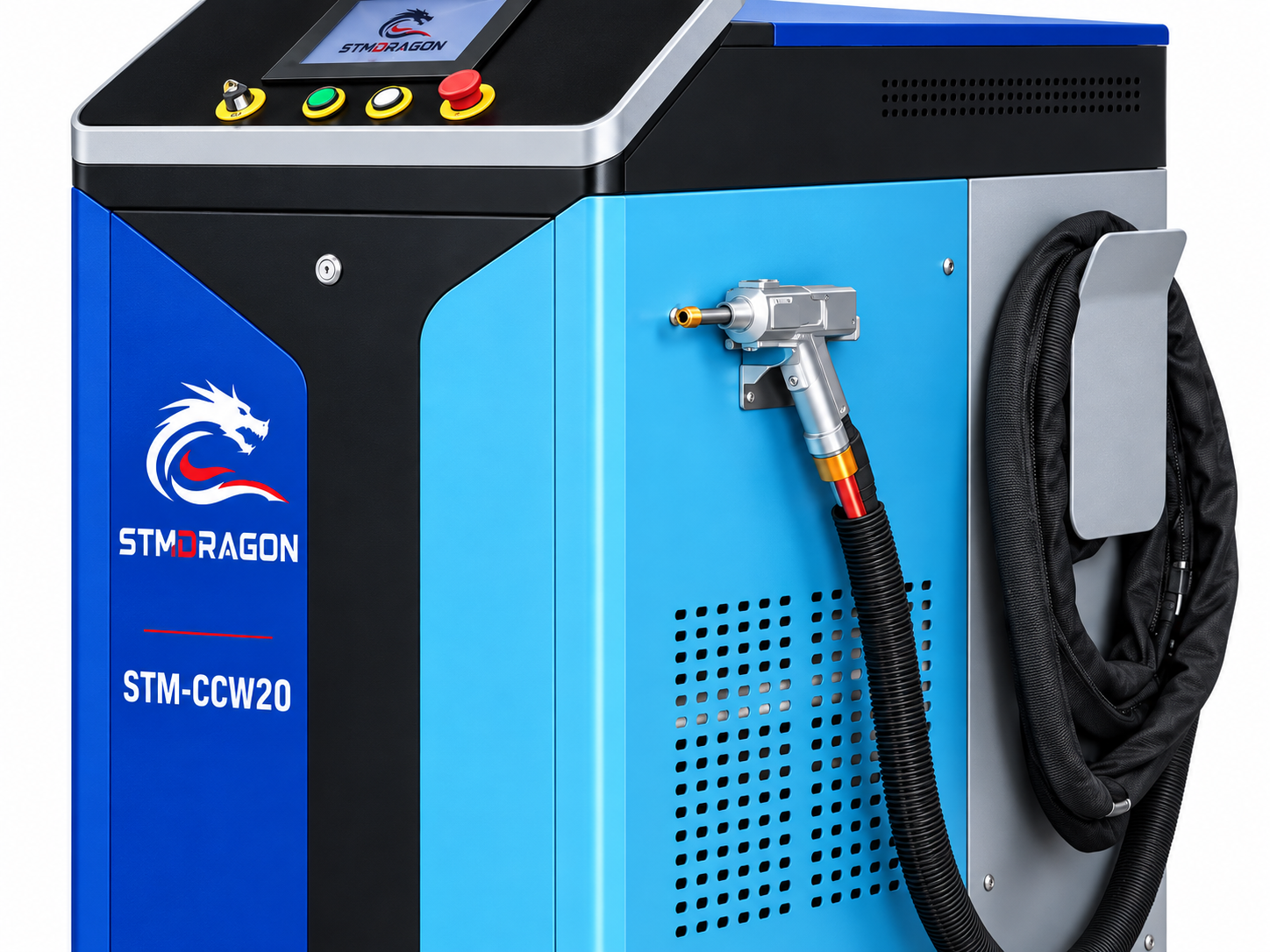

The STMDRAGON STM-CCW20 4 in 1 Handheld Fiber Laser Welding Machine combines four functions in one compact system: laser welding, laser cleaning, weld cleaning, and laser cutting. Its handheld design provides flexible operation for workshops and industrial production environments.
Powered by a 2000W Maxphotonics fiber laser, the machine supports welding of stainless steel, aluminum alloy, galvanized sheet, carbon steel sheet, and other compatible metals. Welding thickness is up to 5 mm, while the specified cutting range is 0–2 mm, depending on material and processing conditions.
The cleaning function can remove dust, rust, coating, paint, oil, and other surface contaminants, with a specified cleaning width of 30 mm and cleaning thickness of 0.5 mm.
Key Specifications
- Model: STM-CCW20
- Machine Type: 4 in 1 Handheld Fiber Laser Machine
- Functions: Welding, Cleaning, Weld Cleaning & Cutting
- Laser Power: 2000W
- Fiber Laser: Maxphotonics
- Fiber Length: 10 m (8 m exposed)
- Laser Head: Chao Qiang
- Cutting System: Chao Qiang
- Laser Chiller: Hanli
- Wire Feed: Chao Qiang Single Wire Feed
- Welding Thickness: ≤5 mm
- Cutting Thickness: 0–2 mm
- Cleaning Width: 30 mm
- Cleaning Thickness: 0.5 mm
- Supported Materials: Stainless steel, aluminum alloy, galvanized sheet, carbon steel sheet and other suitable metals
- Language Support: 17 languages
- Operation: Handheld
The machine is designed for metal fabrication, industrial repair, surface cleaning, welding, cutting, and general metal-processing applications where multiple laser functions are required from one system.
Warranty: 1 Year
Shipping: 7–30 Days according to the supplied information.
Technical Support: Free lifetime online technical support; overseas service available.
