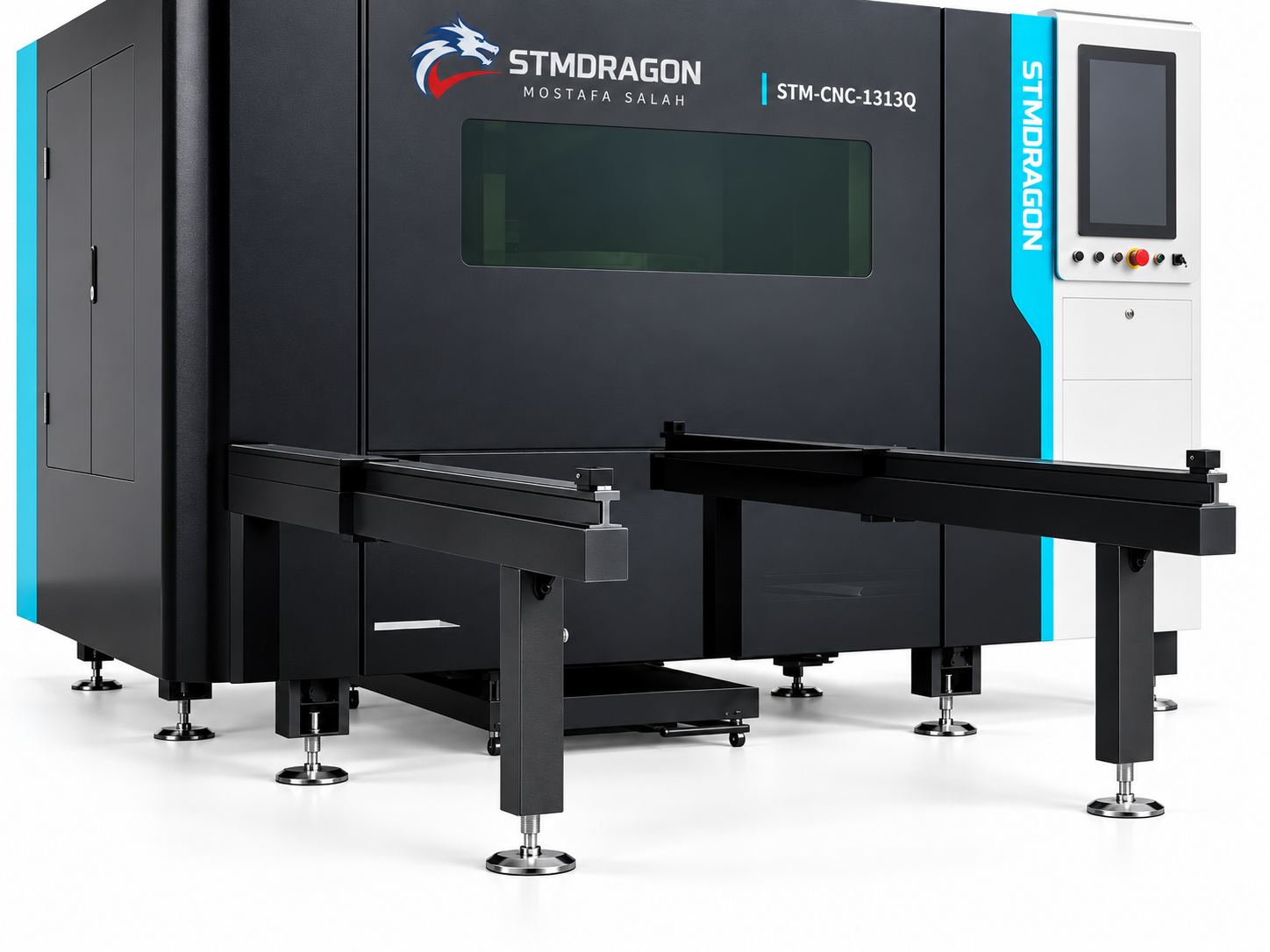

STMDRAGON STM-CNC-1313Q 1313Q Sheet Metal Fiber Laser Cutting Machine

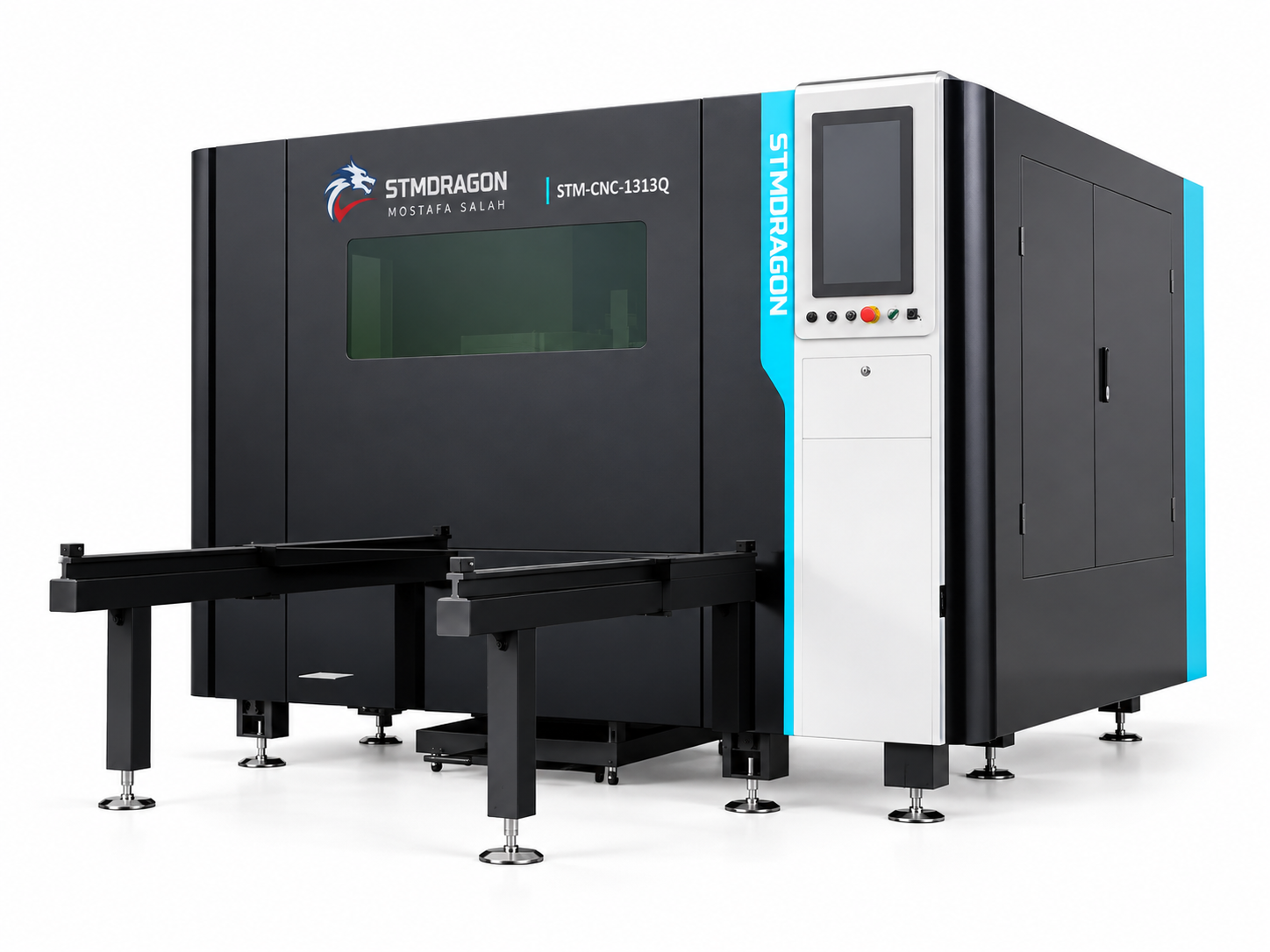

STMDRAGON STM-CNC-1313Q 1313Q Sheet Metal Fiber Laser Cutting Machine - Image 2

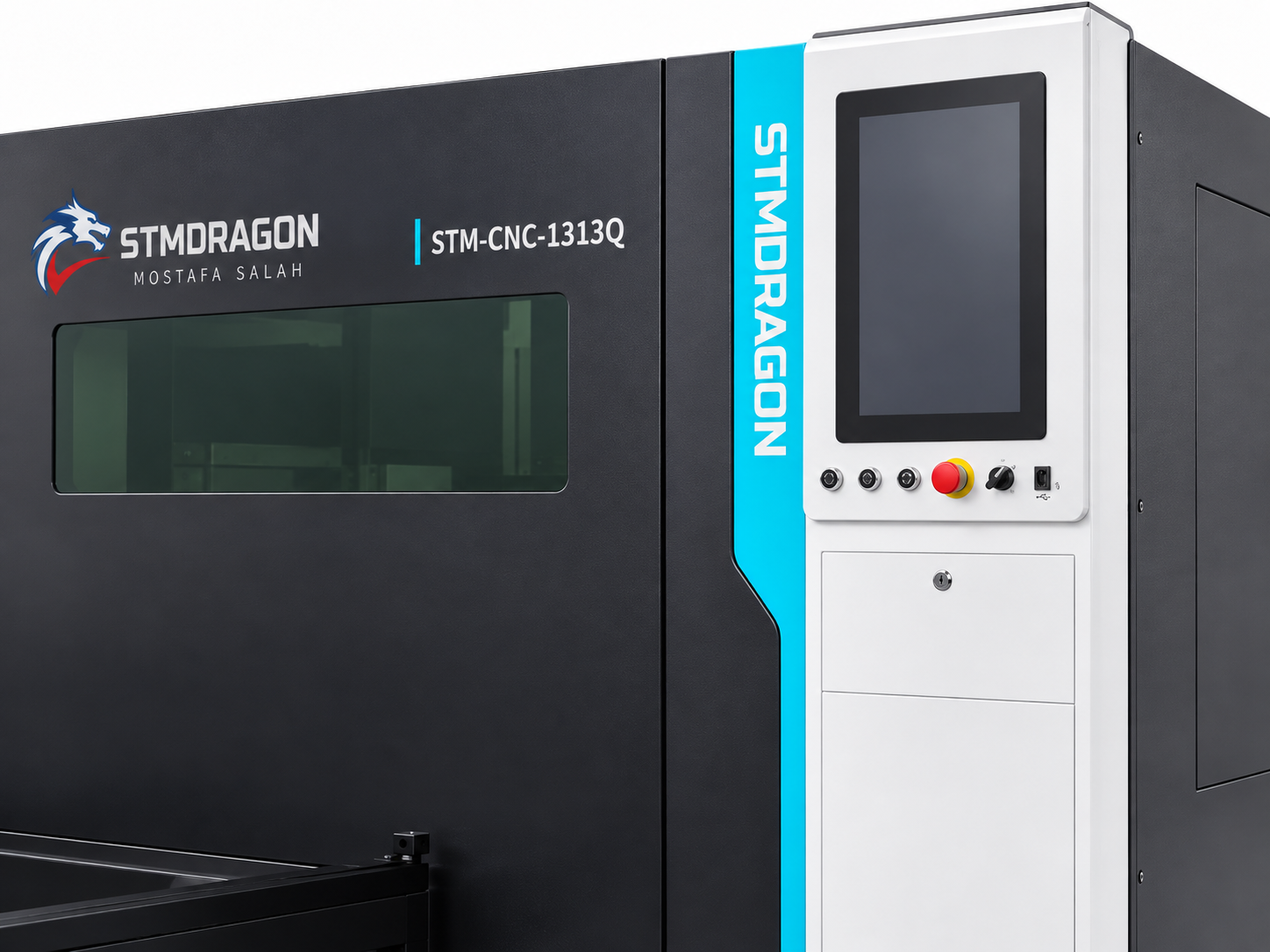

STMDRAGON STM-CNC-1313Q 1313Q Sheet Metal Fiber Laser Cutting Machine - Image 3
STMDRAGON STM-CNC-1313Q 1313Q Sheet Metal Fiber Laser Cutting Machine - Image 4
Fiber Laser Cutting

STMDRAGON STM-CNC-1313Q 1313Q Sheet Metal Fiber Laser Cutting Machine

The STMDRAGON STM-CNC-1313Q is a compact enclosed fiber laser cutting machine designed for precise cutting of carbon steel, stainless steel, aluminum, copper and related alloys. It features a 1305 × 1305 mm working area, 1–3 kW laser power, up to 140 m/min linkage speed, and a movable worktable for convenient material loading and unloading.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-CNC-1313Q 1313Q Sheet Metal Fiber Laser Cutting Machine

BrandSTMDRAGON
ModelSTM-CNC-1313Q
Machine TypeFiber Laser Cutting Machine
Working Area1305 × 1305 mm
Worktable Load Capacity330 kg
Laser Power1–3 kW
Laser OptionsRaycus / MAX
Positioning Accuracy±0.03 mm
Repositioning Accuracy±0.02 mm
Maximum Acceleration1.2G
Maximum Linkage Speed140 m/min
Voltage380V
Frequency50 Hz
Phase3 Phase
StructureHeavy-duty carbon steel construction
BeamCast aluminum beam
TablePrecision marble tabletop
SafetyFully enclosed laser protection cover
CertificationCE, ISO9001
Suitable MaterialsCarbon steel, stainless steel, aluminum, aluminum alloys, copper and copper alloys
After-Sales SupportFree lifetime online technical support; overseas service available
Warranty1 Year
Shipping7–30 Days according to the supplied information.
Applications

Applications: STMDRAGON STM-CNC-1313Q 1313Q Sheet Metal Fiber Laser Cutting Machine

The STMDRAGON STM-CNC-1313Q 1313Q Sheet Metal Fiber Laser Cutting Machine is designed for small and medium-sized metal fabrication operations requiring accurate and efficient sheet metal cutting. Its compact footprint makes it suitable for workshops and businesses with limited production space.

The machine supports processing of carbon steel, stainless steel, aluminum, aluminum alloys, copper and copper alloys. The 1305 × 1305 mm working area and 330 kg worktable load capacity provide a practical platform for small and medium sheet metal cutting projects.

The machine uses a rigid carbon steel structure with stress-relief treatment, helping maintain structural stability and cutting accuracy. Its cast aluminum beam is designed for lightweight, high-speed movement and precise processing. The precision marble tabletop provides a stable and wear-resistant working surface.

The enclosed cutting area includes a CE-standard laser protection glass cover and an internal smoke filtration design, helping provide a safer and cleaner working environment.

Key Product Details:

  1. Brand: STMDRAGON
  2. Model: STM-CNC-1313Q
  3. Machine Type: Fiber Laser Cutting Machine
  4. Working Area: 1305 × 1305 mm
  5. Worktable Load Capacity: 330 kg
  6. Laser Power: 1–3 kW
  7. Laser Options: Raycus / MAX
  8. Positioning Accuracy: ±0.03 mm
  9. Repositioning Accuracy: ±0.02 mm
  10. Maximum Acceleration: 1.2G
  11. Maximum Linkage Speed: 140 m/min
  12. Voltage: 380V
  13. Frequency: 50 Hz
  14. Phase: 3 Phase
  15. Structure: Heavy-duty carbon steel construction
  16. Beam: Cast aluminum beam
  17. Table: Precision marble tabletop
  18. Safety: Fully enclosed laser protection cover
  19. Certification: CE, ISO9001
  20. Suitable Materials: Carbon steel, stainless steel, aluminum, aluminum alloys, copper and copper alloys
  21. After-Sales Support: Free lifetime online technical support; overseas service available

Applications:

Suitable for sheet metal fabrication, metal workshops, signage, machinery manufacturing, electrical equipment, kitchen equipment, hardware production, automotive components and other small-to-medium metal cutting applications.

Warranty: 1 Year

Shipping: 7–30 Days according to the supplied information.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 3500 kg
Dimensions 78 × 75 × 75 cm
Brand

STMDRAGON
Model

STM-CNC-1313Q
Machine Type

Fiber Laser Cutting Machine
Working Area

1305 × 1305 mm
Worktable Load Capacity

330 kg
Laser Power

1–3 kW
Laser Options

Raycus / MAX
Positioning Accuracy

±0.03 mm
Repositioning Accuracy

±0.02 mm
Maximum Acceleration

1.2G
Maximum Linkage Speed

140 m/min
Voltage

380V
Frequency

50 Hz
Phase

3 Phase
Structure

Heavy-duty carbon steel construction
Beam

Cast aluminum beam
Table

Precision marble tabletop
Safety

Fully enclosed laser protection cover
Certification

CE, ISO9001
Suitable Materials

Carbon steel, stainless steel, aluminum, aluminum alloys, copper and copper alloys
After-Sales Support

Free lifetime online technical support; overseas service available
Warranty

1 Year
Shipping

7–30 Days according to the supplied information.
Request a quote

Request a quote for STMDRAGON STM-CNC-1313Q 1313Q Sheet Metal Fiber Laser Cutting Machine.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-CNC-1313Q 1313Q Sheet Metal Fiber Laser Cutting Machine

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-CNC-1313Q 1313Q Sheet Metal Fiber Laser Cutting Machine?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
