STMDRAGON STM-CNC-1825 1825 ATC EPS Foam CNC Router Machine

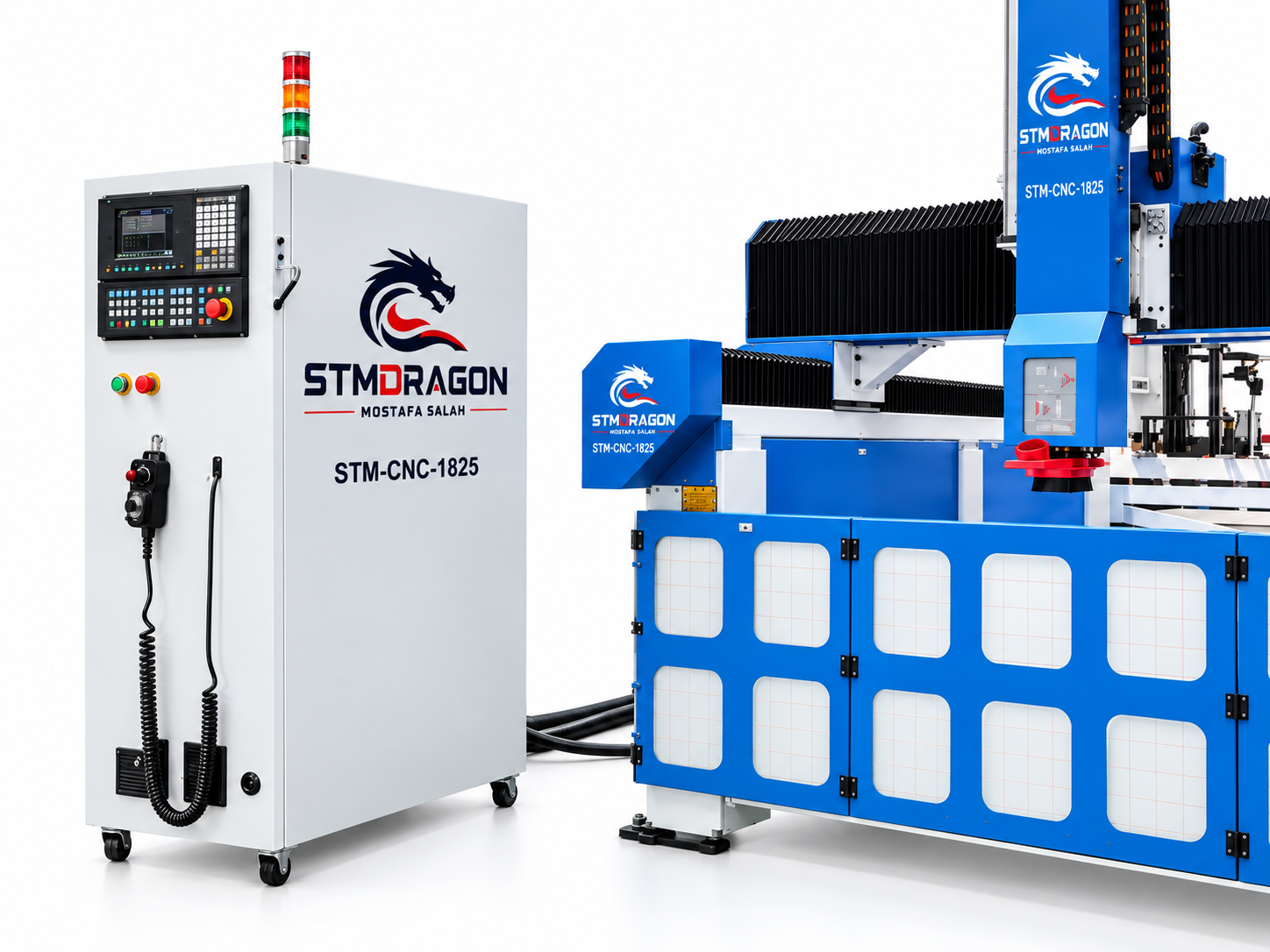

STMDRAGON STM-CNC-1825 1825 ATC EPS Foam CNC Router Machine - Image 2

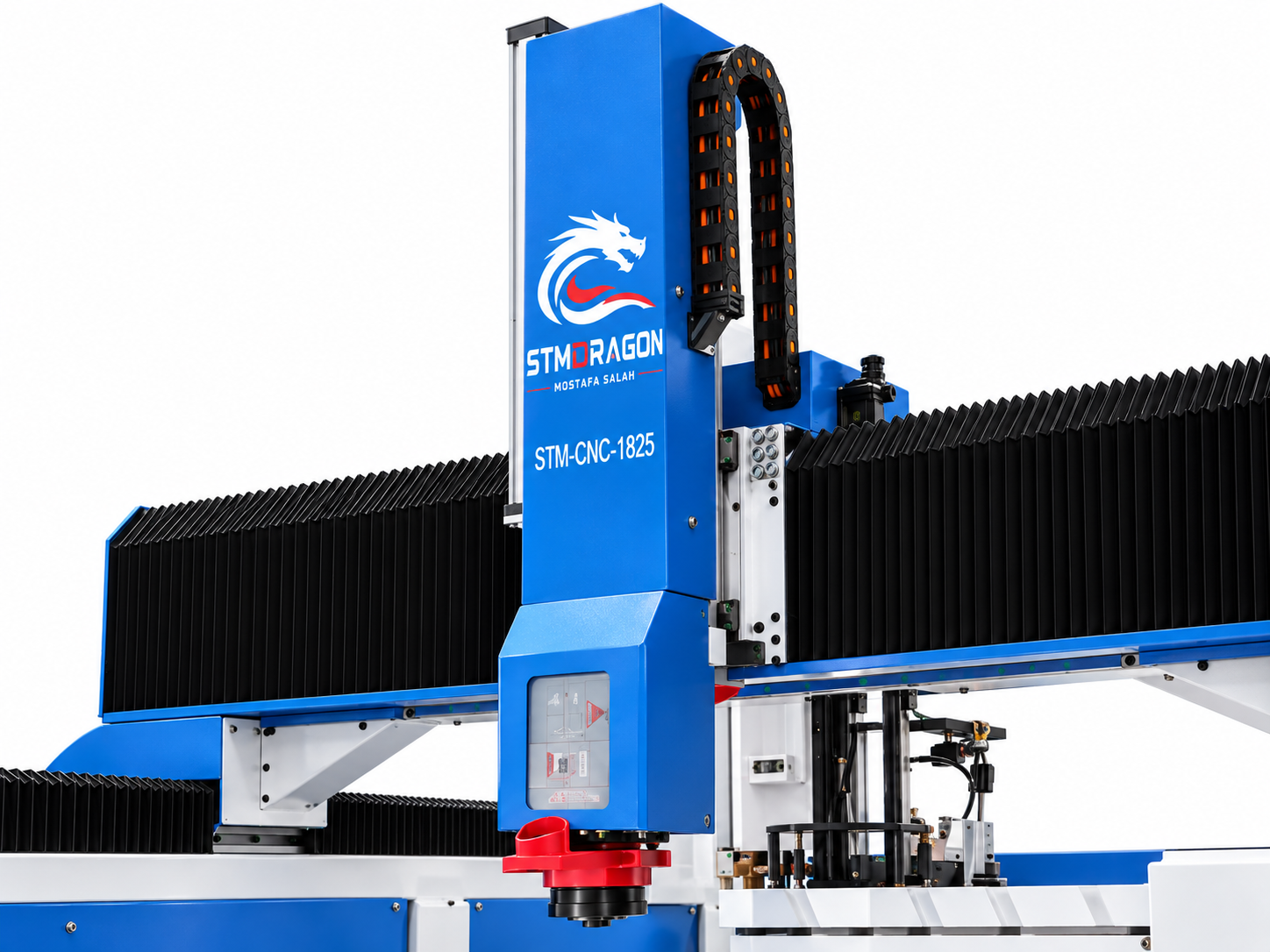

STMDRAGON STM-CNC-1825 1825 ATC EPS Foam CNC Router Machine - Image 3

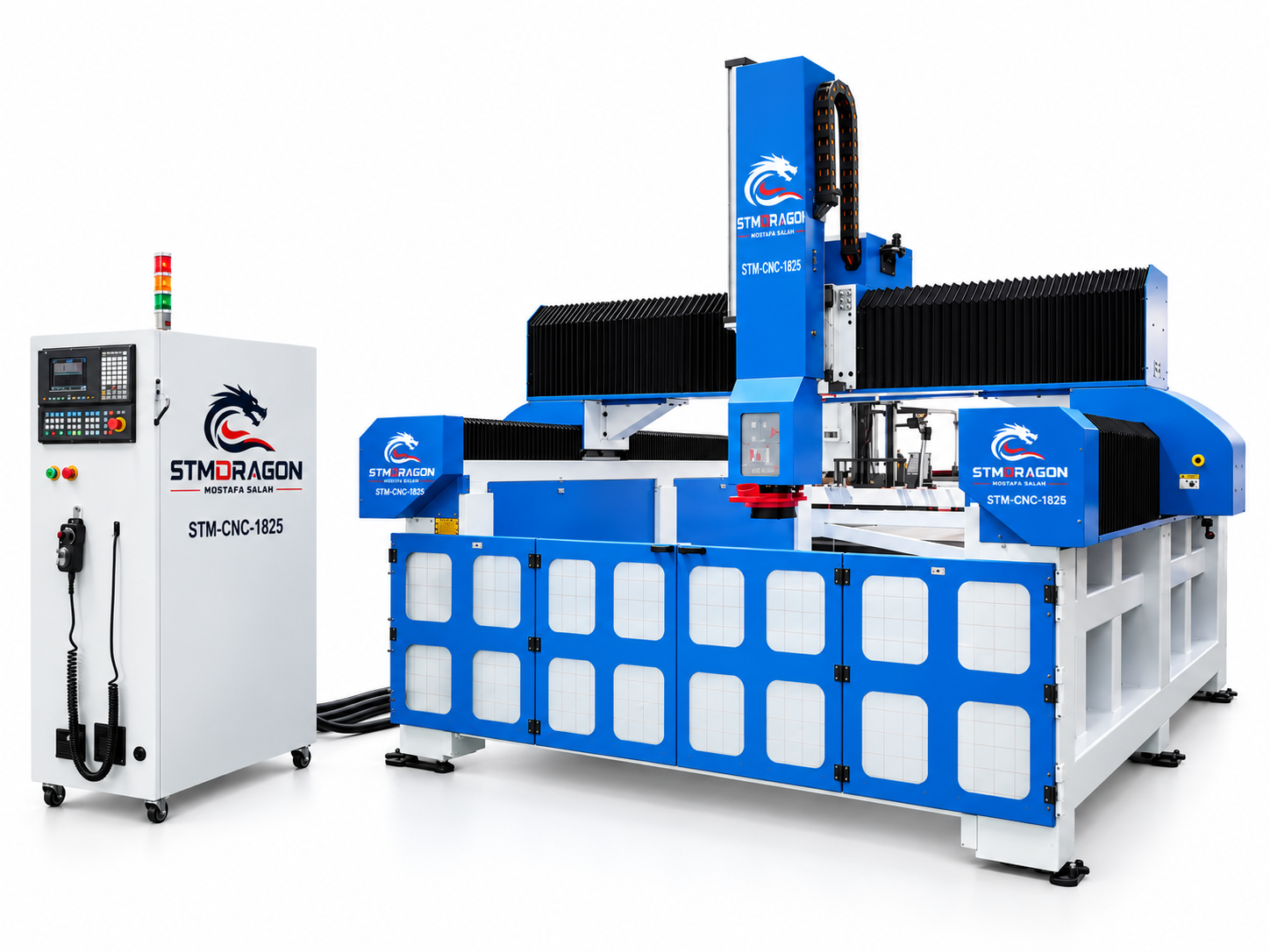

STMDRAGON STM-CNC-1825 1825 ATC EPS Foam CNC Router Machine - Image 4
CNC Routers & Machining Centers

STMDRAGON STM-CNC-1825 1825 ATC EPS Foam CNC Router Machine

STMDRAGON STM-CNC-1825 is a heavy-duty ATC EPS Foam CNC Router with an 1800 × 2500 mm working area, 9.6 kW HSD air-cooled spindle, and 8-position linear automatic tool changer. It features Taiwan Syntec control, YASKAWA servo drive, vacuum & T-slot table, and up to 60 m/min travelling speed for efficient high-volume foam processing.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-CNC-1825 1825 ATC EPS Foam CNC Router Machine

ModelSTM-CNC-1825
Machine TypeATC EPS Foam CNC Router
Working Area1800 × 2500 mm
Z-Axis Travel1100 mm
SpindleItaly 9.6 kW HSD ATC air-cooled spindle
Inverter11 kW Delta
Tool Changer8-position linear ATC
Control SystemTaiwan Syntec
Servo SystemJapan YASKAWA 850 W servo motor with 1000 W driver
Work TableVacuum & T-slot working table
Linear GuideTaiwan #30 linear guide
TransmissionHelical rack & pinion for X/Y; Taiwan TBI high-precision ball screw for Z
Machine StructureEPS machine structure
Lubrication1.5 L automatic lubrication system
CablesGermany Igus cables with CE/cUL certification
Travelling SpeedUp to 60 m/min
Working Speed0–20 m/min
Working Accuracy±0.03 mm
Re-positioning Accuracy±0.03 mm
Working Air Pressure0.8 MPa
Compatible SoftwareArtCAM, Alphacam, Type3, Ucancam, Aspire, PowerMill and others
Command LanguageG Code & M Code
Electrical220V 1PH/3PH 50/60Hz or 380V 3PH 50/60Hz
Warranty1 Year
Technical SupportFree lifetime online technical support
Overseas ServiceAvailable according to service arrangement
Shipping7–30 Days according to the supplied information
Production/HandlingTo Be Confirmed for the exact STM-CNC-1825 configuration
Applications

Applications: STMDRAGON STM-CNC-1825 1825 ATC EPS Foam CNC Router Machine

The STMDRAGON STM-CNC-1825 1825 ATC EPS Foam CNC Router is designed for efficient CNC cutting, carving, shaping, and engraving of EPS foam and similar lightweight materials. Its automatic tool-changing system helps reduce manual tool changes and improves productivity for high-volume production.

The machine features an 1800 × 2500 mm working area with 1100 mm Z-axis travel, a 9.6 kW HSD air-cooled ATC spindle, and an 8-position linear automatic tool changer. The spindle uses imported bearings for stable operation, low noise, and long service life.

Key Technical Details:

  1. Model: STM-CNC-1825
  2. Machine Type: ATC EPS Foam CNC Router
  3. Working Area: 1800 × 2500 mm
  4. Z-Axis Travel: 1100 mm
  5. Spindle: Italy 9.6 kW HSD ATC air-cooled spindle
  6. Inverter: 11 kW Delta
  7. Tool Changer: 8-position linear ATC
  8. Control System: Taiwan Syntec
  9. Servo System: Japan YASKAWA 850 W servo motor with 1000 W driver
  10. Work Table: Vacuum & T-slot working table
  11. Linear Guide: Taiwan #30 linear guide
  12. Transmission: Helical rack & pinion for X/Y; Taiwan TBI high-precision ball screw for Z
  13. Machine Structure: EPS machine structure
  14. Lubrication: 1.5 L automatic lubrication system
  15. Cables: Germany Igus cables with CE/cUL certification
  16. Travelling Speed: Up to 60 m/min
  17. Working Speed: 0–20 m/min
  18. Working Accuracy: ±0.03 mm
  19. Re-positioning Accuracy: ±0.03 mm
  20. Working Air Pressure: 0.8 MPa
  21. Compatible Software: ArtCAM, Alphacam, Type3, Ucancam, Aspire, PowerMill and others
  22. Command Language: G Code & M Code
  23. Electrical: 220V 1PH/3PH 50/60Hz or 380V 3PH 50/60Hz

Applications:

Suitable for EPS foam cutting, carving, shaping, engraving, model making, decorative foam production, packaging models, architectural models, signage and other industrial foam-processing applications.

Optional Configurations:

Rotary device, 3/5/7.5 kW dust collection system, air compressor, 12/14 kW spindle and HSK F63 tool holder options are available depending on the required configuration.

Warranty & Support:

  1. Warranty: 1 Year
  2. Technical Support: Free lifetime online technical support
  3. Overseas Service: Available according to service arrangement
  4. Shipping: 7–30 Days according to the supplied information
  5. Production/Handling: To Be Confirmed for the exact STM-CNC-1825 configuration

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 5512 kg
Dimensions 120 × 95 × 85 cm
Model

STM-CNC-1825
Machine Type

ATC EPS Foam CNC Router
Working Area

1800 × 2500 mm
Z-Axis Travel

1100 mm
Spindle

Italy 9.6 kW HSD ATC air-cooled spindle
Inverter

11 kW Delta
Tool Changer

8-position linear ATC
Control System

Taiwan Syntec
Servo System

Japan YASKAWA 850 W servo motor with 1000 W driver
Work Table

Vacuum & T-slot working table
Linear Guide

Taiwan #30 linear guide
Transmission

Helical rack & pinion for X/Y; Taiwan TBI high-precision ball screw for Z
Machine Structure

EPS machine structure
Lubrication

1.5 L automatic lubrication system
Cables

Germany Igus cables with CE/cUL certification
Travelling Speed

Up to 60 m/min
Working Speed

0–20 m/min
Working Accuracy

±0.03 mm
Re-positioning Accuracy

±0.03 mm
Working Air Pressure

0.8 MPa
Compatible Software

ArtCAM, Alphacam, Type3, Ucancam, Aspire, PowerMill and others
Command Language

G Code & M Code
Electrical

220V 1PH/3PH 50/60Hz or 380V 3PH 50/60Hz
Warranty

1 Year
Technical Support

Free lifetime online technical support
Overseas Service

Available according to service arrangement
Shipping

7–30 Days according to the supplied information
Production/Handling

To Be Confirmed for the exact STM-CNC-1825 configuration
Request a quote

Request a quote for STMDRAGON STM-CNC-1825 1825 ATC EPS Foam CNC Router Machine.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-CNC-1825 1825 ATC EPS Foam CNC Router Machine

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-CNC-1825 1825 ATC EPS Foam CNC Router Machine?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
