STMDRAGON STM-CNC-2030ATC 2030 ATC CNC Digital Cutting Oscillating Machine

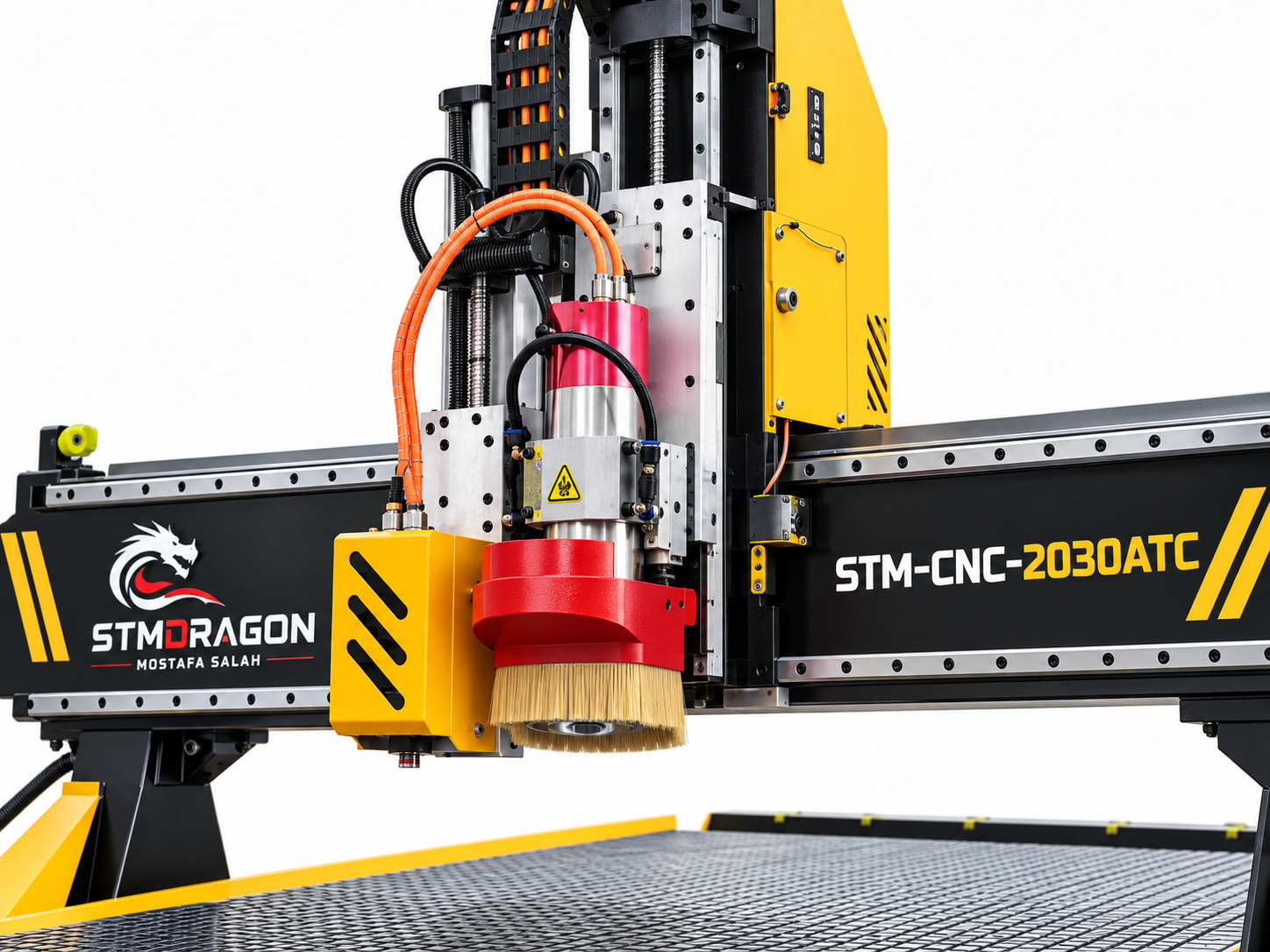

STMDRAGON STM-CNC-2030ATC 2030 ATC CNC Digital Cutting Oscillating Machine - Image 2

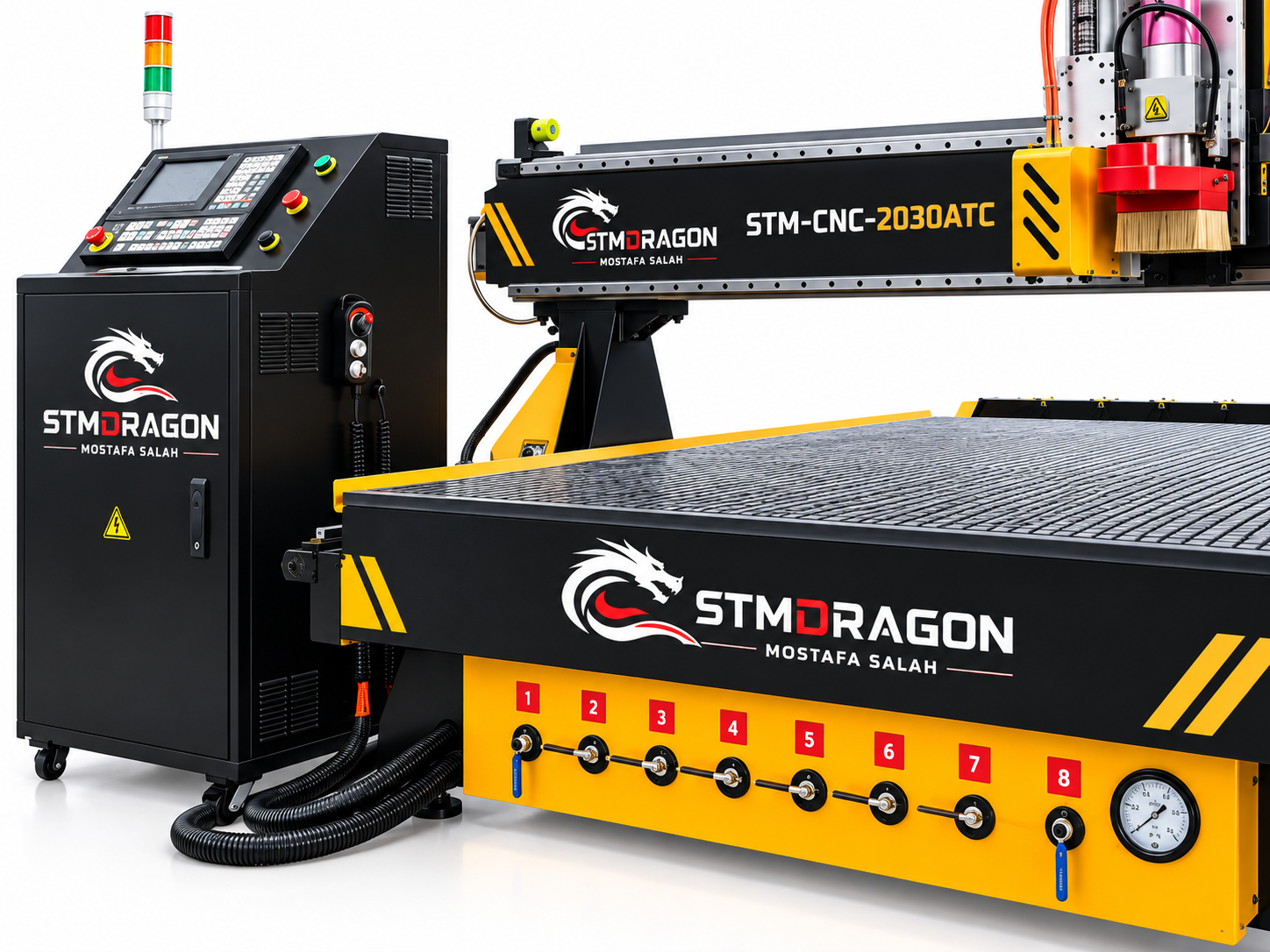

STMDRAGON STM-CNC-2030ATC 2030 ATC CNC Digital Cutting Oscillating Machine - Image 3
Digital Cutting Machinery

STMDRAGON STM-CNC-2030ATC 2030 ATC CNC Digital Cutting Oscillating Machine

The STM-CNC-2030ATC is a heavy-duty 2030 ATC CNC digital cutting and oscillating knife machine designed for automated cutting of leather, carpet, carton, cardboard, rubber, wood, MDF, acrylic and other suitable materials. It features a 2000 × 3000 mm working area, 9 kW ATC spindle, automatic tool changer, vacuum worktable and Taiwan LNC control system.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-CNC-2030ATC 2030 ATC CNC Digital Cutting Oscillating Machine

ModelSTM-CNC-2030ATC
Working Area2000 × 3000 mm
Optional Working Sizes1300 × 2500 mm, 1500 × 3000 mm, 2100 × 4000 mm, etc.
Z-Axis Travel500 mm
Spindle9 kW ATC air-cooled spindle, ISO30, ER32
Inverter11 kW
Tool ChangerLinear automatic tool changer, 8 tool magazines
Control SystemTaiwan LNC; Syntec available as an option
Drive System850 W Leadshine AC servo motor and driver, 4 sets
Optional Drive850 W Japan Yaskawa servo system
ReducerJapan SHIMPO
TableAluminum T-slot + vacuum worktable
GuideTaiwan linear guide
TransmissionHelical rack and pinion on X/Y; Taiwan TBI precision ball screw on Z
Machine BodyHeavy-duty steel structure with quenching treatment
Lubrication1.5 L automatic lubrication system
Tool CalibrationAutomatic tool sensor calibration
Traveling SpeedUp to 80 m/min
Working Speed0–25 m/min
Working Accuracy±0.03 mm
Re-positioning Accuracy±0.03 mm
System Resolution±0.0025 mm
Working Air Pressure0.6 MPa
Electrical220V 1PH/3PH 50/60Hz or 380V 3PH 50/60Hz
Compatible SoftwareArtCAM, Alphacam, Type3, Ucancam, Aspire and others
Command LanguageG Code & M Code
Warranty1 Year
Shipping7–30 Days
Applications

Applications: STMDRAGON STM-CNC-2030ATC 2030 ATC CNC Digital Cutting Oscillating Machine

The STMDRAGON STM-CNC-2030ATC 2030 ATC CNC Digital Cutting Oscillating Machine combines CNC routing, automatic tool changing and oscillating knife cutting in one industrial cutting platform. Its 2000 × 3000 mm working area is suitable for large-format production, with optional table sizes available according to project requirements.

The machine uses a 9 kW ATC air-cooled spindle with ISO30/ER32 tooling and a linear automatic tool changer with 8 tool positions. An oscillating knife system can be used for suitable soft and sheet materials such as leather, carpet, carton, cardboard and rubber, while the CNC spindle supports suitable materials including wood, MDF and acrylic.

Key Technical Features:

  1. Model: STM-CNC-2030ATC
  2. Working Area: 2000 × 3000 mm
  3. Optional Working Sizes: 1300 × 2500 mm, 1500 × 3000 mm, 2100 × 4000 mm, etc.
  4. Z-Axis Travel: 500 mm
  5. Spindle: 9 kW ATC air-cooled spindle, ISO30, ER32
  6. Inverter: 11 kW
  7. Tool Changer: Linear automatic tool changer, 8 tool magazines
  8. Control System: Taiwan LNC; Syntec available as an option
  9. Drive System: 850 W Leadshine AC servo motor and driver, 4 sets
  10. Optional Drive: 850 W Japan Yaskawa servo system
  11. Reducer: Japan SHIMPO
  12. Table: Aluminum T-slot + vacuum worktable
  13. Guide: Taiwan linear guide
  14. Transmission: Helical rack and pinion on X/Y; Taiwan TBI precision ball screw on Z
  15. Machine Body: Heavy-duty steel structure with quenching treatment
  16. Lubrication: 1.5 L automatic lubrication system
  17. Tool Calibration: Automatic tool sensor calibration
  18. Traveling Speed: Up to 80 m/min
  19. Working Speed: 0–25 m/min
  20. Working Accuracy: ±0.03 mm
  21. Re-positioning Accuracy: ±0.03 mm
  22. System Resolution: ±0.0025 mm
  23. Working Air Pressure: 0.6 MPa
  24. Electrical: 220V 1PH/3PH 50/60Hz or 380V 3PH 50/60Hz
  25. Compatible Software: ArtCAM, Alphacam, Type3, Ucancam, Aspire and others
  26. Command Language: G Code & M Code
  27. Warranty: 1 Year
  28. Shipping: 7–30 Days

Suitable Applications:

Leather cutting, carpet cutting, carton and cardboard cutting, rubber cutting, fabric and soft-material cutting, woodworking, MDF processing, acrylic cutting, signage, advertising production, furniture components, packaging and other suitable industrial cutting applications.

Optional Equipment:

Drilling bank, carousel ATC, vacuum pump, water circulation system, ring blower, dust collection system, air compressor, light curtain and alternative spindle configurations are available depending on the required configuration.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 5512 kg
Dimensions 126 × 98 × 75 cm
Model

STM-CNC-2030ATC
Working Area

2000 × 3000 mm
Optional Working Sizes

1300 × 2500 mm, 1500 × 3000 mm, 2100 × 4000 mm, etc.
Z-Axis Travel

500 mm
Spindle

9 kW ATC air-cooled spindle, ISO30, ER32
Inverter

11 kW
Tool Changer

Linear automatic tool changer, 8 tool magazines
Control System

Taiwan LNC; Syntec available as an option
Drive System

850 W Leadshine AC servo motor and driver, 4 sets
Optional Drive

850 W Japan Yaskawa servo system
Reducer

Japan SHIMPO
Table

Aluminum T-slot + vacuum worktable
Guide

Taiwan linear guide
Transmission

Helical rack and pinion on X/Y; Taiwan TBI precision ball screw on Z
Machine Body

Heavy-duty steel structure with quenching treatment
Lubrication

1.5 L automatic lubrication system
Tool Calibration

Automatic tool sensor calibration
Traveling Speed

Up to 80 m/min
Working Speed

0–25 m/min
Working Accuracy

±0.03 mm
Re-positioning Accuracy

±0.03 mm
System Resolution

±0.0025 mm
Working Air Pressure

0.6 MPa
Electrical

220V 1PH/3PH 50/60Hz or 380V 3PH 50/60Hz
Compatible Software

ArtCAM, Alphacam, Type3, Ucancam, Aspire and others
Command Language

G Code & M Code
Warranty

1 Year
Shipping

7–30 Days
Request a quote

Request a quote for STMDRAGON STM-CNC-2030ATC 2030 ATC CNC Digital Cutting Oscillating Machine.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-CNC-2030ATC 2030 ATC CNC Digital Cutting Oscillating Machine

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-CNC-2030ATC 2030 ATC CNC Digital Cutting Oscillating Machine?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
