STMDRAGON STM-CNC-2133ATC 2133 ATC CCD Camera Patrol CNC Router

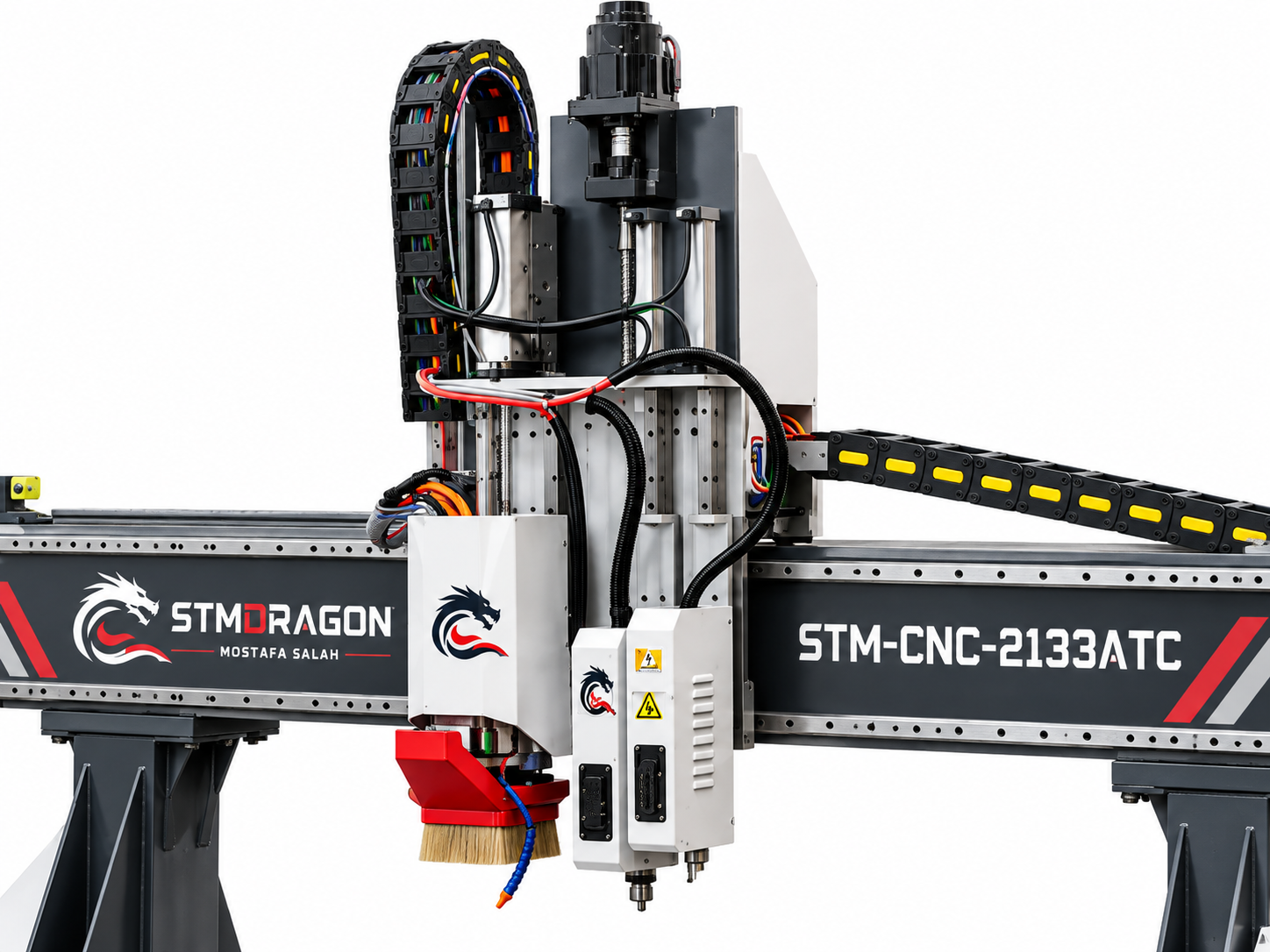

STMDRAGON STM-CNC-2133ATC 2133 ATC CCD Camera Patrol CNC Router - Image 2

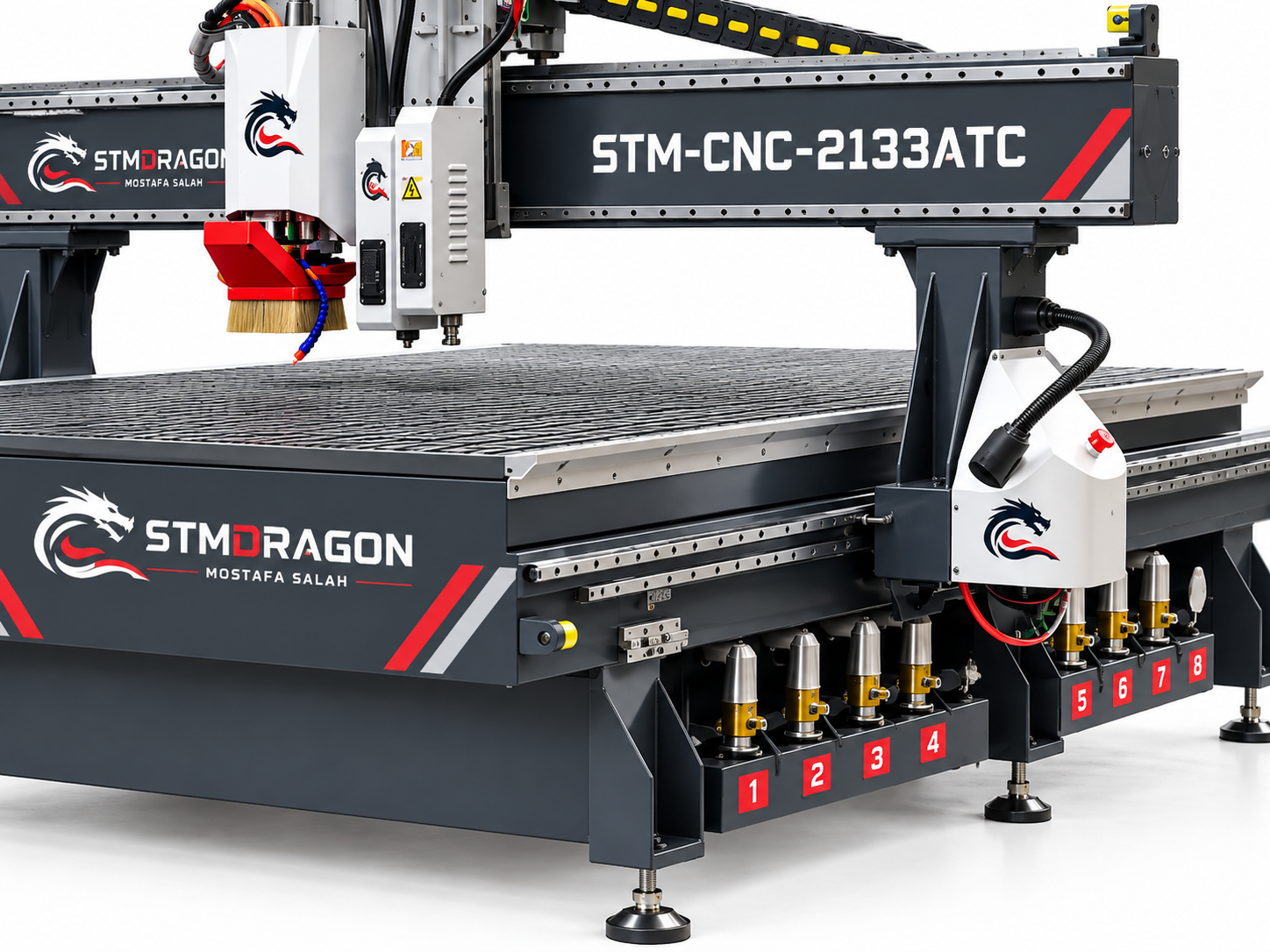

STMDRAGON STM-CNC-2133ATC 2133 ATC CCD Camera Patrol CNC Router - Image 3
CNC Routers & Machining Centers

STMDRAGON STM-CNC-2133ATC 2133 ATC CCD Camera Patrol CNC Router

The STMDRAGON STM-CNC-2133ATC is a heavy-duty 3-axis ATC CNC router with CCD camera scanning, automatic tool changing, and a 2100 × 3300 mm working area. It supports cutting, engraving, drilling, and milling with a 9 kW ATC air-cooled spindle, Syntec/LNC control, aluminum T-slot and vacuum worktable, and servo drive system.

ConfigurationCustom
Working size2100 × 3300 mm
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-CNC-2133ATC 2133 ATC CCD Camera Patrol CNC Router

ModelSTM-CNC-2133ATC
Machine Type3-Axis ATC CNC Router with CCD Camera
Working Size2100 × 3300 mm
Optional Sizes1500 × 3000 mm, 2100 × 3000 mm, 2100 × 4000 mm, etc.
Z-Axis Travel200 mm; optional 300–600 mm
Spindle9 kW ATC air-cooled, ISO30, ER32
Inverter11 kW
Tool ChangerCarousel type automatic tool changer
ControllerTaiwan Syntec/LNC; NCStudio optional
Servo System1 kW Japan YASKAWA AC servo drivers with 850 W AC servo motors, 4 sets
ReducerJapan SHIMPO
Guide RailTaiwan linear guide with dust protection
TransmissionHelical rack and pinion for X/Y; Taiwan TBI precision ball screw for Z
WorktableAluminum T-slot & vacuum worktable
Machine BodyHeavy-duty steel body with quenching treatment
Lubrication1.5 L automatic lubrication system
Tool CalibrationAutomatic tool sensor calibration
Traveling SpeedUp to 80 m/min
Working Speed0–25 m/min
Re-positioning Accuracy±0.03 mm
Working Accuracy±0.03 mm
System Resolution±0.0025 mm
Working Air Pressure0.6 MPa
Electrical220V 1PH/3PH 50/60Hz or 380V 3PH 50/60Hz
Software CompatibilityArtCAM, Alphacam, Type3, Ucancam, Aspire, etc.
Command LanguageG Code & M Code
StandardsCE, ISO9001
Optional EquipmentDrilling bank, positioning cylinder, vacuum pump, dust collection system, air compressor, light curtain, and upgraded spindle options can be configured according to production requirements.
Warranty1 Year
Shipping7–30 Days according to the supplied information.
Production/HandlingTo Be Confirmed for the exact STM-CNC-2133ATC configuration.
Applications

Applications: STMDRAGON STM-CNC-2133ATC 2133 ATC CCD Camera Patrol CNC Router

The STMDRAGON STM-CNC-2133ATC is a heavy-duty CCD Camera Patrol CNC Router designed for high-efficiency cutting, engraving, drilling, milling, and pattern-edge scanning. The CCD camera helps detect and follow printed or shaped pattern edges, while the automatic tool changer allows different tools to be selected according to machining requirements.

The machine features a 2100 × 3300 mm working area with optional table sizes, a 200 mm Z-axis travel, 9 kW ATC air-cooled spindle, 11 kW inverter, and carousel-type automatic tool changer. A linear ATC option is also available. The machine uses Taiwan Syntec/LNC control, with NCStudio available as an option.

Key Technical Details

  1. Model: STM-CNC-2133ATC
  2. Machine Type: 3-Axis ATC CNC Router with CCD Camera
  3. Working Size: 2100 × 3300 mm
  4. Optional Sizes: 1500 × 3000 mm, 2100 × 3000 mm, 2100 × 4000 mm, etc.
  5. Z-Axis Travel: 200 mm; optional 300–600 mm
  6. Spindle: 9 kW ATC air-cooled, ISO30, ER32
  7. Inverter: 11 kW
  8. Tool Changer: Carousel type automatic tool changer
  9. Controller: Taiwan Syntec/LNC; NCStudio optional
  10. Servo System: 1 kW Japan YASKAWA AC servo drivers with 850 W AC servo motors, 4 sets
  11. Reducer: Japan SHIMPO
  12. Guide Rail: Taiwan linear guide with dust protection
  13. Transmission: Helical rack and pinion for X/Y; Taiwan TBI precision ball screw for Z
  14. Worktable: Aluminum T-slot & vacuum worktable
  15. Machine Body: Heavy-duty steel body with quenching treatment
  16. Lubrication: 1.5 L automatic lubrication system
  17. Tool Calibration: Automatic tool sensor calibration
  18. Traveling Speed: Up to 80 m/min
  19. Working Speed: 0–25 m/min
  20. Re-positioning Accuracy: ±0.03 mm
  21. Working Accuracy: ±0.03 mm
  22. System Resolution: ±0.0025 mm
  23. Working Air Pressure: 0.6 MPa
  24. Electrical: 220V 1PH/3PH 50/60Hz or 380V 3PH 50/60Hz
  25. Software Compatibility: ArtCAM, Alphacam, Type3, Ucancam, Aspire, etc.
  26. Command Language: G Code & M Code
  27. Standards: CE, ISO9001

The STM-CNC-2133ATC is suitable for diversified CNC processing where automatic tool changes and accurate pattern recognition are required. Depending on the selected tooling and configuration, it can be used for woodworking, signage, furniture components, decorative panels, pattern cutting, engraving, drilling, milling, and other CNC manufacturing applications.

Optional Equipment: Drilling bank, positioning cylinder, vacuum pump, dust collection system, air compressor, light curtain, and upgraded spindle options can be configured according to production requirements.

Warranty: 1 Year

Shipping: 7–30 Days according to the supplied information.

Production/Handling: To Be Confirmed for the exact STM-CNC-2133ATC configuration.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 1650 kg
Dimensions 95 × 45 × 55 cm
Model

STM-CNC-2133ATC
Machine Type

3-Axis ATC CNC Router with CCD Camera
Working Size

2100 × 3300 mm
Optional Sizes

1500 × 3000 mm, 2100 × 3000 mm, 2100 × 4000 mm, etc.
Z-Axis Travel

200 mm; optional 300–600 mm
Spindle

9 kW ATC air-cooled, ISO30, ER32
Inverter

11 kW
Tool Changer

Carousel type automatic tool changer
Controller

Taiwan Syntec/LNC; NCStudio optional
Servo System

1 kW Japan YASKAWA AC servo drivers with 850 W AC servo motors, 4 sets
Reducer

Japan SHIMPO
Guide Rail

Taiwan linear guide with dust protection
Transmission

Helical rack and pinion for X/Y; Taiwan TBI precision ball screw for Z
Worktable

Aluminum T-slot & vacuum worktable
Machine Body

Heavy-duty steel body with quenching treatment
Lubrication

1.5 L automatic lubrication system
Tool Calibration

Automatic tool sensor calibration
Traveling Speed

Up to 80 m/min
Working Speed

0–25 m/min
Re-positioning Accuracy

±0.03 mm
Working Accuracy

±0.03 mm
System Resolution

±0.0025 mm
Working Air Pressure

0.6 MPa
Electrical

220V 1PH/3PH 50/60Hz or 380V 3PH 50/60Hz
Software Compatibility

ArtCAM, Alphacam, Type3, Ucancam, Aspire, etc.
Command Language

G Code & M Code
Standards

CE, ISO9001
Optional Equipment

Drilling bank, positioning cylinder, vacuum pump, dust collection system, air compressor, light curtain, and upgraded spindle options can be configured according to production requirements.
Warranty

1 Year
Shipping

7–30 Days according to the supplied information.
Production/Handling

To Be Confirmed for the exact STM-CNC-2133ATC configuration.
