The STMDRAGON STM-ELECNC-1331 650W CO2 Laser Cutting Machine is designed for high-power cutting applications in advertising, woodworking, furniture manufacturing, textile and other non-metal processing industries. Its 1300 × 3100 mm processing area provides a large working format for sheets and other production materials.
Key Technical Details
- Model: STM-ELECNC-1331
- Laser Power: 650W CO2 Laser
- Laser Type: Sealed CO2 Glass Laser Tube

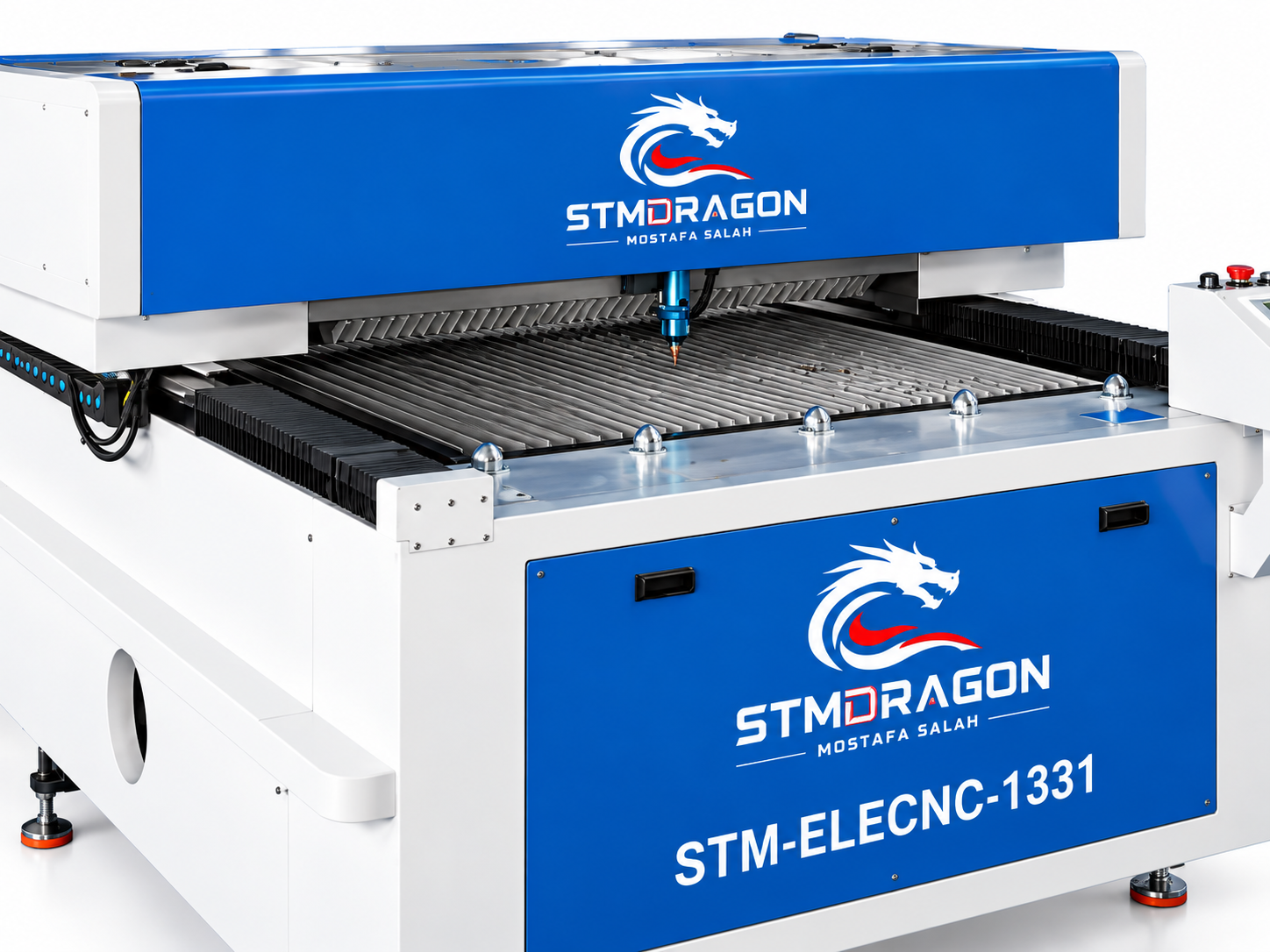

- Processing Area: 1300 × 3100 mm

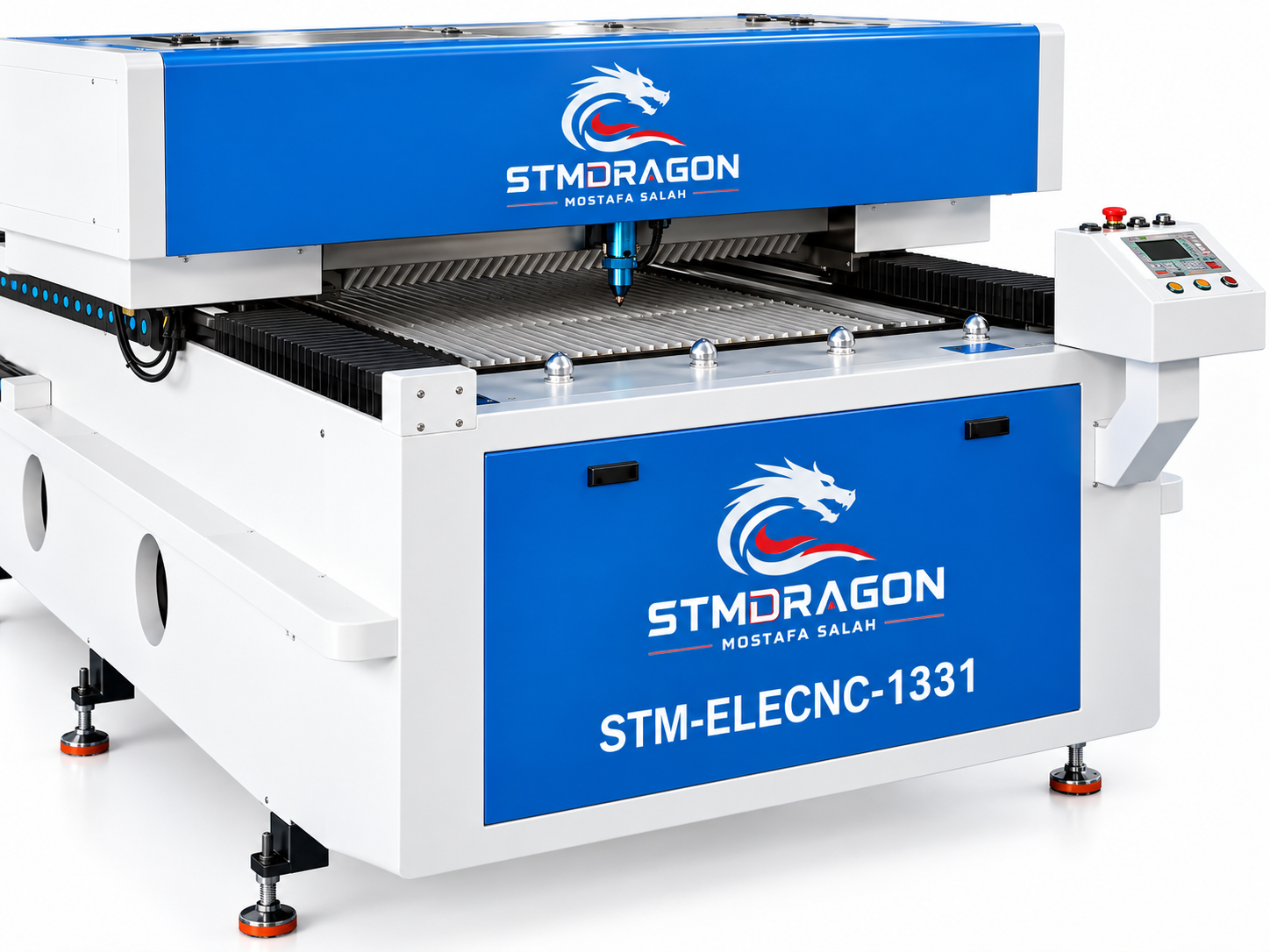

- Control System: RUIDA6445G
- Cutting Speed: 0–600 mm/s
- Cutting Thickness: Up to 25 mm acrylic; other materials depend on material characteristics and cutting conditions
- Working Table: Honeycomb Table
- Positioning: Red Dot Positioning
- Motor & Drive: Servo Motor and Drive
- Cooling System: CW6200 Water Cooler
- Working Voltage: 220V
- Frequency: 60Hz
- Phase: 1 Phase
- Supported Formats: PLT, DXF, AI, BMP, RLD
- Machine Structure: Heavy-duty square-tube welded frame with integrated beam
- Safety Features: Fire-prevention and smoke-exhaust systems
- Packing: Wooden Box
Suitable Materials & Applications
Suitable for cutting and processing acrylic, plexiglass, wood, MDF, textile and other compatible non-metallic materials.
Important Sectors:
Advertising & Sign Making, Woodworking, Furniture Manufacturing, Textile, Acrylic Processing, Decorative Products and General Non-Metal Fabrication.
Main Benefits
The heavy-duty welded structure and integrated beam help provide stable movement during operation. The upper and lower smoke-exhaust arrangement supports efficient fume removal, while the water-cooled laser system helps maintain stable laser output during continuous work. The machine also allows convenient material loading from around the working area.
Warranty & Shipping
- Warranty: 1 Year
- Shipping: 7–30 Days according to the supplied information
- After-Sale Service: Free lifetime online technical support; overseas service available
