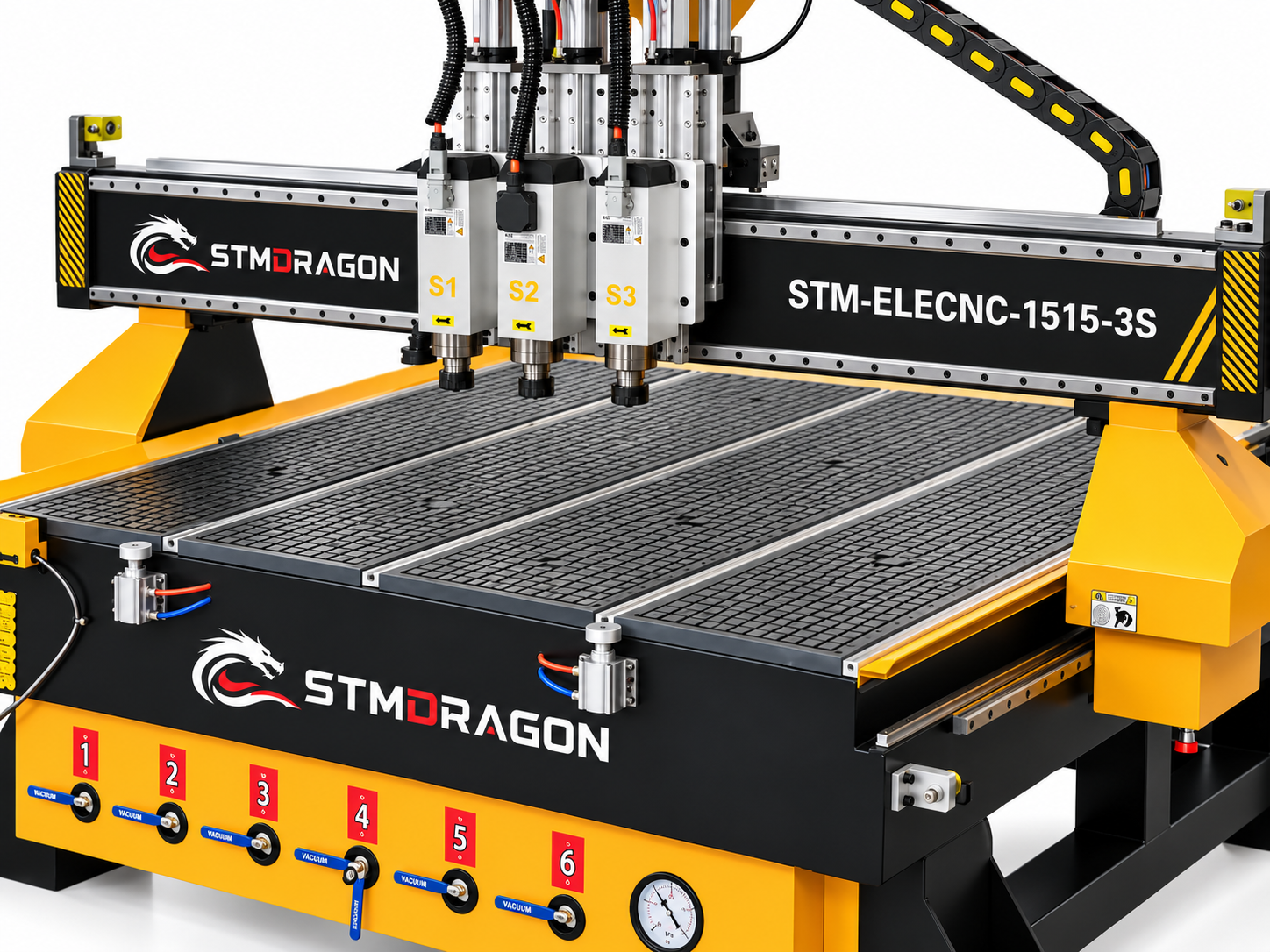

The STMDRAGON STM-ELECNC-1515-3S is a heavy-duty CCD Camera CNC Router with 3 Spindles, designed for diversified woodworking and CNC processing applications. The machine can perform cutting, engraving, drilling and milling operations, while its CCD camera system helps identify positioning marks for efficient and accurate processing.
The standard working area is 1525 × 1525 mm, with optional sizes including 1300 × 2500 mm, 1500 × 3000 mm and 2000 × 3000 mm. The Z-axis travel is 200 mm, with optional 300 mm and 400 mm configurations.
Key Technical Features:
- Model: STM-ELECNC-1515-3S
- Machine Type: 3-Spindle CCD Camera CNC Router
- Working Area: 1525 × 1525 mm
- Z-Axis Travel: 200 mm

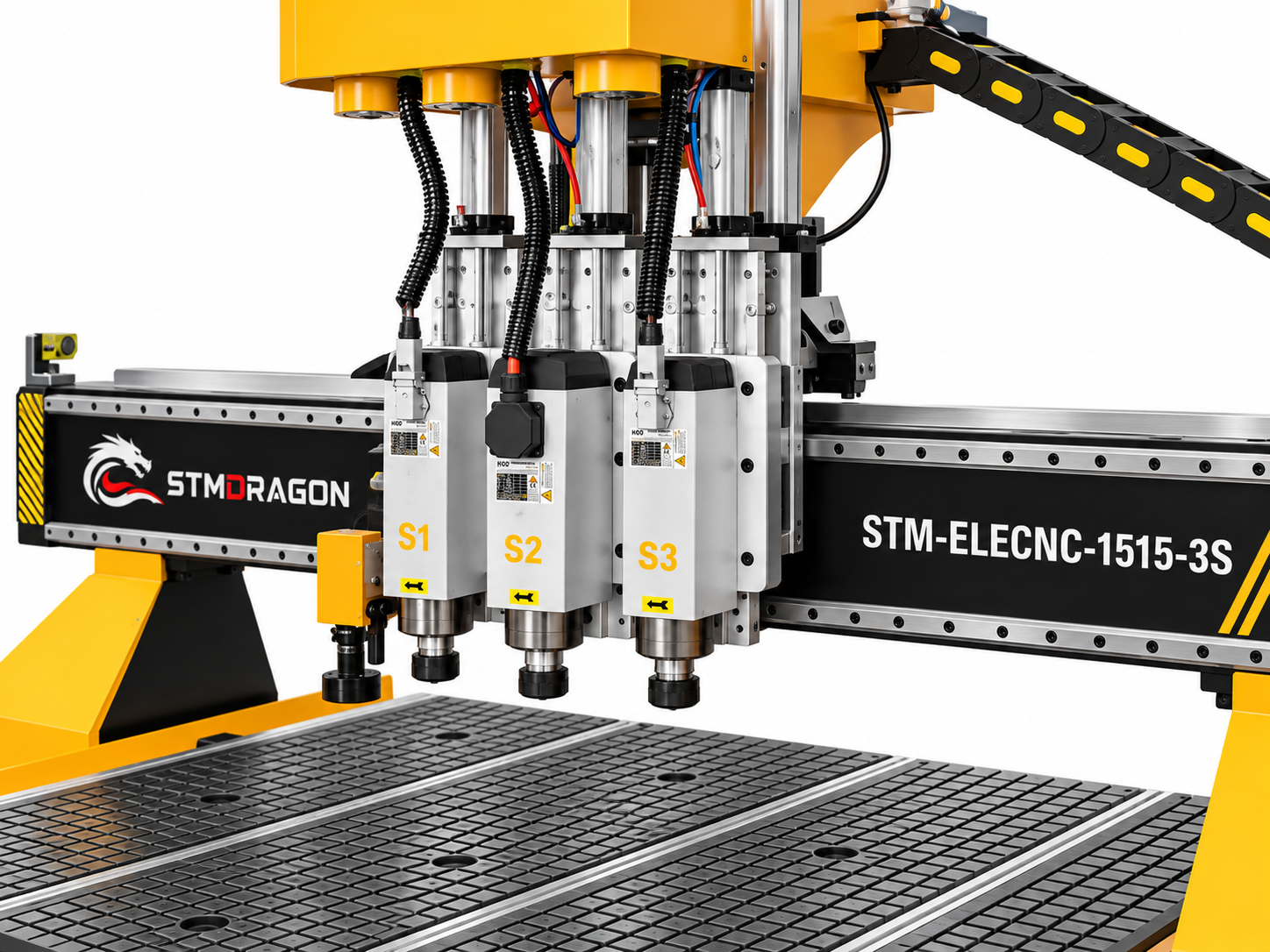

- Spindle Configuration: 6 kW HQD spindle × 1 + 3.5 kW HQD spindle × 2
- Spindle Speed: 18,000 RPM
- Inverter: 7.5 kW
- Control System: Taiwan SYNTEC / LNC
- Drive System: 850 W Leadshine AC servo motors × 4
- Table: Aluminum T-slot + vacuum work table
- Guide Rail: Taiwan linear guide
- Transmission: Taiwan/Germany helical rack and pinion
- Z-Axis Transmission: Taiwan TBI high-precision ball screw
- Positioning Cylinders: 5 pieces — X2, Y3
- Machine Structure: Heavy-duty steel body with quenching treatment
- Lubrication: Automatic lubrication system
- Tool Calibration: Automatic tool sensor calibration
- Cables: Germany Igus cables with CE/cUL certification
- Traveling Speed: 50 m/min
- Working Speed: 0–25 m/min
- Working Accuracy: ±0.03 mm
- Re-positioning Accuracy: ±0.03 mm
- System Resolution: ±0.0025 mm
- Command Language: G Code & M Code
The machine supports ER32 and ER25 collets with commonly supplied sizes including φ4, φ6, 1/8 and 1/2 inch. Compatible software includes PowerMill, UG, Alphacam and Fusion 360.
It is suitable for professional CNC production involving woodworking, furniture, signs, decorative panels, engraving, drilling, milling and other routing applications. Aluminum and other material processing should be confirmed according to the selected tooling, spindle configuration, material thickness and required cutting conditions.
Electrical Configuration:
The supplied specifications list 220V 1PH/3PH 50/60Hz and 380V 3PH 50/60Hz. The final electrical configuration should be confirmed before ordering.
Optional Equipment:
Vacuum pumps, water circulation systems, ring blowers, oil-free rotary vane pumps, dust collection systems, air compressors, light curtains and industrial rotary devices are available as optional configurations.
Warranty: 1 Year Limited Warranty for the Entire Machine.
Shipping: 7–30 Days according to the supplied information.
