STMDRAGON STM-EW3 5 Axis CNC Router with Moving Column Gantry

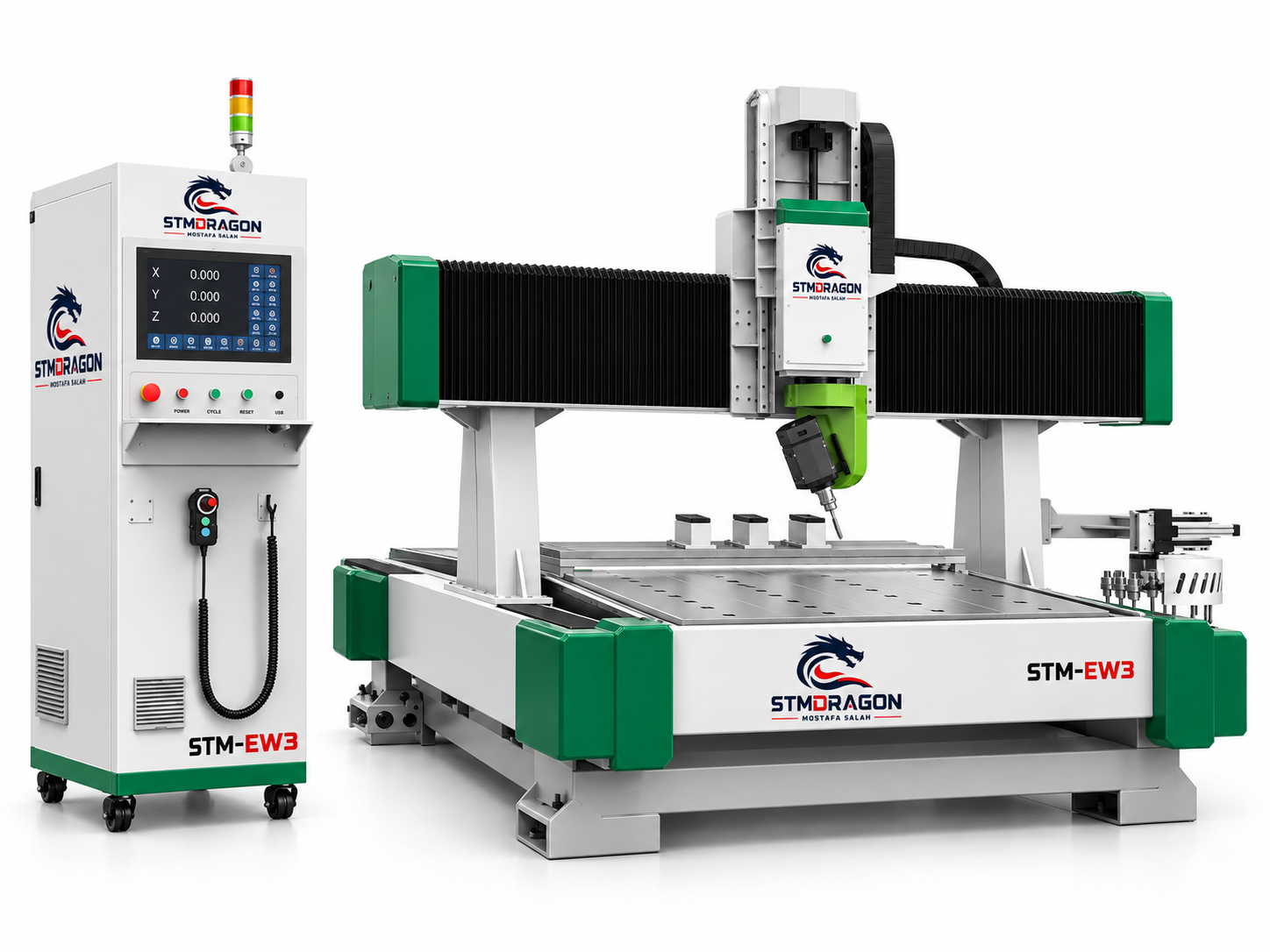

The STMDRAGON STM-EW3 is a heavy-duty 5-axis CNC router with a moving column gantry designed for large-format and complex 3D machining. With a 2000 × 6000 mm worktable, 5-axis cutting head, HITECO/Changchuan spindle options, SYNTEC 610-E5 control, and vacuum/T-slot table, it is suitable for wood, foam, molds, and advanced industrial applications.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-EW3 5 Axis CNC Router with Moving Column Gantry

ModelSTM-EW3
Machine Type5 Axis CNC Router / CNC Machining Center
Table Size2000 × 6000 mm
X-Axis Travel1300–2000 mm
Y-Axis Travel2000–6000 mm
Z-Axis Travel300–600 mm
SpindleHITECO 10 kW / Changchuan 14 kW

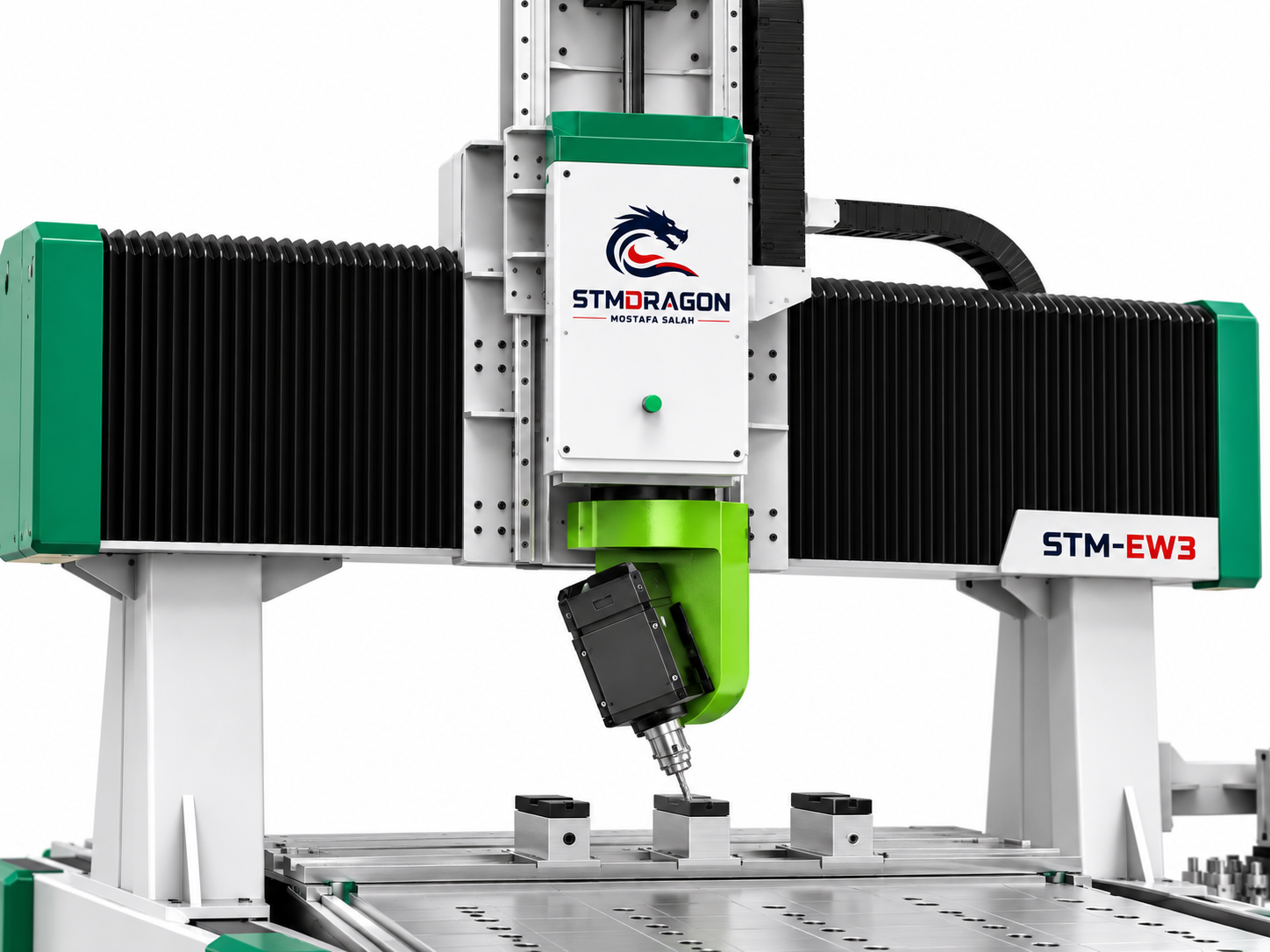

5-Axis Cutting HeadHITECO / LX500
Tool Magazine8-position carousel tool changer, HSK F63

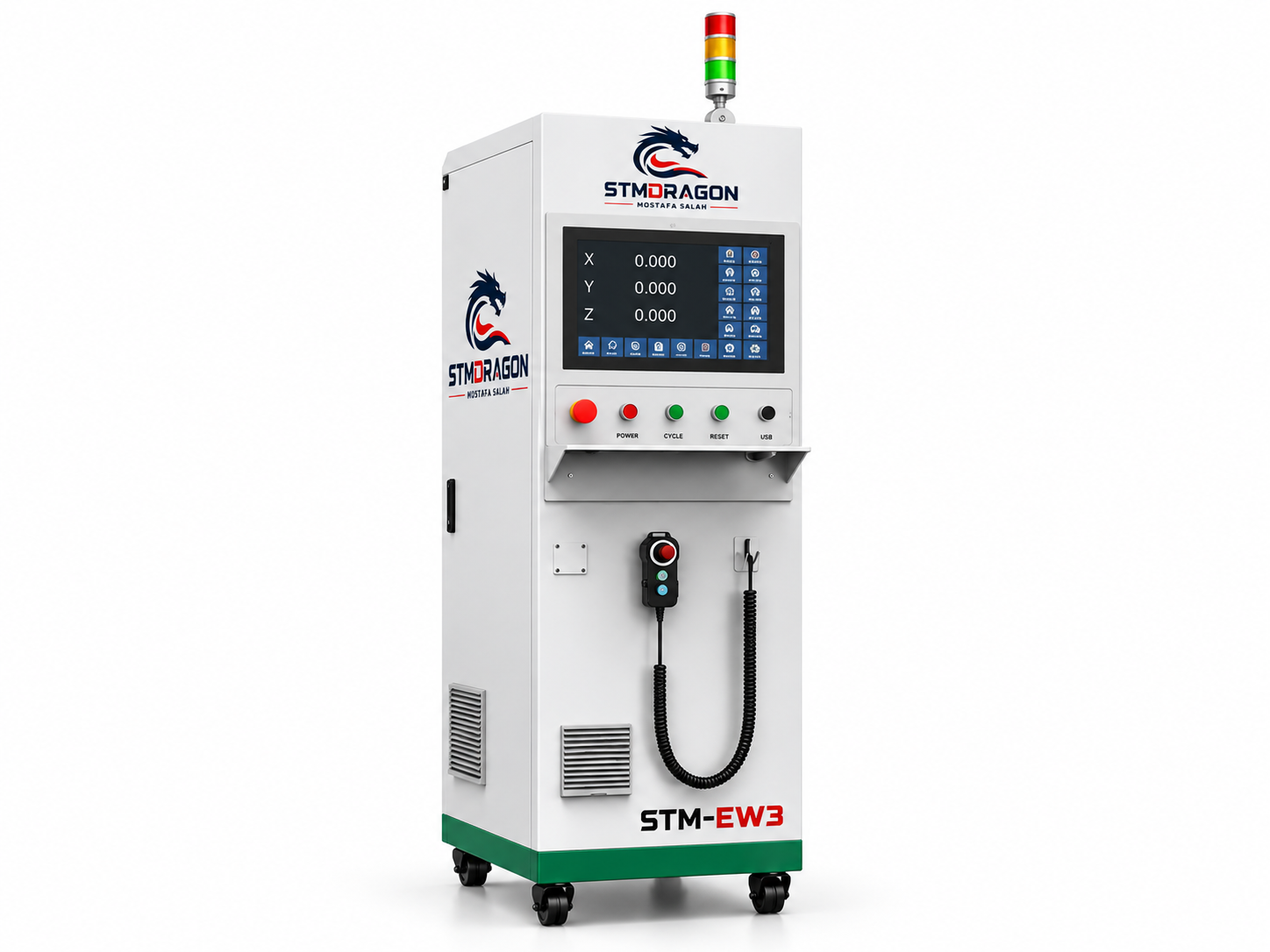

Control SystemSYNTEC 610-E5 5-axis control with RTCP functions
Inverter15 kW Delta
Driving SystemJapan YASKAWA servo motors
Servo ConfigurationX 1.3 kW, Y 1.3 kW × 2, Z 1.8 kW
WorktableT-slot & vacuum working table
Linear GuideTaiwan 35# for X/Y axis and 30# for Z axis
ReducerJapan SHIMPO × 3
CoolingWater cooling system
CablesGermany Igus cables with CE/cUL certification
StandardsCE, ISO9001
Warranty1 Year
Shipping7–30 Days according to the supplied information.
After-Sales ServiceFree lifetime online technical support and overseas service.
Applications

Applications: STMDRAGON STM-EW3 5 Axis CNC Router with Moving Column Gantry

The STMDRAGON STM-EW3 5 Axis CNC Router with Moving Column Gantry is designed for large workpieces, complex 3D surfaces, molds, and precision machining. Its dynamic moving-column gantry keeps the workpiece fixed on the table while the gantry moves along the machine bed, providing a large processing area and stable machining performance.

Key Specifications & Features:

  1. Model: STM-EW3
  2. Machine Type: 5 Axis CNC Router / CNC Machining Center
  3. Table Size: 2000 × 6000 mm
  4. X-Axis Travel: 1300–2000 mm
  5. Y-Axis Travel: 2000–6000 mm
  6. Z-Axis Travel: 300–600 mm
  7. Spindle: HITECO 10 kW / Changchuan 14 kW
  8. 5-Axis Cutting Head: HITECO / LX500
  9. Tool Magazine: 8-position carousel tool changer, HSK F63
  10. Control System: SYNTEC 610-E5 5-axis control with RTCP functions
  11. Inverter: 15 kW Delta
  12. Driving System: Japan YASKAWA servo motors
  13. Servo Configuration: X 1.3 kW, Y 1.3 kW × 2, Z 1.8 kW
  14. Worktable: T-slot & vacuum working table
  15. Linear Guide: Taiwan 35# for X/Y axis and 30# for Z axis
  16. Reducer: Japan SHIMPO × 3
  17. Cooling: Water cooling system
  18. Cables: Germany Igus cables with CE/cUL certification
  19. Standards: CE, ISO9001

The moving-column design allows the machine to handle large workpieces while maintaining stable and accurate multi-axis machining. Five-axis movement enables machining from multiple directions without repeatedly reclamping the workpiece, making the machine suitable for complex contours, 3D surfaces, molds, and detailed industrial components.

Applications:

Suitable for mold manufacturing, woodworking, foam processing, aerospace components, automotive manufacturing, large 3D models, and other advanced manufacturing applications.

Warranty: 1 Year

Shipping: 7–30 Days according to the supplied information.

After-Sales Service: Free lifetime online technical support and overseas service.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 22000 kg
Dimensions 250 × 100 × 105 cm
Model

STM-EW3
Machine Type

5 Axis CNC Router / CNC Machining Center
Table Size

2000 × 6000 mm
X-Axis Travel

1300–2000 mm
Y-Axis Travel

2000–6000 mm
Z-Axis Travel

300–600 mm
Spindle

HITECO 10 kW / Changchuan 14 kW
5-Axis Cutting Head

HITECO / LX500
Tool Magazine

8-position carousel tool changer, HSK F63
Control System

SYNTEC 610-E5 5-axis control with RTCP functions
Inverter

15 kW Delta
Driving System

Japan YASKAWA servo motors
Servo Configuration

X 1.3 kW, Y 1.3 kW × 2, Z 1.8 kW
Worktable

T-slot & vacuum working table
Linear Guide

Taiwan 35# for X/Y axis and 30# for Z axis
Reducer

Japan SHIMPO × 3
Cooling

Water cooling system
Cables

Germany Igus cables with CE/cUL certification
Standards

CE, ISO9001
Warranty

1 Year
Shipping

7–30 Days according to the supplied information.
After-Sales Service

Free lifetime online technical support and overseas service.
Request a quote

Request a quote for STMDRAGON STM-EW3 5 Axis CNC Router with Moving Column Gantry.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-EW3 5 Axis CNC Router with Moving Column Gantry

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-EW3 5 Axis CNC Router with Moving Column Gantry?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
