STMDRAGON STM-MCCW30 General 4-in-1 Fiber Laser Welding Machine

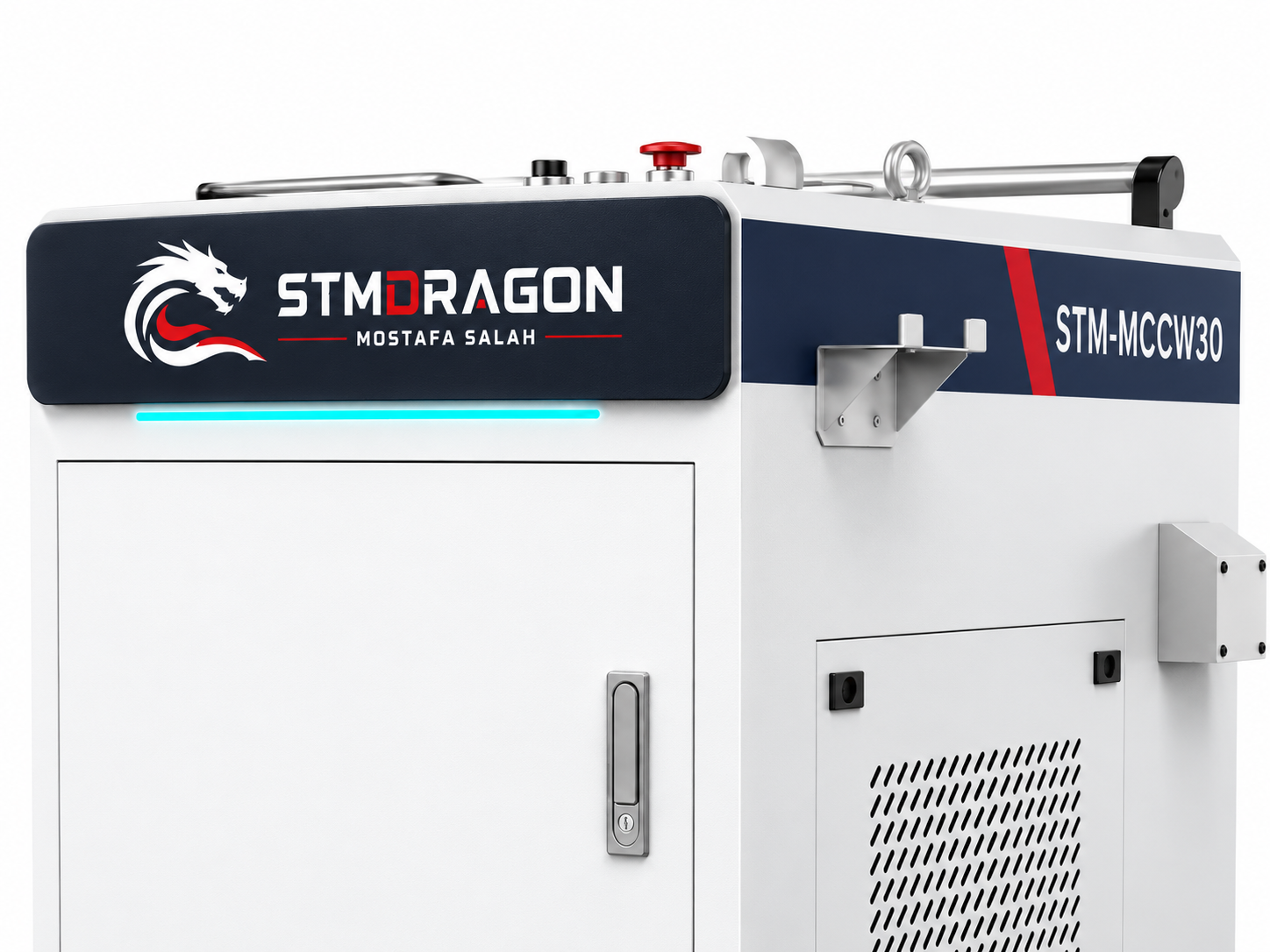

STMDRAGON STM-MCCW30 General 4-in-1 Fiber Laser Welding Machine - Image 2

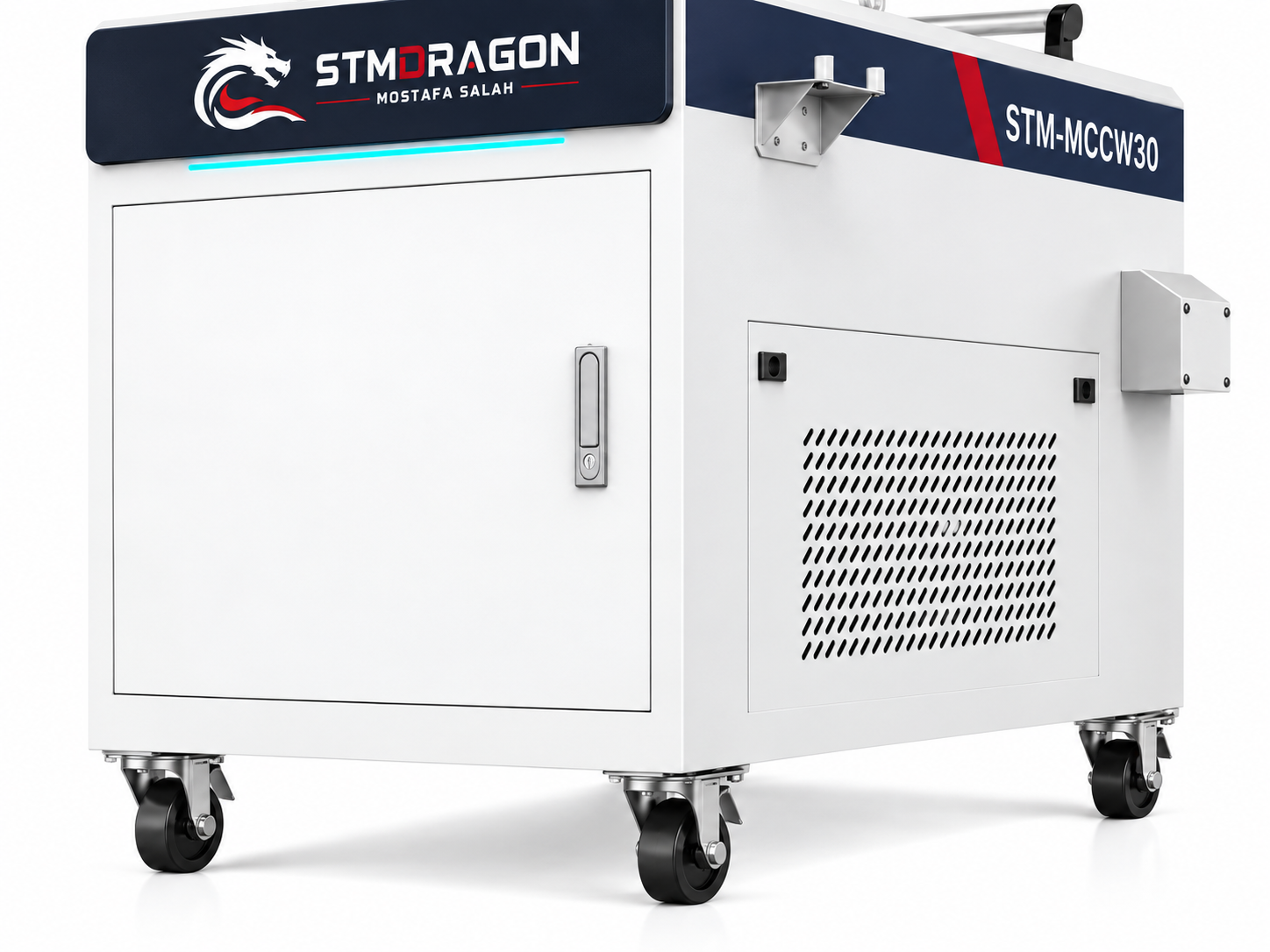

STMDRAGON STM-MCCW30 General 4-in-1 Fiber Laser Welding Machine - Image 3
Laser Welding & Cleaning

STMDRAGON STM-MCCW30 General 4-in-1 Fiber Laser Welding Machine

STMDRAGON STM-MCCW30 is a General 4-in-1 fiber laser machine combining welding, cleaning, cutting, and weld seam cleaning in one handheld system. Equipped with a Maxphotonics 3000W fiber laser, Hanli 3000 water chiller, and flexible multi-language control, it is designed for metal processing applications including stainless steel, aluminum alloy, carbon steel, and galvanized sheet.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-MCCW30 General 4-in-1 Fiber Laser Welding Machine

ModelSTM-MCCW30
Machine TypeGeneral 4-in-1 Fiber Laser Machine
FunctionsWelding, Cleaning, Cutting & Weld Seam Cleaning
Fiber LaserMaxphotonics 3000W
Control SystemChao Qiang / Relfar configuration
Water ChillerHanli 3000
Cleaning WidthChao Qiang 30/70/120 mm; Relfar 80 mm
Ideal Cleaning Thickness0.5 mm
Cutting ThicknessUp to 2 mm according to supplied specifications
Fiber Cable10 m, with 8 m exposed length
Fiber LengthCustomization up to 20 m supported
Languages17 languages with independent switching
OperationHandheld and designed for convenient operation
Suitable MetalsStainless steel, aluminum alloy, galvanized sheet and carbon steel
Warranty1 Year
Shipping7–30 Days according to supplied information.
Production/HandlingTo Be Confirmed for the exact STM-MCCW30 configuration.
After-Sales SupportFree lifetime online technical support; overseas service is available according to supplier terms.
Applications

Applications: STMDRAGON STM-MCCW30 General 4-in-1 Fiber Laser Welding Machine

The STMDRAGON STM-MCCW30 General 4-in-1 Fiber Laser Welding Machine combines multiple metal-processing functions in one compact handheld laser system. It supports welding, laser cleaning, cutting, and weld seam cleaning, allowing operators to switch functions according to the required application.

The machine uses a Maxphotonics 3000W fiber laser with a Hanli 3000 water chiller. Its cleaning system supports different cleaning widths depending on the selected control configuration, while the laser cleaning function can remove rust, paint, oil, coatings, dust, and other surface contaminants.

Key Product Details

  1. Model: STM-MCCW30
  2. Machine Type: General 4-in-1 Fiber Laser Machine
  3. Functions: Welding, Cleaning, Cutting & Weld Seam Cleaning
  4. Fiber Laser: Maxphotonics 3000W
  5. Control System: Chao Qiang / Relfar configuration
  6. Water Chiller: Hanli 3000
  7. Cleaning Width: Chao Qiang 30/70/120 mm; Relfar 80 mm
  8. Ideal Cleaning Thickness: 0.5 mm
  9. Cutting Thickness: Up to 2 mm according to supplied specifications
  10. Fiber Cable: 10 m, with 8 m exposed length
  11. Fiber Length: Customization up to 20 m supported
  12. Languages: 17 languages with independent switching
  13. Operation: Handheld and designed for convenient operation
  14. Suitable Metals: Stainless steel, aluminum alloy, galvanized sheet and carbon steel

Main Applications

The STM-MCCW30 can be used for metal welding and surface treatment applications where multiple laser processes are required. It is suitable for welding metal components, cutting thinner metal sheets, removing rust and paint, cleaning oil and coatings, and cleaning weld seams.

Important Buyer Information

The final configuration should be confirmed before ordering, including the selected control system, laser head configuration, cleaning width, fiber length, electrical requirements, and application-specific cutting/welding capability.

Warranty: 1 Year

Shipping: 7–30 Days according to supplied information.

Production/Handling: To Be Confirmed for the exact STM-MCCW30 configuration.

After-Sales Support: Free lifetime online technical support; overseas service is available according to supplier terms.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 1540 kg
Dimensions 59 × 43 × 53 cm
Model

STM-MCCW30
Machine Type

General 4-in-1 Fiber Laser Machine
Functions

Welding, Cleaning, Cutting & Weld Seam Cleaning
Fiber Laser

Maxphotonics 3000W
Control System

Chao Qiang / Relfar configuration
Water Chiller

Hanli 3000
Cleaning Width

Chao Qiang 30/70/120 mm; Relfar 80 mm
Ideal Cleaning Thickness

0.5 mm
Cutting Thickness

Up to 2 mm according to supplied specifications
Fiber Cable

10 m, with 8 m exposed length
Fiber Length

Customization up to 20 m supported
Languages

17 languages with independent switching
Operation

Handheld and designed for convenient operation
Suitable Metals

Stainless steel, aluminum alloy, galvanized sheet and carbon steel
Warranty

1 Year
Shipping

7–30 Days according to supplied information.
Production/Handling

To Be Confirmed for the exact STM-MCCW30 configuration.
After-Sales Support

Free lifetime online technical support; overseas service is available according to supplier terms.
Request a quote

Request a quote for STMDRAGON STM-MCCW30 General 4-in-1 Fiber Laser Welding Machine.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-MCCW30 General 4-in-1 Fiber Laser Welding Machine

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-MCCW30 General 4-in-1 Fiber Laser Welding Machine?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
