Grooves boards or cuts solid wood, MDF and composite panels into narrow strips.
Operation
Grooves boards or cuts panels into narrow strips.
Applications
Solid wood, MDF and composite panel processing.
Woodworking Machinery

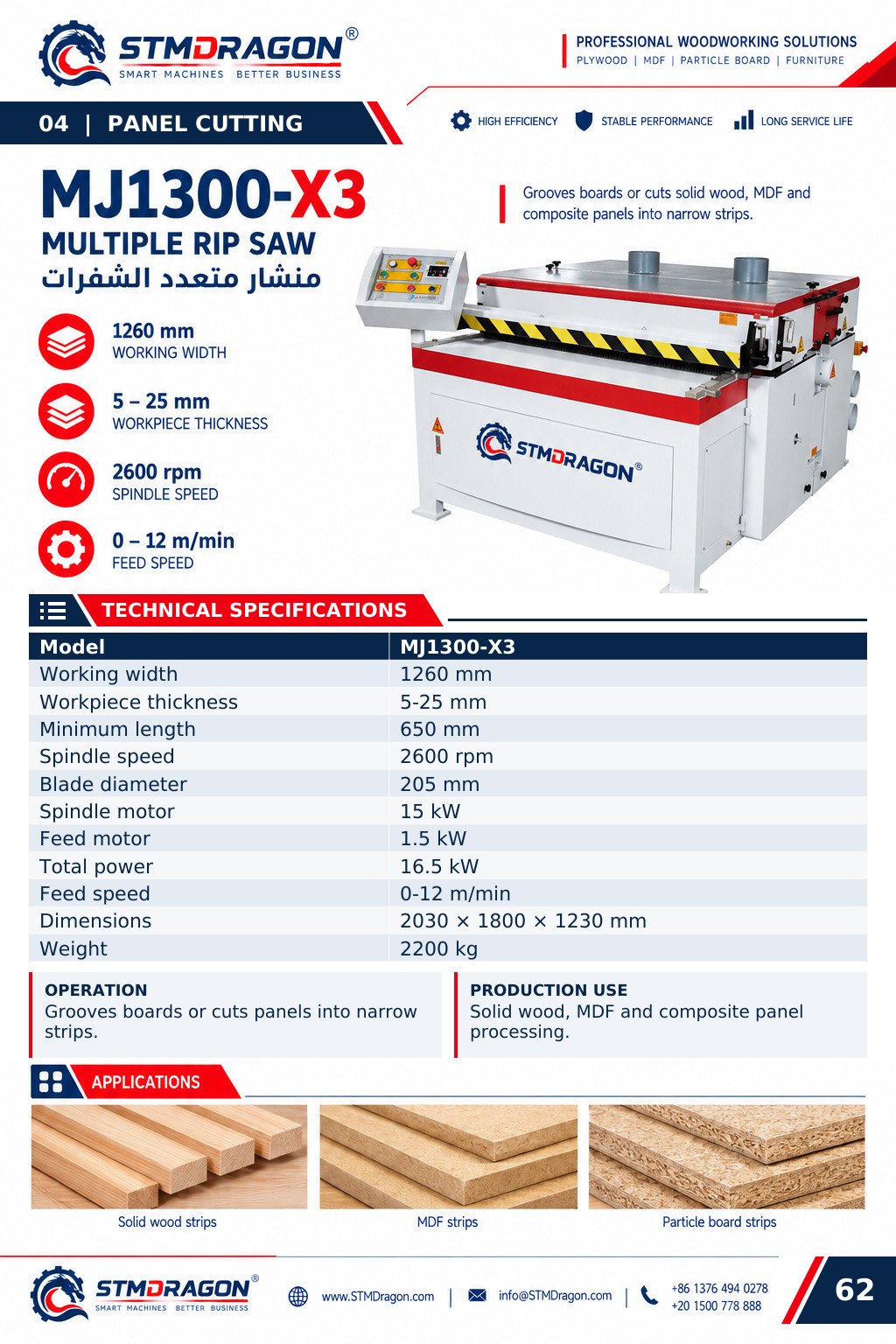

STMDRAGON MJ1300-X3 Multiple Rip Saw
Grooves boards or cuts solid wood, MDF and composite panels into narrow strips.
ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Factory VerifiedExport readyAfter-Sales Support
Technical specifications
Technical specifications: STMDRAGON MJ1300-X3 Multiple Rip Saw
BrandSTMDRAGON
ModelMJ1300-X3
Machine typeMultiple Rip Saw
Working width1260 mm
Workpiece thickness5-25 mm
Minimum length650 mm
Spindle speed2600 rpm
Blade diameter205 mm
Spindle motor15 kW
Feed motor1.5 kW
Total power16.5 kW
Feed speed0-12 m/min
Overall dimensions2030 × 1800 × 1230 mm
Machine weight2200 kg
Applications
Applications: STMDRAGON MJ1300-X3 Multiple Rip Saw
Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.
Product details
Additional information
| Brand | STMDRAGON |
|---|---|
| Model | MJ1300-X3 |
| Machine type | Multiple Rip Saw |
| Working width | 1260 mm |
| Workpiece thickness | 5-25 mm |
| Minimum length | 650 mm |
| Spindle speed | 2600 rpm |
| Blade diameter | 205 mm |
| Spindle motor | 15 kW |
| Feed motor | 1.5 kW |
| Total power | 16.5 kW |
| Feed speed | 0-12 m/min |
| Overall dimensions | 2030 × 1800 × 1230 mm |
| Machine weight | 2200 kg |
Request a quote
Request a quote for STMDRAGON MJ1300-X3 Multiple Rip Saw.
Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.
Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ
Questions about STMDRAGON MJ1300-X3 Multiple Rip Saw
Clear answers before you request your tailored machine proposal.
Can I get a price for STMDRAGON MJ1300-X3 Multiple Rip Saw?
Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.
Why is the price not shown as one fixed number?
Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.
Can the machine be customized?
Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.
What power supply can you provide?
The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.
Can I request Siemens, Schneider or other electrical components?
Preferred electrical brands can be discussed and confirmed in the final technical proposal.
Is the machine suitable for my material?
Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.
What information should I send for a quotation?
Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.
What is the usual warranty?
Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.
Are spare parts available?
Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.
Can you provide operation manuals?
English technical documents can be included according to the agreed machine scope.
Can I inspect the machine before shipment?
Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.
Do you arrange FOB or CIF shipping?
Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.
How is the machine packed?
Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.
What is the production lead time?
Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.
Do you provide installation support?
Installation, commissioning and remote technical support can be discussed according to the project and destination.
Can STMDRAGON help with import documents?
We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.
Can I buy one set first?
Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.
How do I know the machine model is right for me?
Send your production target and space details. Our team will compare suitable models and configurations before you order.
Can you support customers after delivery?
STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.
How do I contact STMDRAGON now?
Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
