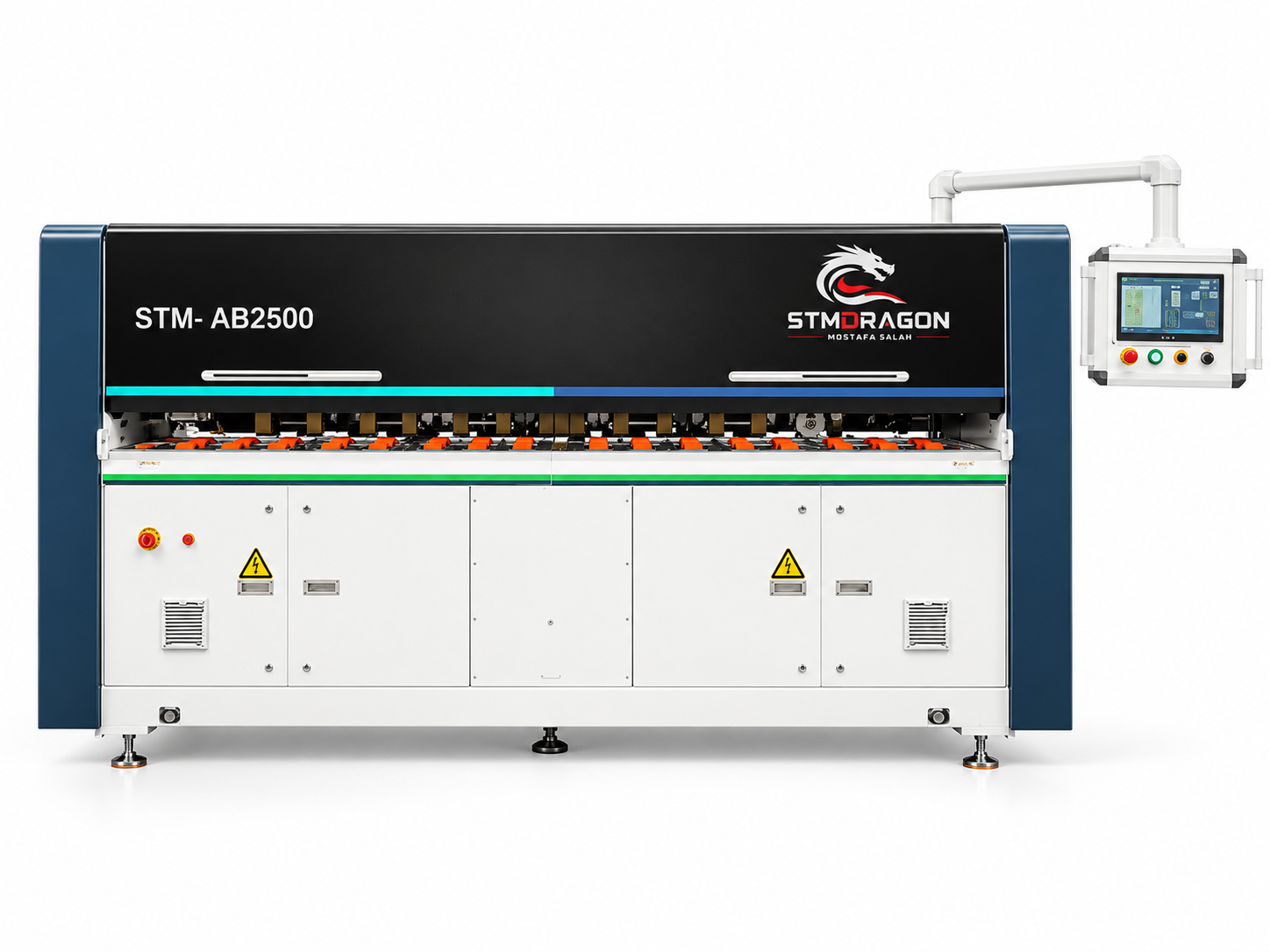

STMDRAGON STM-AB2500 Automatic Corrugated Box Making Machine

The STMDRAGON STM-AB2500 is an automatic corrugated box making machine designed for sheet-fed carton production, including slotting, cutting, creasing, punching, and optional gluing and printing. It supports cardboard thickness from 1.5–10 mm, box styles based on 100+ FEFCO codes, and a maximum board width of 2500 mm.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-AB2500 Automatic Corrugated Box Making Machine

ConfigurationAvailable according to your project requirement.
Power SupplyCustomized for destination country.
Applications

Applications: STMDRAGON STM-AB2500 Automatic Corrugated Box Making Machine

The STMDRAGON STM-AB2500 Corrugated Box Making Machine is designed for efficient custom corrugated carton production with one-time sheet feeding. It can perform multiple box-making processes in a continuous operation, helping reduce manual labor and production time.

Main Functions & Processes

  1. Sheet feeding
  2. Slotting
  3. Paper separation
  4. Horizontal and vertical cutting
  5. Creasing
  6. Punching for hand holes and ventilation holes
  7. Optional automatic cold/hot-melt gluing
  8. Optional flexographic or digital printing
  9. Supports 100+ box styles based on FEFCO codes

Key Specifications

  1. Model: STM-AB2500
  2. Cardboard Type: Sheet
  3. Cardboard Thickness: 1.5–10 mm
  4. Max. Board Size: 2500 mm (W) × Unlimited (L)
  5. Min. Board Size: 200 × 650 mm
  6. Max. Box Size: 1000 × 1500 mm × Unlimited (L)
  7. Min. Box Size: 150 × 750 × 150 mm
  8. Production Rate: 500–600 pcs/hour, depending on box type
  9. Changeover Time: Approximately 3 seconds
  10. Slotting Knife: 2 × 500 mm
  11. Vertical Cutting Knives: 4
  12. Creasing Wheels: 4
  13. Horizontal Cutting Knife: 1
  14. Power Supply: 380V, 50/60Hz
  15. Power: 10 kW
  16. Machine Size: Approx. 3500 × 2900 × 2200 mm (W × L × H)
  17. Machine Weight: Approx. 4000 kg

The machine is suitable for custom corrugated carton production where different box sizes and styles are required. Its rotating cutting system is designed for clean cutting, while the creasing system helps produce consistent folds without damaging the cardboard.

Warranty & Support

  1. Warranty: 1 Year
  2. Technical Support: Free lifetime online technical support
  3. Overseas Service: Available
  4. Shipping: 7–30 Days according to the supplied information

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Configuration

Configured to your project requirements.

Working size

Available on request.

Request a quote

Request a quote for STMDRAGON STM-AB2500 Automatic Corrugated Box Making Machine.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-AB2500 Automatic Corrugated Box Making Machine

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-AB2500 Automatic Corrugated Box Making Machine?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
