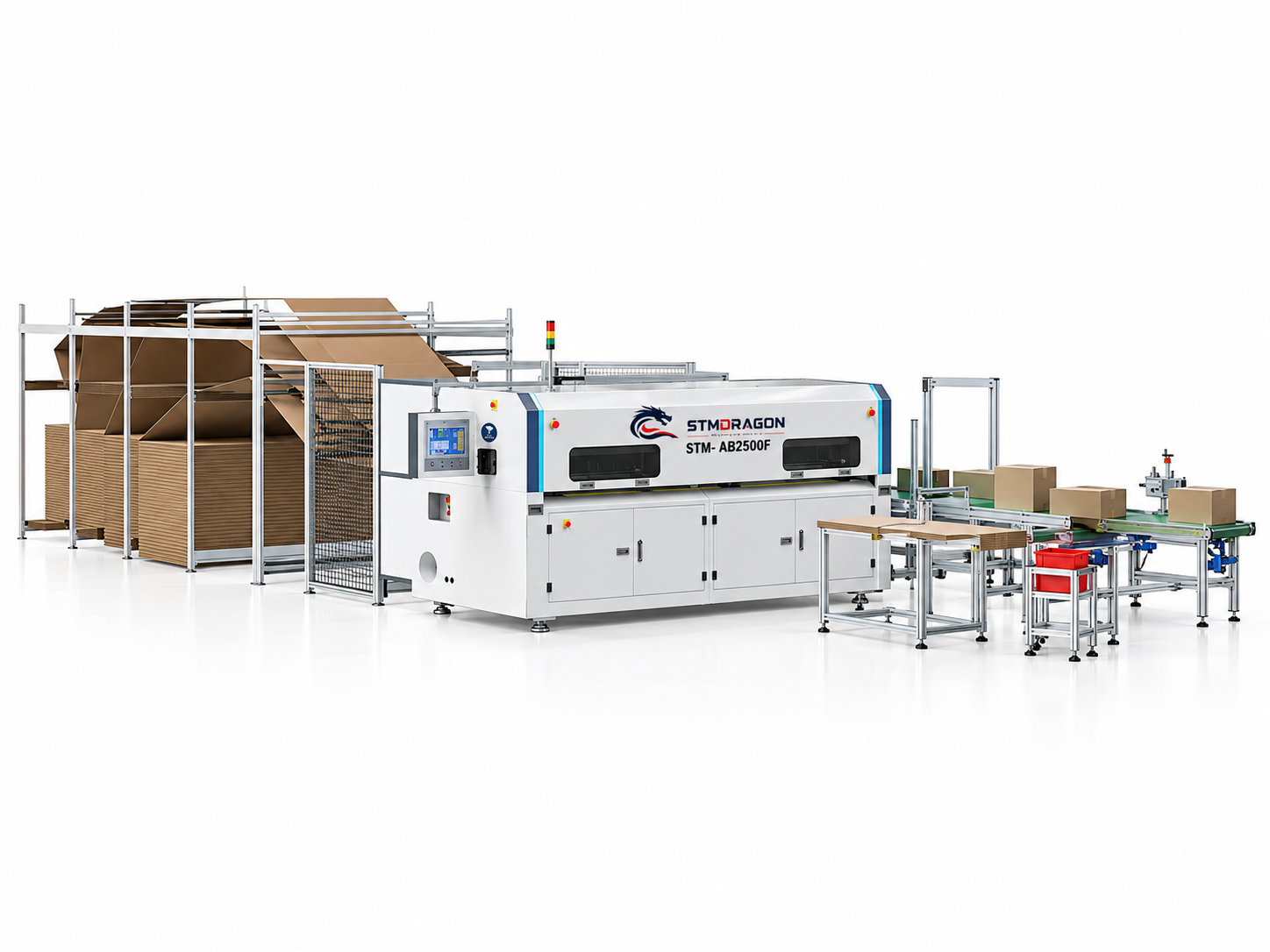

STMDRAGON STM-AB2500F Corrugated Cardboard Box Making Machine
Machines

STMDRAGON STM-AB2500F Corrugated Cardboard Box Making Machine

STMDRAGON STM-AB2500F is an industrial corrugated cardboard box making machine designed for high-volume box production from Z-shaped cardboard sheets. It supports cardboard thicknesses of 2–10 mm, sheet widths up to 2500 mm, production up to 400 pcs/hour, and more than 85 FEFCO box codes.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-AB2500F Corrugated Cardboard Box Making Machine

ConfigurationAvailable according to your project requirement.
Power SupplyCustomized for destination country.
Applications

Applications: STMDRAGON STM-AB2500F Corrugated Cardboard Box Making Machine

The STMDRAGON STM-AB2500F Corrugated Cardboard Box Making Machine is designed for industrial production of corrugated cardboard packaging boxes used for shipping, transportation, product protection, and general packaging applications. The machine supports Z-shaped cardboard sheets and can process cardboard with a thickness range of 2–10 mm.

With a maximum board width of 2500 mm and unlimited sheet length according to the supplied specification, the machine is suitable for producing a wide range of box sizes and configurations. It supports more than 85 FEFCO box codes, making it suitable for flexible packaging production.

Key Specifications

  1. Model: STM-AB2500F
  2. Machine Type: Corrugated Cardboard Box Making Machine
  3. Cardboard Type: Sheet / Z-shaped Cardboard
  4. Maximum Sheet Size: 2500 mm width × unlimited length
  5. Minimum Sheet Size: 340 × 700 mm
  6. Cardboard Thickness: 2–10 mm
  7. Cardboard Density: Up to 1200 g/m²
  8. Production Rate: Up to 400 pcs/hour
  9. Switchover Time: 2–15 seconds
  10. Servo Motors: 8 sets
  11. Slotting Knives: 2 × 500 mm
  12. Vertical Cutting Knives: 4
  13. Horizontal Cutting Knife: 1
  14. Scoring/Creasing Wheels: 4
  15. Touch Panel: 15.6 inch
  16. Air Pressure: 0.6–0.7 MPa
  17. Box Styles: More than 85 FEFCO codes
  18. Electrical Supply: 380V, 50–60Hz, 32A
  19. Power: 16 kW
  20. Machine Size: 3500 × 1900 × 5000 mm
  21. Machine Weight: 5000 kg

Main Applications

The STM-AB2500F is suitable for corrugated cardboard box production for e-commerce packaging, logistics, transportation, industrial packaging, product protection, retail packaging, and general carton packaging applications.

Warranty & Support

  1. Warranty: 1 Year
  2. Technical Support: Free lifetime online technical support
  3. After-Sales Service: Overseas service available
  4. Shipping: 7–30 Days according to the supplied information

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Configuration

Configured to your project requirements.

Working size

Available on request.

Request a quote

Request a quote for STMDRAGON STM-AB2500F Corrugated Cardboard Box Making Machine.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-AB2500F Corrugated Cardboard Box Making Machine

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-AB2500F Corrugated Cardboard Box Making Machine?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
