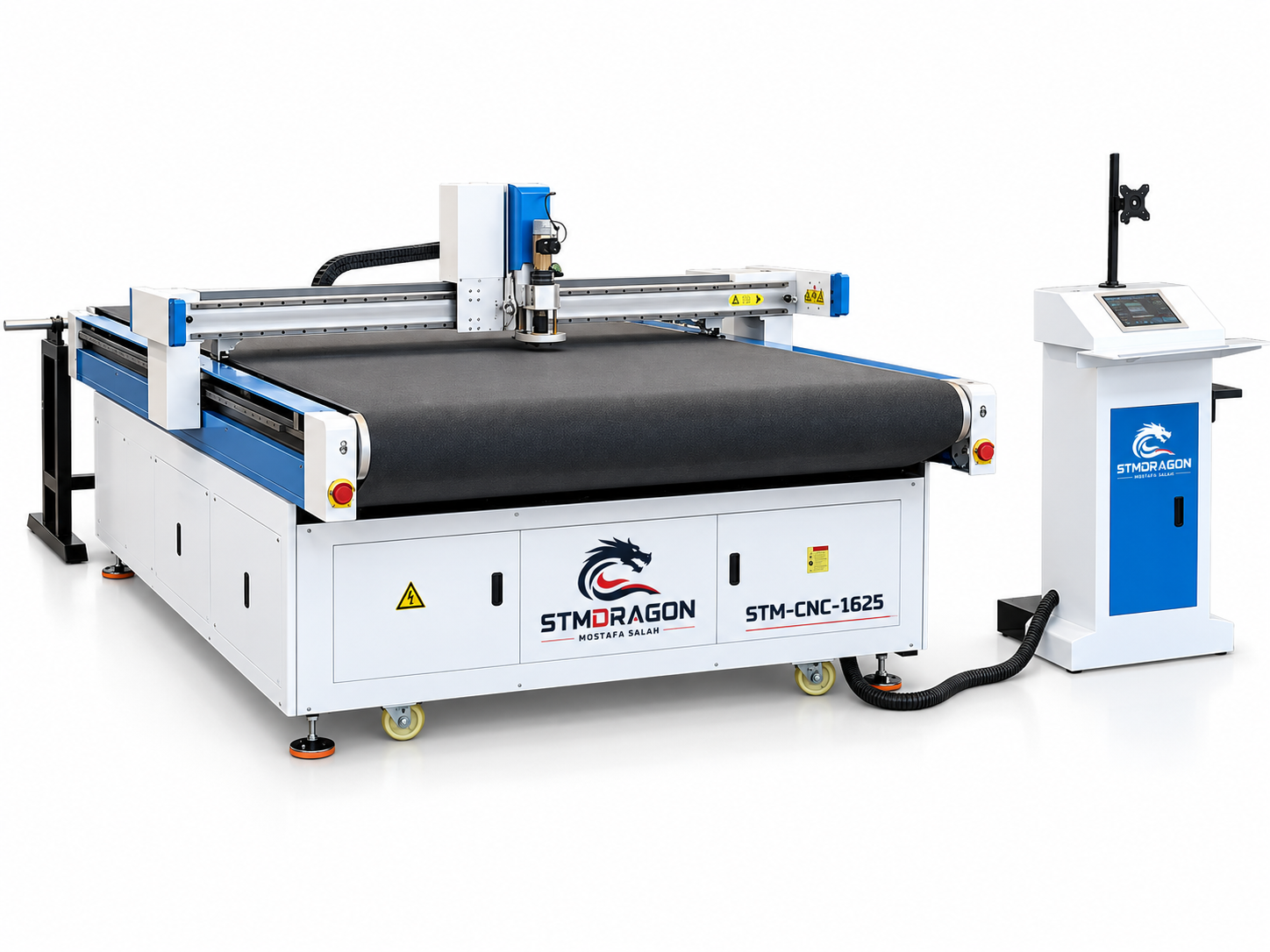

STMDRAGON STM-CNC-1625 1625 Oscillating Knife Cutting Machine
Machines

STMDRAGON STM-CNC-1625 1625 Oscillating Knife Cutting Machine

The STMDRAGON STM-CNC-1625 Oscillating Knife Cutting Machine is designed for high-speed and precision cutting of flexible, textile, leather, packaging, composite, and other sheet materials. It features a 1600 × 2500 mm working area, oscillating knife cutting, vacuum worktable, intelligent positioning, and automatic nesting support for efficient material utilization.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-CNC-1625 1625 Oscillating Knife Cutting Machine

ConfigurationAvailable according to your project requirement.
Power SupplyCustomized for destination country.
Applications

Applications: STMDRAGON STM-CNC-1625 1625 Oscillating Knife Cutting Machine

The STMDRAGON STM-CNC-1625 is an industrial oscillating knife cutting machine designed for accurate and efficient processing of flexible and composite materials. With a 1600 × 2500 mm working area, oscillating knife technology, red-light positioning, and an aluminum honeycomb vacuum worktable, it is suitable for a wide range of cutting applications.

The machine supports 0.1–20 mm cutting thickness, 500–1500 mm/s cutting speed, and 500–2000 mm/s travelling speed, with cutting accuracy up to ±0.02 mm, depending on the material and cutting pattern. It supports PLT, DXF and other compatible file formats.

Key Features & Specifications:

  1. Model: STM-CNC-1625
  2. Machine Type: Oscillating Knife Cutting Machine
  3. Working Area: 1600 × 2500 mm
  4. Cutting Thickness: 0.1–20 mm
  5. Cutting Speed: 500–1500 mm/s
  6. Travelling Speed: 500–2000 mm/s
  7. Cutting Accuracy: ±0.02 mm, depending on material and cutting pattern
  8. Work Table: Aluminum honeycomb vacuum worktable
  9. Tools: 20 oscillating knife blades — 10 × 20 mm and 10 × 25 mm blade lengths
  10. Positioning: Red-light pointer positioning
  11. Drive System: Taiwan linear guide rail, rack and pinion drive, Japan Panasonic servo motor, ball screw
  12. Cable: Germany Igus cable
  13. Transmission Interface: Ethernet port
  14. Machine Bed: 5 mm thick custom integrated welded bed
  15. Supported Formats: PLT, DXF, etc.
  16. Voltage: 220V/380V ±10%
  17. Frequency: 50/60Hz
  18. Machine Weight: Approximately 1000 kg

The machine is suitable for advertising materials, packaging, leather goods, textiles, automotive interiors, composite materials, and other flexible or sheet-based applications. Its professional nesting software helps optimize cutting layouts and improve material utilization, while the integrated control system and industrial touchscreen reduce the need for a separate computer.

Safety features include emergency stop, collision protection, and infrared intelligent safety detection for improved operator and machine protection.

Warranty: 1 Year Limited Warranty for the Entire Machine.

Shipping: 7–30 Days according to the supplied information.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Configuration

Configured to your project requirements.

Working size

Available on request.

Request a quote

Request a quote for STMDRAGON STM-CNC-1625 1625 Oscillating Knife Cutting Machine.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-CNC-1625 1625 Oscillating Knife Cutting Machine

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-CNC-1625 1625 Oscillating Knife Cutting Machine?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
