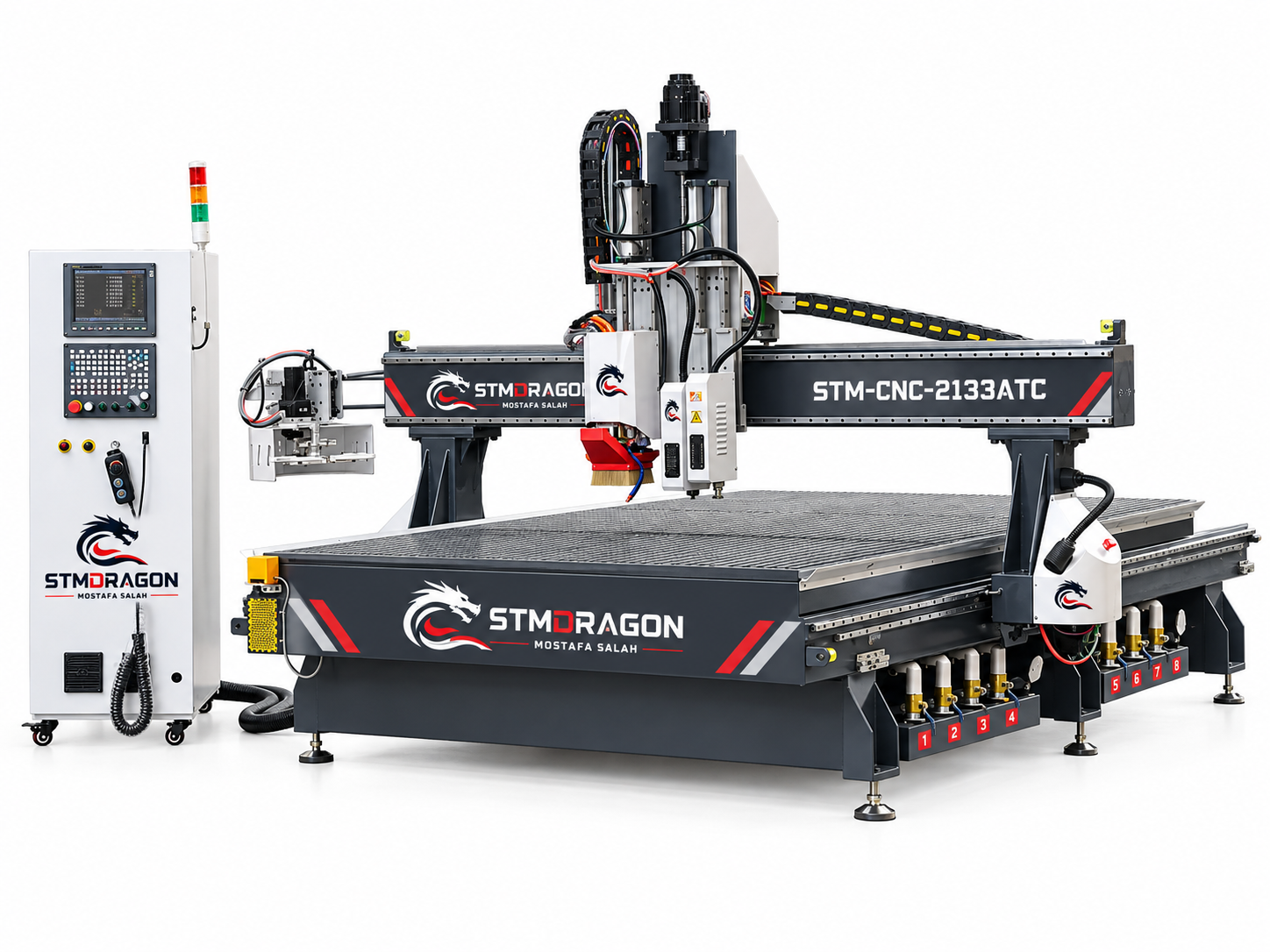

STMDRAGON STM-CNC-2133ATC 2133 ATC CCD Camera Patrol CNC Router

The STMDRAGON STM-CNC-2133ATC is a heavy-duty 3-axis ATC CNC router with CCD camera scanning, automatic tool changing, and a 2100 × 3300 mm working area. It supports cutting, engraving, drilling, and milling with a 9 kW ATC air-cooled spindle, Syntec/LNC control, aluminum T-slot and vacuum worktable, and servo drive system.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-CNC-2133ATC 2133 ATC CCD Camera Patrol CNC Router

ConfigurationAvailable according to your project requirement.
Power SupplyCustomized for destination country.
Applications

Applications: STMDRAGON STM-CNC-2133ATC 2133 ATC CCD Camera Patrol CNC Router

The STMDRAGON STM-CNC-2133ATC is a heavy-duty CCD Camera Patrol CNC Router designed for high-efficiency cutting, engraving, drilling, milling, and pattern-edge scanning. The CCD camera helps detect and follow printed or shaped pattern edges, while the automatic tool changer allows different tools to be selected according to machining requirements.

The machine features a 2100 × 3300 mm working area with optional table sizes, a 200 mm Z-axis travel, 9 kW ATC air-cooled spindle, 11 kW inverter, and carousel-type automatic tool changer. A linear ATC option is also available. The machine uses Taiwan Syntec/LNC control, with NCStudio available as an option.

Key Technical Details

  1. Model: STM-CNC-2133ATC
  2. Machine Type: 3-Axis ATC CNC Router with CCD Camera
  3. Working Size: 2100 × 3300 mm
  4. Optional Sizes: 1500 × 3000 mm, 2100 × 3000 mm, 2100 × 4000 mm, etc.
  5. Z-Axis Travel: 200 mm; optional 300–600 mm
  6. Spindle: 9 kW ATC air-cooled, ISO30, ER32
  7. Inverter: 11 kW
  8. Tool Changer: Carousel type automatic tool changer
  9. Controller: Taiwan Syntec/LNC; NCStudio optional
  10. Servo System: 1 kW Japan YASKAWA AC servo drivers with 850 W AC servo motors, 4 sets
  11. Reducer: Japan SHIMPO
  12. Guide Rail: Taiwan linear guide with dust protection
  13. Transmission: Helical rack and pinion for X/Y; Taiwan TBI precision ball screw for Z
  14. Worktable: Aluminum T-slot & vacuum worktable
  15. Machine Body: Heavy-duty steel body with quenching treatment
  16. Lubrication: 1.5 L automatic lubrication system
  17. Tool Calibration: Automatic tool sensor calibration
  18. Traveling Speed: Up to 80 m/min
  19. Working Speed: 0–25 m/min
  20. Re-positioning Accuracy: ±0.03 mm
  21. Working Accuracy: ±0.03 mm
  22. System Resolution: ±0.0025 mm
  23. Working Air Pressure: 0.6 MPa
  24. Electrical: 220V 1PH/3PH 50/60Hz or 380V 3PH 50/60Hz
  25. Software Compatibility: ArtCAM, Alphacam, Type3, Ucancam, Aspire, etc.
  26. Command Language: G Code & M Code
  27. Standards: CE, ISO9001

The STM-CNC-2133ATC is suitable for diversified CNC processing where automatic tool changes and accurate pattern recognition are required. Depending on the selected tooling and configuration, it can be used for woodworking, signage, furniture components, decorative panels, pattern cutting, engraving, drilling, milling, and other CNC manufacturing applications.

Optional Equipment: Drilling bank, positioning cylinder, vacuum pump, dust collection system, air compressor, light curtain, and upgraded spindle options can be configured according to production requirements.

Warranty: 1 Year

Shipping: 7–30 Days according to the supplied information.

Production/Handling: To Be Confirmed for the exact STM-CNC-2133ATC configuration.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Configuration

Configured to your project requirements.

Working size

Available on request.

Request a quote

Request a quote for STMDRAGON STM-CNC-2133ATC 2133 ATC CCD Camera Patrol CNC Router.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-CNC-2133ATC 2133 ATC CCD Camera Patrol CNC Router

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-CNC-2133ATC 2133 ATC CCD Camera Patrol CNC Router?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
