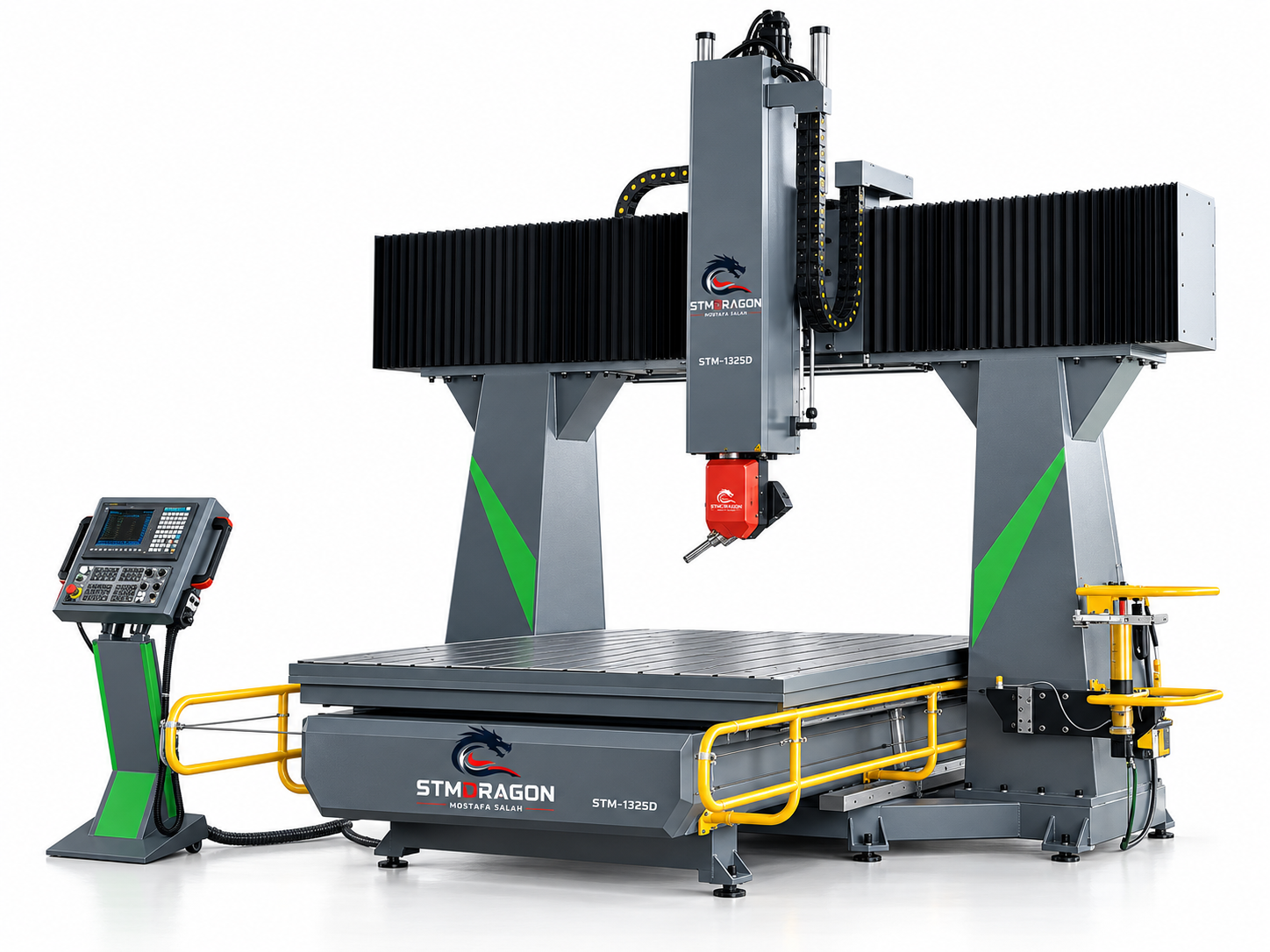

TheSTMDRAGON STM-1325D 5-Axis CNC Router is a heavy-duty CNC machining solution for woodworking, foam mould production, 3D sculpture, furniture components, prototypes and complex curved-surface machining. Its 5-axis configuration allows multi-directional cutting and machining for applications that require greater flexibility than standard 3-axis CNC routers.
Main Specifications
- Модель: STM-1325D
- Тип машины: 5-Axis CNC Router / CNC Milling Machine
- Working Area: 1300 × 2500 × 800 mm
- Spindle: 13.5 kW Italy Hiteco high-speed spindle
- Spindle Speed: 6,000–24,000 RPM
- Система управления: Taiwan Syntec 610MA-E5 CNC with RTCP
- Command Language: G-Code
- Drive System: Japanese Yaskawa servo motors and drivers
- Transmission: X/Y/Z screw drive
- Guide System: TBI 35 mm square linear guides
- Table: Vacuum table + T-slot table
- Maximum Rapid Travel: 20 m/min
- Maximum Working Speed: 10 m/min
- Positioning Accuracy: ±0.05 mm
- Repeat Positioning Accuracy: ±0.05 mm/1000 mm
- Interface: USB
- Software Compatibility: BCAMPro, VCarve, VCarve Pro, ArtCAM, UCANCAM and other compatible software
- Working Voltage: AC 110V / 220V / 240V / 380V / 400V
- Power Supply: 1-Phase / 3-Phase, 50Hz / 60Hz
- Operating Environment: -20°C to 45°C; relative humidity 5%–75%
Materials & Applications
The machine is suitable for wood, foam, composites, acrylic, plastic and suitable aluminum/soft-metal applications, depending on the final tooling, spindle configuration, material thickness and cutting requirements.
Typical applications include:
- 3D foam mould making
- Wooden mould production
- Furniture components
- 3D sculpture and artistic carving
- Complex curved-surface machining
- Prototype manufacturing
- Architectural and decorative components
- Wood and composite machining
- Acrylic and plastic cutting
- Suitable aluminum routing and milling
Ключевые особенности

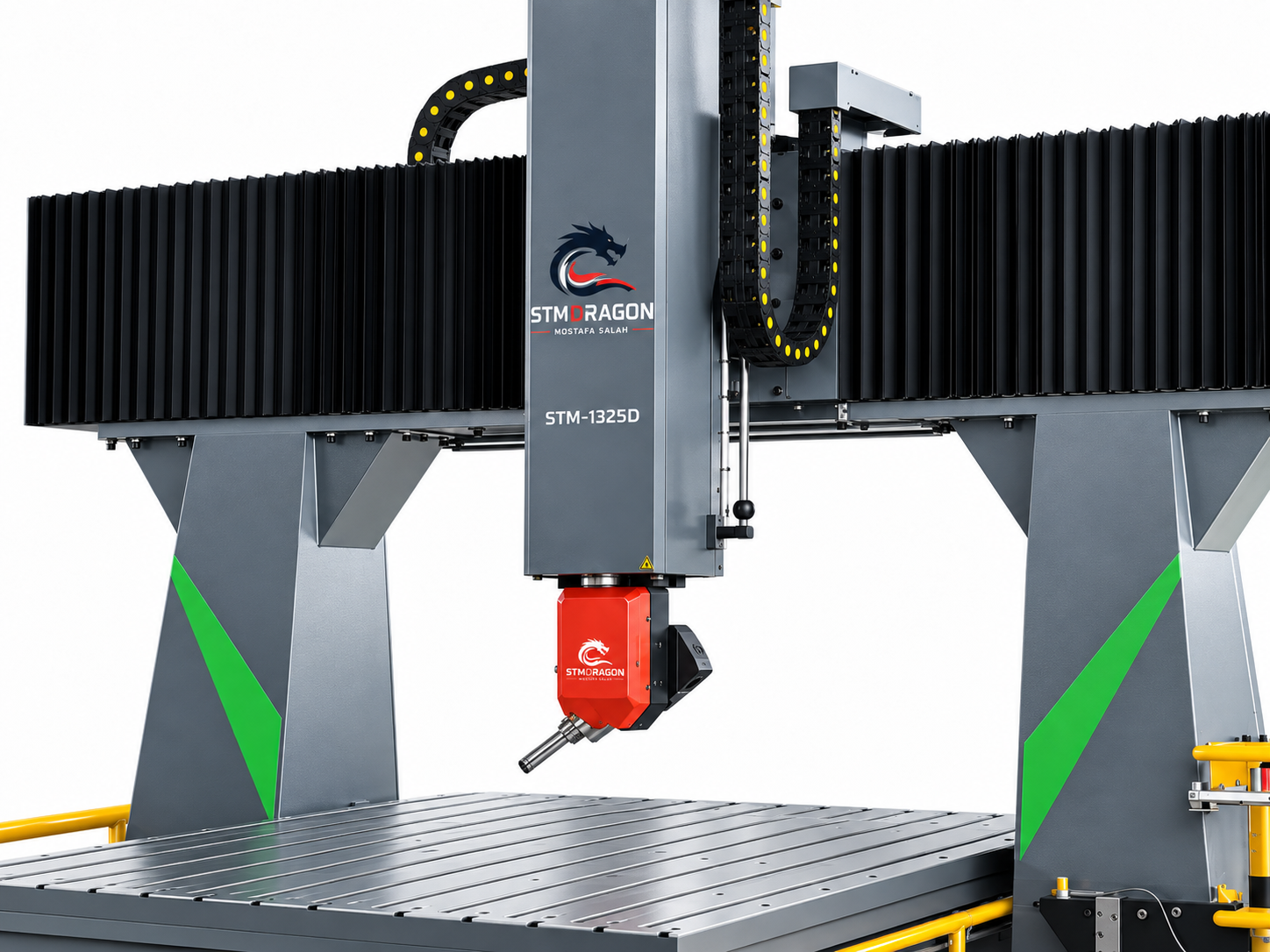

The STM-1325D uses a robust welded steel structure for stable heavy-duty machining. Its 5-axis system supports complex tool movements, while the Syntec 610MA-E5 control system with RTCP (Rotational Tool Center Point) helps maintain accurate tool positioning during multi-axis machining.
The 13.5 kW Hiteco spindle provides high-speed machining capability, while Yaskawa servo motors and TBI linear guides support smooth and precise axis movement. The vacuum and T-slot table provides flexible workholding for different workpieces.
Warranty & Shipping
- Гарантия:1 год
- Handling: 1–2 Days
- Доставка: 7–30 Days according to destination and shipping method
- Technical Support: Free lifetime technical support for end-users and dealers
- Money-Back Guarantee: 30 Days according to supplied information
- Production Capacity: Up to 360 units available for sale per month according to supplied information
