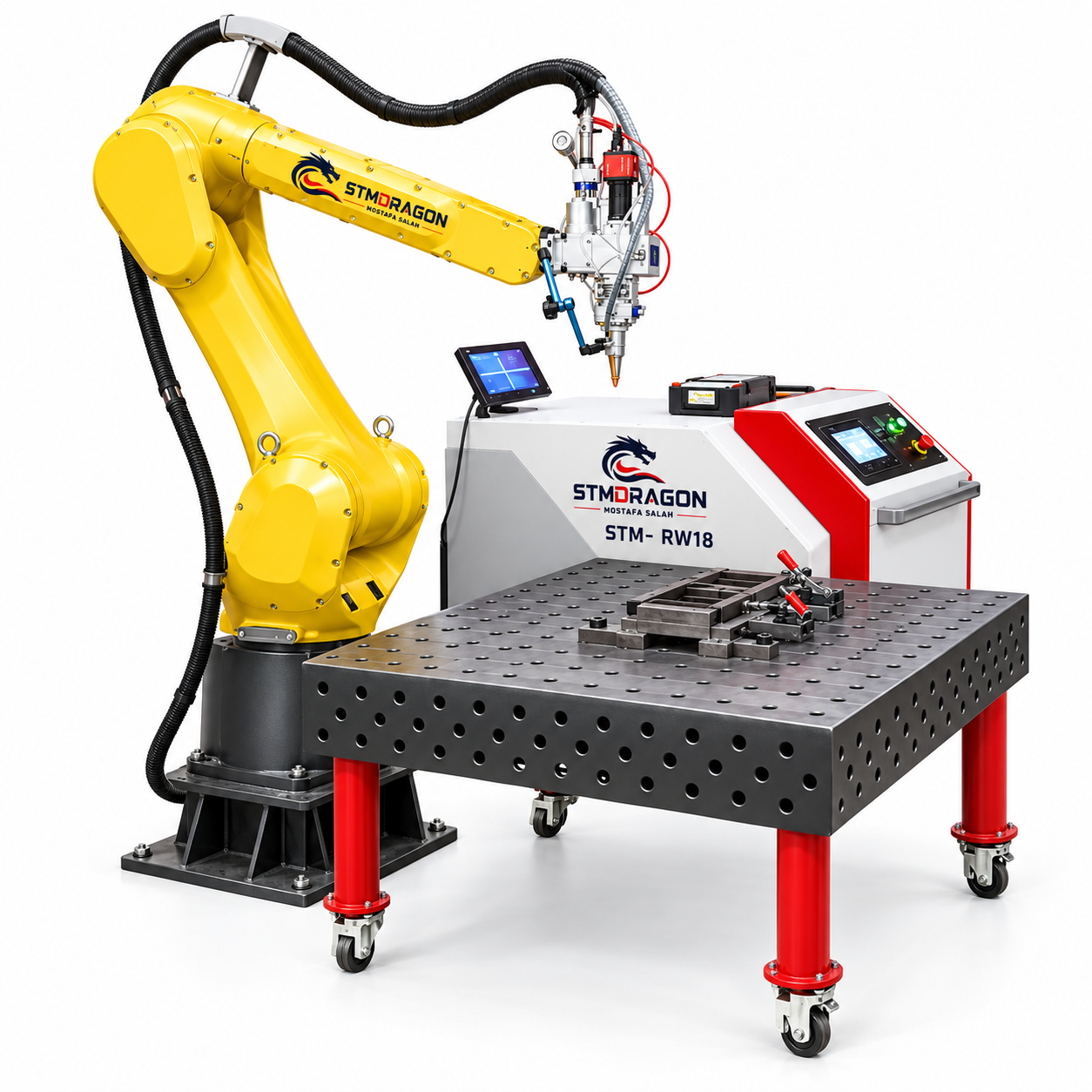

TheSTMDRAGON STM-RW18 6KW Automatic 6-Axis Laser Welding Robot is an industrial robotic laser welding system designed for precise 3D welding of complex metal components. Its six-axis robot movement provides high flexibility and a large working range for different workpiece shapes and welding positions.
The system uses a FANUC M-20iB industrial robot, Max 6000W laser source, and WSX ND60B wobble laser welding head for accurate and stable welding performance. The laser welding process offers a high depth-to-width ratio with low heat input, helping minimize deformation of welded components.
Key Features & Technical Details:
- Модель: STM-RW18
- Laser Power: 6000W
- Laser Source: Max 6000W
- Laser Wavelength: 1080 ± 10 nm
- Robot Body: FANUC M-20iB

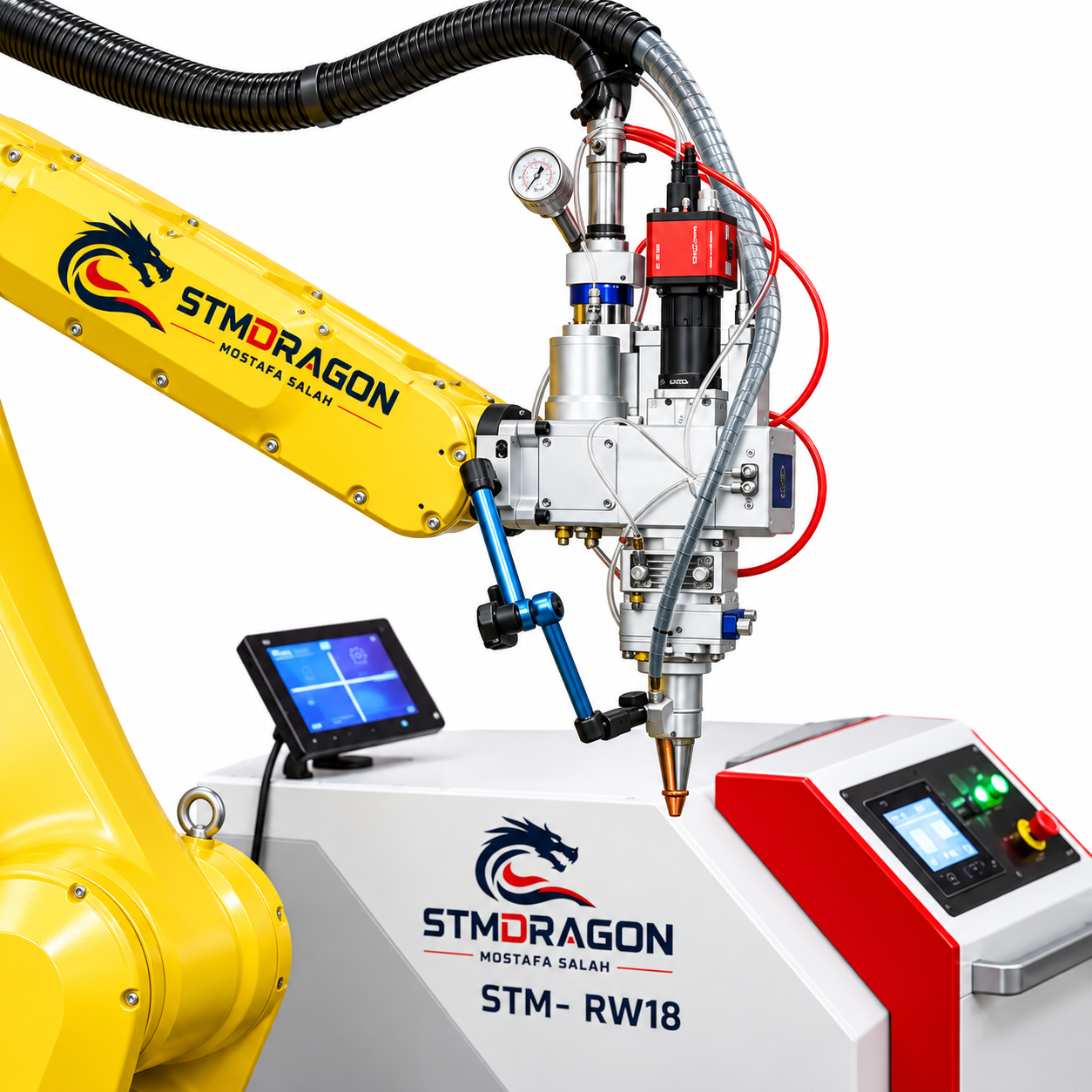

- Laser Welding Head: WSX ND60B Wobble
- Water Chiller: Hanli 6000W
- Repositioning Accuracy: ±0.03 mm
- Напряжение: 380V
- Частота: 50Hz
- Фаза: 3 Phase
- Soldering/Welding Station: 1200 × 1200 mm
- Welding Type: 3D robotic laser welding
- Robot Movement: 6-axis linkage
- Welding Method: Non-contact laser welding
- Control: Industrial robot control system with computer/handheld terminal operation
Applications:
Suitable for automated welding of various metal components, including car body materials, agricultural machinery and pump body accessories, automobile fenders, yacht metal back plates, and other complex three-dimensional hardware components.
Main Benefits:
- High-precision 6-axis robotic welding
- Large processing range and flexible movement
- Suitable for complex 3D workpieces
- Low welding deformation
- High welding efficiency and stability
- Non-contact welding process
- Automated multi-station production capability
- Designed for continuous industrial operation
Гарантия:1 год
Доставка:7–30 дней в зависимости от предоставленной информации.
