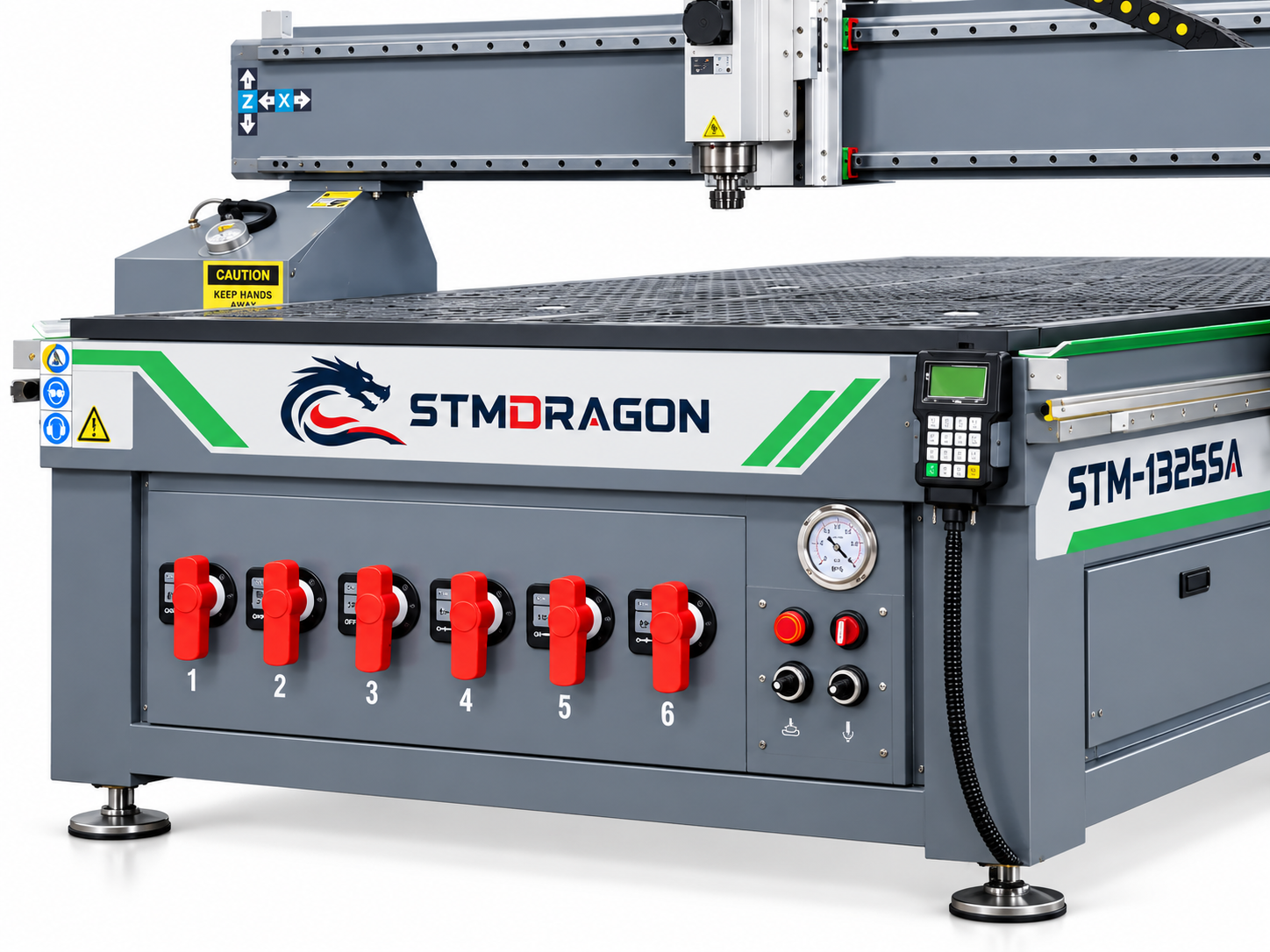

STMDRAGON STM-1325SA 3-Axis CNC Router Machine 4×8 ft for Woodworking & Signmaking

The STMDRAGON STM-1325SA is a large-format 3-axis CNC router designed for professional woodworking, cabinet production, furniture manufacturing, signmaking, engraving and general CNC cutting applications. Its 1300 × 2500 × 200 mm (4 × 8 ft) working area provides a practical format for processing large sheets and panels.

The machine uses a heavy-duty welded steel structure, aluminum gantry components and a precision motion system with X/Y gear transmission and Z-axis ball screw. The standard configuration includes a 3.5 kW air-cooled spindle, vacuum table with T-slots, high-torque stepper motors and RichAuto A11 DSP control.

Key Product Details

1. Model / SKU: STM-1325SA
2. Machine Type: 3-Axis CNC Router
3. Working Area: 1300 × 2500 × 200 mm (4 × 8 ft)
4. Spindle: 3.5 kW Air-Cooled
5. Spindle Speed: 6,000–24,000 RPM
6. Maximum Rapid Travel: 40 m/min
7. Maximum Working Speed: 30 m/min
8. Table: Vacuum Table + T-Slots
9. Transmission: X/Y Gear Drive; Z-Axis Ball Screw
10. Drive System: 4 Sets High-Torque Stepper Motors & Drivers
11. Control System: RichAuto A11 DSP
12. Interface: USB
13. Command Language: G-Code
14. Software Compatibility: VCarve, VCarve Pro, UCanCAM, ArtCAM and other compatible software
15. Working Voltage: AC 110V / 220V / 240V / 380V / 400V
16. Electrical Configuration: 1P/3P, 50Hz/60Hz options listed by supplier; final configuration must be confirmed
17. Positioning Accuracy: ±0.03/2000 mm
18. Cutting Thickness: Depends on material, tooling and cutting conditions

Suitable Materials & Applications

The STM-1325SA is suitable for wood, MDF, plywood, acrylic, plastics and signage materials, with aluminum processing subject to spindle capability, tooling, material thickness and required cutting conditions.

Typical applications include:

1. Cabinet and furniture production
2. Wood panel cutting and engraving
3. MDF and plywood routing
4. Signboard manufacturing
5. Acrylic and plastic cutting
6. Decorative woodworking
7. 2D/3D engraving
8. CNC training and workshop applications
9. Industrial woodworking and production

Machine Structure & Performance

The welded steel chassis provides a stable foundation for CNC operations, while the aluminum gantry and vibration-control design support accurate cutting and smoother surface finishing. The helical/gear transmission system is designed for fast movement and reliable positioning during production.

The machine supports working speeds up to 30 m/min and rapid travel up to 40 m/min, depending on the actual configuration and operating conditions.

Warranty, Support & Shipping

1. وارنٹی:1 سال
2. شپنگ: 7–30 Days
3. Handling: 1–2 Days according to supplied information
4. Technical Support:صارفین اور ڈیلرز کے لیے مفت زندگی بھر تکنیکی معاونت
5. Money-Back Guarantee: 30-day guarantee according to supplied information
6. Payment: PayPal, Trade Assurance, T/T, Debit & Credit Cards
