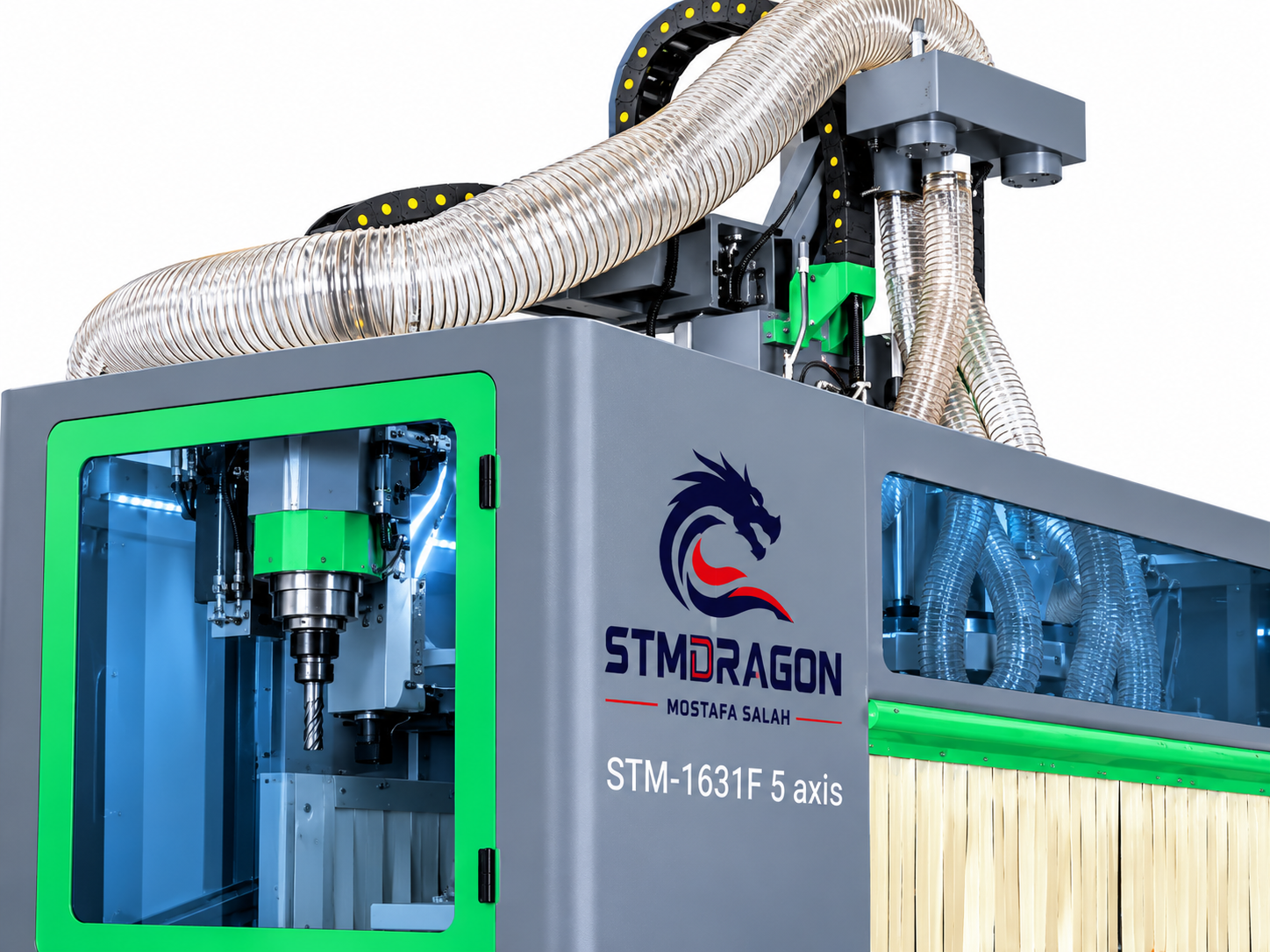

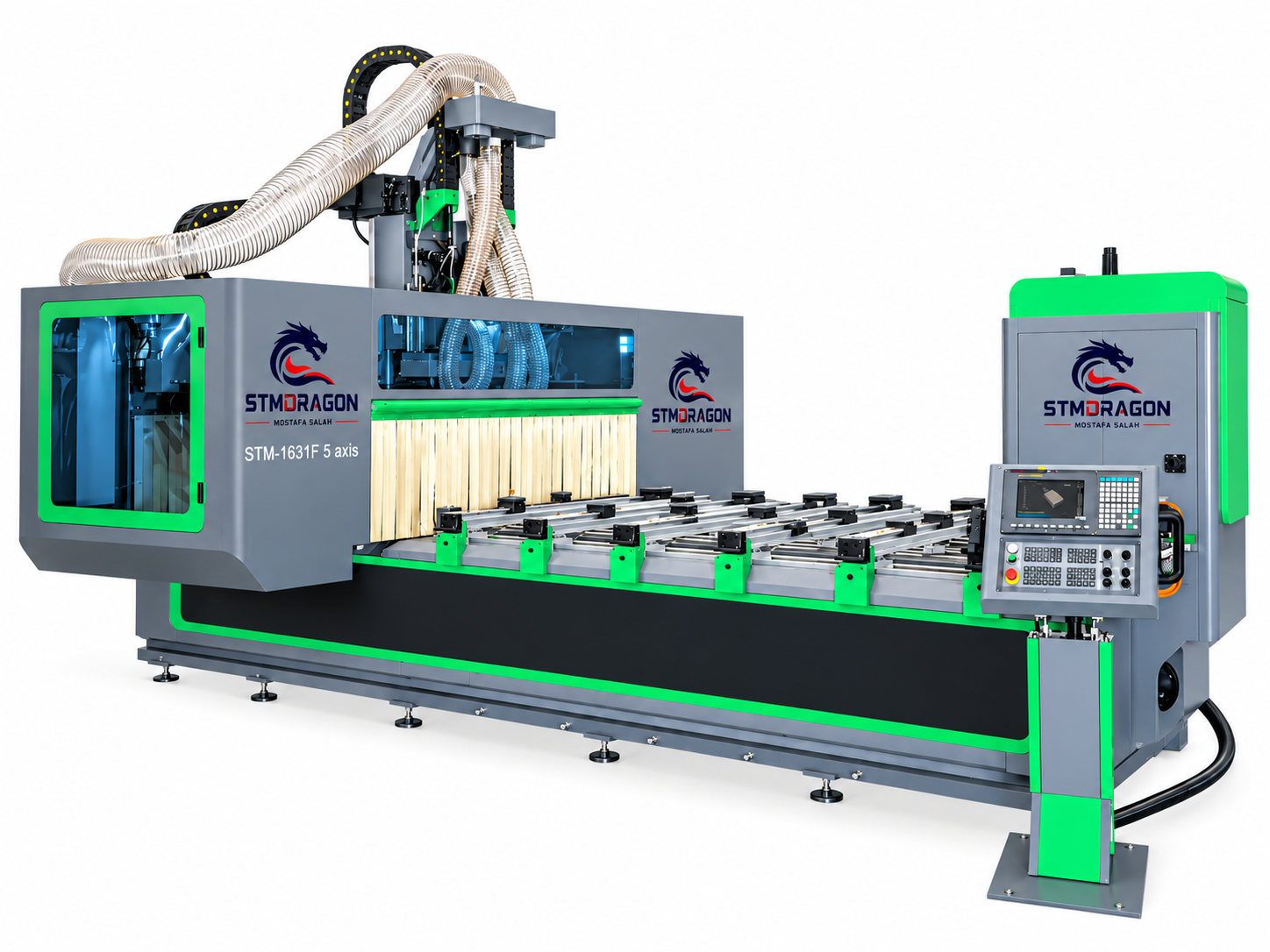

STMDRAGON STM-1631F 5 Axis CNC Router Furniture Making Machine
STMDRAGON STM-1631F 5 Axis CNC Router Furniture Making Machine - Image 2
STMDRAGON STM-1631F 5 Axis CNC Router Furniture Making Machine - Image 3
STMDRAGON STM-1631F 5 Axis CNC Router Furniture Making Machine - Image 4
CNC Routers & Machining Centers

STMDRAGON STM-1631F 5 Axis CNC Router Furniture Making Machine

The STMDRAGON STM-1631F 5 Axis CNC Router is a heavy-duty PTP CNC machining solution for furniture making, 3D carving, complex wood cutting, mold making, and precision multi-axis machining. It features a 1600 × 3100 × 400 mm working area, 13.5 kW Hiteco spindle, Syntec 610MA control with RTCP, Yaskawa servo drive system, and 8-position automatic tool changer.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-1631F 5 Axis CNC Router Furniture Making Machine

ModelSTM-1631F 5 Axis
Machine Type5 Axis CNC Router / PTP CNC Machining Center
Working Area1600 × 3100 × 400 mm
TablePTP Table
Spindle13.5 kW Italy Hiteco AC + Hiteco HSK F63 liquid-cooled spindle
Spindle Speed6,000–24,000 RPM

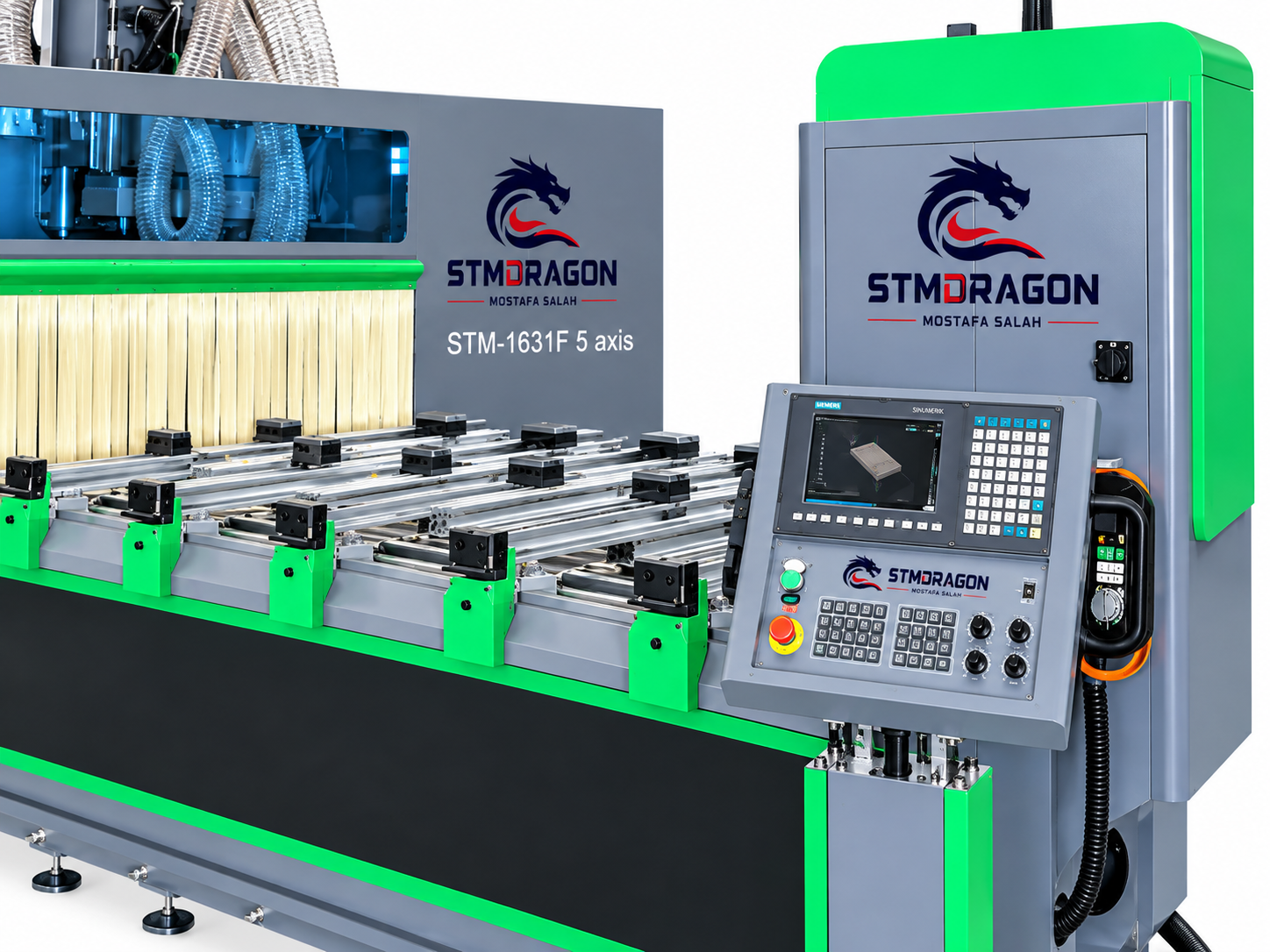

Control SystemTaiwan Syntec 610MA with RTCP function
Drive SystemJapanese Yaskawa servo motors and drivers
X/Y TransmissionGear transmission
Z TransmissionTaiwan TBI ball screw
Linear GuidesTaiwan TBI 35 mm square rails
Maximum Rapid Travel90 m/min
Maximum Working Speed70 m/min
Tool Changer8-position automatic tool changer
Command LanguageG Code
InterfaceUSB
Machine StructureHeavy-duty welded steel frame and gantry
Workpiece ClampingGerman Schmalz adsorption strips and blocks
Working VoltageAC 110/220/240/380/400V
Frequency50/60 Hz
Phase1P/3P
Operating Environment-20°C to 45°C; relative humidity 5%–75%
Warranty1 Year
Shipping7–30 Days according to supplied information
Handling1–2 Days according to supplied information
Technical SupportFree lifetime technical support for end-users and dealers
CE StandardSupplied as meeting CE quality and safety standards
Applications

Applications: STMDRAGON STM-1631F 5 Axis CNC Router Furniture Making Machine

The STMDRAGON STM-1631F 5 Axis CNC Router is designed for high-precision furniture production, 3D sculpture cutting, complex contour machining, mold making, and other demanding CNC woodworking applications. Its 5-axis configuration allows simultaneous multi-axis movement for complex shapes, angled cutting, and detailed 3D machining.

Key Technical Features

  1. Model: STM-1631F 5 Axis
  2. Machine Type: 5 Axis CNC Router / PTP CNC Machining Center
  3. Working Area: 1600 × 3100 × 400 mm
  4. Table: PTP Table
  5. Spindle: 13.5 kW Italy Hiteco AC + Hiteco HSK F63 liquid-cooled spindle
  6. Spindle Speed: 6,000–24,000 RPM
  7. Control System: Taiwan Syntec 610MA with RTCP function
  8. Drive System: Japanese Yaskawa servo motors and drivers
  9. X/Y Transmission: Gear transmission
  10. Z Transmission: Taiwan TBI ball screw
  11. Linear Guides: Taiwan TBI 35 mm square rails
  12. Maximum Rapid Travel: 90 m/min
  13. Maximum Working Speed: 70 m/min
  14. Tool Changer: 8-position automatic tool changer
  15. Command Language: G Code
  16. Interface: USB
  17. Machine Structure: Heavy-duty welded steel frame and gantry
  18. Workpiece Clamping: German Schmalz adsorption strips and blocks
  19. Working Voltage: AC 110/220/240/380/400V
  20. Frequency: 50/60 Hz
  21. Phase: 1P/3P
  22. Operating Environment: -20°C to 45°C; relative humidity 5%–75%

Functions & Applications

The STM-1631F is suitable for furniture manufacturing, cabinet production, solid wood processing, 3D wood sculpture, complex contour cutting, mold making, foam sculpture, and precision CNC routing. The 5-axis system with RTCP helps maintain tool positioning during multi-axis machining, making it suitable for complicated 3D surfaces and angled operations.

The 13.5 kW Hiteco spindle, HSK F63 interface, Yaskawa servo system, heavy-duty welded frame, and automatic tool changer are designed for stable and efficient production.

Warranty & Shipping

  1. Warranty: 1 Year
  2. Shipping: 7–30 Days according to supplied information
  3. Handling: 1–2 Days according to supplied information
  4. Technical Support: Free lifetime technical support for end-users and dealers
  5. CE Standard: Supplied as meeting CE quality and safety standards

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 6600 kg
Dimensions 130 × 80 × 80 cm
Model

STM-1631F 5 Axis
Machine Type

5 Axis CNC Router / PTP CNC Machining Center
Working Area

1600 × 3100 × 400 mm
Table

PTP Table
Spindle

13.5 kW Italy Hiteco AC + Hiteco HSK F63 liquid-cooled spindle
Spindle Speed

6,000–24,000 RPM
Control System

Taiwan Syntec 610MA with RTCP function
Drive System

Japanese Yaskawa servo motors and drivers
X/Y Transmission

Gear transmission
Z Transmission

Taiwan TBI ball screw
Linear Guides

Taiwan TBI 35 mm square rails
Maximum Rapid Travel

90 m/min
Maximum Working Speed

70 m/min
Tool Changer

8-position automatic tool changer
Command Language

G Code
Interface

USB
Machine Structure

Heavy-duty welded steel frame and gantry
Workpiece Clamping

German Schmalz adsorption strips and blocks
Working Voltage

AC 110/220/240/380/400V
Frequency

50/60 Hz
Phase

1P/3P
Operating Environment

-20°C to 45°C; relative humidity 5%–75%
Warranty

1 Year
Shipping

7–30 Days according to supplied information
Handling

1–2 Days according to supplied information
Technical Support

Free lifetime technical support for end-users and dealers
CE Standard

Supplied as meeting CE quality and safety standards
Request a quote

Request a quote for STMDRAGON STM-1631F 5 Axis CNC Router Furniture Making Machine.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-1631F 5 Axis CNC Router Furniture Making Machine

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-1631F 5 Axis CNC Router Furniture Making Machine?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
