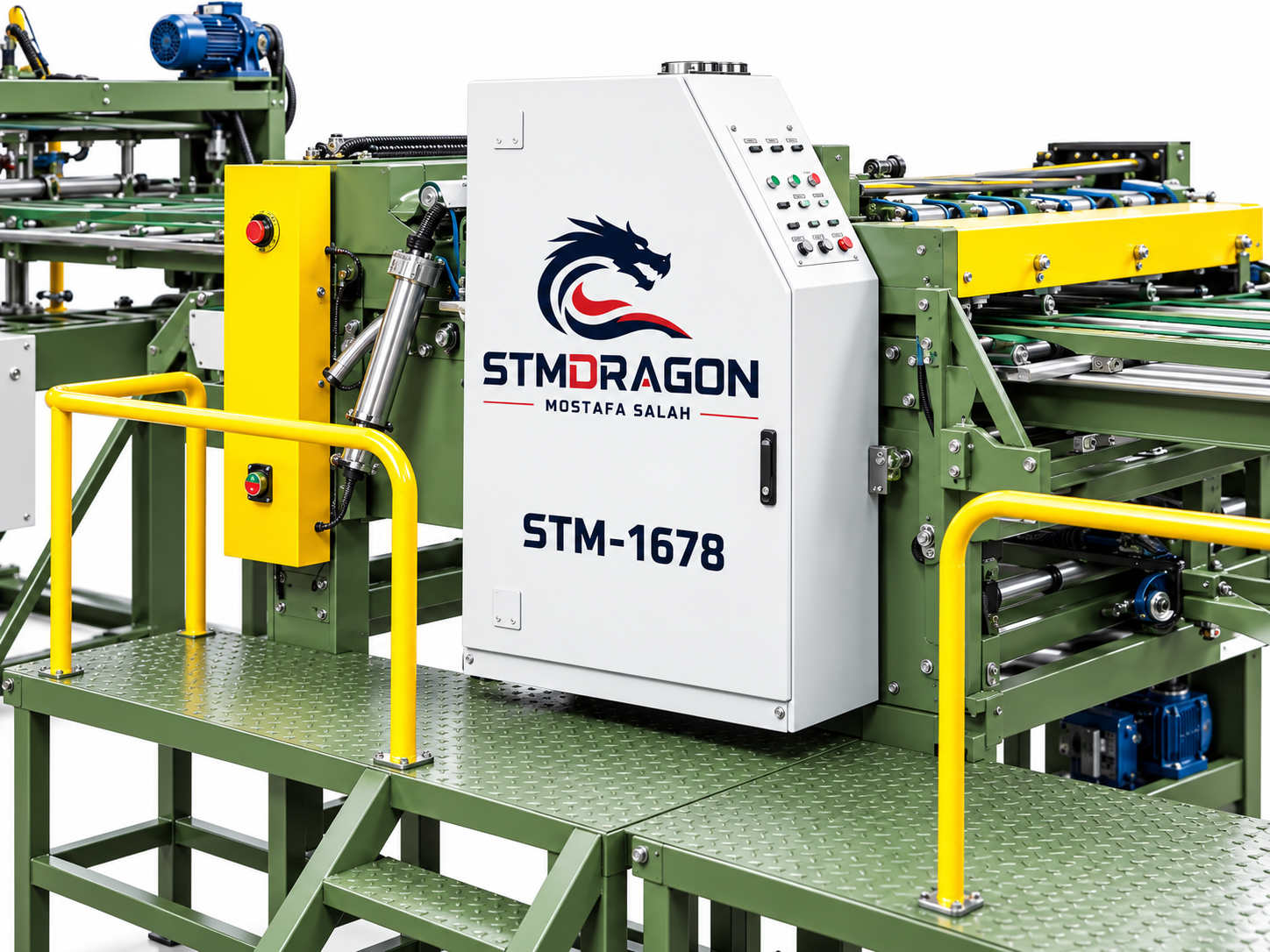

The STMDRAGON STM-1678 Veneer Composer Machine is an industrial veneer processing system designed for composing, conveying, cutting, stacking, and handling veneer sheets in continuous production environments. It is suitable for veneer thicknesses from 1.2 to 4.0 mm and supports finished sheet sizes of 4×4 ft and 4×8 ft.

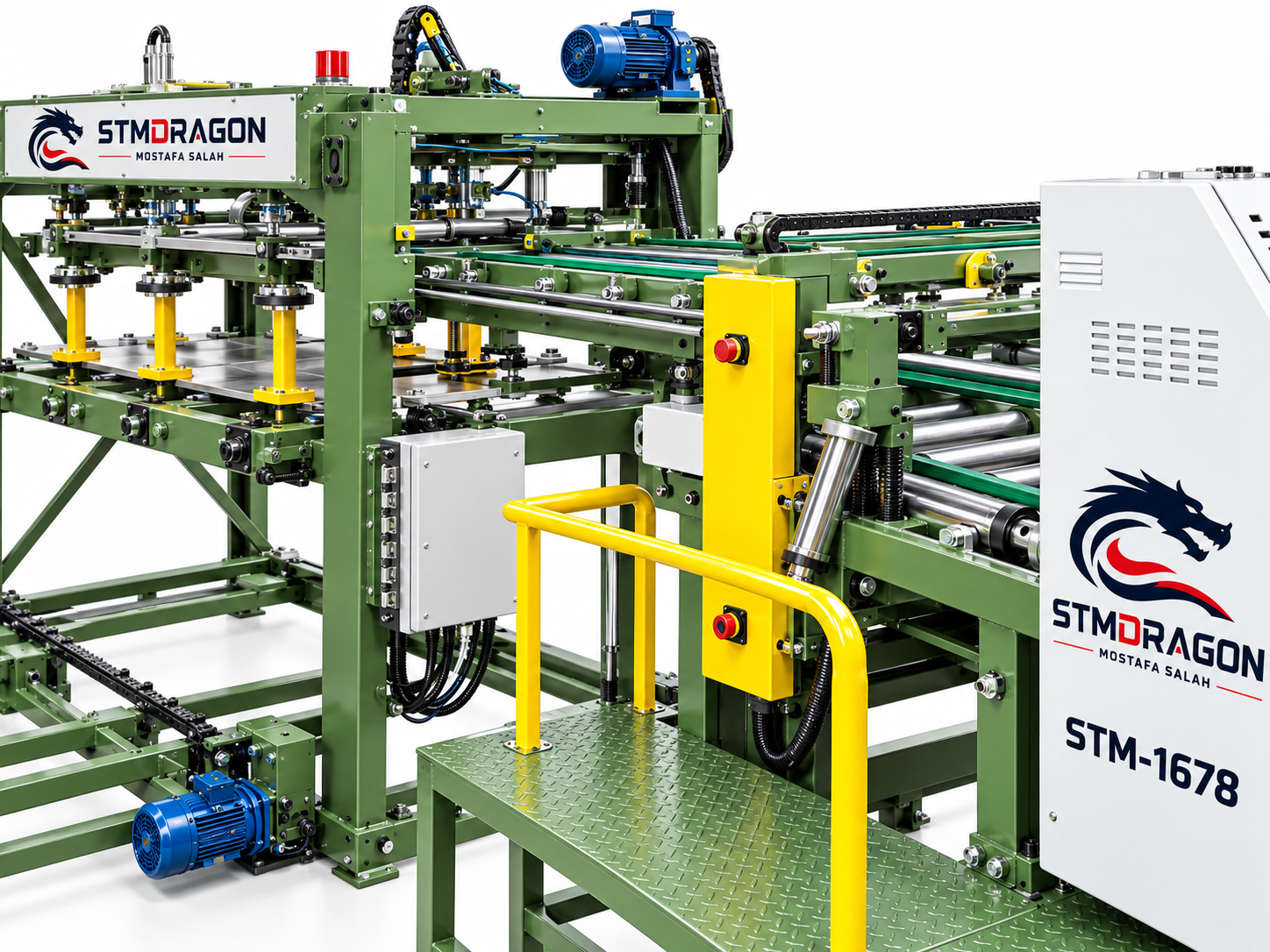

The machine is built with a heavy-duty channel steel and steel plate frame and incorporates dedicated driving, lifting, stacking, discharging, and cutting systems. The edging knife drive uses a 2.2 kW YE2-100L1-4 motor, while the front and rear driving systems use INVT servo motors with NEWSTART reduction boxes.
Key Technical Details
- Model: STM-1678
- Machine Type: Veneer Composer Machine
- Application: Veneer composing, cutting, conveying and stacking
- Veneer Thickness: 1.2–4.0 mm
- Output Sizes: 4×4 ft and 4×8 ft
- Maximum Speed: 36 m/min
- Main Power: 380V / 23 kW
- Control System: Delta DVP60ESZ PLC with Delta BO7S410 display
- Main Frame: Channel steel + steel plate
- Cutting Blade: Special steel
- Front/Rear Drive: INVT servo motor + NEWSTART reduction box
- Stacking Drive: Dongli gear reduction systems
- Air Consumption: 320 L/min at 0.6–0.8 MPa
- Overall Machine Size: Approx. 12.5 × 4.3 × 2.3 m
- Conventional Collection Rack Area: Approx. 14.5 × 6.6 m
- Electrical Components: Schneider circuit breakers, contactors and intermediate relays
- Warranty: 1 Year
- Shipping: 7–30 Days according to supplied information
Main Functions
The STM-1678 is designed to support continuous veneer handling operations including veneer feeding, edging-knife driving, finished-product driving, bridge transfer, lifting, stacking, climbing/stacking movement, and finished-product discharge. Its PLC-based control system coordinates the major machine operations for industrial veneer production.
