STMDRAGON STM-3400-5X-SP 5 Axis CNC Bridge Saw Quartz Stone Cutting Production Line
STMDRAGON STM-3400-5X-SP 5 Axis CNC Bridge Saw Quartz Stone Cutting Production Line - Image 2
STMDRAGON STM-3400-5X-SP 5 Axis CNC Bridge Saw Quartz Stone Cutting Production Line - Image 3
STMDRAGON STM-3400-5X-SP 5 Axis CNC Bridge Saw Quartz Stone Cutting Production Line - Image 4
CNC Stone Cutting

STMDRAGON STM-3400-5X-SP 5 Axis CNC Bridge Saw Quartz Stone Cutting Production Line

The STM-3400-5X-SP is a high-end 5-axis CNC bridge saw production line designed for automatic quartz and stone slab processing. It combines automatic loading, 5-axis cutting, profiling and special-shaped processing with automatic unloading for improved productivity and reduced manual handling.

With a 22 kW air-cooled spindle, 450 mm saw blade, CutCam control system and 3400 × 2000 × 250 mm working travel, it is suitable for professional stone-processing applications.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-3400-5X-SP 5 Axis CNC Bridge Saw Quartz Stone Cutting Production Line

ModelSTM-3400-5X-SP
Machine Type5 Axis CNC Bridge Saw / Stone Processing Production Line
Working Travel3400 × 2000 × 250 mm
C Axis±365°
A Axis0–90°
Maximum Cutting Thickness80 mm
Moving SpeedUp to 25 m/min
Spindle22 kW air-cooled, 4000 RPM
Control SystemCutCam
MotorCutCam Servo
ReducerJapan SHIMPO
Saw Blade Diameter450 mm
Optional Worktable Feeding CapacityUp to 1500 kg
Maximum Feeding Speed10 m/min
Loader Working Travel3500 × 4000 × 1000 mm
Loader Moving SpeedUp to 25 m/min
Maximum Suction Size3200 × 1200 mm
Minimum Suction Size300 × 150 mm
Loader Power8 kW
Loader Weight3000 kg
Bridge Saw Size6000 × 3500 × 3600 mm
Loader Machine Size5000 × 5800 × 3800 mm
Warranty1 Year Limited Warranty
Technical SupportFree lifetime online technical support
Overseas ServiceAvailable according to service arrangement
Shipping7–30 Days according to supplied information
Production/Handling TimeTo Be Confirmed for the exact STM-3400-5X-SP configuration
Applications

Applications: STMDRAGON STM-3400-5X-SP 5 Axis CNC Bridge Saw Quartz Stone Cutting Production Line

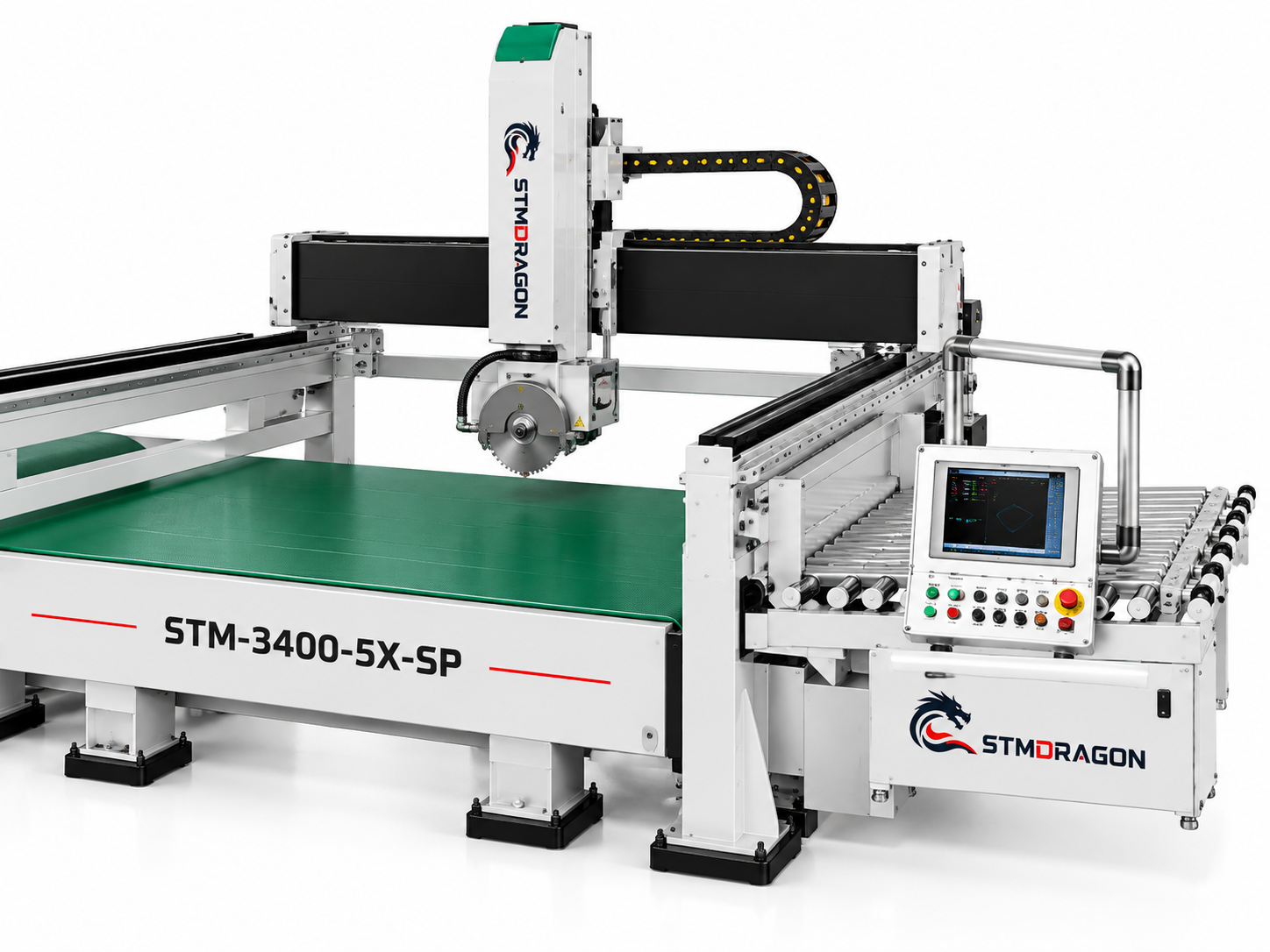

STMDRAGON STM-3400-5X-SP 5 Axis CNC Bridge Saw

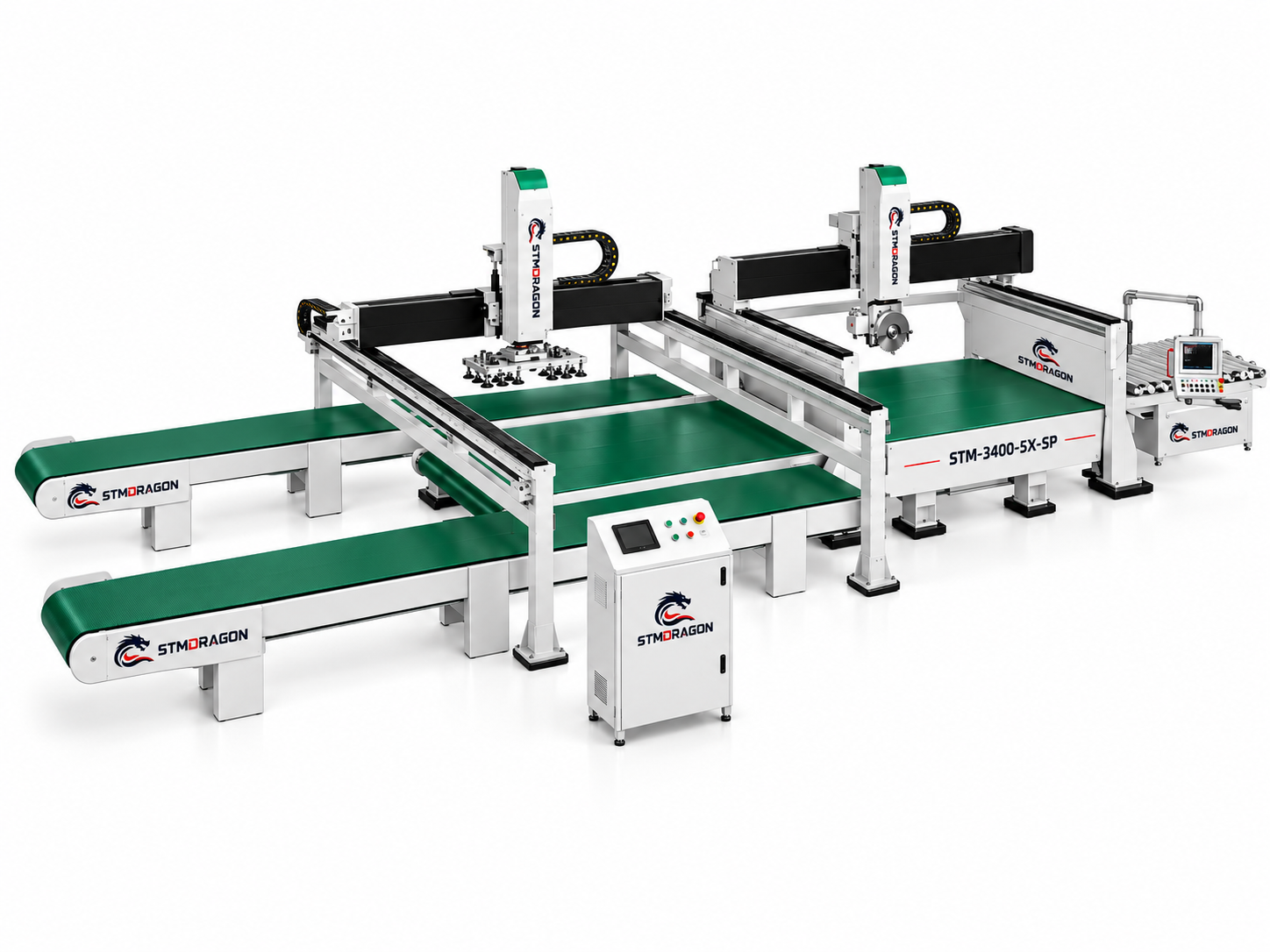

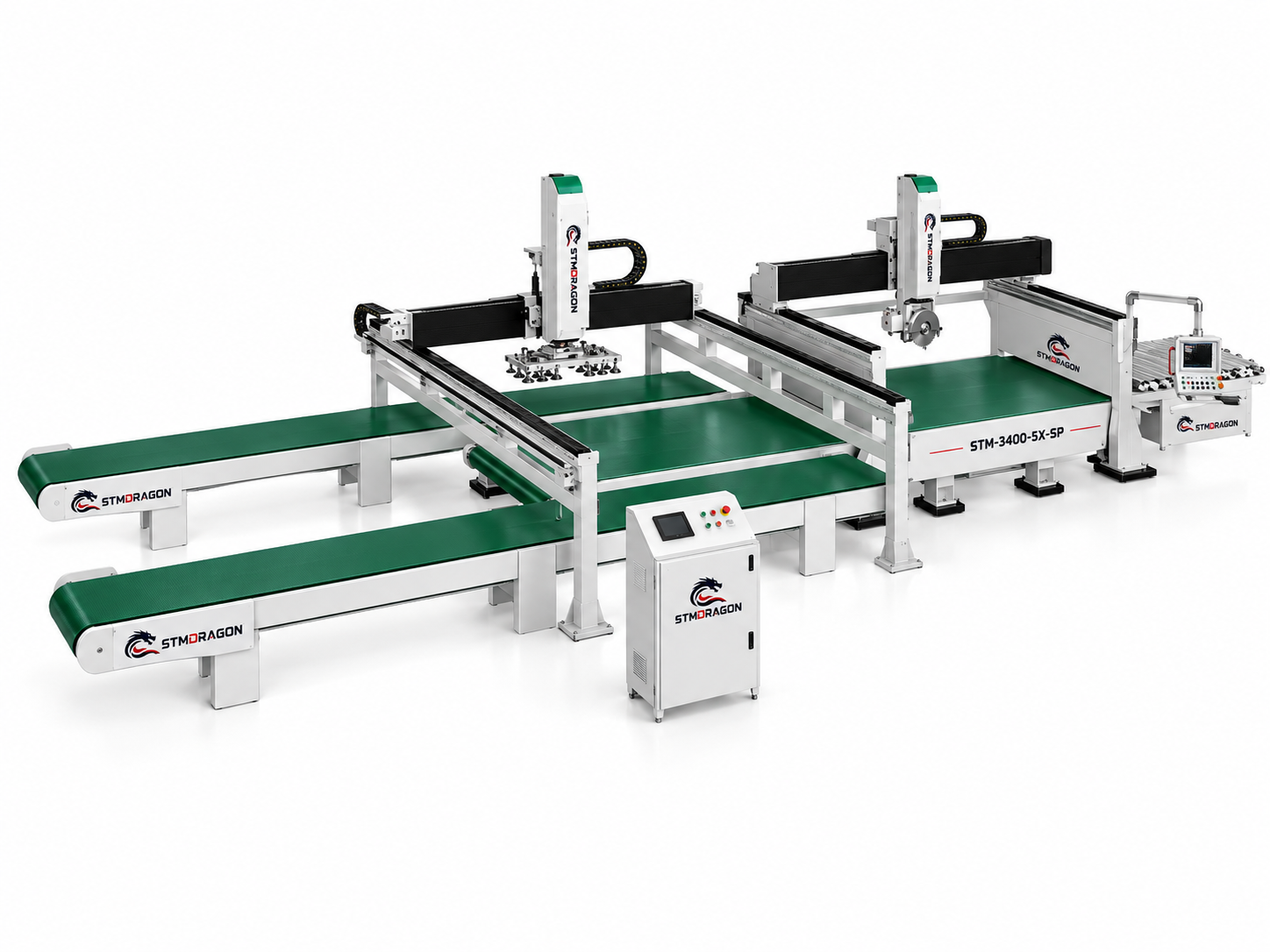

The STM-3400-5X-SP is an automated 5-axis CNC bridge saw and quartz stone processing production line designed for professional stone fabrication. The complete line combines an automatic loading machine, 5-axis bridge saw and automatic unloading system to streamline slab handling and cutting operations.

It supports stone cutting, profiling and special-shaped processing, making it suitable for quartz slabs and other stone materials used in kitchens, bathrooms, waterscapes, gardens, architectural projects and high-end residential applications.

Main Technical Details

  1. Model: STM-3400-5X-SP
  2. Machine Type: 5 Axis CNC Bridge Saw / Stone Processing Production Line
  3. Working Travel: 3400 × 2000 × 250 mm
  4. C Axis: ±365°
  5. A Axis: 0–90°
  6. Maximum Cutting Thickness: 80 mm
  7. Moving Speed: Up to 25 m/min
  8. Spindle: 22 kW air-cooled, 4000 RPM
  9. Control System: CutCam
  10. Motor: CutCam Servo
  11. Reducer: Japan SHIMPO
  12. Saw Blade Diameter: 450 mm
  13. Optional Worktable Feeding Capacity: Up to 1500 kg
  14. Maximum Feeding Speed: 10 m/min

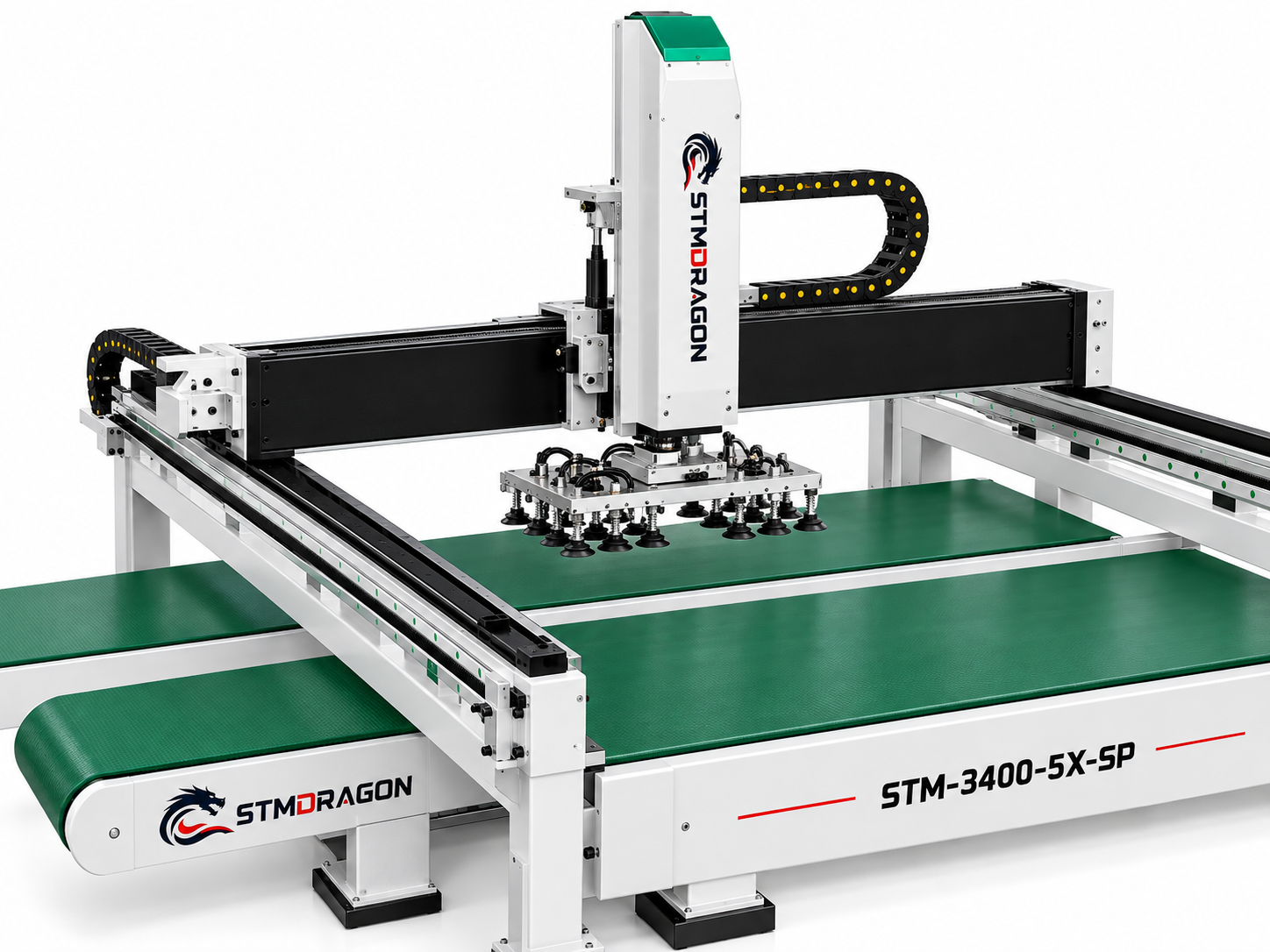

Automatic Loading System

The automatic loader transfers large stone slabs to the bridge saw for processing, helping reduce manual handling and improve production efficiency.

  1. Loader Working Travel: 3500 × 4000 × 1000 mm
  2. Loader Moving Speed: Up to 25 m/min
  3. A Axis: 0–90°
  4. Control System: CutCam
  5. Motor: CutCam Servo
  6. Reducer: Japan SHIMPO
  7. Maximum Suction Size: 3200 × 1200 mm
  8. Minimum Suction Size: 300 × 150 mm
  9. Loader Power: 8 kW
  10. Loader Weight: 3000 kg

Automatic Unloading

The production line can automatically unload processed stone according to the configured workflow, helping reduce unloading time, manual labor and handling errors.

Applications

Suitable for professional processing of:

  1. Quartz slabs
  2. Stone slabs
  3. Architectural stone
  4. Kitchen and bathroom stone components
  5. Custom stone shapes
  6. Garden and waterscape stone products
  7. High-end villa and residential stone projects

Machine Dimensions

  1. Bridge Saw Size: 6000 × 3500 × 3600 mm
  2. Loader Machine Size: 5000 × 5800 × 3800 mm

Warranty & Shipping

  1. Warranty: 1 Year Limited Warranty
  2. Technical Support: Free lifetime online technical support
  3. Overseas Service: Available according to service arrangement
  4. Shipping: 7–30 Days according to supplied information
  5. Production/Handling Time: To Be Confirmed for the exact STM-3400-5X-SP configuration

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 26500 kg
Dimensions 236 × 230 × 150 cm
Model

STM-3400-5X-SP
Machine Type

5 Axis CNC Bridge Saw / Stone Processing Production Line
Working Travel

3400 × 2000 × 250 mm
C Axis

±365°
A Axis

0–90°
Maximum Cutting Thickness

80 mm
Moving Speed

Up to 25 m/min
Spindle

22 kW air-cooled, 4000 RPM
Control System

CutCam
Motor

CutCam Servo
Reducer

Japan SHIMPO
Saw Blade Diameter

450 mm
Optional Worktable Feeding Capacity

Up to 1500 kg
Maximum Feeding Speed

10 m/min
Loader Working Travel

3500 × 4000 × 1000 mm
Loader Moving Speed

Up to 25 m/min
Maximum Suction Size

3200 × 1200 mm
Minimum Suction Size

300 × 150 mm
Loader Power

8 kW
Loader Weight

3000 kg
Bridge Saw Size

6000 × 3500 × 3600 mm
Loader Machine Size

5000 × 5800 × 3800 mm
Warranty

1 Year Limited Warranty
Technical Support

Free lifetime online technical support
Overseas Service

Available according to service arrangement
Shipping

7–30 Days according to supplied information
Production/Handling Time

To Be Confirmed for the exact STM-3400-5X-SP configuration
Request a quote

Request a quote for STMDRAGON STM-3400-5X-SP 5 Axis CNC Bridge Saw Quartz Stone Cutting Production Line.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-3400-5X-SP 5 Axis CNC Bridge Saw Quartz Stone Cutting Production Line

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-3400-5X-SP 5 Axis CNC Bridge Saw Quartz Stone Cutting Production Line?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
