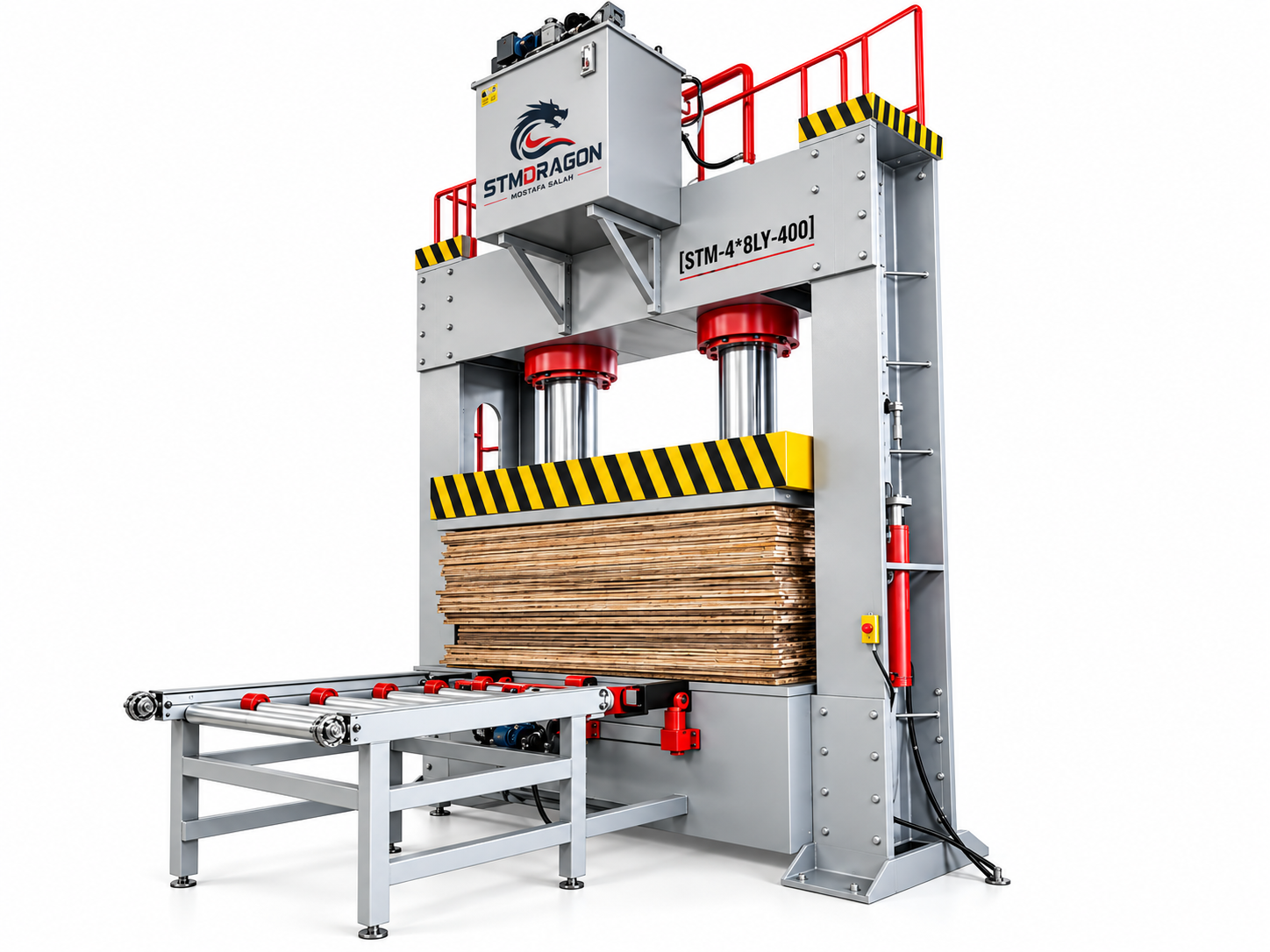

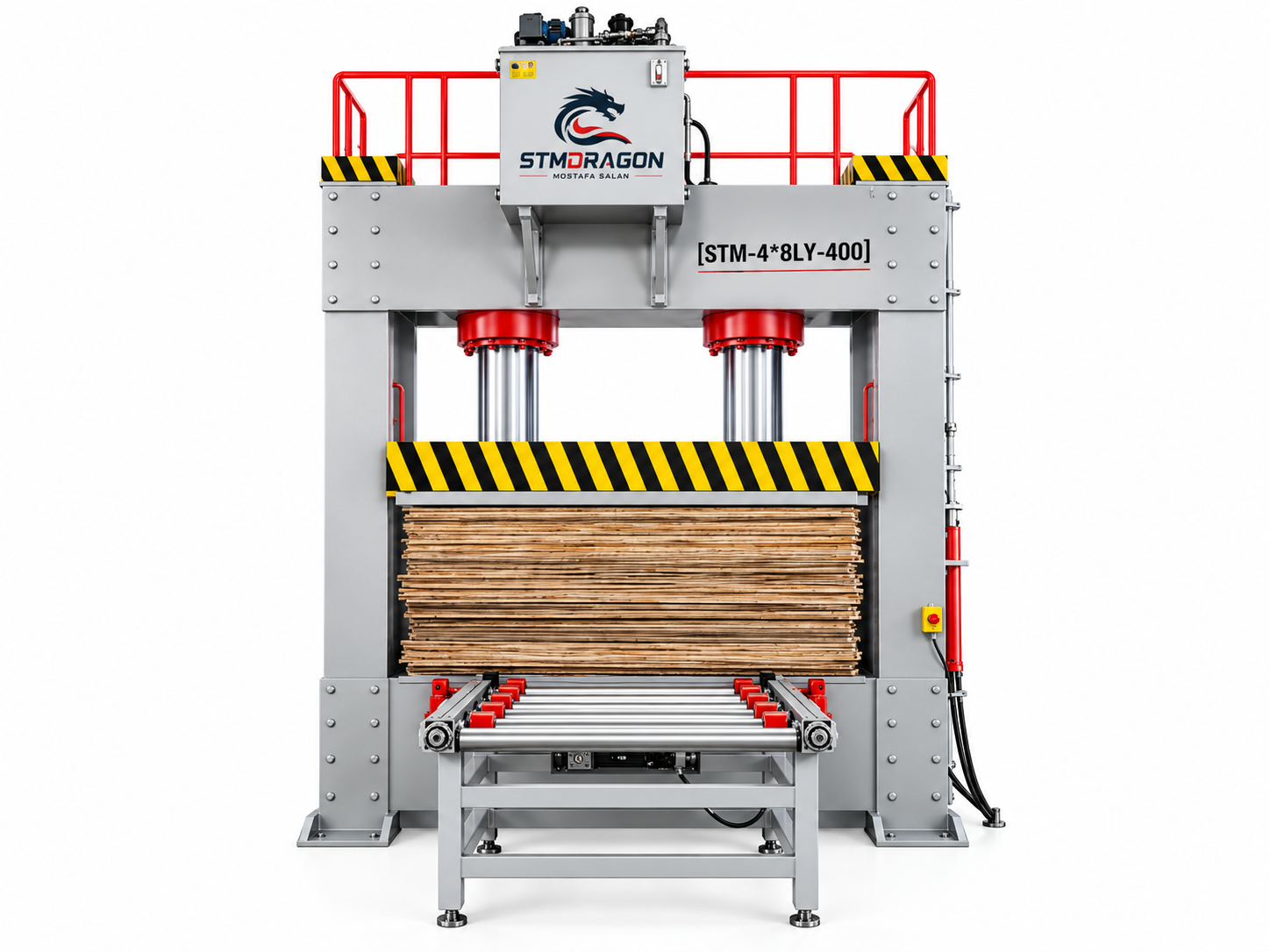

The STMDRAGON STM-4*8LY-400 is a 400T hydraulic cold press machine designed for pre-pressing plywood and wood panels before the hot-pressing process. It is suitable for plywood and woodworking production lines where controlled hydraulic pressure is required to consolidate and stabilize laminated wood materials before further processing.

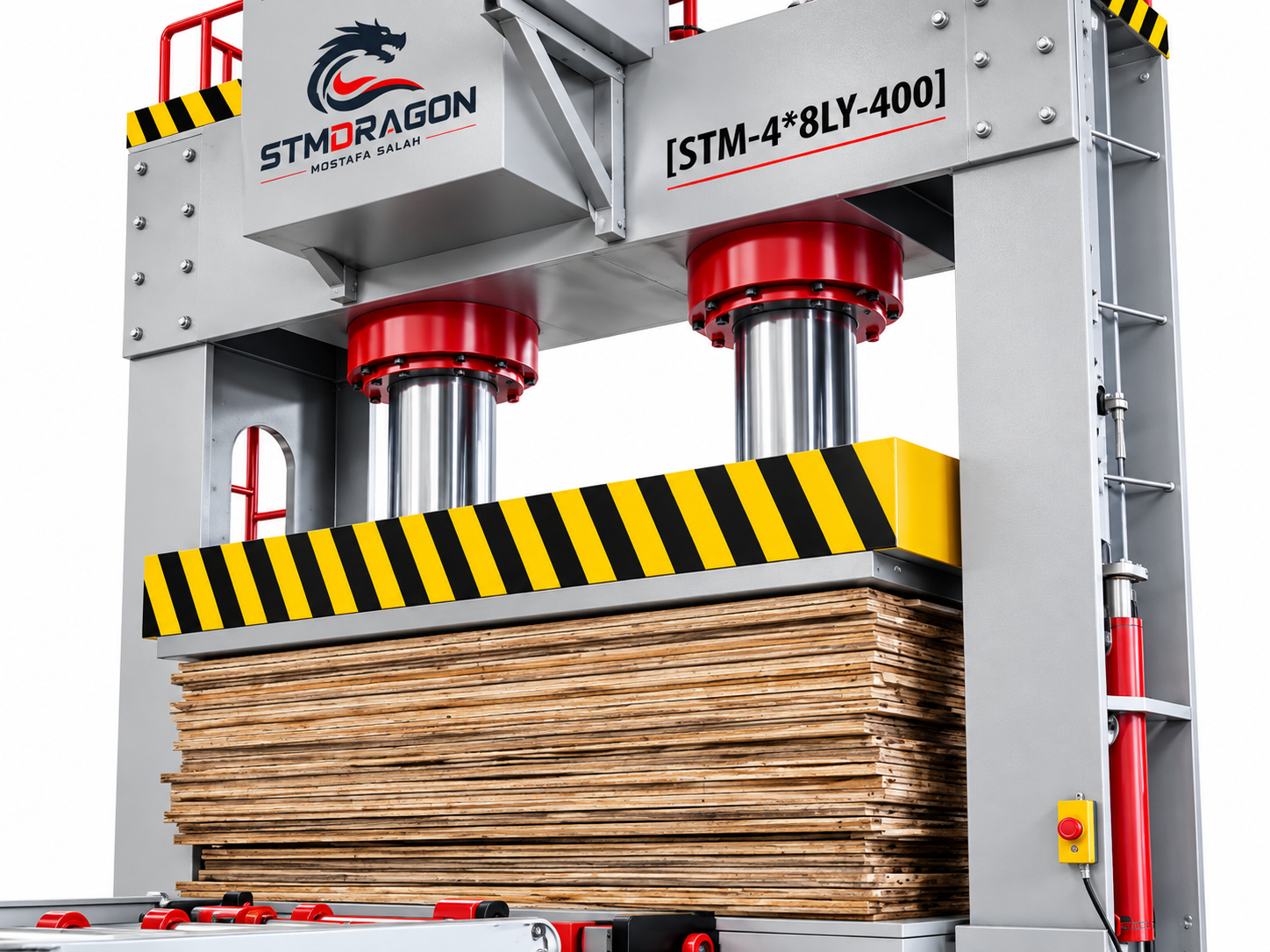

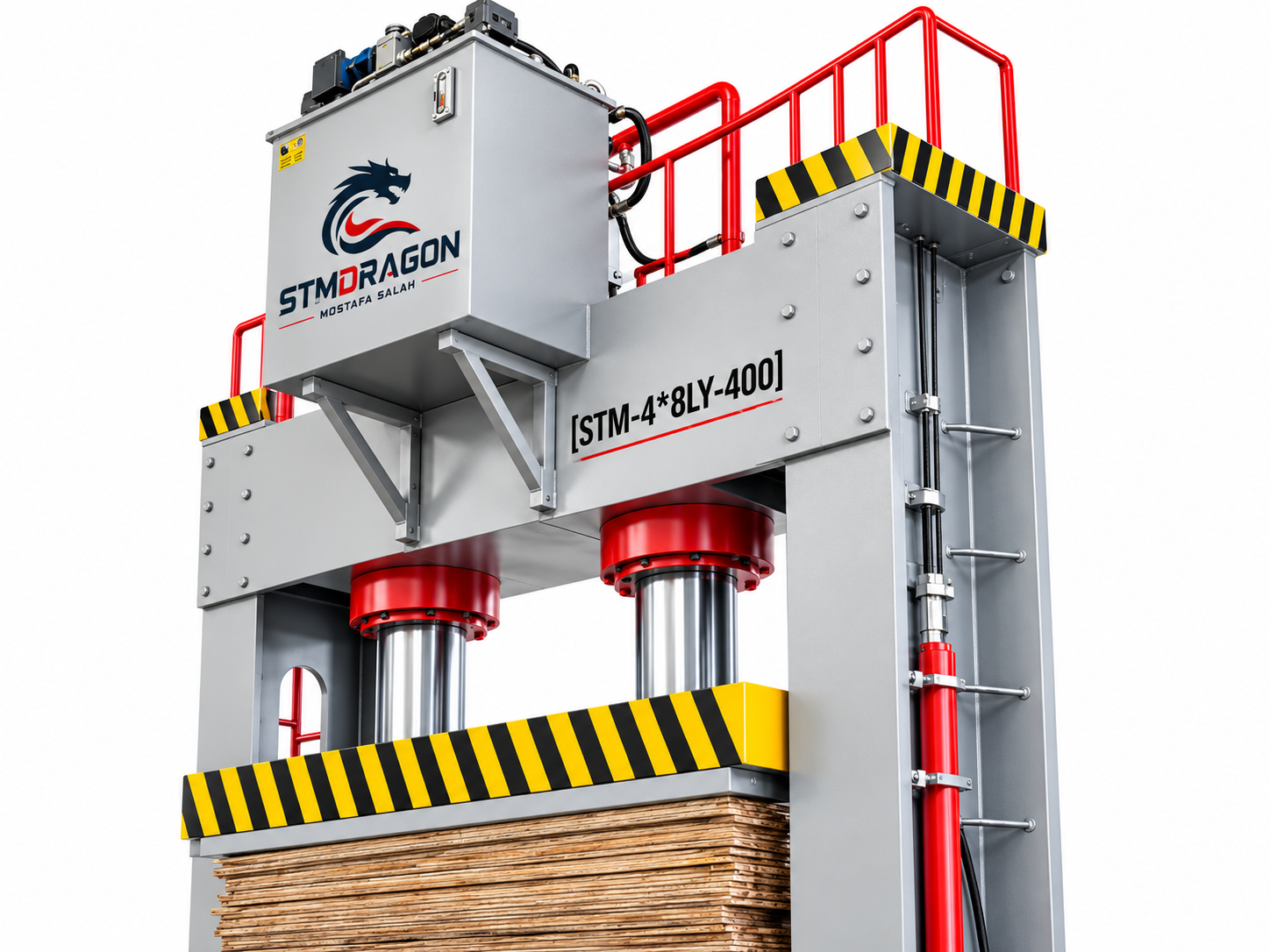

The machine uses a hydraulic pressing system with 4,000 kN nominal gross pressure, two main cylinders, and an upper-cylinder configuration. The working bench measures 2700 × 1380 mm, with an 1800 mm opening and 1050 mm cylinder stroke.
Key Specifications
- Model: STM-4*8LY-400
- Pressing Capacity: 400 Ton
- Nominal Gross Pressure: 4,000 kN
- Feeding Direction: Horizontal
- Working Bench: 2700 × 1380 mm
- Opening: 1800 mm
- Main Cylinders: 2 pcs
- Cylinder Diameter: 320 mm, Made in Wuxi
- Cylinder Stroke: 1050 mm
- Cylinder Position: Upper Side
- Pressurization: ≤25 MPa
- Side Helpful Cylinders: Φ800 mm × 2, as supplied in the source information
Main Application
The STM-4*8LY-400 is mainly used for plywood pre-pressing and wood panel manufacturing. The cold pressing stage helps consolidate assembled plywood layers before they are transferred to a hot press for final bonding and curing.
Important Buyer Information
This machine is intended for industrial woodworking and plywood production. The final machine configuration, hydraulic system details, electrical requirements, machine weight, and transportation dimensions should be confirmed with the supplier before ordering.
Warranty: 1 Year
Shipping: 7–30 Days according to the supplied information.
Production/Handling: To Be Confirmed for the exact STM-4*8LY-400 configuration.
