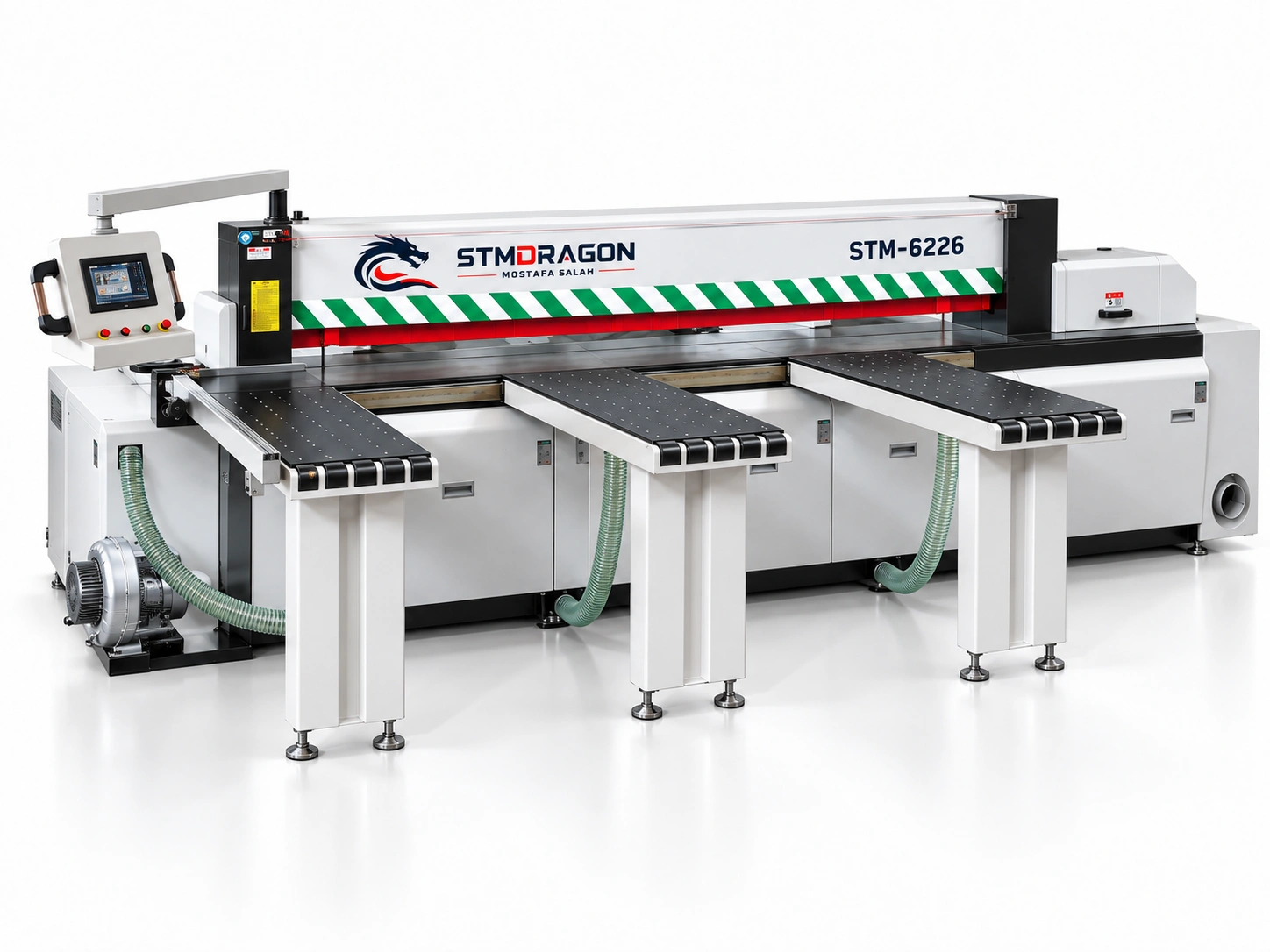

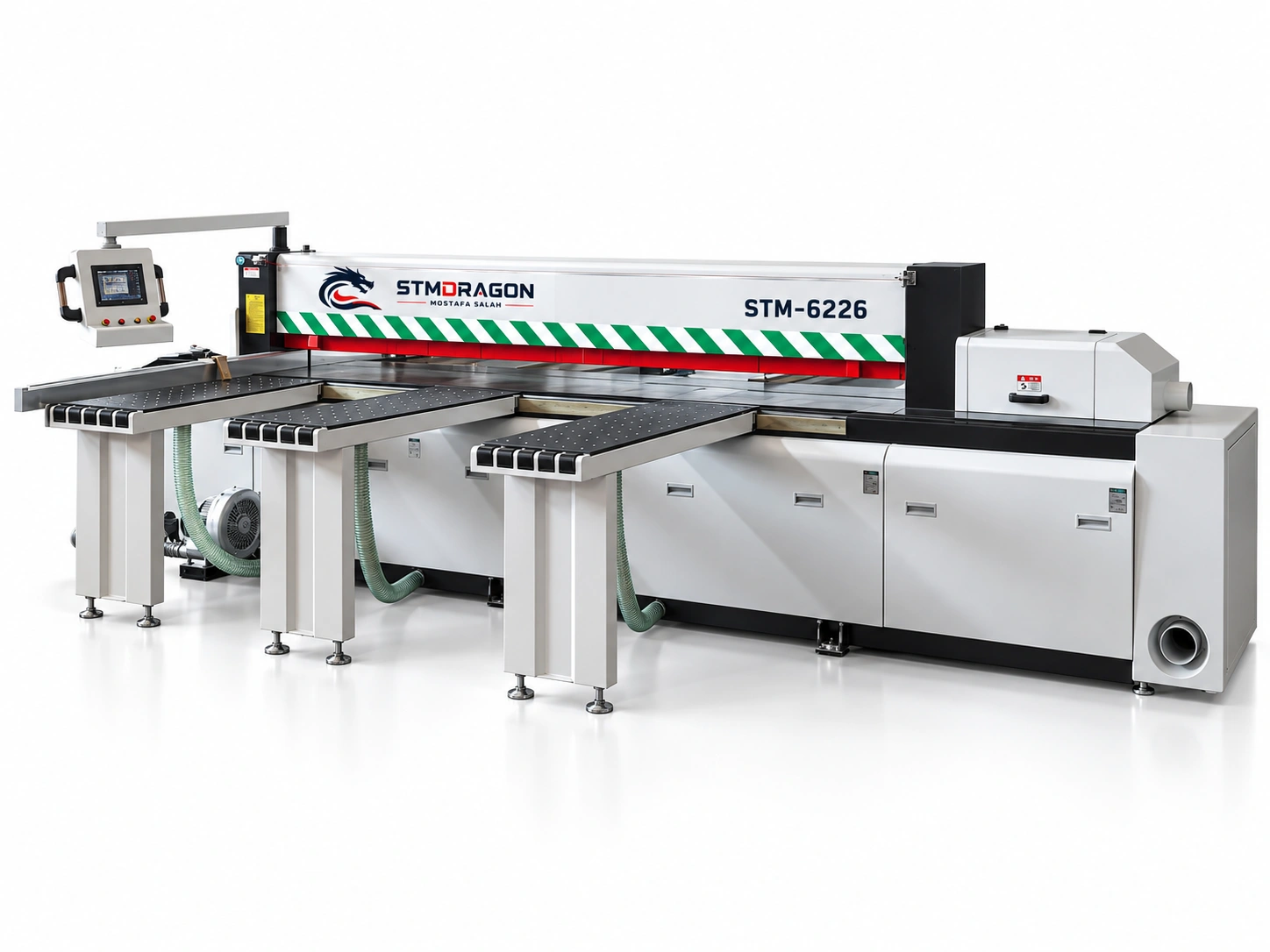

STMDRAGON STM-6226 Beam Saw Machine for Batch Panel Cutting
STMDRAGON STM-6226 Beam Saw Machine for Batch Panel Cutting - Image 2
STMDRAGON STM-6226 Beam Saw Machine for Batch Panel Cutting - Image 3
STMDRAGON STM-6226 Beam Saw Machine for Batch Panel Cutting - Image 4
STMDRAGON STM-6226 Beam Saw Machine for Batch Panel Cutting - Image 5
Panel Saws & Beam Saws

STMDRAGON STM-6226 Beam Saw Machine for Batch Panel Cutting

STMDRAGON STM-6226 is an industrial beam saw designed for efficient batch cutting of wood boards and panels. It features a 2600mm sawing length, up to 70mm cutting thickness, air flotation worktable, side clamping device, optimization software, and independent main and scoring saw control.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-6226 Beam Saw Machine for Batch Panel Cutting

ModelSTM-6226
Machine TypeBeam Saw / Panel Saw
Main ApplicationBatch cutting of boards and panels
Sawing Length2600mm
Maximum Sawing Thickness70mm
Main Saw Spindle Speed5600 rpm
Scoring Saw Spindle Speed8500 rpm
Main Saw Blade Diameter355mm
Main Saw Blade Shaft Diameter30mm
Scoring Saw Blade Diameter160mm
Scoring Saw Blade Shaft Diameter25.4mm
Main Saw Motor9 kW
Scoring Saw Motor1.5 kW
Variable Speed0–45 m/min by inverter
Operating Pressure5–7 kg/cm²
Workbench Height950mm
Net Weight3000kg
Machine Dimensions5200 × 3550 × 1750mm
Warranty1 Year
Shipping7–30 Days according to the supplied information
Production/HandlingTo Be Confirmed for the exact STM-6226 configuration
Applications

Applications: STMDRAGON STM-6226 Beam Saw Machine for Batch Panel Cutting

The STMDRAGON STM-6226 Beam Saw Machine is designed for high-efficiency batch cutting of boards and panels in furniture, woodworking, cabinet, and panel-processing applications. It provides a 2600mm sawing length and supports cutting thicknesses up to 70mm, making it suitable for repeated and production-oriented panel cutting.

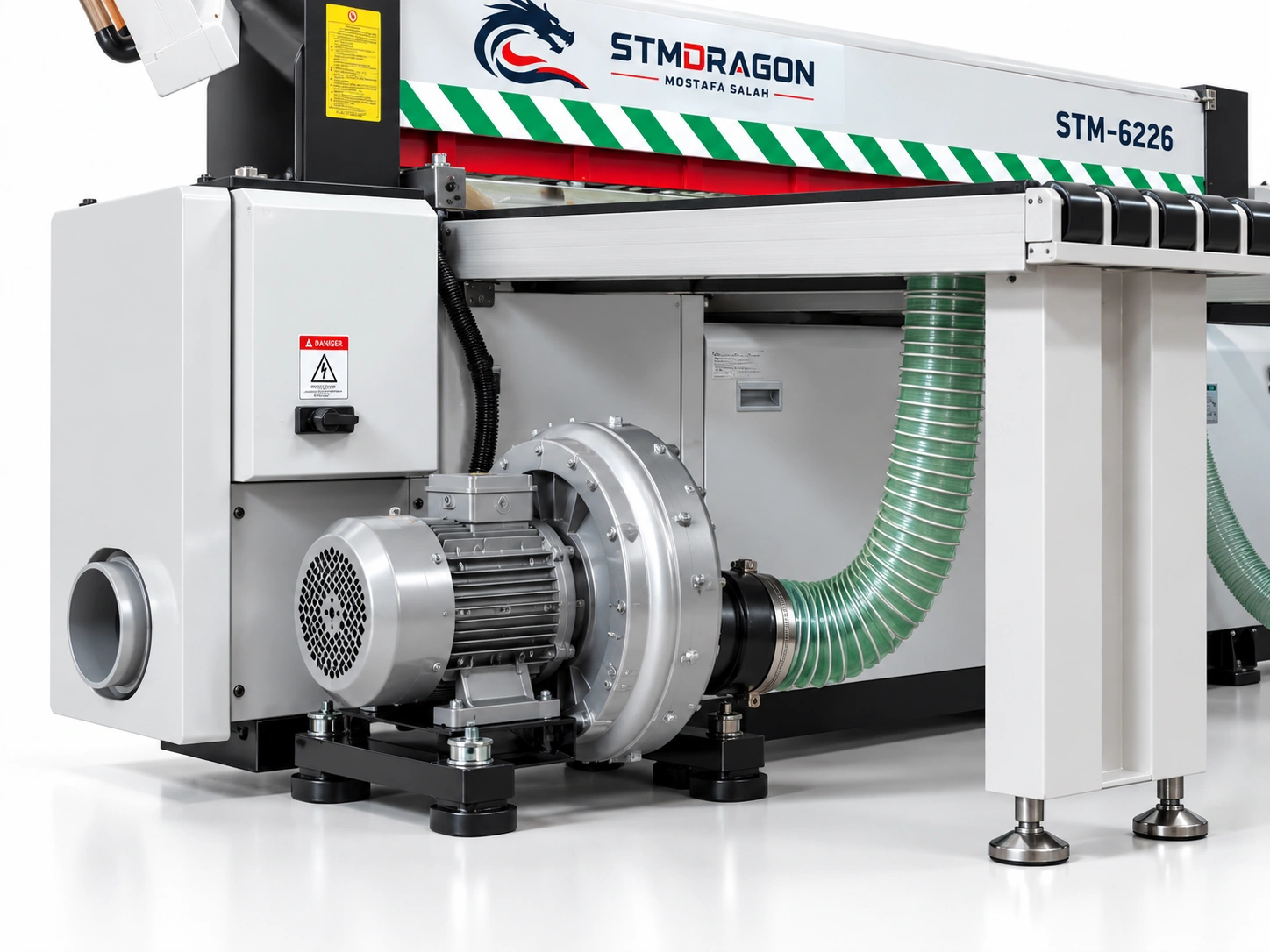

The machine is equipped with an air flotation worktable for easier board handling, a side clamping device for stable material positioning, and optimization software to help improve cutting efficiency and material utilization. The main saw and scoring saw are independently controlled for accurate cutting performance.

Key Product Details

  1. Model: STM-6226
  2. Machine Type: Beam Saw / Panel Saw
  3. Main Application: Batch cutting of boards and panels
  4. Sawing Length: 2600mm
  5. Maximum Sawing Thickness: 70mm
  6. Main Saw Spindle Speed: 5600 rpm
  7. Scoring Saw Spindle Speed: 8500 rpm
  8. Main Saw Blade Diameter: 355mm
  9. Main Saw Blade Shaft Diameter: 30mm
  10. Scoring Saw Blade Diameter: 160mm
  11. Scoring Saw Blade Shaft Diameter: 25.4mm
  12. Main Saw Motor: 9 kW
  13. Scoring Saw Motor: 1.5 kW
  14. Variable Speed: 0–45 m/min by inverter
  15. Operating Pressure: 5–7 kg/cm²
  16. Workbench Height: 950mm
  17. Net Weight: 3000kg
  18. Machine Dimensions: 5200 × 3550 × 1750mm

Control & Construction

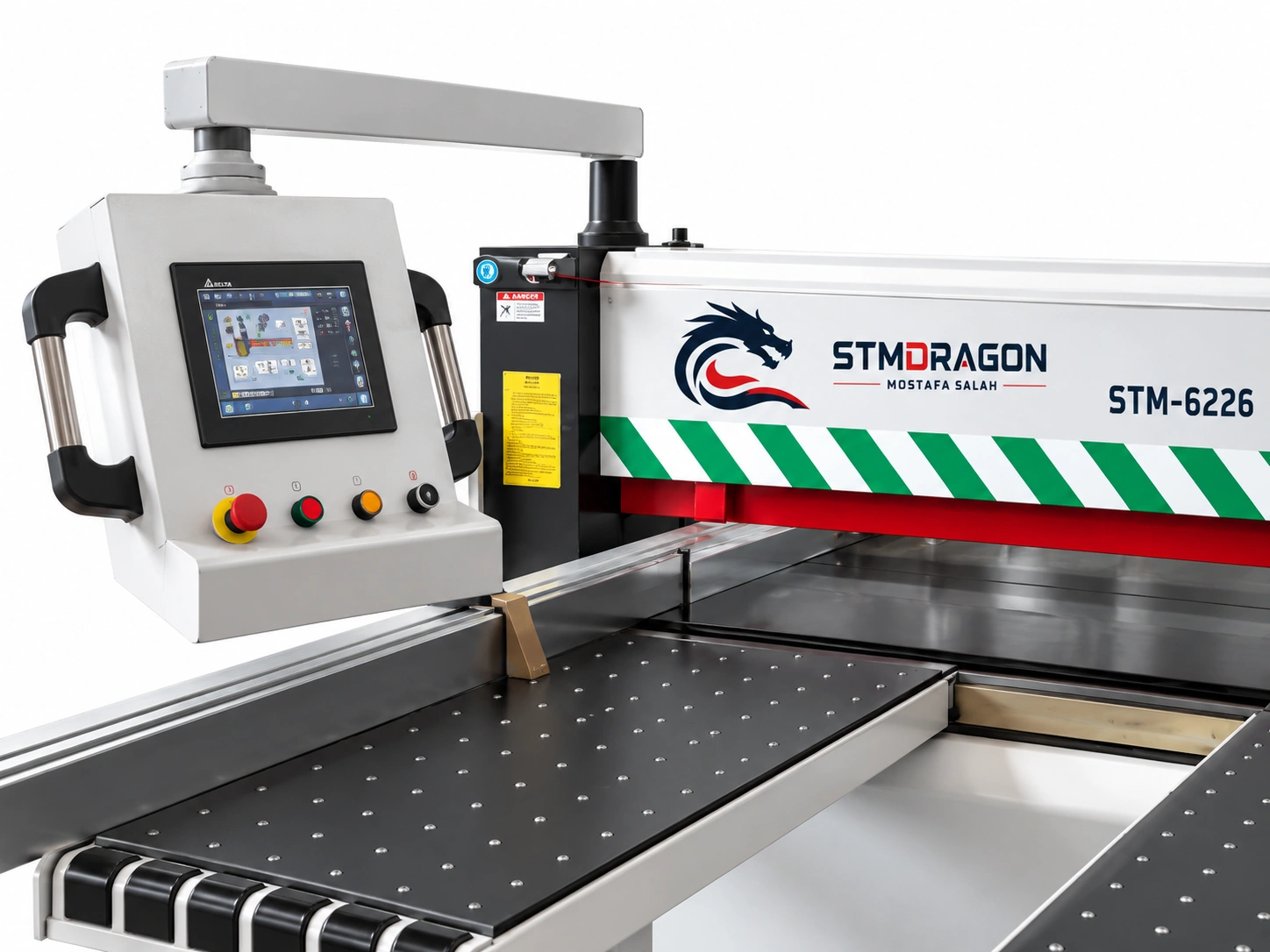

The machine uses a touch-screen control panel with a Taiwan Delta control system. Electrical components include Siemens and Omron components, Delta PLC, and CHNT switch. Taiwan-brand guide rails are used for high-precision movement, with the supplied information stating an accuracy error within 0.01mm per meter. Taiwan Delta servo motors provide precise and responsive operation.

Applications

Suitable for batch processing of wood boards and panels used in:

  1. Furniture manufacturing
  2. Cabinet production
  3. Woodworking factories
  4. Panel processing
  5. Interior and construction-related board cutting
  6. High-volume board cutting operations

Customization

The machine is available for customization, OEM, and ODM requirements according to the supplied manufacturer information.

Warranty & Shipping

  1. Warranty: 1 Year
  2. Shipping: 7–30 Days according to the supplied information
  3. Production/Handling: To Be Confirmed for the exact STM-6226 configuration

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 6614 kg
Dimensions 204.7 × 139.8 × 68.9 cm
Model

STM-6226
Machine Type

Beam Saw / Panel Saw
Main Application

Batch cutting of boards and panels
Sawing Length

2600mm
Maximum Sawing Thickness

70mm
Main Saw Spindle Speed

5600 rpm
Scoring Saw Spindle Speed

8500 rpm
Main Saw Blade Diameter

355mm
Main Saw Blade Shaft Diameter

30mm
Scoring Saw Blade Diameter

160mm
Scoring Saw Blade Shaft Diameter

25.4mm
Main Saw Motor

9 kW
Scoring Saw Motor

1.5 kW
Variable Speed

0–45 m/min by inverter
Operating Pressure

5–7 kg/cm²
Workbench Height

950mm
Net Weight

3000kg
Machine Dimensions

5200 × 3550 × 1750mm
Warranty

1 Year
Shipping

7–30 Days according to the supplied information
Production/Handling

To Be Confirmed for the exact STM-6226 configuration
Request a quote

Request a quote for STMDRAGON STM-6226 Beam Saw Machine for Batch Panel Cutting.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-6226 Beam Saw Machine for Batch Panel Cutting

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-6226 Beam Saw Machine for Batch Panel Cutting?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
