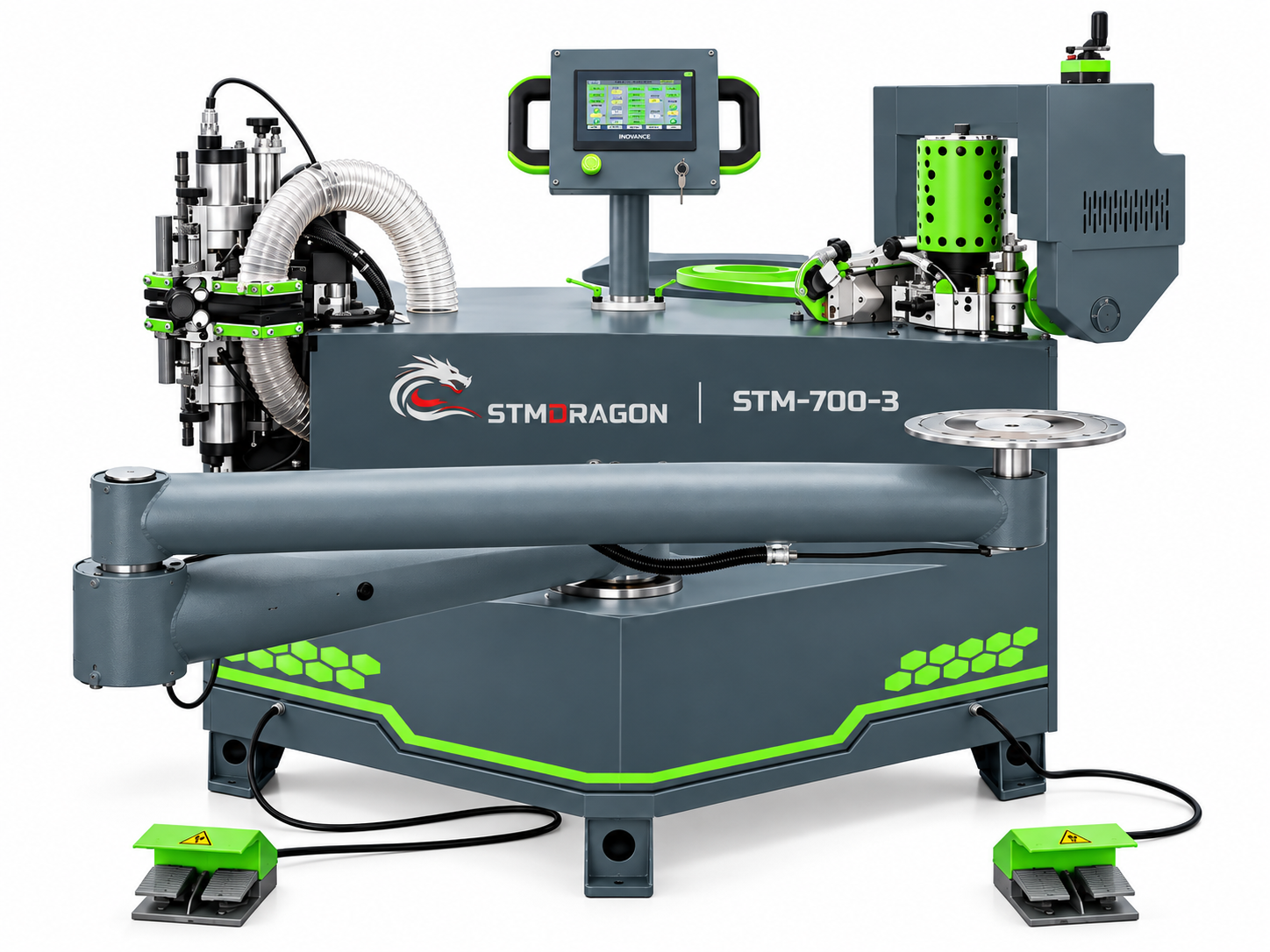

STMDRAGON STM-700-3 Fully Automatic Curve Edge Banding Machine for Furniture

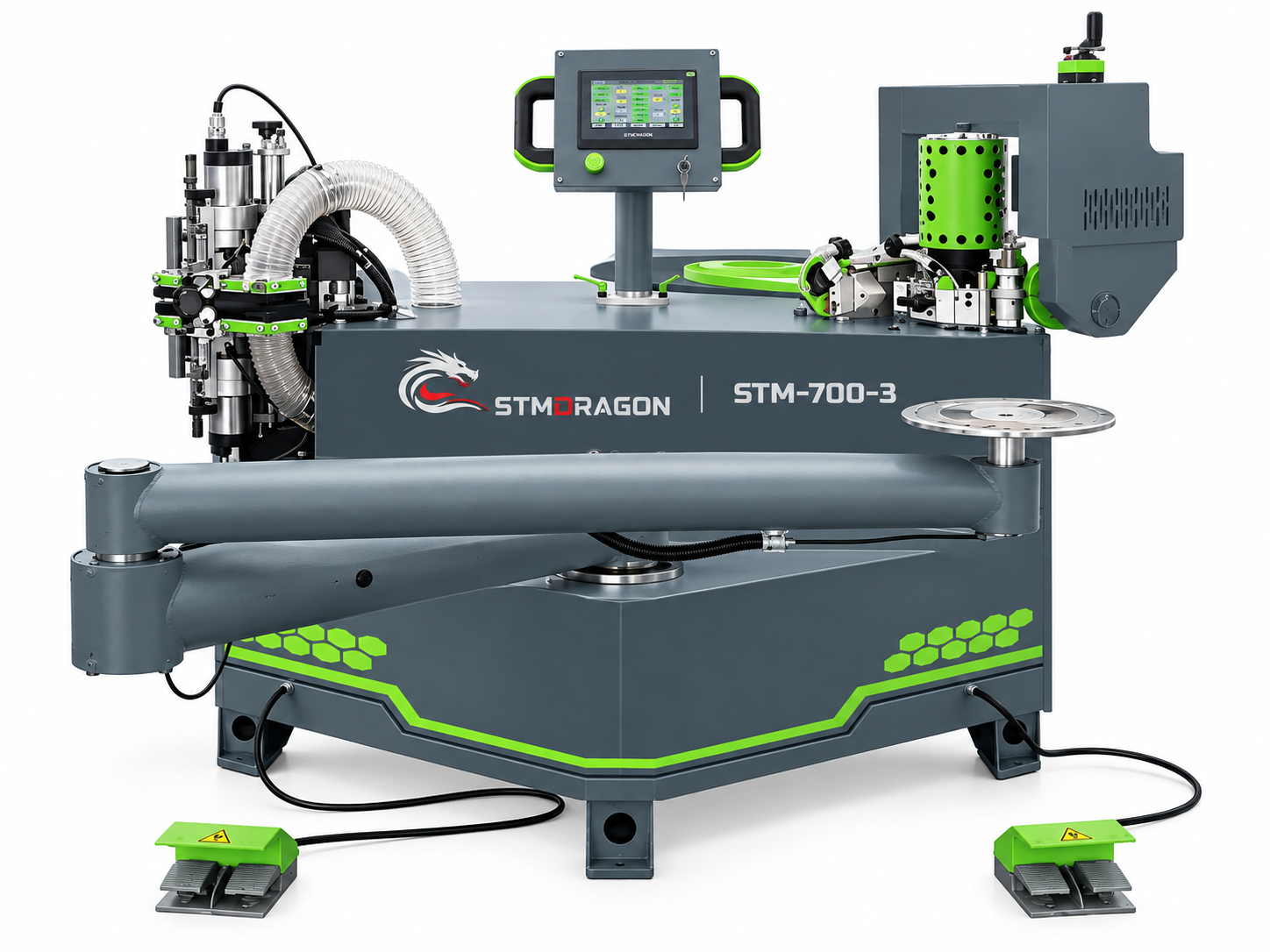

STMDRAGON STM-700-3 Fully Automatic Curve Edge Banding Machine for Furniture - Image 2

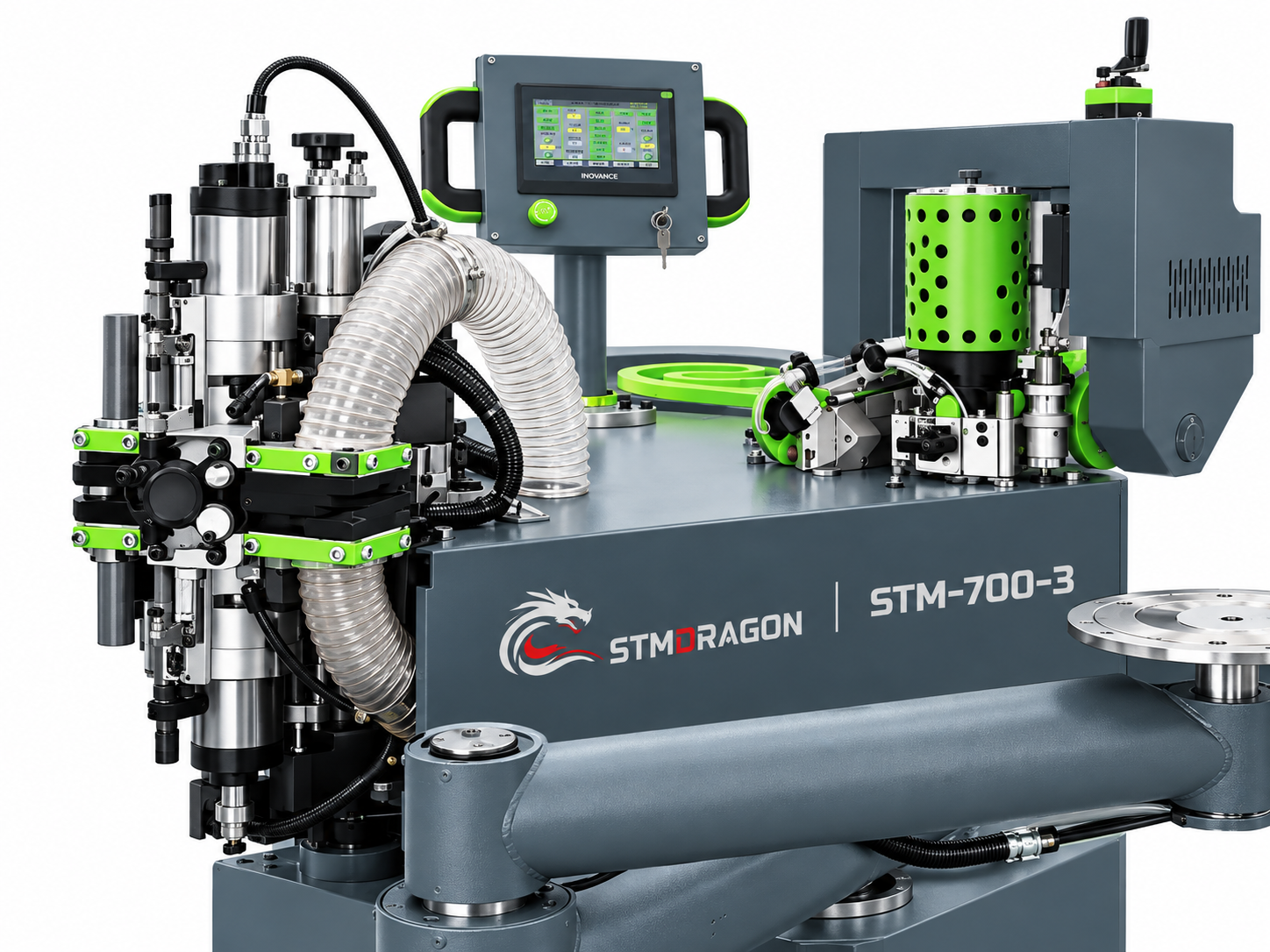

STMDRAGON STM-700-3 Fully Automatic Curve Edge Banding Machine for Furniture - Image 3

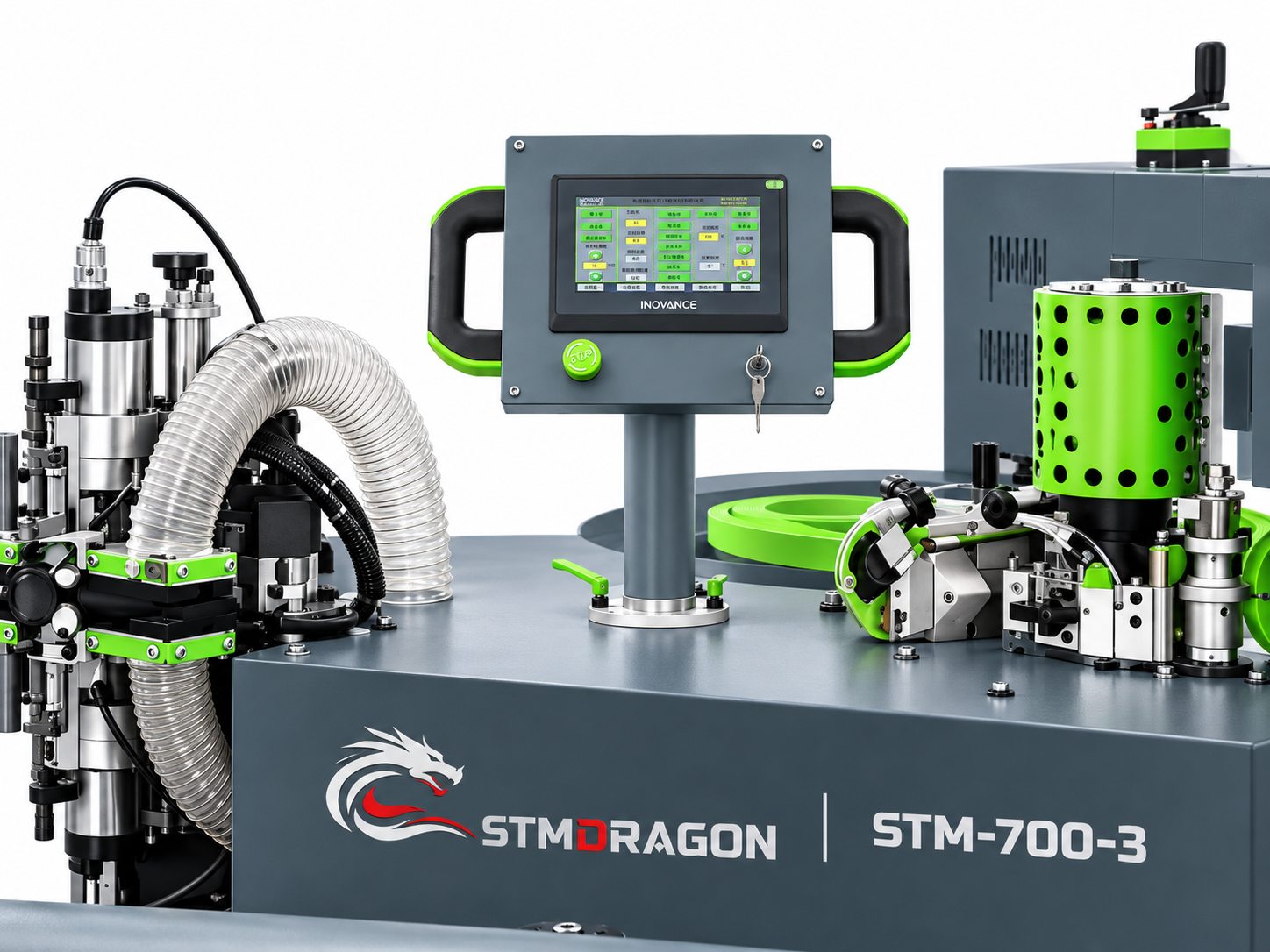

STMDRAGON STM-700-3 Fully Automatic Curve Edge Banding Machine for Furniture - Image 4
Edge Banding Machines

STMDRAGON STM-700-3 Fully Automatic Curve Edge Banding Machine for Furniture

The STMDRAGON STM-700-3 is a fully automatic curve edge banding machine designed for circular, oval, and rounded rectangular furniture panels. It supports PVC, plastic, melamine, and customized veneer edge banding with automatic feeding, laser jointing, gluing, trimming, profiling, and scraping.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-700-3 Fully Automatic Curve Edge Banding Machine for Furniture

ModelSTM-700-3
Machine TypeFully Automatic Curve Edge Banding Machine
Main ApplicationsFurniture, cabinets, wood doors, curved panels, and woodworking
Edge Banding MaterialsPVC, plastic, melamine, and veneer with customization
Edge Banding Width14–70 mm
Edge Banding Thickness0.5–3 mm, depending on material
Edge Banding SpeedUp to 30 cm/s
Profiling SpeedUp to 24 cm/s
Inner Arc Radius≥20 mm; special operation can process down to 4 mm radius
Glue TypePUR / EVA hot-melt adhesive
Glue Pot Capacity2600 ml
Glue Temperature110–210°C
Total Power6.5 kW
Air Pressure0.6–0.8 MPa
Gas Tank Capacity2 L
Head Rotation Angle15°
External Vacuum Cleaner ConnectionØ150 mm
Required Air Volume9800 m³/h
Power SupplyAC 110V / 220V / 240V / 380V / 400V, 1P/3P, 50/60Hz
Table Size1870 × 1400 mm
Packing Size187 × 140 × 153 cm
Machine Weight530 kg
Warranty1 Year
Production/Handling1–2 Days
Shipping7–30 Days according to the supplied information
Technical SupportFree lifetime technical support for end-users and dealers
Applications

Applications: STMDRAGON STM-700-3 Fully Automatic Curve Edge Banding Machine for Furniture

The STMDRAGON STM-700-3 Fully Automatic Curve Edge Banding Machine is designed for efficient edge finishing of curved and irregular furniture panels, including circular, oval, and rounded rectangular shapes. Its automatic feeding system reduces manual handling, while the laser jointing system helps achieve accurate edge strip positioning and clean joints.

The machine uses a dual-purpose PUR/EVA glue pot with a 2600 ml capacity and a temperature range of 110–210°C. Automatic profiling speed adjustment helps maintain smooth processing around corners while maintaining higher speed on straight sections. Rotatable processing heads allow the machine to adapt to different panel shapes and angles.

Key Features & Specifications:

  1. Model: STM-700-3
  2. Machine Type: Fully Automatic Curve Edge Banding Machine
  3. Main Applications: Furniture, cabinets, wood doors, curved panels, and woodworking
  4. Edge Banding Materials: PVC, plastic, melamine, and veneer with customization
  5. Edge Banding Width: 14–70 mm
  6. Edge Banding Thickness: 0.5–3 mm, depending on material
  7. Edge Banding Speed: Up to 30 cm/s
  8. Profiling Speed: Up to 24 cm/s
  9. Inner Arc Radius: ≥20 mm; special operation can process down to 4 mm radius
  10. Glue Type: PUR / EVA hot-melt adhesive
  11. Glue Pot Capacity: 2600 ml
  12. Glue Temperature: 110–210°C
  13. Total Power: 6.5 kW
  14. Air Pressure: 0.6–0.8 MPa
  15. Gas Tank Capacity: 2 L
  16. Head Rotation Angle: 15°
  17. External Vacuum Cleaner Connection: Ø150 mm
  18. Required Air Volume: 9800 m³/h
  19. Power Supply: AC 110V / 220V / 240V / 380V / 400V, 1P/3P, 50/60Hz
  20. Table Size: 1870 × 1400 mm
  21. Packing Size: 187 × 140 × 153 cm
  22. Machine Weight: 530 kg

The machine combines automatic feeding, laser precision jointing, automatic corner speed adjustment, gluing, trimming, profiling, scraping, and thickness adjustment to provide consistent edge finishing with reduced manual work.

Warranty: 1 Year

Production/Handling: 1–2 Days

Shipping: 7–30 Days according to the supplied information

Technical Support: Free lifetime technical support for end-users and dealers

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 1168 kg
Dimensions 73.6 × 55.1 × 60.2 cm
Model

STM-700-3
Machine Type

Fully Automatic Curve Edge Banding Machine
Main Applications

Furniture, cabinets, wood doors, curved panels, and woodworking
Edge Banding Materials

PVC, plastic, melamine, and veneer with customization
Edge Banding Width

14–70 mm
Edge Banding Thickness

0.5–3 mm, depending on material
Edge Banding Speed

Up to 30 cm/s
Profiling Speed

Up to 24 cm/s
Inner Arc Radius

≥20 mm; special operation can process down to 4 mm radius
Glue Type

PUR / EVA hot-melt adhesive
Glue Pot Capacity

2600 ml
Glue Temperature

110–210°C
Total Power

6.5 kW
Air Pressure

0.6–0.8 MPa
Gas Tank Capacity

2 L
Head Rotation Angle

15°
External Vacuum Cleaner Connection

Ø150 mm
Required Air Volume

9800 m³/h
Power Supply

AC 110V / 220V / 240V / 380V / 400V, 1P/3P, 50/60Hz
Table Size

1870 × 1400 mm
Packing Size

187 × 140 × 153 cm
Machine Weight

530 kg
Warranty

1 Year
Production/Handling

1–2 Days
Shipping

7–30 Days according to the supplied information
Technical Support

Free lifetime technical support for end-users and dealers
Request a quote

Request a quote for STMDRAGON STM-700-3 Fully Automatic Curve Edge Banding Machine for Furniture.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-700-3 Fully Automatic Curve Edge Banding Machine for Furniture

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-700-3 Fully Automatic Curve Edge Banding Machine for Furniture?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
