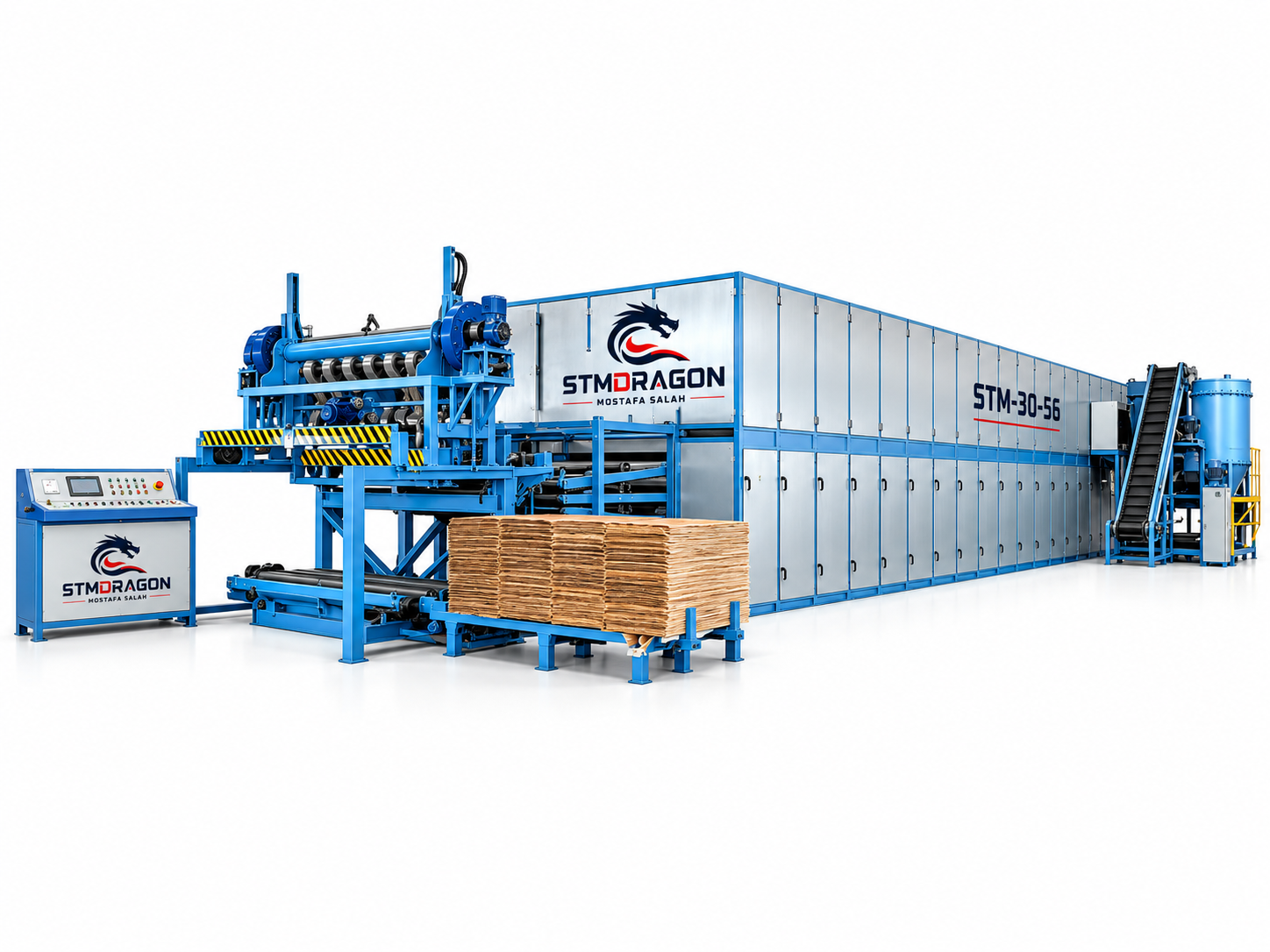

TheSTMDRAGON STM-30-56 Plywood Veneer Dryer Machine is designed for continuous drying of fresh wood veneer used in plywood production, veneer processing, and wooden furniture manufacturing. The machine provides controlled heating, drying, and cooling to help achieve consistent veneer moisture content and improve veneer quality before further processing.
Ключевые характеристики
- Модель: STM-30-56
- Тип машины: Industrial Plywood Veneer Dryer
- Рабочая ширина: 3000 mm
- Deck: 2
- Roller: Q235B steel pipe, Ø89 mm
- Heating Area: 52 m
- Cooling Area: 4 m
- Suitable Wood: Rubber wood
- Veneer Size: 1270 × 640 mm
- Veneer Thickness: 1.8–2.2 mm
- Veneer Moisture: Fresh veneer approx. 90%, reduced to approx. 0–15%
- Drying Temperature: 140–180°C adjustable
- Drying Capacity: 80–100 m³/24h
- Veneer Transport Speed: 5–22 m/min
- Heating Material: Waste wood
- Automatic Control: Temperature control and speed regulation system
Main Power Configuration
- Hot Air Blowers: 5.5 kW × 13
- Traction Motors: 7.5 kW × 2, frequency controlled
- Cold Air Blower: 5.5 kW × 1
- Air Intake Fans: 15 kW × 2
- Biomass Burner: 6 ton capacity, 16.5 kW
- Total Installed Power: 138.5 kW
- Approx. Electricity Consumption: 80 kWh/hour
Применения
The STM-30-56 is suitable for:
- Plywood production lines
- Wood veneer drying
- Veneer peeling and processing
- Wooden furniture manufacturing
- Industrial wood processing
- Continuous veneer production
The controlled heating and drying process helps reduce moisture-related problems such as deformation, mildew, and inconsistent veneer quality.
Machine Size & Weight
- Approx. Installation Space: 61 × 9 × 3 m
- Approx. Total Weight: 110 tons / 242,500 lbs
- Shipping Containers: 5 × 40FT HQ
- Размеры упаковки: To Be Confirmed before freight calculation
Warranty & Shipping
- Гарантия:1 год
- Доставка: 7–30 Days according to the supplied information
- Production/Handling Time: To Be Confirmed for the exact STM-30-56 configuration
- This product requires shipping: Yes
